Соединители с закрытым концом
- Category: Terminals >>>
- Supplier: Suzhou Huihua Electronic Tech. Co. Ltd.
Share on (62333201191):
Product Overview
Description
Product Description

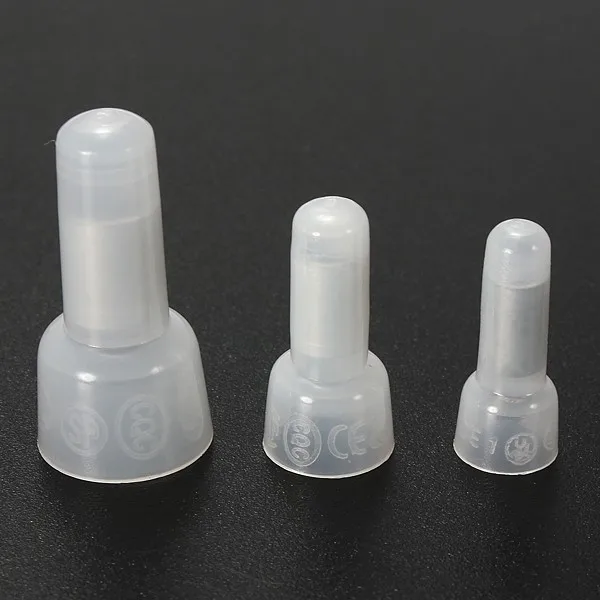

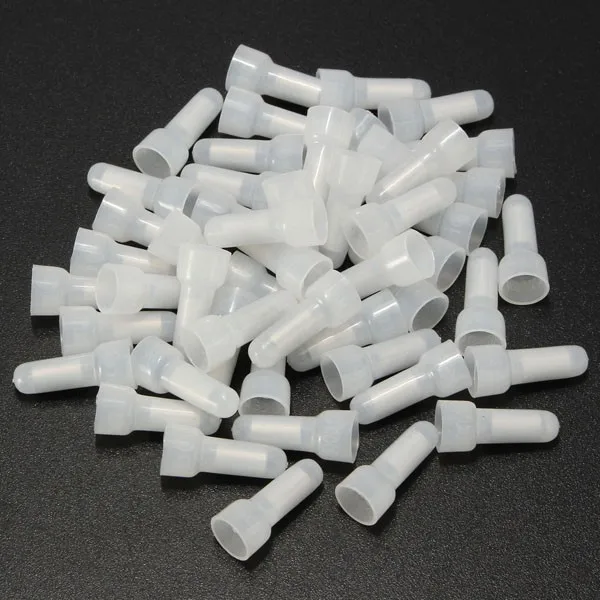

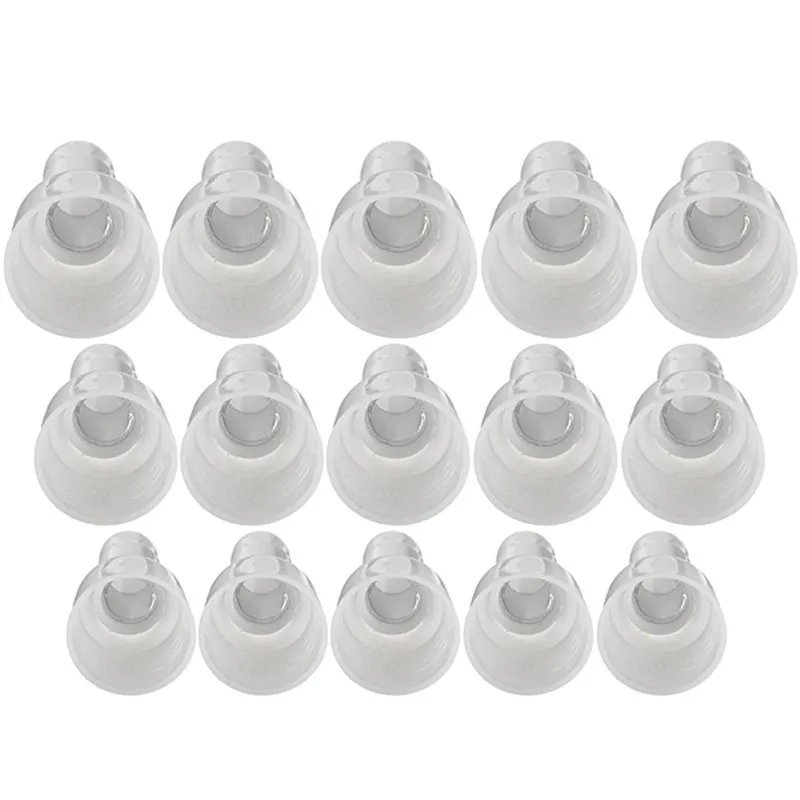

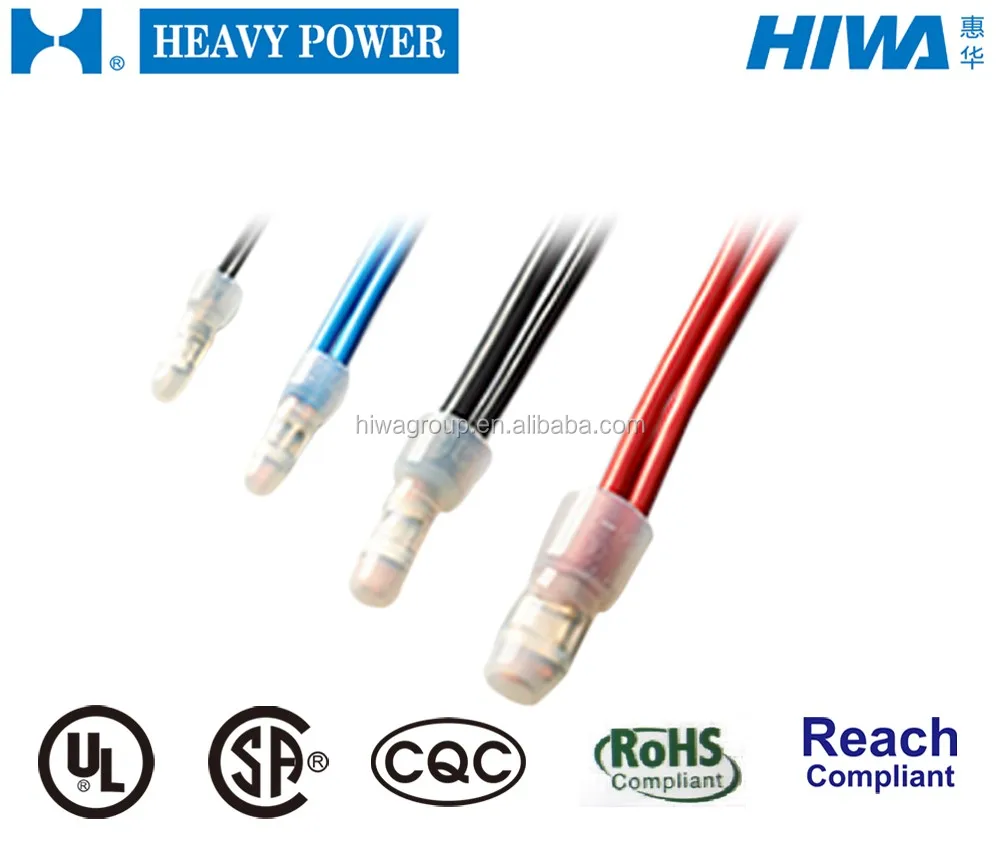

Closed-End Wire Connectors-Standard
Characters-Standard
|
|
|
|
|

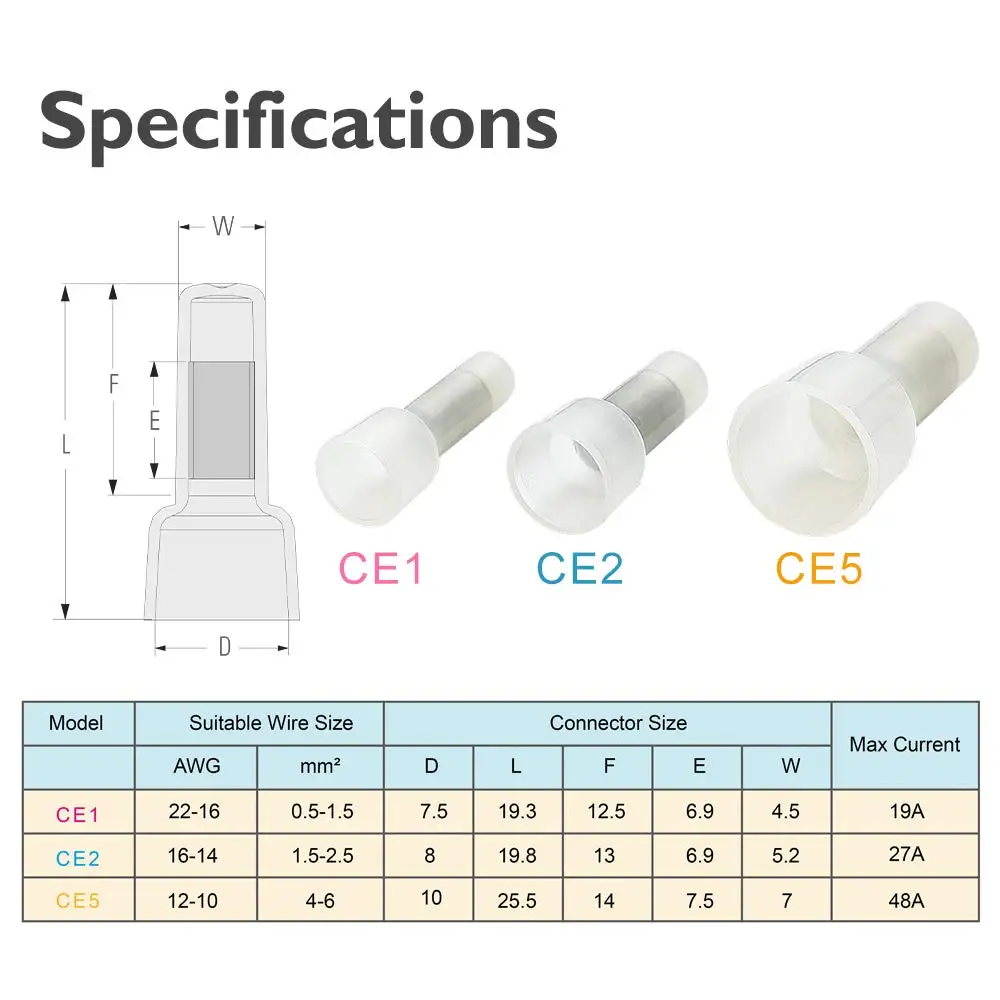

Figure Dimension Information(Standard):
| Model No. | Color | Electrical Ratings | Wire Range | Packing |
| CE1 | Nature | 300 V Max. | 22-18 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 2 #20 w/1 #18 | 30,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE1X | Nature | 300 V Max. | 22-18 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 2 #20 w/1 #18 | 30,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE2 | Nature | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 1 #18 w/1 #14 | 20,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE2X | Nature | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 1 #18 w/1 #14 | 20,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE5 | Nature | 300 V Max. | 22-10 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 3 #14 | 10,000 Pcs/Ctn | ||
| Min. 2 #22 w/2 #18 | ||||
| CE5X | Nature | 300 V Max. | 20-12 AWG, Cu | 1,000 Pcs/Bag |
| 105°C (221°F) | Max. 3 #14 | 10,000 Pcs/Ctn | ||
| Min. 2 #18 | ||||
| CE8 | Nature | 300 V Max. for UL | 16-10 AWG, Cu | 500 Pcs/Bag |
| 600 V Max. for CSA & CQC | Max. 2 #16 w/1 #10 | 6,000 Pcs/Ctn | ||
| 105°C (221°F) | Min. 2 #16 w/1 #12 |
Closed-End Wire Connectors- High Temperature
Charaters-High Temperature
|
|
|
|
|
Figure Dimension Information-High Temperature.
| Model No. | Color | Electrical Ratings | Wire Range | Packing |
| CE2 150°C | White | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 150°C (302°F) | Max. 1 #18 w/1 #14 | 20,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE2X 150°C | White | 300 V Max. | 22-14 AWG, Cu | 1,000 Pcs/Bag |
| 150°C (302°F) | Max. 1 #18 w/1 #14 | 20,000 Pcs/Ctn | ||
| Min. 2 #22 | ||||
| CE5 150°C | White | 300 V Max. | 22-10 AWG, Cu | 1,000 Pcs/Bag |
| 150°C (302°F) | Max. 3 #14 | 10,000 Pcs/Ctn | ||
| Min. 2 #22 w/2 #18 | ||||
| CE5X 150°C | White | 300 V Max. | 20-12 AWG, Cu | 1,000 Pcs/Bag |
| 150°C (302°F) | Max. 3 #14 | 10,000 Pcs/Ctn | ||
| Min. 3 #18 |
