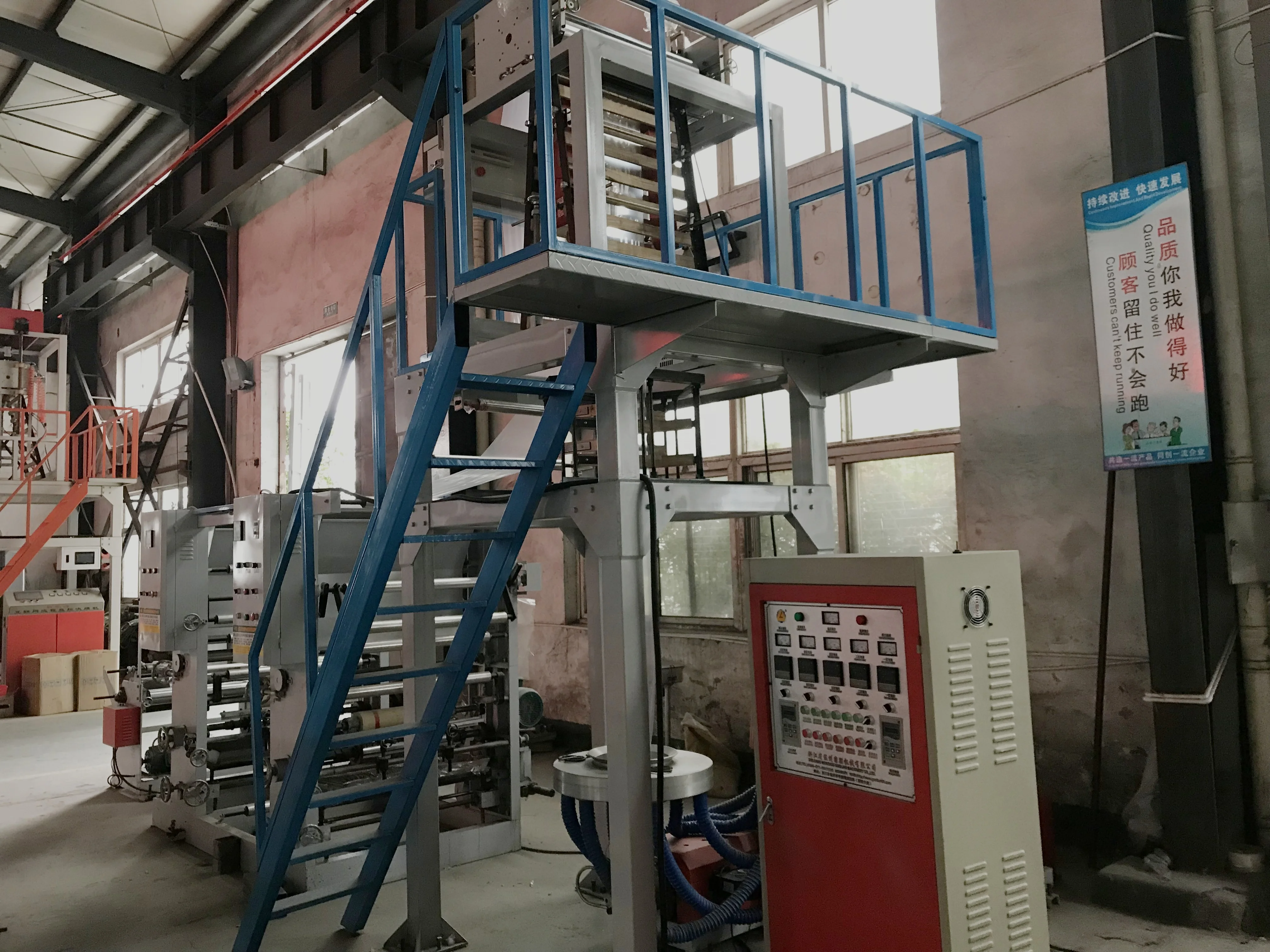

Low Density High Speed Rotary Die Head Three Layer Co extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine
Low Density High Speed Rotary Die Head Three Layer Co-extrusion PE Film Blowing Machine

Low Density High Speed Rotary Die Head Three Layer Co extrusion PE Film Blowing Machine

Share on (62333577605):


Price:$8,000.00 - $50,000.00

Quantity:


Product Overview

Description


Product Description



Characteristics:

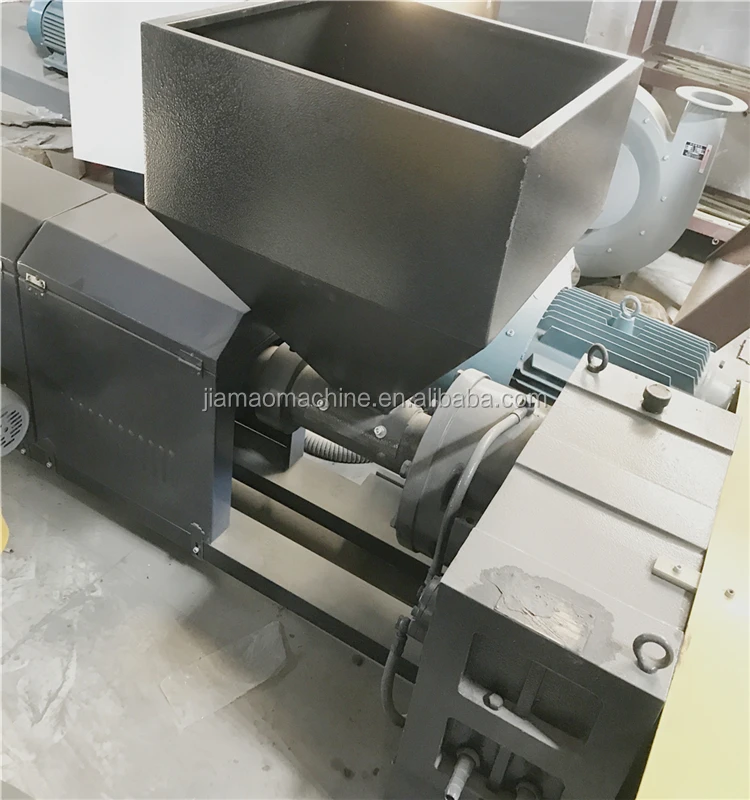

The extruder, cylinder and screw are made of quality alloy steel with optimum hardness and strong corrossion resistance after nitrogen treatment and precsion processing. The specially-designed screw enhances plasticizing of film, which helps increasing the production capacity. It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish and so on.

Main Parameter:

Model

SJ-45/FM600

SJ-55/FM800

SJ-60/FM1000

Screw diameter

45mm

55mm

60mm

Screw ratio

L/D28:1

L/D28:1

L/D28:1

Screw speed

10-100r/min

10-100r/min

10-100r/min

Main motor power

11kw

15kw

18.5kw

Main output

35kg/h

50kg/h

65kg/h

Max.folding width of film

600mm

800mm

1000mm

Film Thickness

0.006-0.10mm

0.006-0.10mm

0.006-0.10mm

Total Power

22kw

26kw

32kw

Machine weight

2000kg

2200kg

2800kg

Overall dimension (L*W*H)

4.2*1.8*3.6m

4.4*2.0*4.0m

4.6*2.3*4.2m

1623212226182420151719

Packaging & Shipping


Company Information


OUR CERTIFICATES

CE_

Contact Us

timg

FAQ

—— 01 ——

Are you a factory or trading company?

We are an actual factory and manufacturer in the line of printing and packing machine for 20 years.

—— 02 ——

Where is your factory loaded?

Located in Rui’an city, Zhejiang Province. By plane around 1.5h from Shanghai to WENZHOU AIRPORT. By high speed train around 4 hours from Shanghai to RUIAN STATION.

—— 03 ——

Which industries are widely used in of your machine?

Food packaging, industry and agriculture, etc.

—— 04 ——

How about the payment term?

Our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery. 100% irrevocable L/C at sight is acceptable.

—— 05 ——

What about your main market?

Our products be sold well in 30 provinces in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.

—— 06 ——

How does your factory do regarding quality control?

GREAT WALL always attaches great impartance to quality controlling from the every beginning to the every end. We have passed SGS and CE certifications.

—— 07 ——

What about the after sales service?

We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.






—— 08 ——

What about the installation services?

We will provide the technical for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

—— 09 ——

What are your products advantages?

1. Top quality 2. Large output 3.Delivery timely 4. Competitive price     5.Satisfying service  6. Old and experienced factory



—— 10 ——

Can we order on alibaba.com?

Of course! We will give you more discount if you order on alibaba.com.
