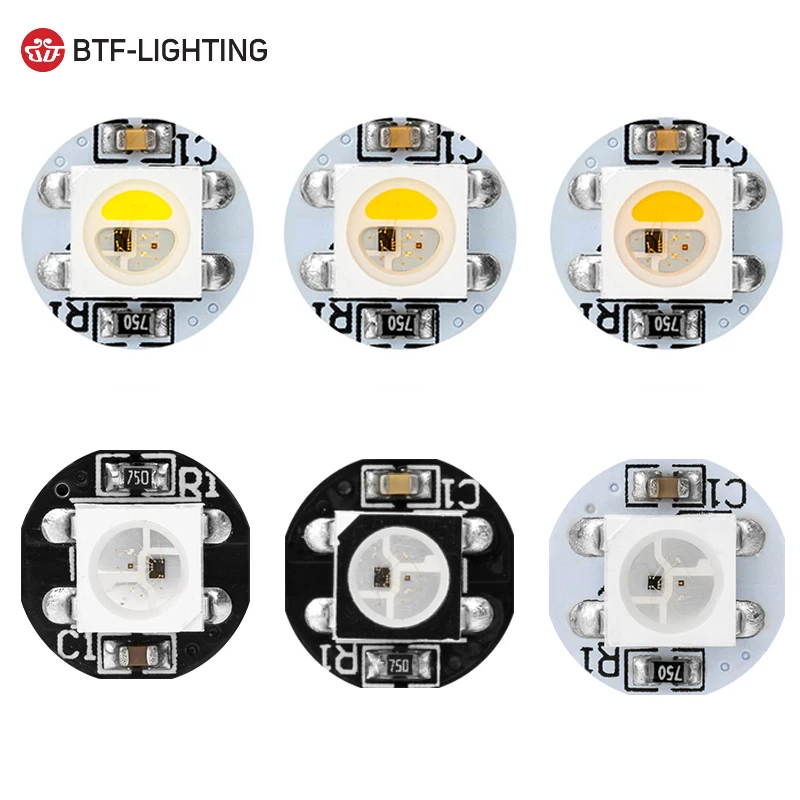

Circle board WS2812B smd led chip SK6812 rgbw rgbww rgbnw
- Category: SMD LED >>>
- Supplier: Shenzhen Btf-Lighting Technology Co. Limited
Share on (62333584862):
Product Overview
Description

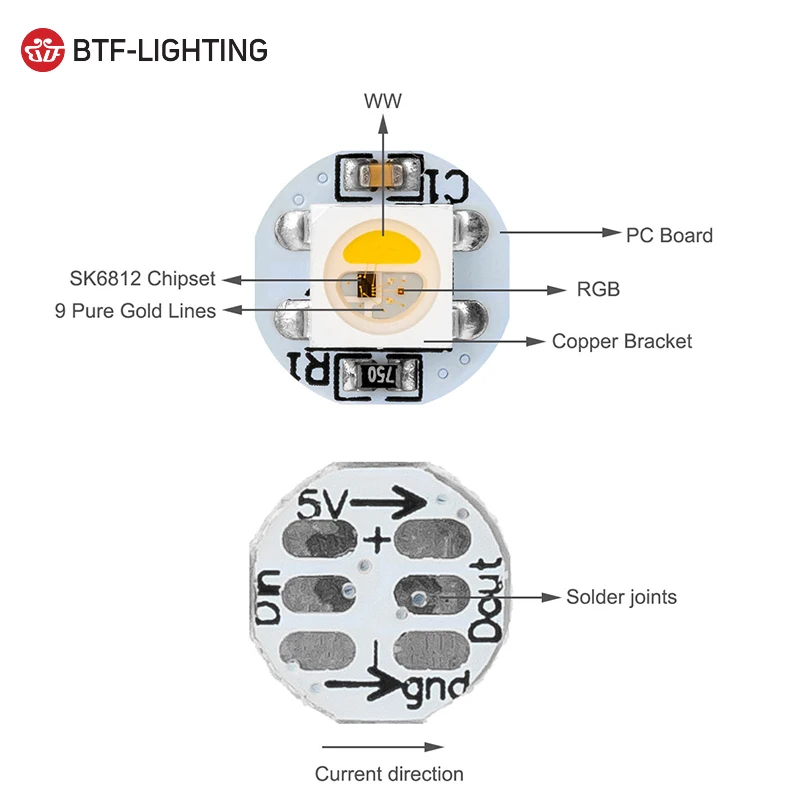

Circle board WS2812B smd led chip SK6812 rgbw rgbww rgbnw
Item name: SK6812 RGBW
IC type: 1 IC drive 1 led chip ( build in IC ) (The default is the chips with IC integration)
R: RED Wavelength: 620-630NM
G: GREEN Wavelength: 515-525NM
B: BLUE Wavelength: 460-470NM

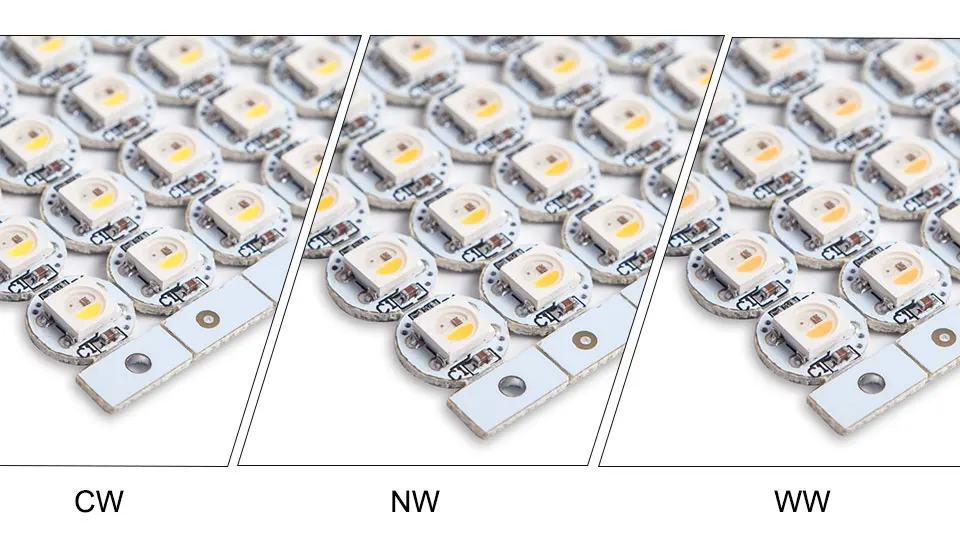

W: White Color

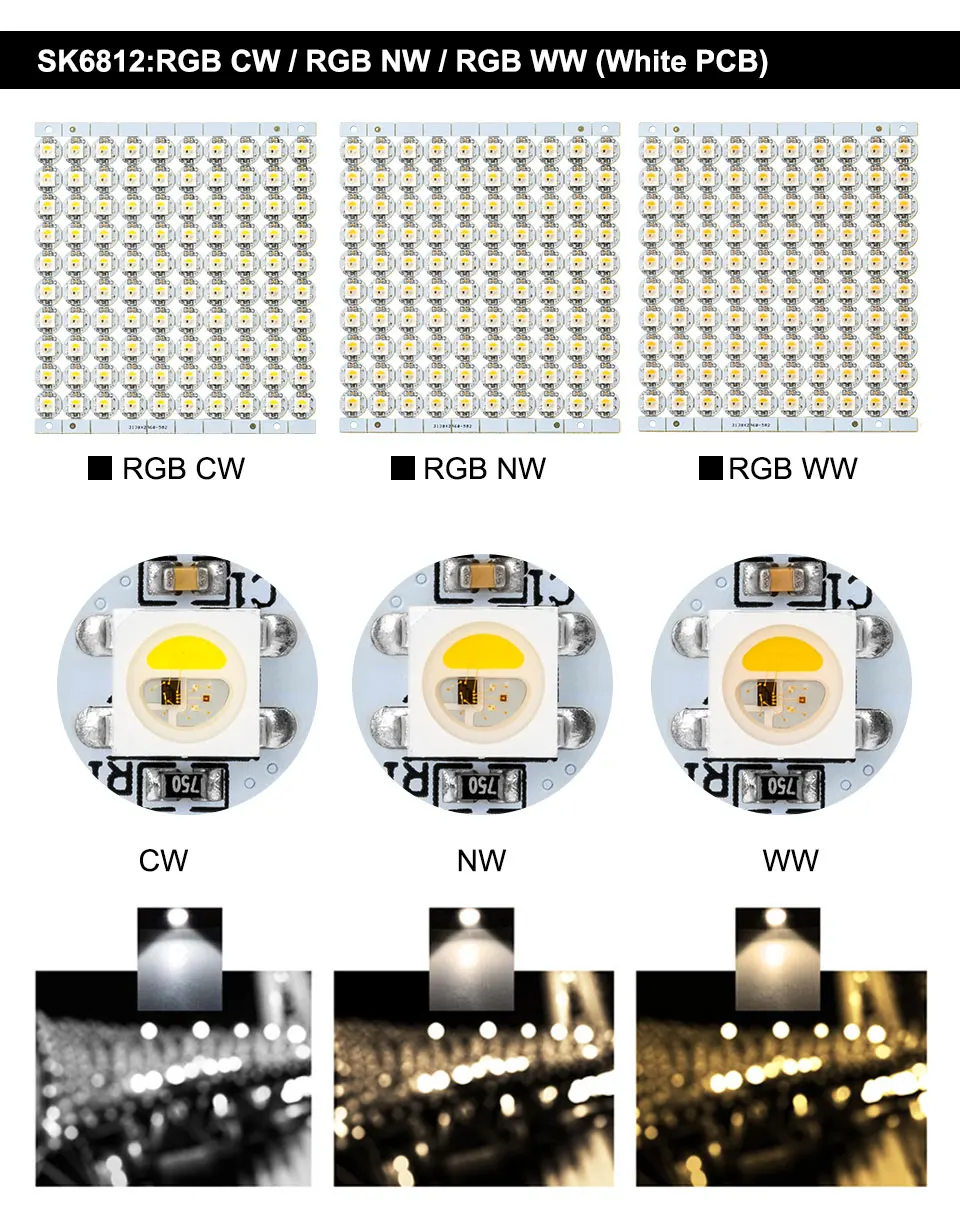

RGBW = RGB + White (6000-7000k)
RGBWW = RGB + Warm White (2700-3000k)
RGBNW = RGB + Natural White (4000-4500k)
Description: Top SMD Type 0.2 Watt

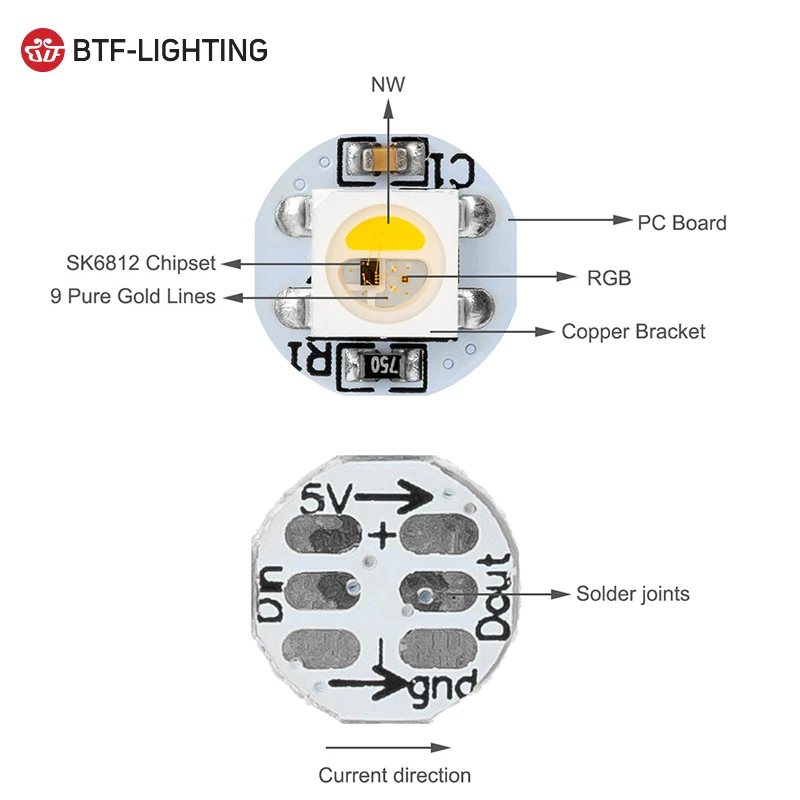

PIN configuration:
NO 1, Symbol: VDD Function description: Power supply LED.
NO 2, Symbol: DOUT Function description: Control data signal output.
NO 3, Symbol: VSS Function description: Ground.
NO 4, Symbol: DIN Function description: Control data signal input.
Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V )
Power supply voltage Symbol: VDD Range: +3.5V - +5.5V
Logic input voltage Symbol: V(IN) Range: -0.5 – VDD+0.5V
Working temperature Symbol: Topt Range:-40 - +85 ℃
Storage temperature Symbol: Tstg Range: -50 - +150 ℃
ESD pressure Symbol: V(ESD) Range: 4KV

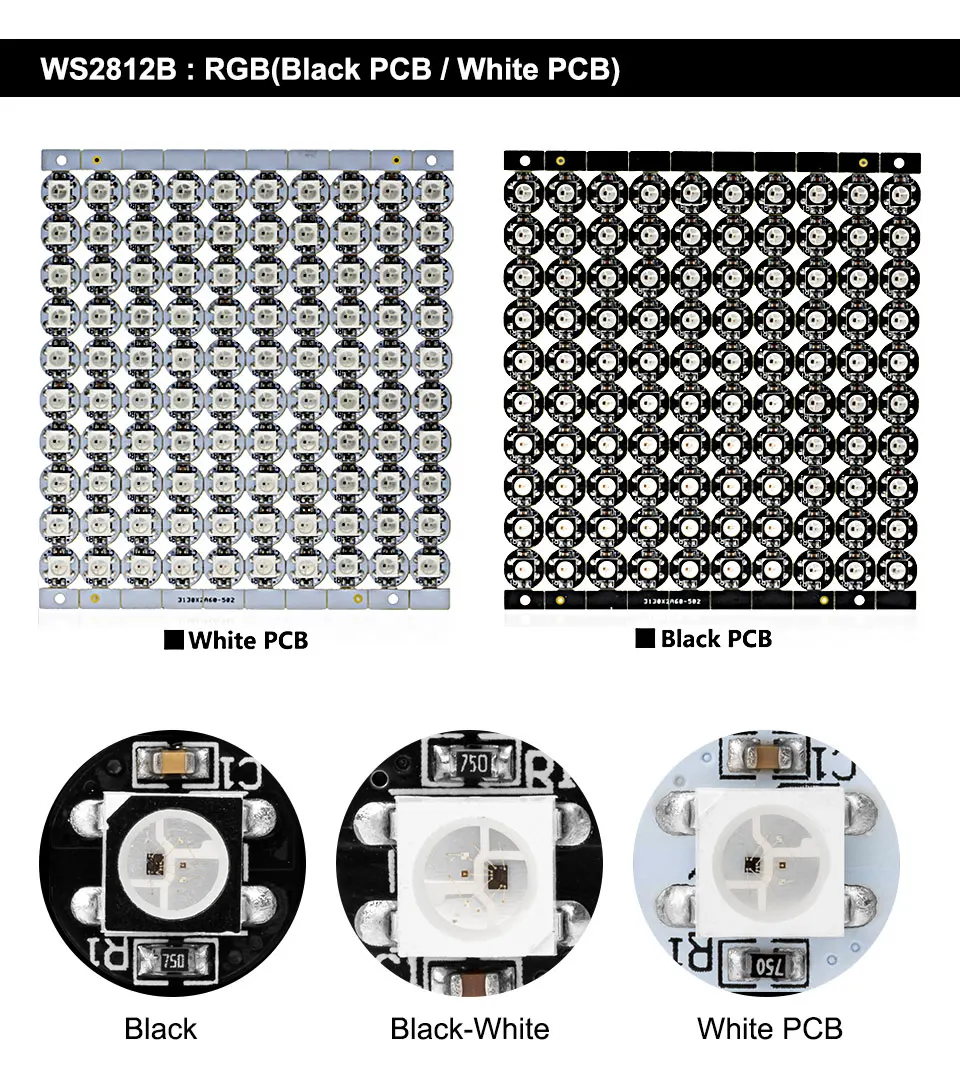

Item name: WS2812B RGB
IC type: 1 IC drive 1 led chip ( build in IC ) (The default is the chips with IC integration)
R: RED Wavelength : 620-630NM Luminous intensity: 550-700MCD
G: GREEN Wavelength : 515-530NM Luminous intensity: 1100-1400MCD
B: BLUE Wavelength : 465-475NM Luminous intensity: 200-400MCD
Description: Top SMD Type 0.2 Watt

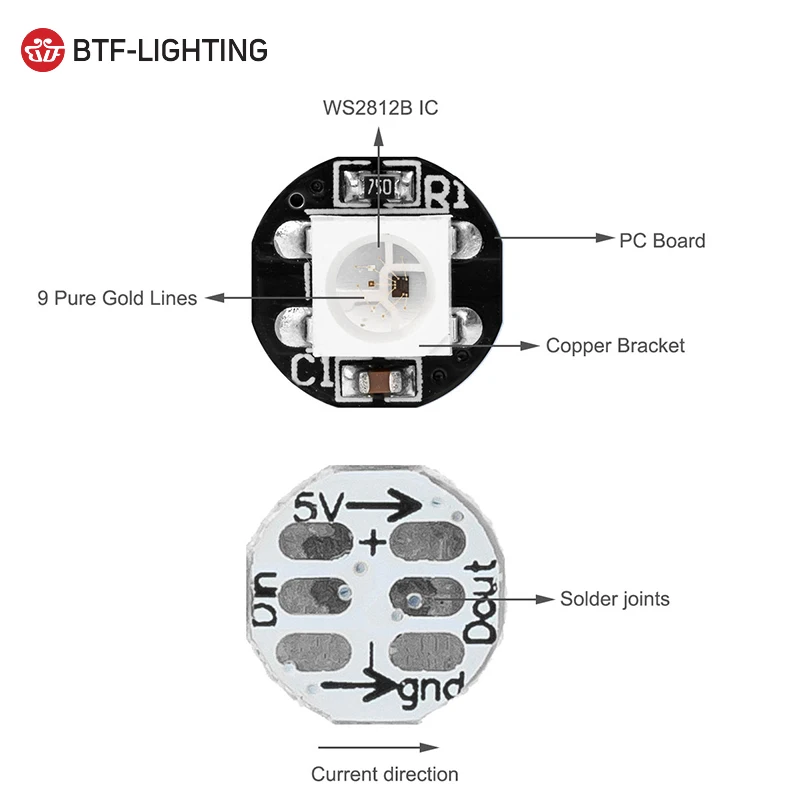

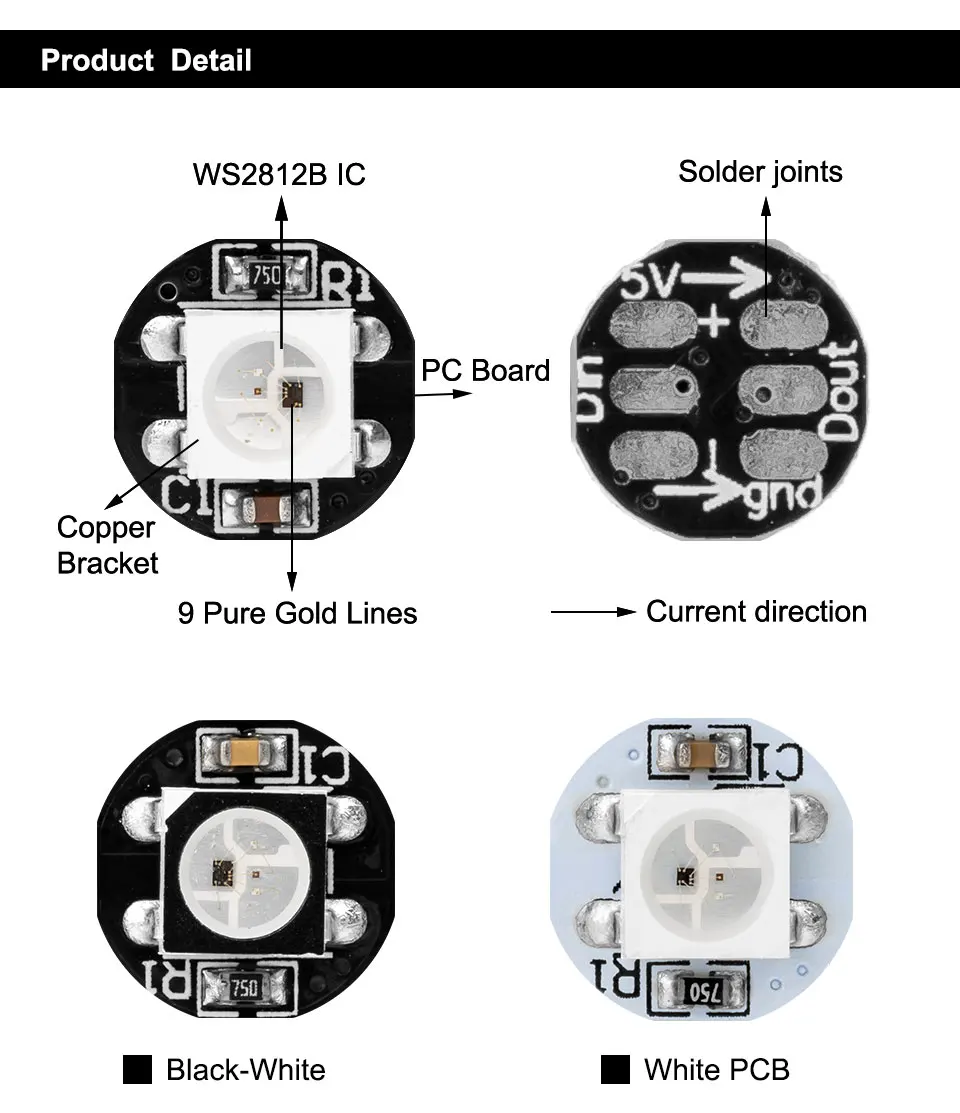

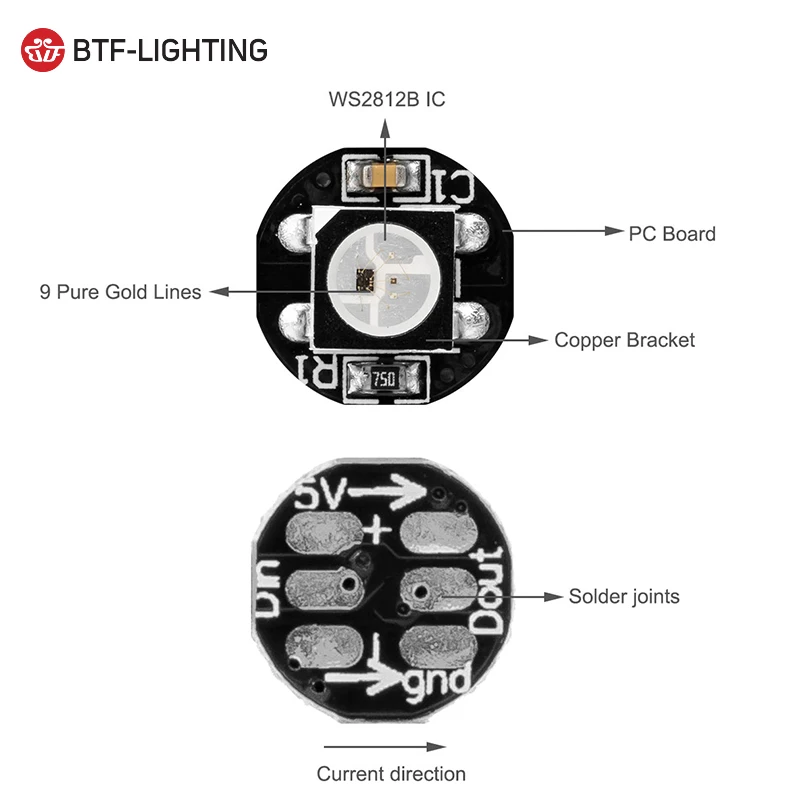

PIN configuration:
NO 1, Symbol: VSS Function description: Ground.
NO 2, Symbol: DIN Function description: Control data signal input .
NO 3, Symbol: VDD Function description: Power supply LED.
NO 4, Symbol: DOUT Function description: Control data signal output.
Absolute Maximum Ratings: ( Ta=25 ℃,VSS=0V )
Power supply voltage Symbol: V(DD) Range: +3.5V - +5.3V
Input voltage Symbol: V(I) Range: -0.5 - VDD+0.5V
Working temperature Symbol: Topt Range:-25 - +80 ℃
Storage temperature Symbol: Tstg Range: -40 - +105 ℃
Company Information
Our Services
We specialize in designing drive control scheme and developing new products for LED decorative lighting and LED lighting industry, providing all-dimensional solutions.
Mainly engaged in designing and selling the LED lighting drive 1C,LED Modules, LED Bulb LED Controller ,LED Pixels Strip, LED Light.
1. Your inquiry related to our products or prices will be replied in 24 hours .
2. Professional led manufacturer both on led component and application product.
3. Professional support on technology and flash design;
4. Well-trained and experienced staffs to answer all your enquires in fluent English .
5. All the products must have 10 hours' aging before delivering,to ensure the quality.
6. Unique appearance design and ideal recommended services are offered .
7. OEM&ODM are welcome , any your customized lightings we can help you to design and put into the product.
8. On time delivery and prompt response to your enquiry .
9. Satisfied pre-sales and after-sales service,welcome all requires and we will reply promptly .
Related led chip
| Model | PCB Color | SMD |
| WS2812B | black/white | 5050 |
| WS2813 | black/white | 5050 |
| SK6812 | black/white | 5050/3535 |
| SK6812RGBW | white | 5050(NW,CW,WW) |

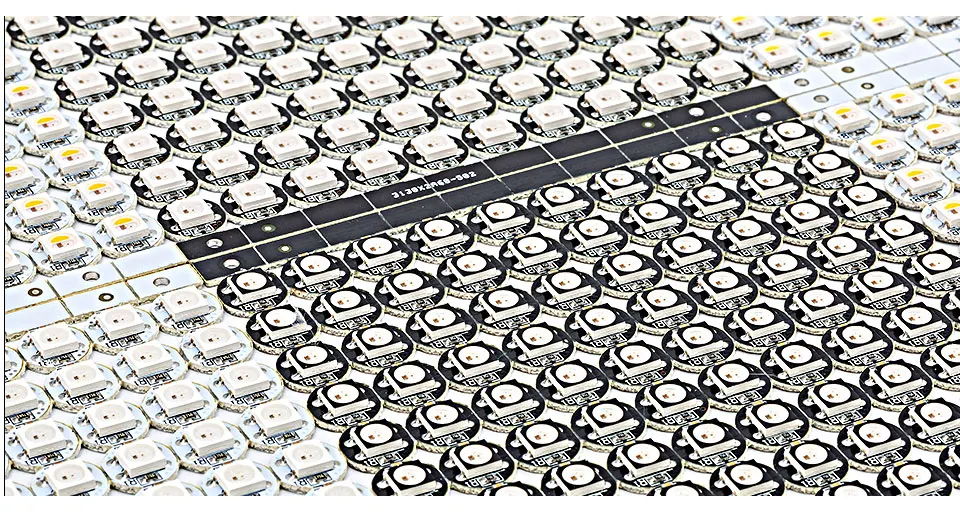

| WS2812B(Circle Boaed) | black/white | NW,CW,WW |
| SK6812(Circle Boaed) | black/white | NW,CW,WW |
| SK9826MINI | white | 3537 |
| SK9822-EC20 | yellow white | 2020 |
| SK6805-EC15 | yellow white | 1515 |
| SK6812-EC20 | yellow white | 2020 |
| SK6812MINI-E | white | 3228 |
| S4020ARGB-A | white | 4020 |
| SK6813MINI | white | 3537 |
| SK6805MICRO | white | 2427 |
