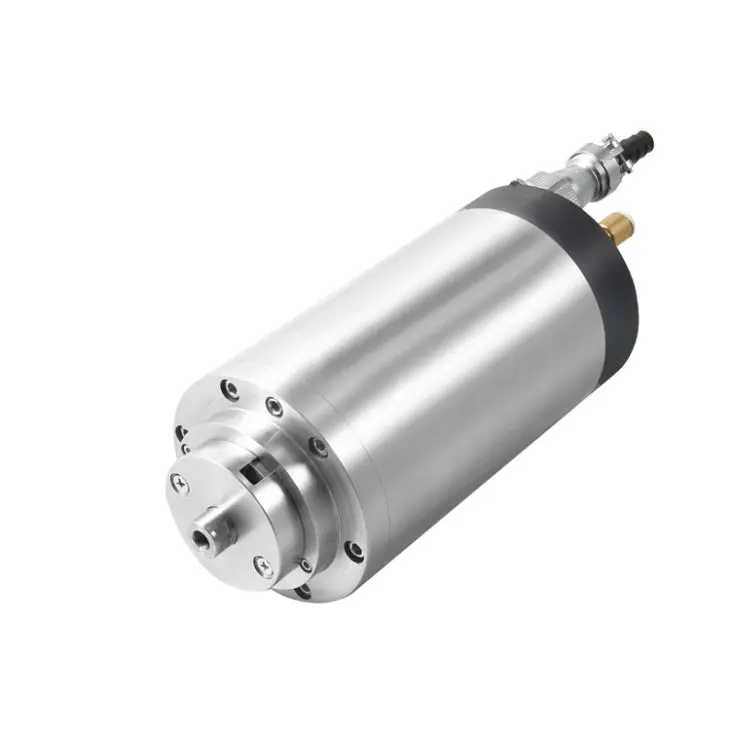

120mm grinding spindle motor is a motor with cemeric bearing . DC-120MA is a 24000rmp spindle motor with water cooling. The serious motor spindles are designed to be easily amounted onto existing CNC routers,machining centers, etc.
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
-Rust free, Anti-vibration and minimization of heat strain thanks to our long years of experience in material and HS heat treatment technology
-Hybrid ceramic bearing
-Reasonable maintenance cost
Specificiations
DC-120MA
Parameters
Motor Power:
5.5KW
Rated voltage:
250v(3~)
Max rotate speed :
24000Rpm/min
Max currency:
16A
Max Frequency:
400Hz

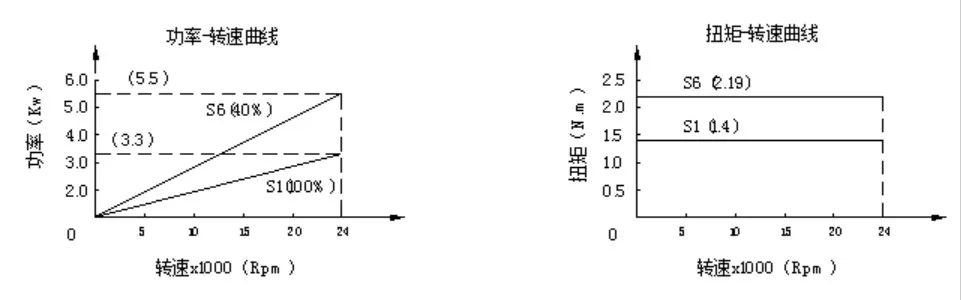

Torque:
2.19N.M
Specification
Cone surface spring at shaft end:
≤0.001mm
Tooling Releasing Air curtain:
-
Tooling Exchange Method:
HTC
Air curtain pressure at front end:
2.5-3.0 Kgf/cm²
Tooling Pulling Force:
-
Tooling Back Air Pressure:
~
Tooling Connection:
M16X1.5
Cooling:
water cooling
Encoder:
-
Coolant Pressure:
2.5Kgf/cm²
Approach Switch:
-
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
FLANGE
Vibration Value:
≤0.8
Weight:
18.5KG
Applicable industry
Packaging & Shipping
Why choose us

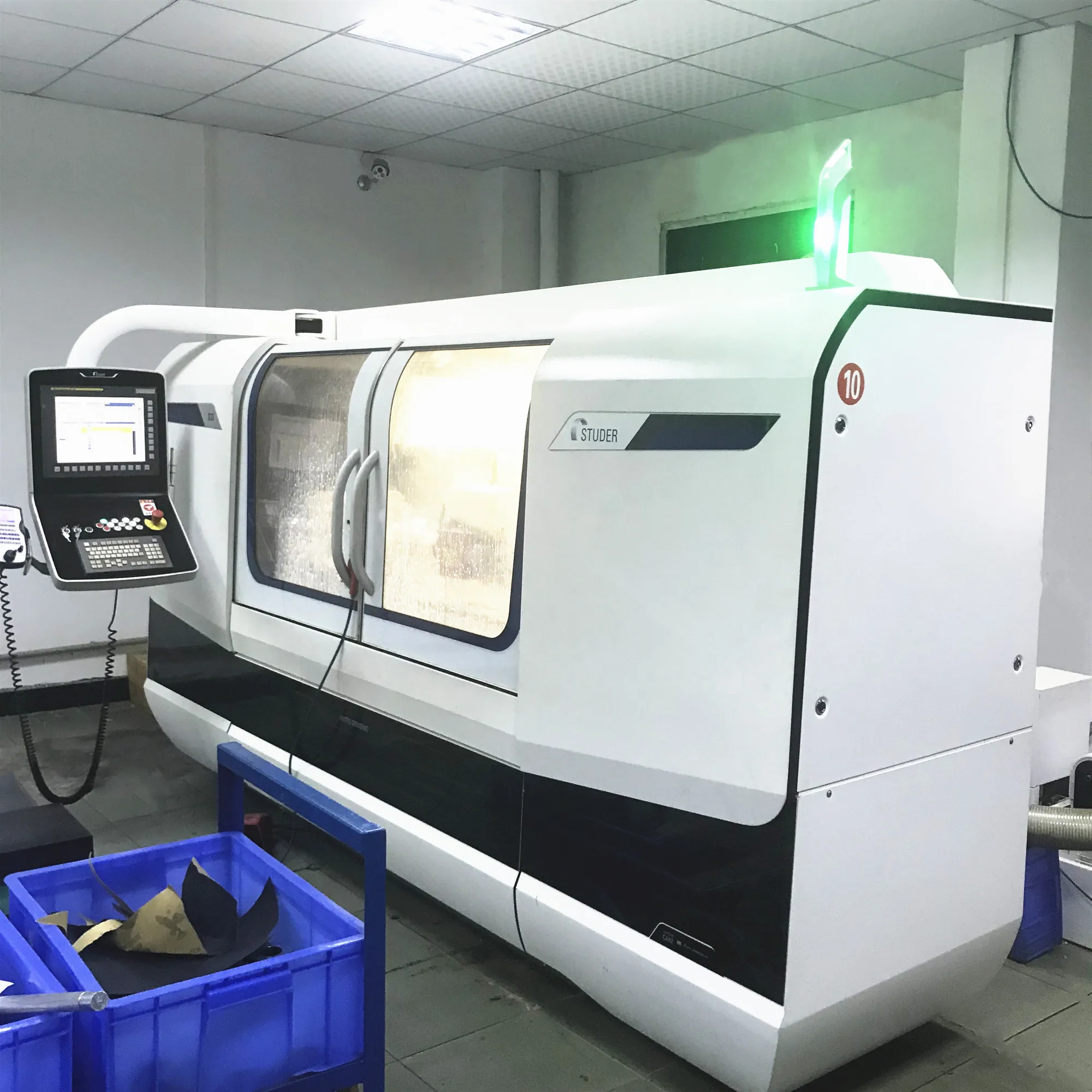

Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ? A: We are the only factory for DECI brand.
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: What's your delivery time? A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.
Q: Do you provide samples ? is it free or extra ? A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
