Product Overview
Description

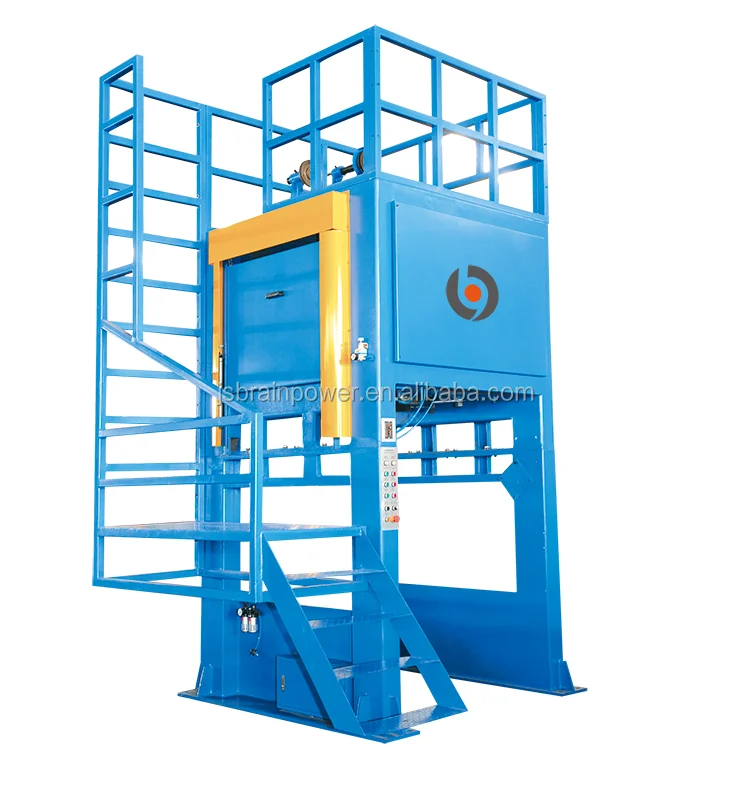

BRN-650 Auto Coiler Machine
Aplication
This vertical coiler machine can run with Intermediate Wire Drawing Machine or Rod Breakdown Machine. Copper wire, aluminum wire, alloy wire falls in the barrel automatically.
Feature
1)Tungsten plasma capstan
2) Run continuously without stop. Keep steady copper elongation.
3) Easy operate and maintenance
Main Specification
Machine type | BRN-WF650 | BRN-WF800 |
Max. speed | Same as wire drawing part | |
Wire range | 1.0mm- 2.0mm | 1.6mm- 3.5mm |
Capstan dia | 650mm | 800mm |
Take -up capacity | 600~1000KG | 1200~1800KG |
Main motor | 15KW | 18.5KW |
Air source | ≥0.4Mpa | |
Brake type | disc type | |
Dimension: | 2780L×1880W×3500H(mm) | 3230L×2500W×4000H(mm) |

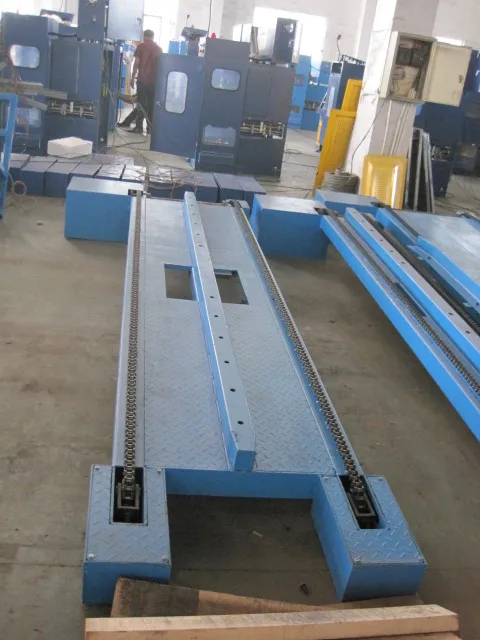

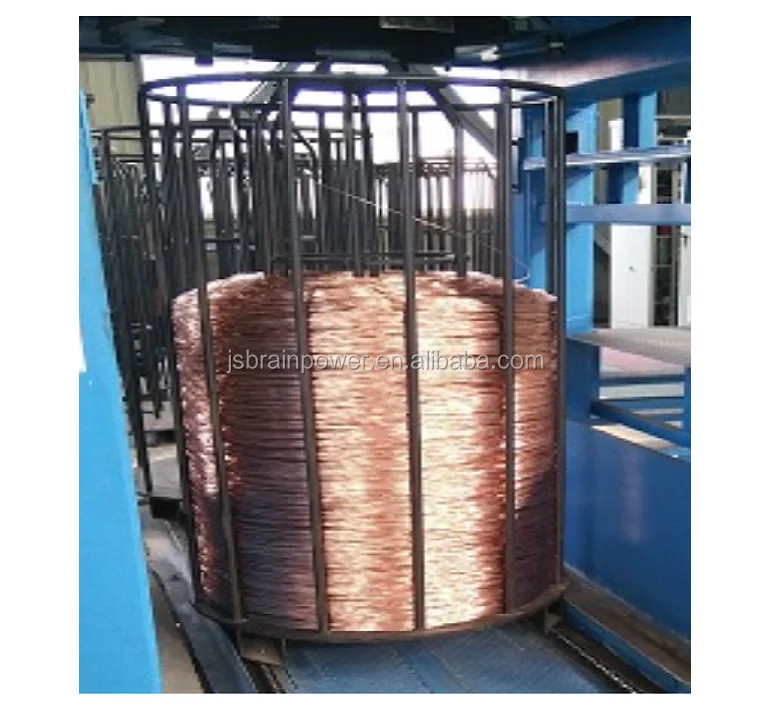

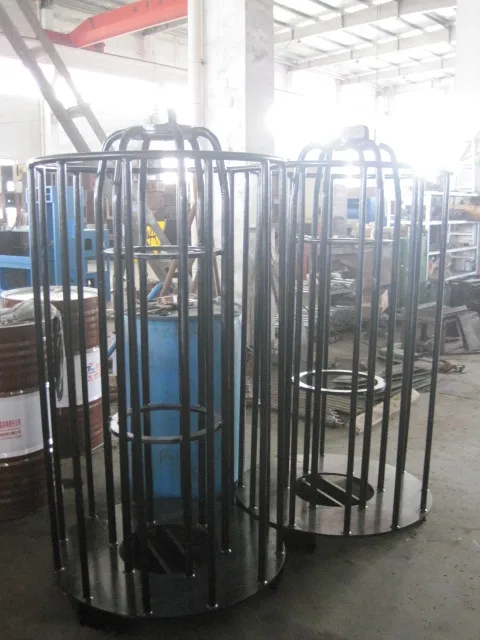

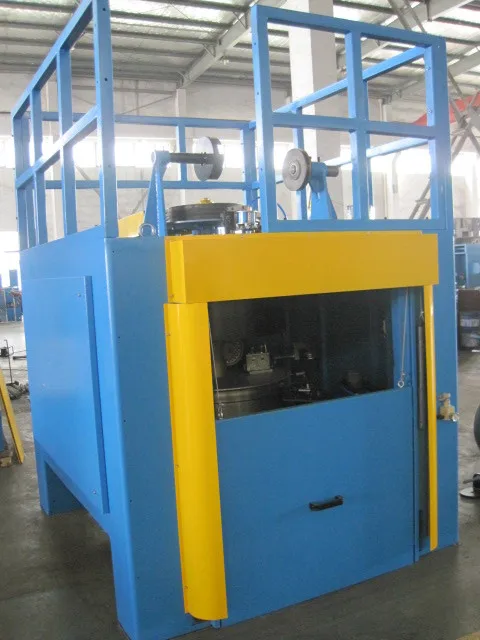

Photos show
Finished Products
Trade Shows
FAQ
![faq[1].jpg](http://sc02.alicdn.com/kf/H19e0eaef06e44974a10fb05e9b5a735dO/231093876/H19e0eaef06e44974a10fb05e9b5a735dO.jpg)
1)What's your payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
