1.machine usage;

To make the wire diameter smaller in put 2.0mm-out put 0.9mm,production capacity 190kg/hour (90% capacity)

2.machine size;

Length 3200mm*width1200mm*height1200mm, weight:1600kg,Water tank thickness:10mm/8mm can not change the shape

3.machine specification:

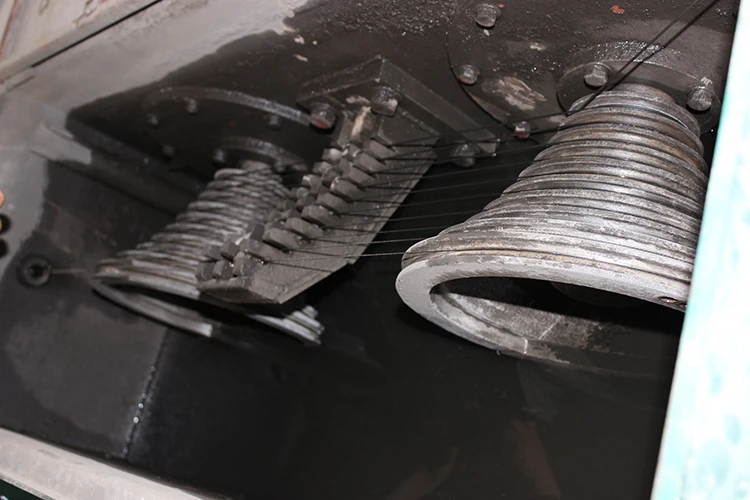

Motor:22KW*1set, transducer control,,Spindle modulation processing, strengthen the toughness of the shaft, the spindle box with 250# cast iron, precision boring machine integrated processing, to ensure good concentricity.Main shaft alloy tower wheel, auxiliary shaft cast iron tower wheel, with long service life, not easy to groove, like nose wire can alloy spraying,, unloading line does not stop, improve work efficiency, reduce labor intensity,

4 Random items:

Wire rack trolley*1set

5.Cost

1.Electricity consumption:100°/ton

2.Drawing the soap,mold USD10/ton

3. one worker can control 3 machine
