Engraving and milling machinery spindle motor for metal ISO ATC 5.5KW 36000Rmp Water Cooling Spindle motor

Share on (62335425731):


Price:RUB 180,040.89

Quantity:


Product Overview

Description

Product Description

This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 5.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.



Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.

Advance/Features:

1.Reasonable structure desgin ,simple and compact configuration ,easy to take apart.

2.High precision.high inflexibility ,high efficiency,long operation life.

3.With high grade size .shape,.position precision,and quality of surface .

4.Enough abrasive resistance ,vibration resistance,stable size.

5.Work stable ,low noise,enough fatigue strength

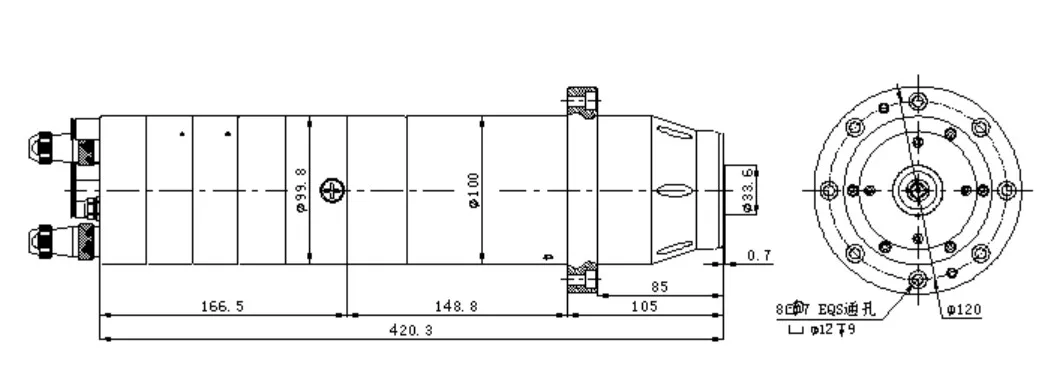

Specificiations
DC-1036A

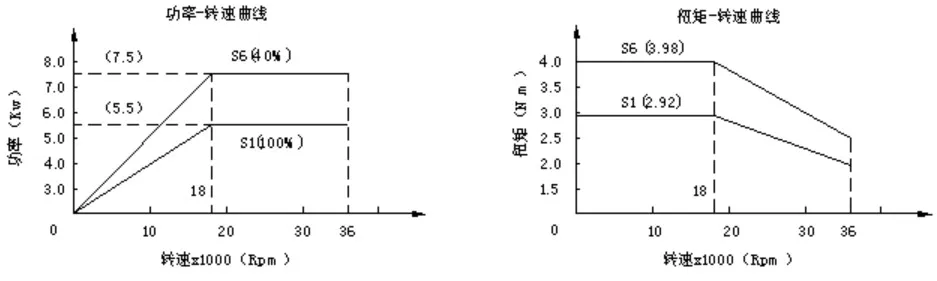

Parameters
Motor Power: 5.5KW  Rated voltage:  380v(3~)
 Max rotate speed : 36000Rpm/min  Max currency: 10.5A
 Max Frequency: 1200Hz  Torque: 3.98N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  2000 Tooling Back Air Pressure: 5.6-6.0 Kgf/cm²
 Tooling Connection: ISO25 shank Cooling: water cooling
 Encoder: Sine-Cosine 1VPP(Optional) Coolant Pressure: 2.5Kgf/cm²
 Approach Switch:  PNP Onn Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: FLANGE
Vibration Value:  ≤0.8 Weight: 15kg
Applicable industry


Packaging & Shipping

.jpg

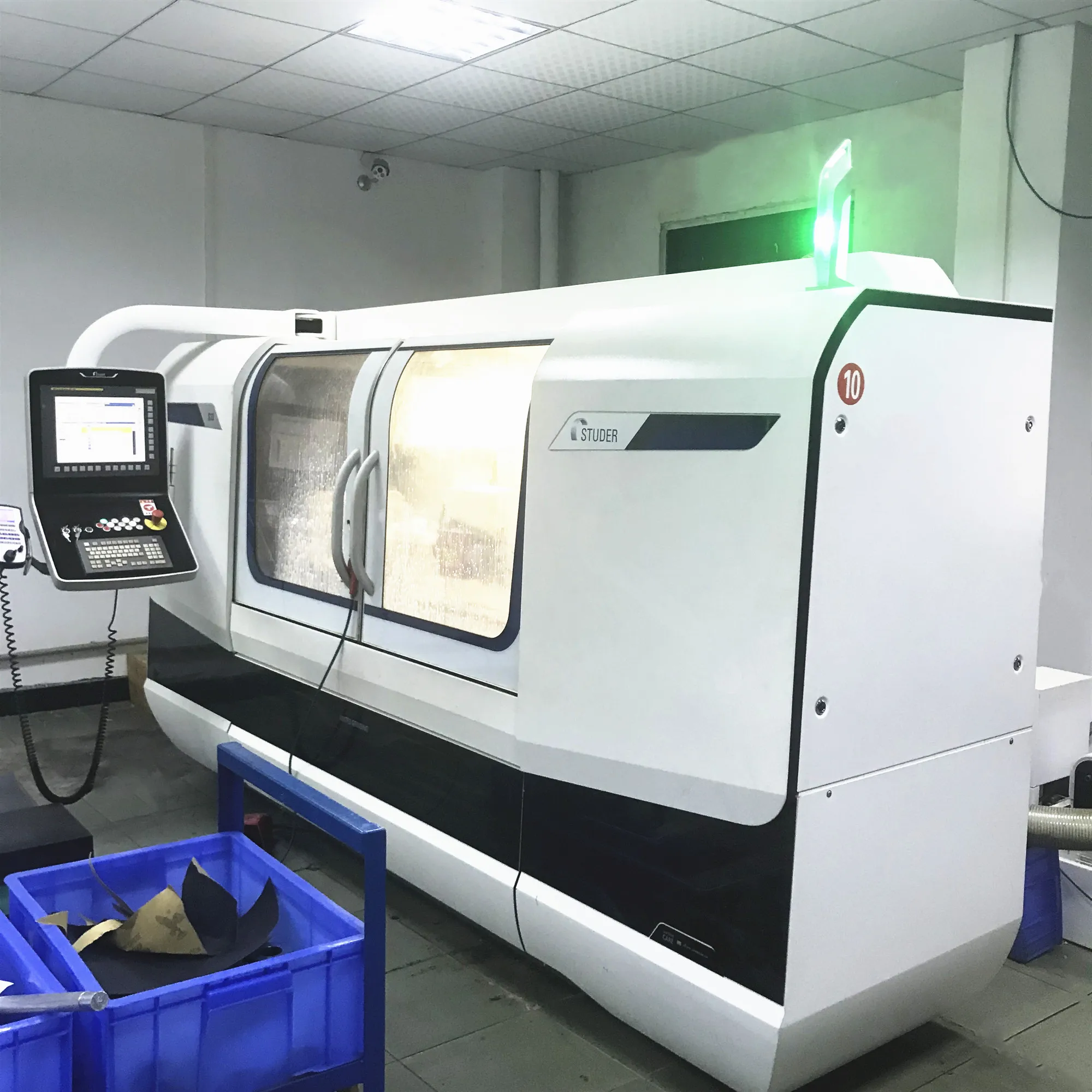

Why choose us



why choose us.png







Company Information


Certifications

.png

FAQ

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

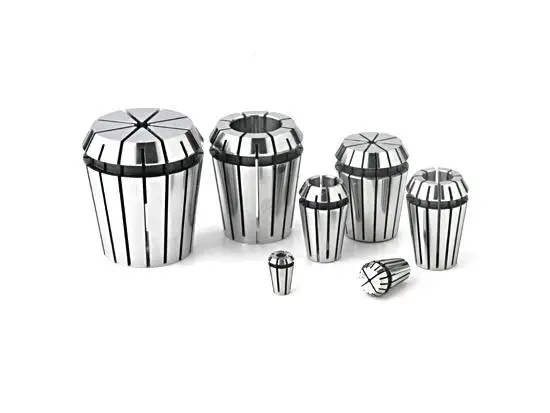

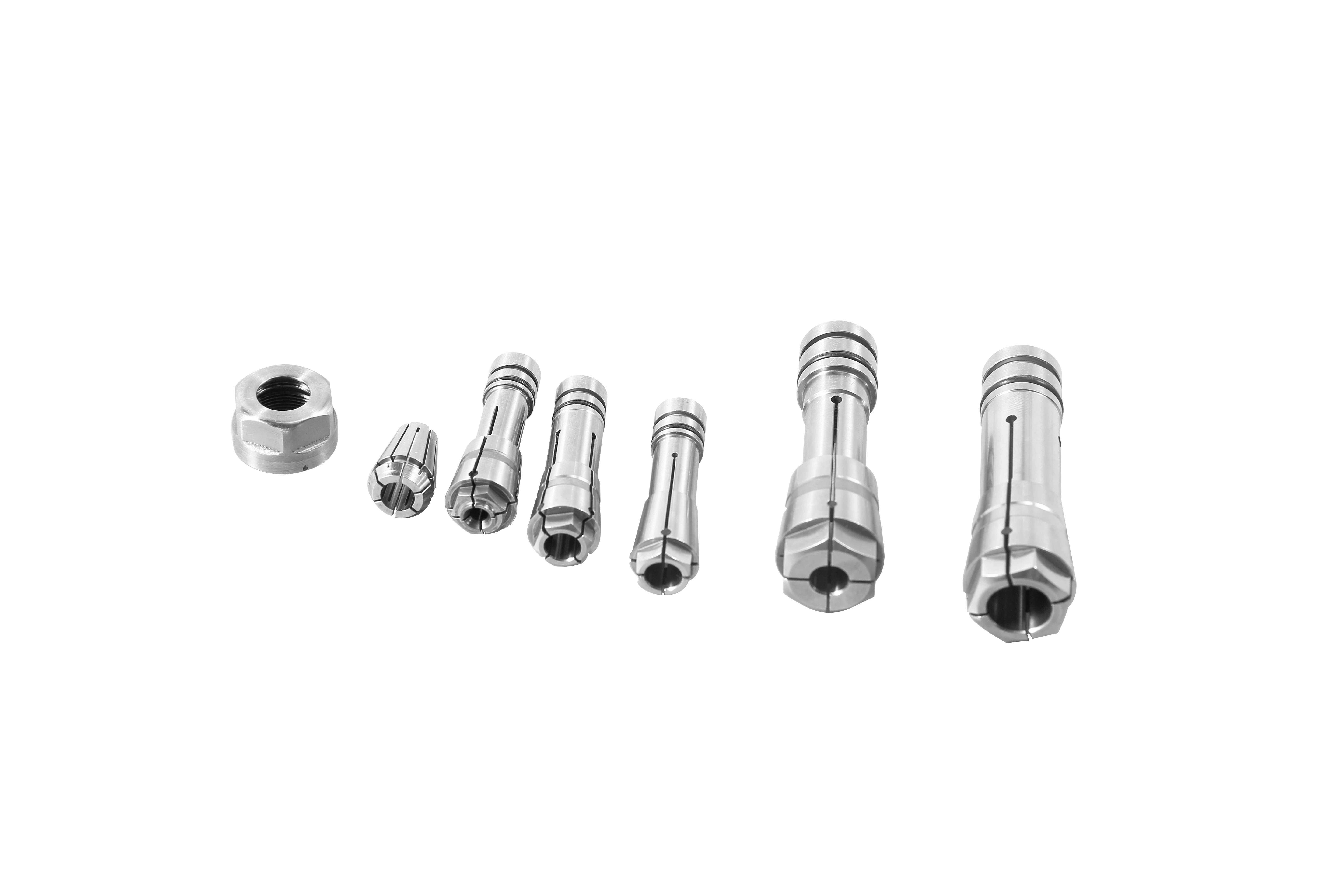

Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

                                                                Learn more details       contact us.png.png
