RDM630 большой диапазон 125 кГц Модуль rfid считывателя

RDM630

Frequency

125KHz

Supporting Card

EM4100/TK4200/EM4200 Card

Interface

Wiegand26, TTL, RS232

Power Supply

5V & 3.3V

Card Reading Distance

>8cm(Depending on label size and surroundings)

Operating Temperature

-10℃~ 70℃

Antenna

External , Variety of optional specifications

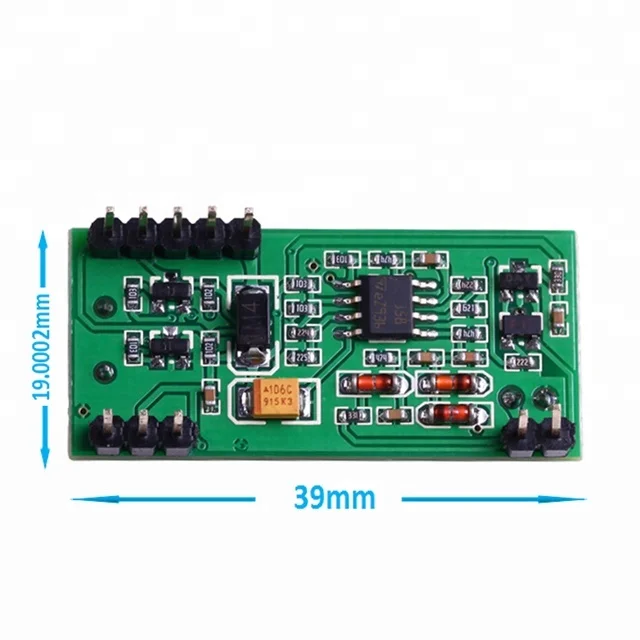

Dimension

39mm *19mm * 9mm

Weight

0.04kg/pcs

Module NO.

Interface

Interface

RDM630-W

WG26

5V

RDM630-T

TTL

5V

RDM630-S

RS232

5V

RDM630L-W

3.3V

RDM630L-T

3.3V

RDM630L-S

3.3V

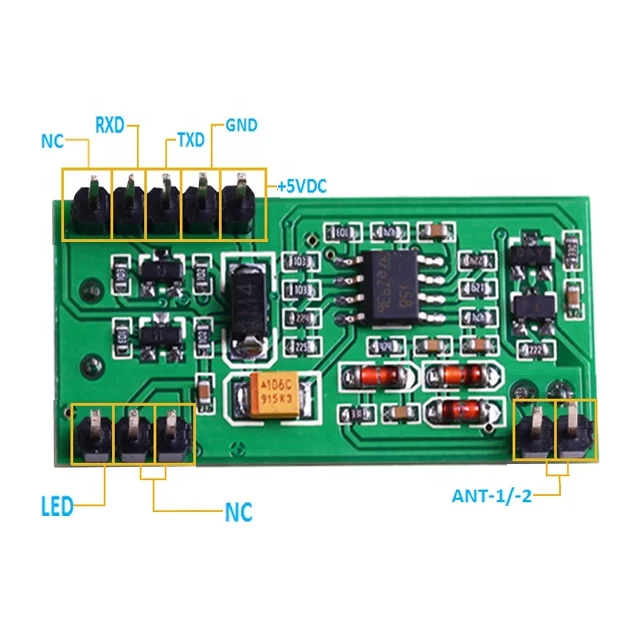

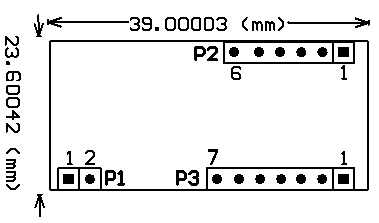

PIN

PIN NO.

Wiegand26

RS232/TTL

P1

1

NC

NC

2

DATA 0

RXD

3

DATA 1

TXD

4

GND

GND

5

+5VDC

+5VDC

P2

1

ANTENNA-1

ANT-1

2

ANTENNA-2

ANT-2

P3

1

LED

LED

2

NC

NC

3

NC

NC
