DIN125A gi washer galvanized flat washer
US $0.05-$0.10
Share on (62336105366):

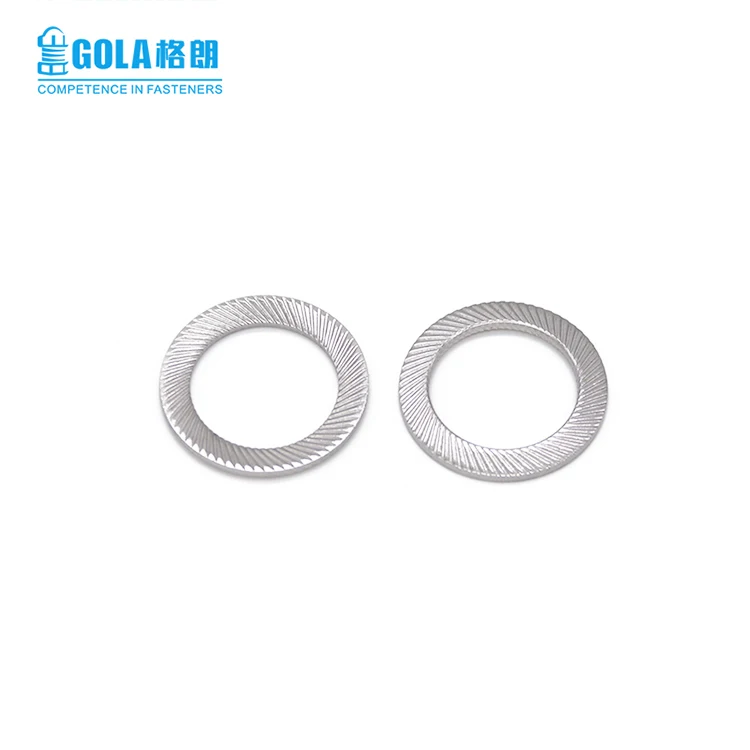

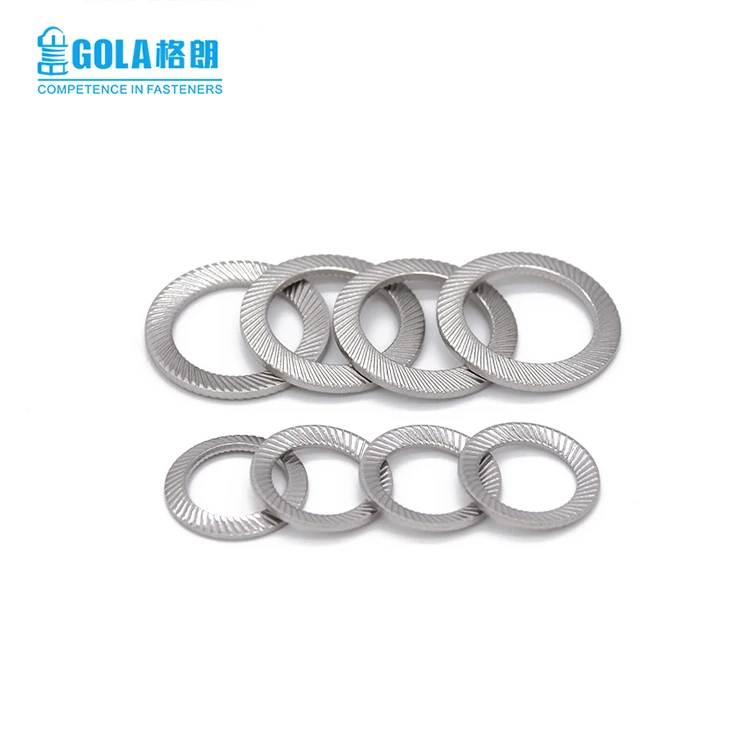

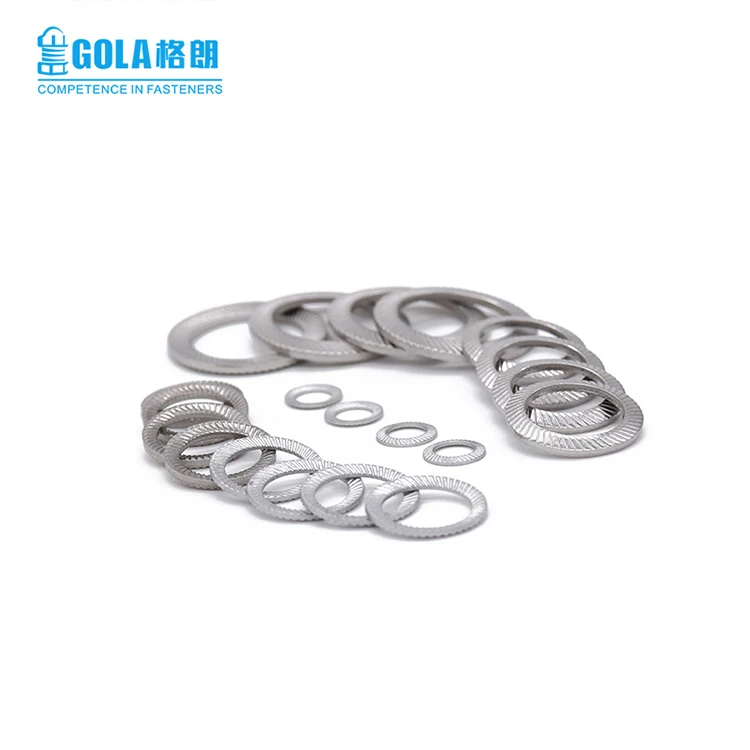

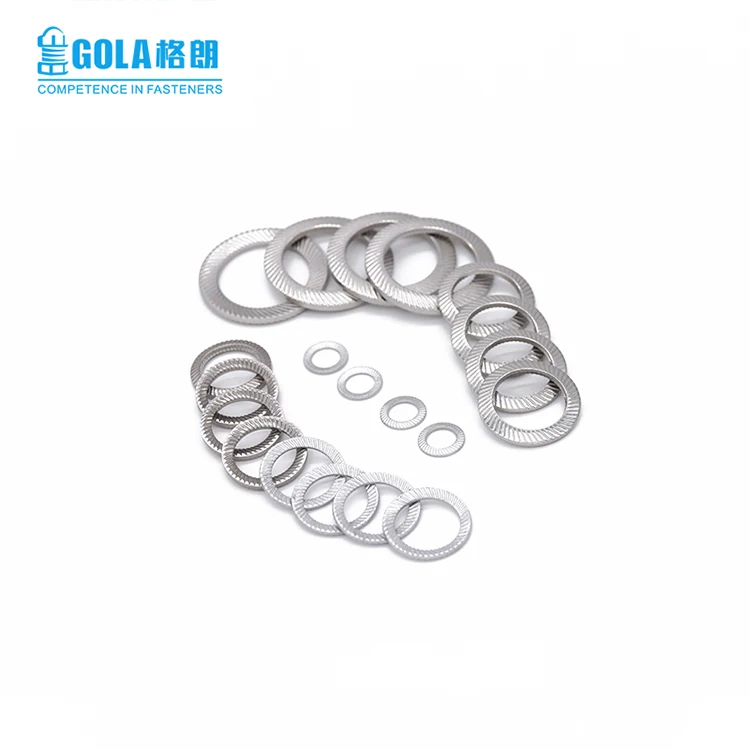

Product | Butterfly Lock Washer |
Material | Carbon Spring Steel |
Standard | DIN9250 |
Size | M3 M4 M5 M6 M8 M10 M16 M30 |
Finish | Nigrescence Black, Mechanical Galvanizing, Nickel Plating, Dacromet Coating |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

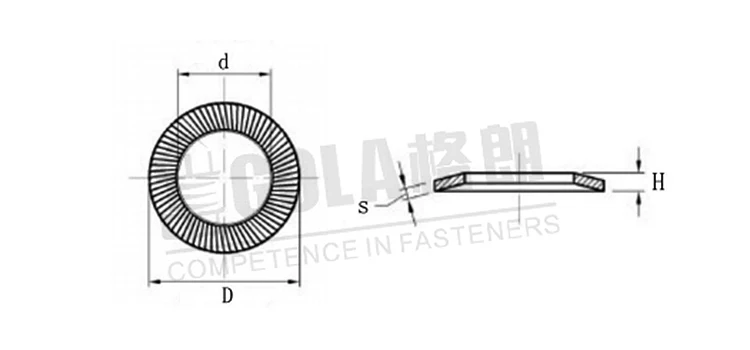

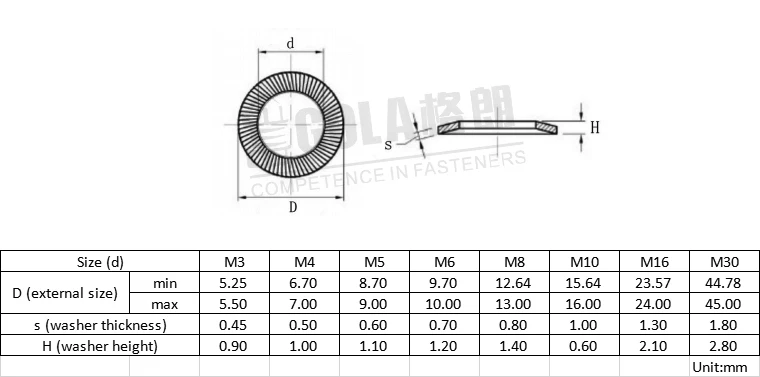

Size (d) | M3 | M4 | M5 | M6 | M8 | M10 | M16 | M30 | ||
D (external size) | min | 5.25 | 6.70 | 8.70 | 9.70 | 12.64 | 15.64 | 23.57 | 44.78 | |
max | 5.50 | 7.00 | 9.00 | 10.00 | 13.00 | 16.00 | 24.00 | 45.00 | ||
s (washer thickness) | 0.45 | 0.50 | 0.60 | 0.70 | 0.80 | 1.00 | 1.30 | 1.80 | ||
H (washer height) | 0.90 | 1.00 | 1.10 | 1.20 | 1.40 | 0.60 | 2.10 | 2.80 | ||





ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 | |||||||
