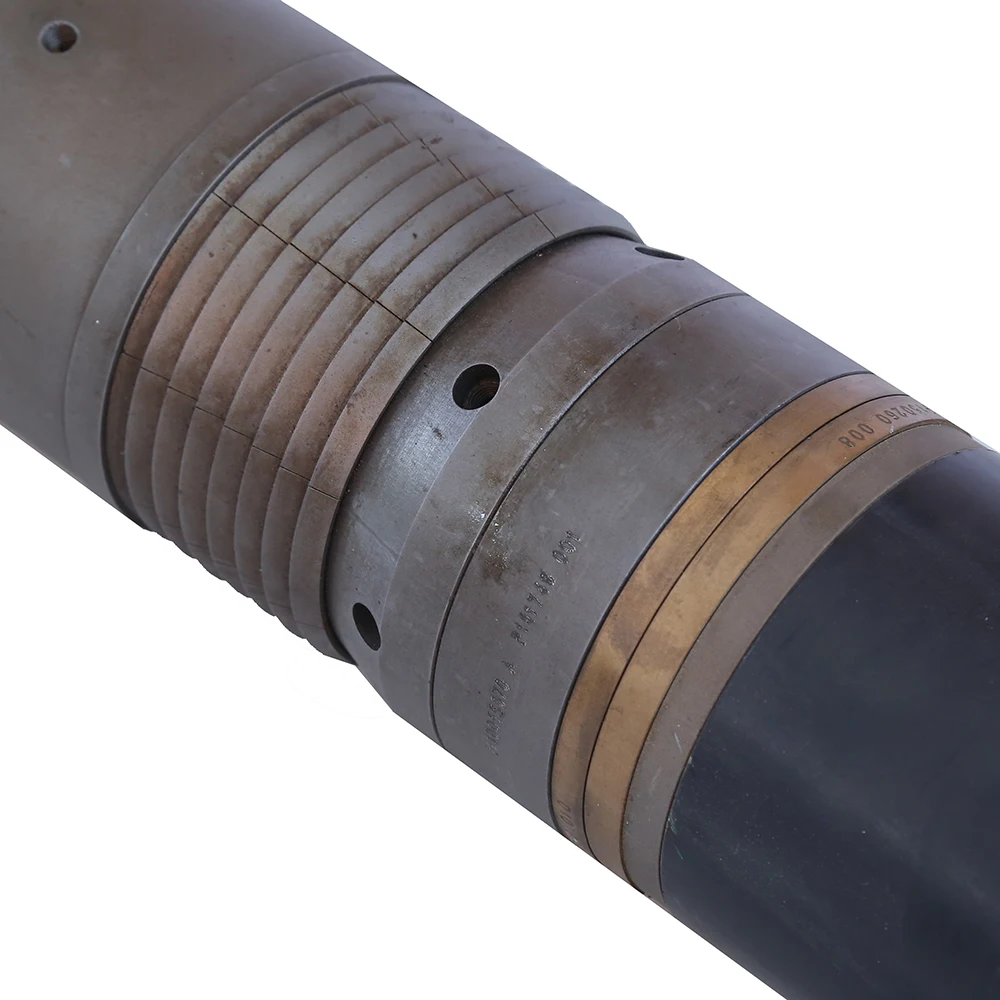

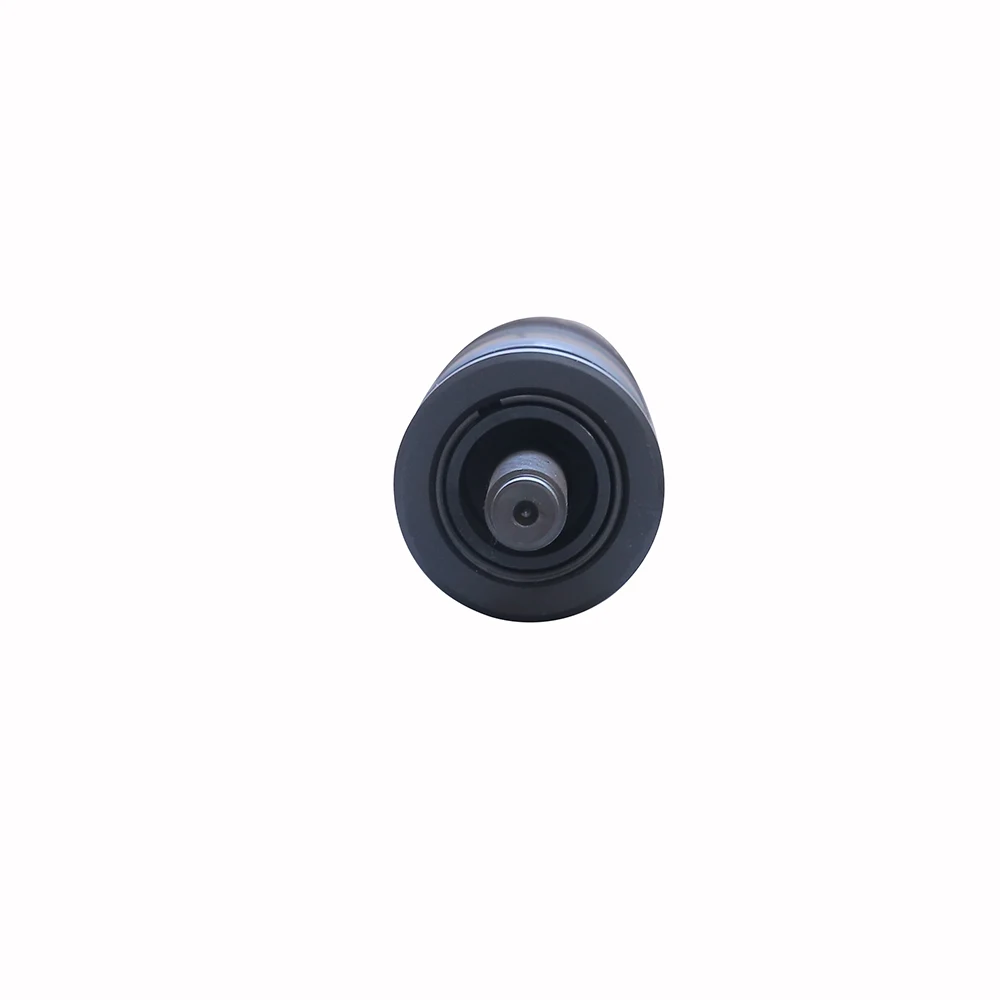

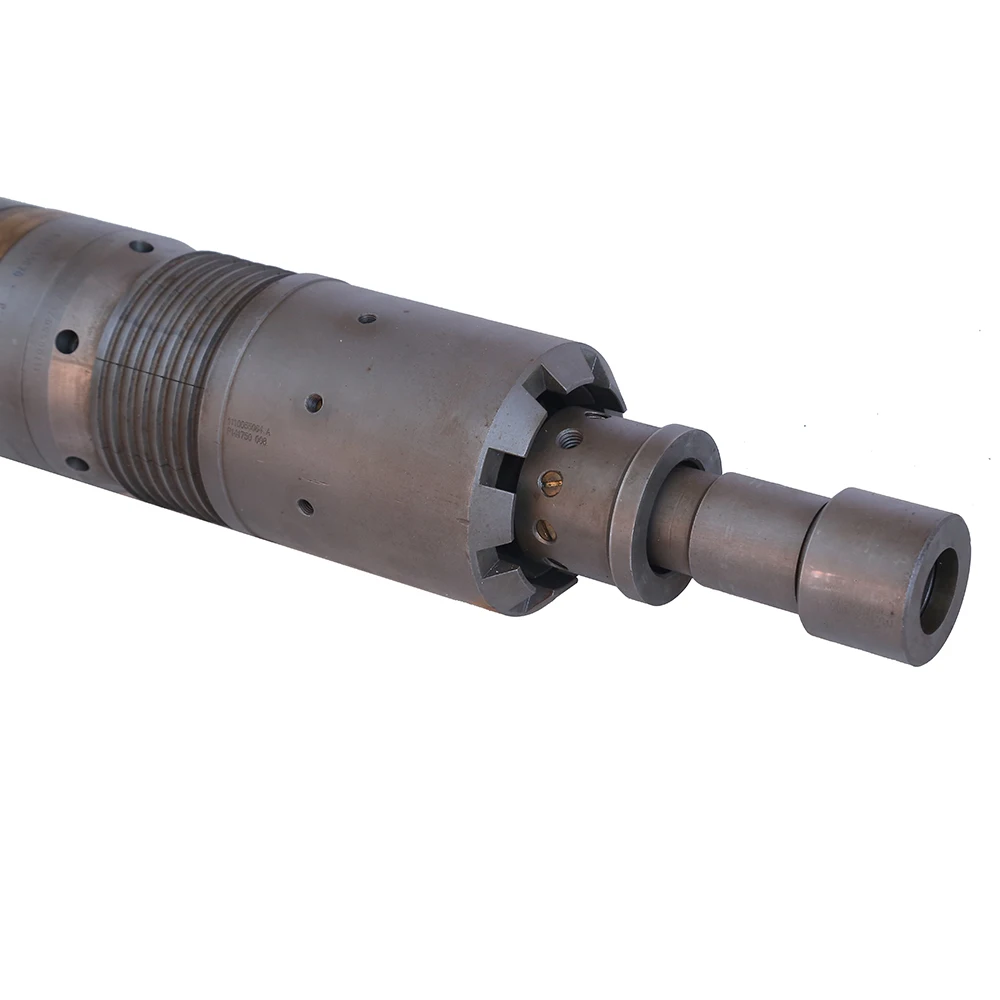

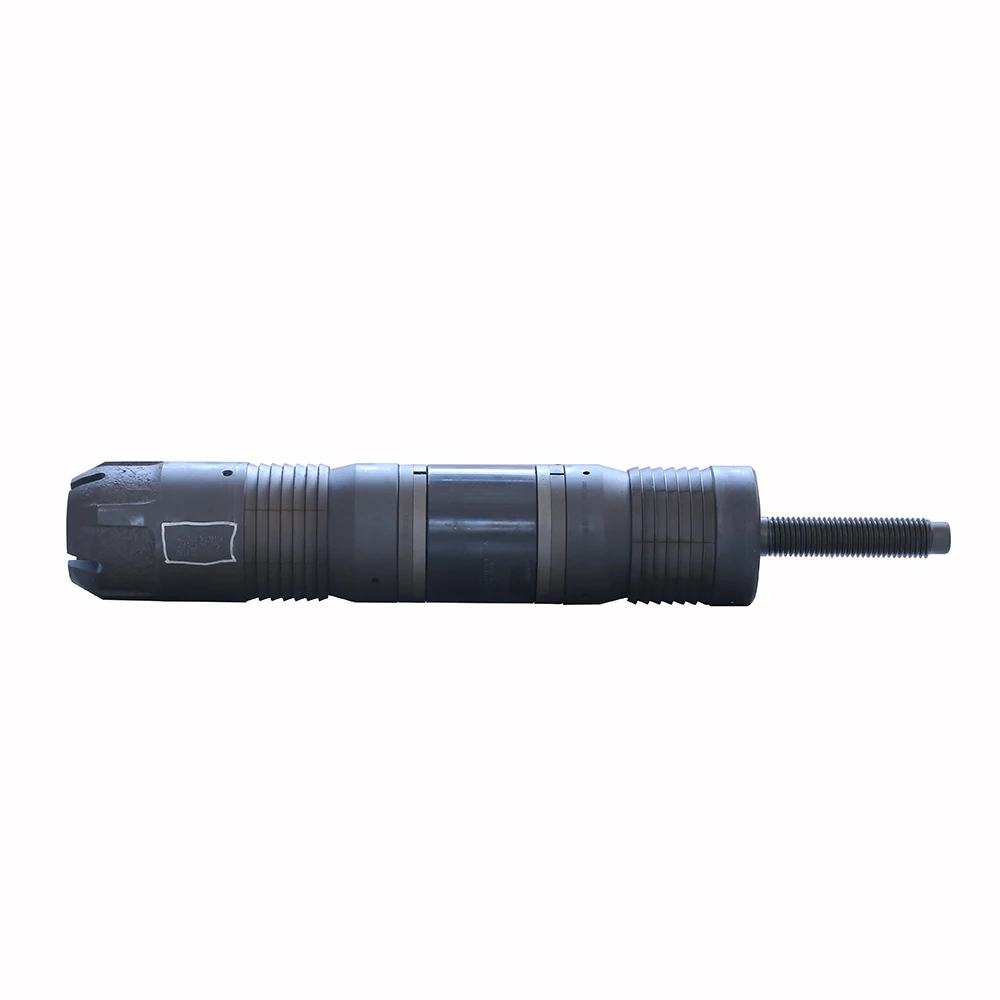

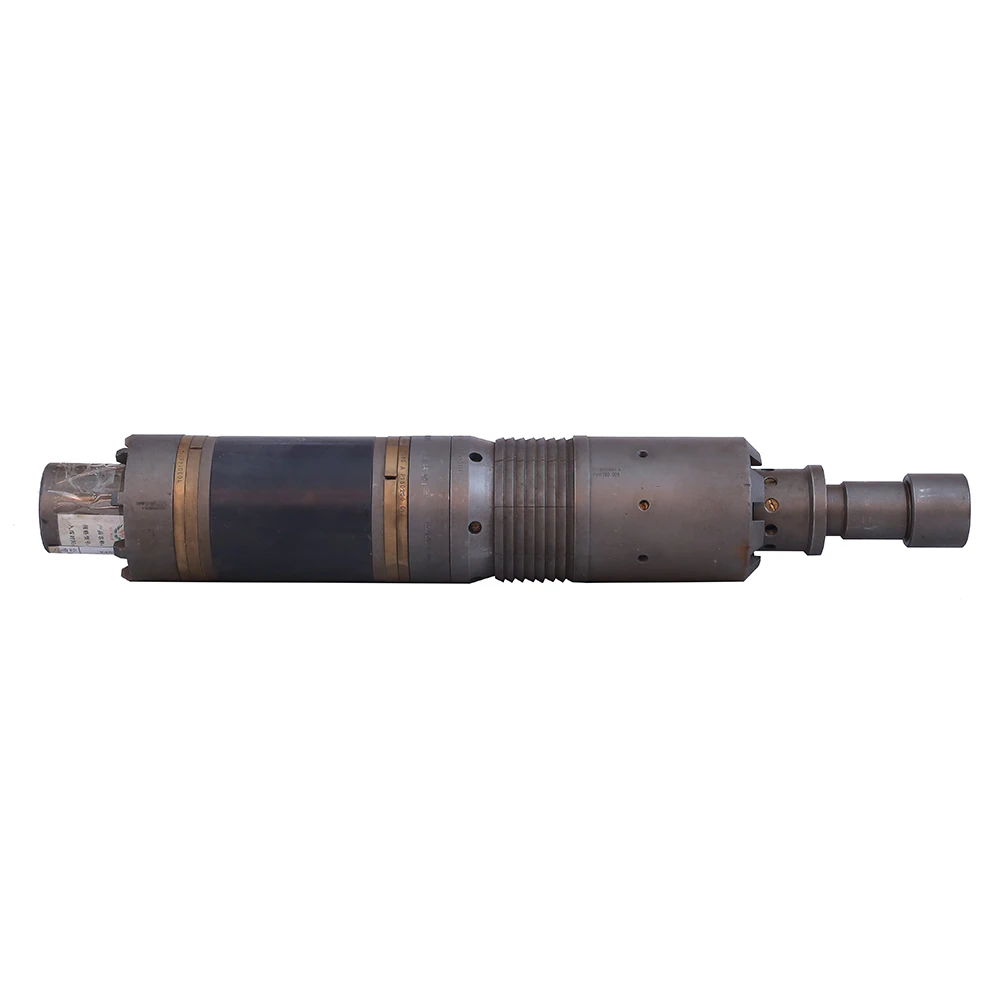

Composite Bridge plug

1. Description

The composite bridge plug is one of the main reforming tools for the development and use of unconventional oil and gas reservoirs such as shale gas reservoirs at home and abroad.

The cable or hydraulic setting tool is coupled with the bridge plug, and is lowered into the well. When the bridge plug is lowered into the predetermined position, the bridge plug can be dismantled by pressing or pressing; the unsealing is drilled by the drill tool. In addition to implementation.

2. Features

1) Cost effective and dependable

2) Proven Nitrile elastomer element system

3) One piece, full circle slip

4) Quick and easy drill out

5) Inter-locking tapers on

6) Operation limits up to 300°F (150°C ) and 10000 PSI (68.95MPA)

3. Technical Data
