New Design High Accuracy 1% KUS GPS Capacitive Fuel Level Sensor For Diesel Boidiesel Gasoline Kerosene
- Category: Levels >>>
- Supplier: Shanghai Eling Electronic Machinery Co. Ltd.
Share on (62337069888):
Product Overview
Description
Product Description
Key Features:
-Enjoy multi-innovation technologies.
-With capacitance as the sensitive element, CLS sensor series continuous detects the height of the fuel level with less than 1mm resolution.
-Sensor length can also be shorter to fit tanks with different heights.
-CLS sensor can replace the original fuel level sensor on vehicles and connects with oil gauge.
-With wide range of voltage input, it has no limitation to input voltage.
1.Technical Data:
-Sensor length: 100~ 800mm, any length available within this range
-Minimum resolution: ≤1mm
-Wide range of power supply: DC10V ~ 32V
-Maximum operating current: < 15mA
-Signal refreshing rate: 5s each time (Custom)
-Working temperature: -40 ~ 85℃
-Material of the tubes: Aluminum ally
-Application environment: diesel, biodiesel, gasoline, kerosene
(Not applicable to conducting medium)
-Protection rank: IP65

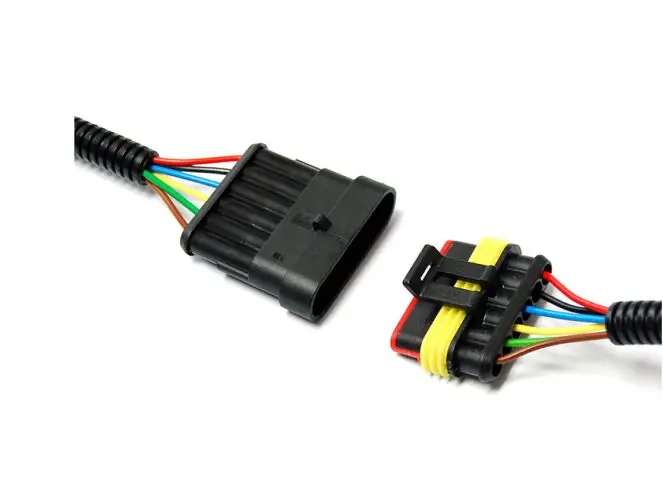

2.Mode of connection:
Pin1: VCC;
Pin2: V out (0.5~4.5V);
Pin3: GND;
Pin4:Connect to calibrator;
Pin5:Connect to calibrator;
Pin6:Connect to calibrator;
Pin2: V out (0.5~4.5V);
Pin3: GND;
Pin4:Connect to calibrator;
Pin5:Connect to calibrator;
Pin6:Connect to calibrator;
3.Calibrator:
Calibrator must couple with the sensor, and it has 12V/ 23A battery inside.
Red light is the power light. If the light isn't on when switch on, battery replacement is needed;
Green light is the calibration light. Full/ Empty button is showed in above picture.
Note: Calibration is necessary before using the sensor due to different fuel types;
Red light is the power light. If the light isn't on when switch on, battery replacement is needed;
Green light is the calibration light. Full/ Empty button is showed in above picture.
Note: Calibration is necessary before using the sensor due to different fuel types;
4.Length adjustment and Calibrator:
4.1 Adjustment of sensor length
Aluminum tube at the bottom can be shorter according to different requirements from customers. Steps are as follows:
4.1.1 Customer specifies the sensor length according to the needs;
4.1.2 Cut the unwanted part with steel saw;
4.1.3 Get rid of the burrs and the debris at the cutting area with blade or a screwdriver to avoid short circuit.
Aluminum tube at the bottom can be shorter according to different requirements from customers. Steps are as follows:
4.1.1 Customer specifies the sensor length according to the needs;
4.1.2 Cut the unwanted part with steel saw;
4.1.3 Get rid of the burrs and the debris at the cutting area with blade or a screwdriver to avoid short circuit.
4.1.4 Take down the filter unit, take out the plug, and assemble the plug in the aluminum tube, then assemble the filter.
4.2 Calibration of the fuel level sensor
Calibration of the fuel sensor is calibration of the full level and empty level. The fundamental principle is to record a full value and empty value in the fuel sensor when tank is full and empty; defining the positions of fuel is full and empty in the tank. The electrical signal changes as the fuel level changes, calculating the height of the fuel level.
Note: when the fuel sensor becomes shorter, it shall be recalibrated. Calibration to empty level and full level is related to the medium and the fuel level, instead of volume of the tank, so this operation can be operated in room (make a container, full filled with diesel, simulation of the tank). Calibration of full level shall go first, then the empty level, or else, it is impossible for the sensorto enter the setting mode.
4.2.1. Calibration of full level
Full fill the tank, put sensor into the tank, wait for about 30s till the aluminum tube of the sensor is full of fuel, then press the “full” button on the calibrator for 5 seconds till the green LED light slowly flickers, it indicates that calibration enters full level mode.The green LED light is off after about 10 seconds and it indicates that the calibration of the full level is OK.
4.2.2. Calibration of the empty level
Take the sensor out of the tank; put it outside of the tank. When all the fuel flows out of the sensor, press the “empty” button for 5 seconds till the green LED light flickers fast, it indicates that calibration enters empty level mode. The green LED light is off after about 10 seconds and it indicates that the calibration of empty level is OK.
4.2.3. Calibration completion
Disconnect the calibrator after calibration is done. Connect Pin 1 and Pin 3 on sensor with power, calibration becomes effective when sensor is power on.
Note: If press the wrong button during operation, you can switch off the calibrator and exit the mode and readjust.
4.2.4. Inspection
When calibration of the full level and empty level is done, inspect the output signal of the sensor:
Full level: V out is 5V
1/2 level: V out is 2.5V;
Empty level: V out is 0V.
4.2 Calibration of the fuel level sensor
Calibration of the fuel sensor is calibration of the full level and empty level. The fundamental principle is to record a full value and empty value in the fuel sensor when tank is full and empty; defining the positions of fuel is full and empty in the tank. The electrical signal changes as the fuel level changes, calculating the height of the fuel level.
Note: when the fuel sensor becomes shorter, it shall be recalibrated. Calibration to empty level and full level is related to the medium and the fuel level, instead of volume of the tank, so this operation can be operated in room (make a container, full filled with diesel, simulation of the tank). Calibration of full level shall go first, then the empty level, or else, it is impossible for the sensorto enter the setting mode.
4.2.1. Calibration of full level
Full fill the tank, put sensor into the tank, wait for about 30s till the aluminum tube of the sensor is full of fuel, then press the “full” button on the calibrator for 5 seconds till the green LED light slowly flickers, it indicates that calibration enters full level mode.The green LED light is off after about 10 seconds and it indicates that the calibration of the full level is OK.
4.2.2. Calibration of the empty level
Take the sensor out of the tank; put it outside of the tank. When all the fuel flows out of the sensor, press the “empty” button for 5 seconds till the green LED light flickers fast, it indicates that calibration enters empty level mode. The green LED light is off after about 10 seconds and it indicates that the calibration of empty level is OK.
4.2.3. Calibration completion
Disconnect the calibrator after calibration is done. Connect Pin 1 and Pin 3 on sensor with power, calibration becomes effective when sensor is power on.
Note: If press the wrong button during operation, you can switch off the calibrator and exit the mode and readjust.
4.2.4. Inspection
When calibration of the full level and empty level is done, inspect the output signal of the sensor:
Full level: V out is 5V
1/2 level: V out is 2.5V;
Empty level: V out is 0V.
Kindly notes: Please tell me the length of the sensor needed when you send an inquiry. the range is 100-800mm,we can customize the length according to the customer's requirements.
Packing & Delivery
Country | Express | Shipping time | Track Address |
Thailand,Singapore,Malaysia, Japen,Korea,Philippines | FedEx | 2-3 working days | www.FedEx.com |
India,Indonesia | FedEx | 3-5 working days | www.FedEx.com |
South Africa, Kenya, Esselbia | FedEx | 4-7 working days | www.FedEx.com |
Kazakhstan, Pakistan,Kyrgyzstan | FedEx | 4-6 working days | www.FedEx.com |
Brazil, Peru, Colombia,Chile, Argentina | FedEx | 5-8 working days | www.FedEx.com |
Canada, Mexico | FedEx | 4-7 working days | www.FedEx.com |
Australia, New Zealand | TNT | 3-6 working days | www.gbsexpress.com |
Britain, Germany, France, Sweden, Switzerland | TNT | 3-5 working days | www.gbsexpress.com |
Spain, Portugal, Hungary, Austria, Czech, Norway | TNT | 4-6 working days | www.gbsexpress.com |
Russia | EMS | 4-7 working days | www.ems.com |
United States, | DHL | 3-6 working days | www.cn.dhl.com |
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
1.We can provide detail documents and remote help for device installation and configuration.
2.Warranty:1 year.
3.Our company promises goods enjoy full return due to quality problem since goods delivered within 3 days or 7 days , returned
goods must keep original state and it's accessories are complete.
2.Warranty:1 year.
3.Our company promises goods enjoy full return due to quality problem since goods delivered within 3 days or 7 days , returned
goods must keep original state and it's accessories are complete.
FAQ
Q1. Can I have a sample order?
A: Yes, it's ok for testing.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q7: Is there instruction installation?
A: Yes, each gauge comes with instruction installation in the package.
If you have more questions, just contact us soon
A: Yes, it's ok for testing.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q7: Is there instruction installation?
A: Yes, each gauge comes with instruction installation in the package.
If you have more questions, just contact us soon
