6X4 Sinotruk haohan 30 ton rotator heavy duty wrecker tow truck and 20ton rotator towing wrecker truck for sale
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Capacity :2ton - 60ton
7. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
8.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sintruk.Shacman.I-SUZU.I-VECO



We provide various wreckers with different types of towing equipment such as Boom, Hook and Chain ("sling" or "belt lift"), Wheel lift (Spectale Lift), Flatbed ("rollback" or a "slide"), Integrated ("Self Loader" Snatcher, Quick Pick or Repo Truck), etc. ranging from 3MT to 20MT capacity.
For the flatbed tow truck, the basic equipment includes double sides operation devices, lifting arm, winch, checkered plate, assistant trolley, yellow alarm lamp, strap devices, etc.
For the flatbed tow truck, the slide-to-ground-flatbed is available and attachable baffles can be added. Also the straight or knuckle crane and buckets on the crane can be added.
Vehicle technical parameters | |||
product name | 6X4 Sinotruk haohan 30 ton rotator heavy duty wrecker tow truck and 20ton rotator towing wrecker truck | Dimensions | 10.475x2.5x3.8 meters |
Total mass | 25 tons | Curb quality | 21 tons |
Hoisting specification | 20 tons | Tops | 20 tons |
Chassis technical parameters | |||
Chassis name | Heavy truck S | Chassis model | ZZ1257N5847E1 |
Number of axes | 3 | Number of tires | 11 (including spare tire) |
Wheelbase | 5.825+1.35 | Tire specifications | 12.00R20 |
Gearbox | 10 files | Rear axle | 15 tons |
Fuel type | Diesel | brake | Air brake |
Emission basis | GB17691-2005 country V, GB3847-2005 | ||
engine model | Engine manufacturer | Displacement (ml) | horsepower |
D10.34-50 D10.38-50 | Heavy group Dongfeng Cummins | 9726 9726 | 338 horsepower 375 horsepower |
Top basic configuration | |||
The standard configuration | 20 tons joint body top, with winch 10 tons x 2 hydraulic winch, 45 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights. | ||
Top loading configuration:
Heavy-duty truck Sinotruk HAOHAN rear double-bridge hoist joint wrecker, 20-ton joint top, two-section six-side boom, three-section support arm, split-type carriage, imported hydraulic system, double-sided linkage operation device, front insurance The bar is equipped with a counterweight. Two 10 ton electric hydraulic winches, 45 m steel wire rope, diameter 18 mm, with 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tires, a set of tools, auxiliary light assemblies 1 set, 1 set of auxiliary air pipe assembly, with a yellow long row LED engineering warning light. Our company's wrecker adopts advanced foreign skillful product technology and production technology, all imported seals, and reinforced beams are fixed to enhance the carrying capacity.

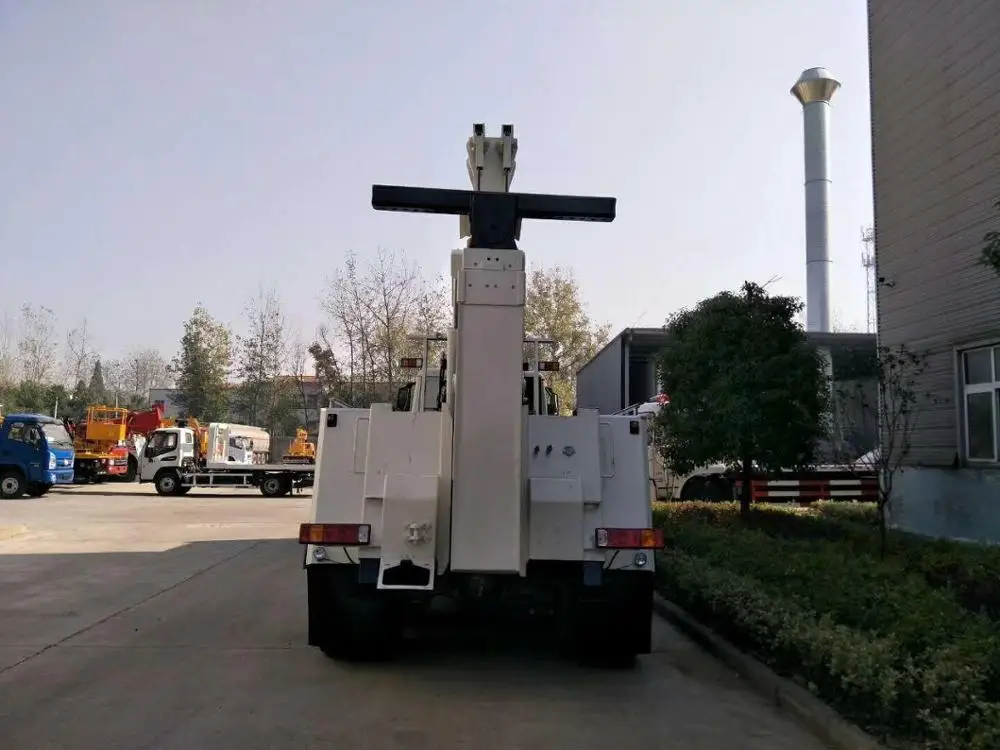

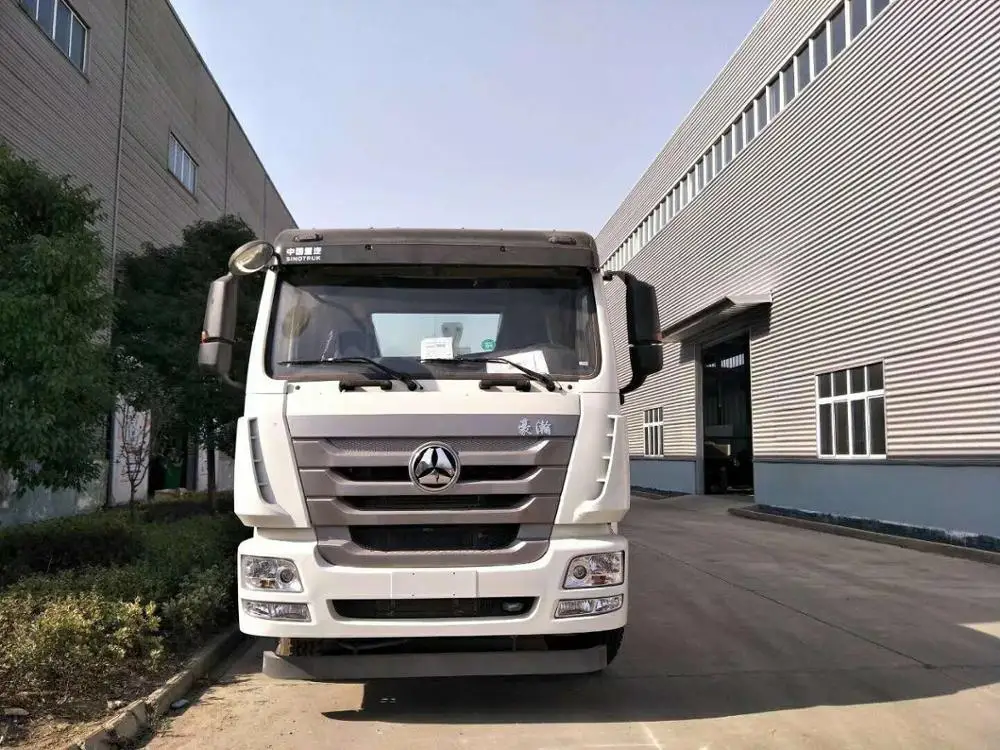

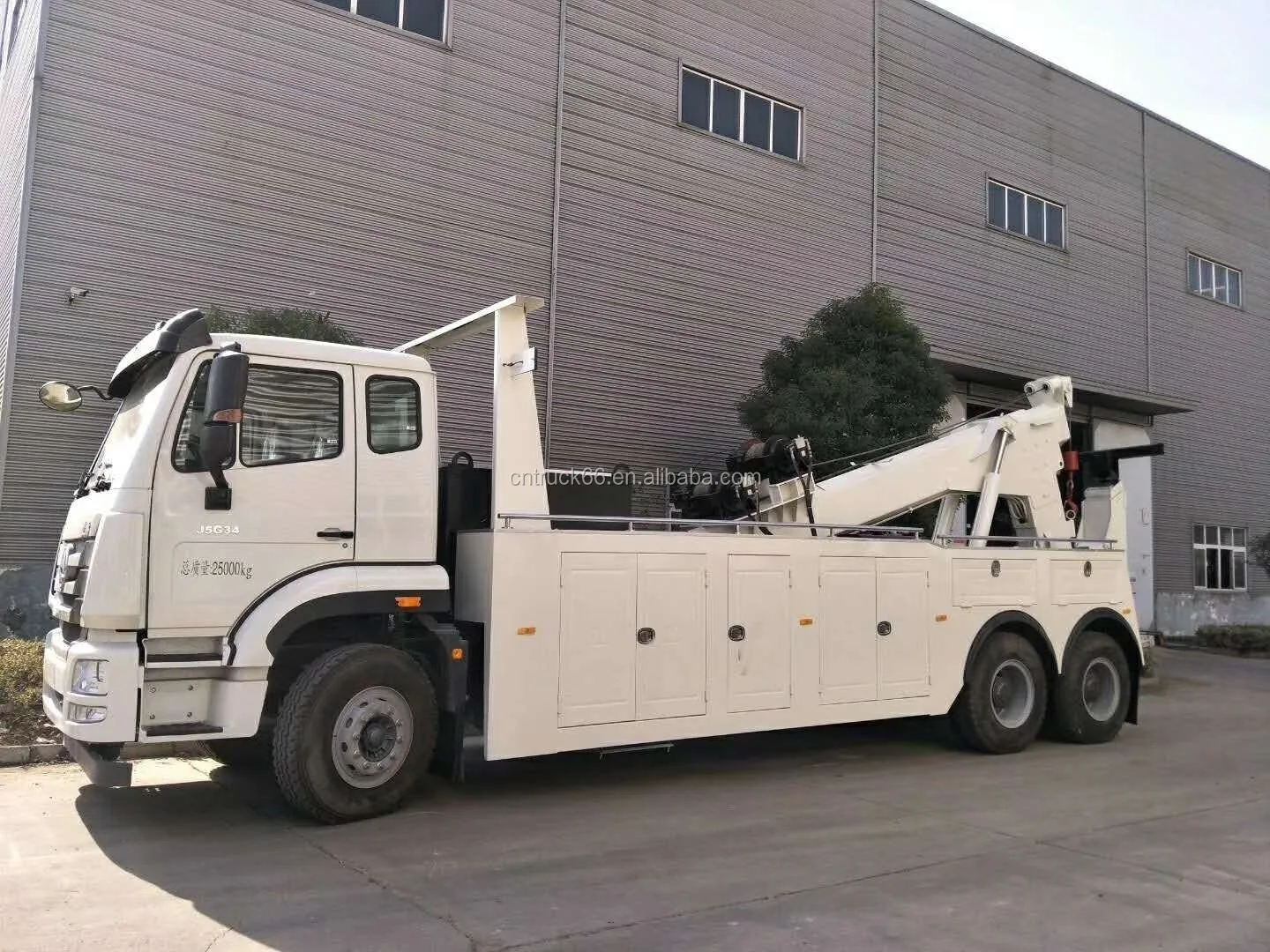

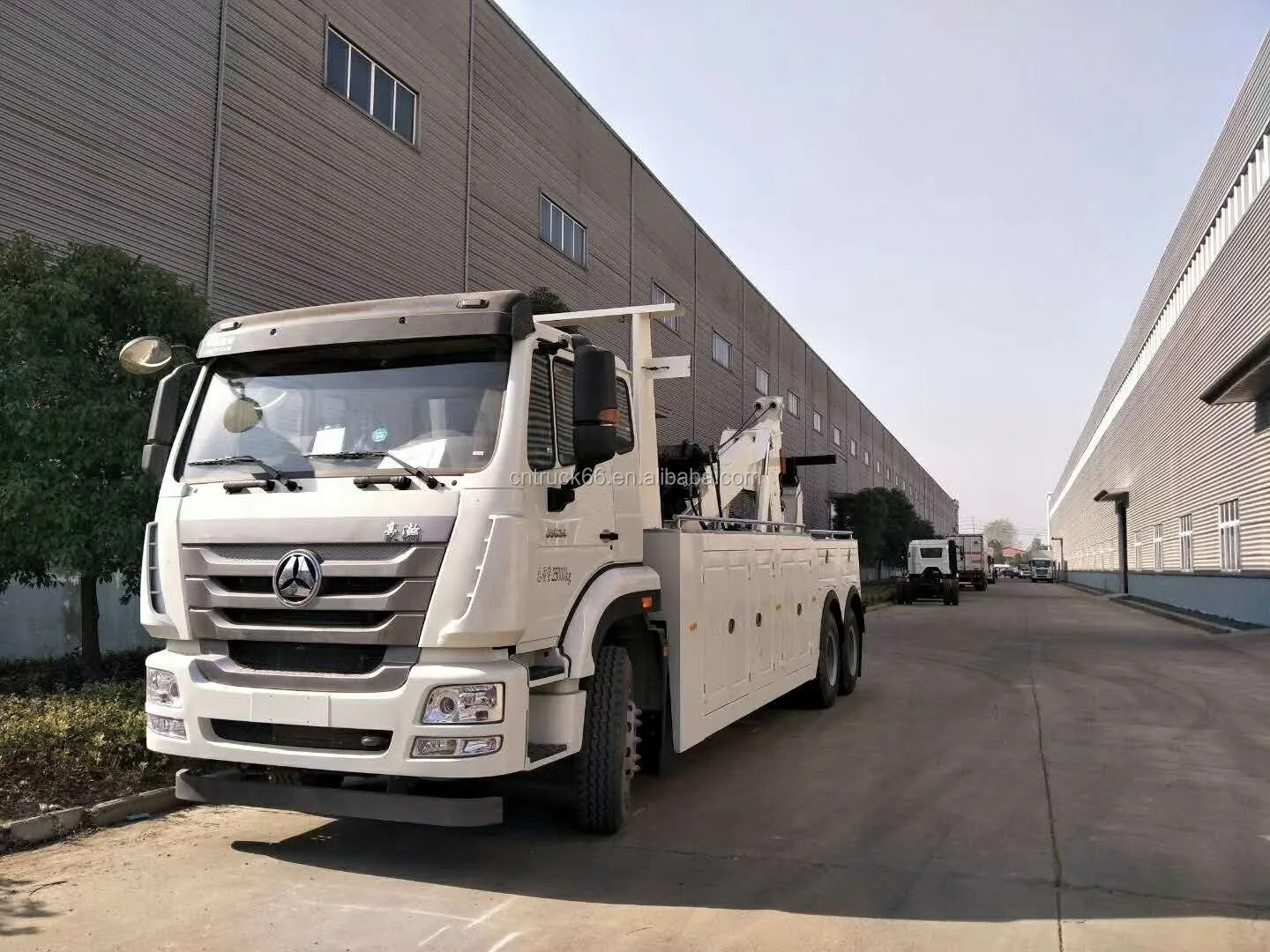

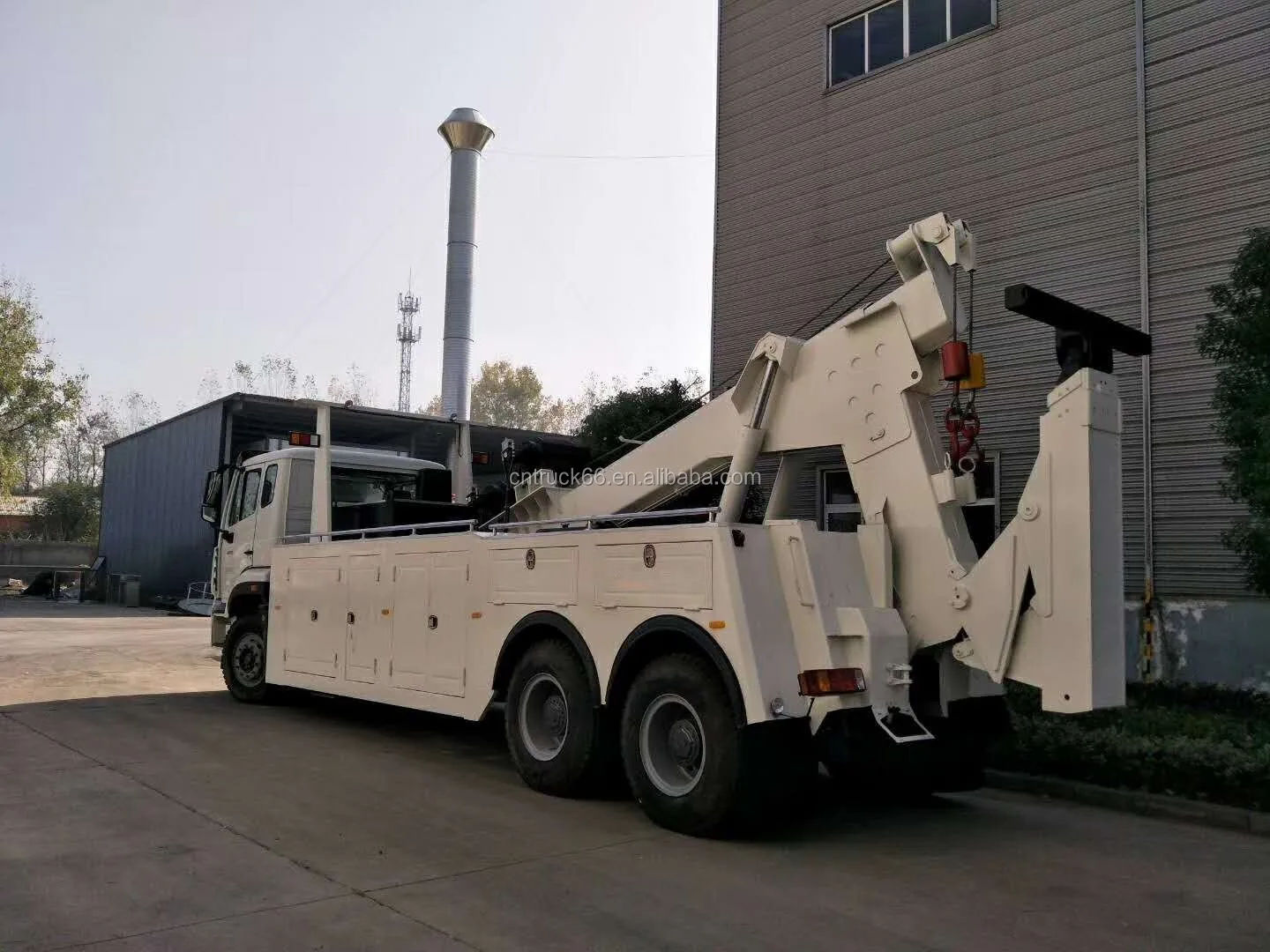

Flatbed Wrecker Towing Truck photos
The detail photos that introduce How to load truck, how to operate truck, how to produce the wrecker towing truck





About our company:
Chengli Special Automobile Co., Ltd has nearly 16 years’ history since 2004, where the first heavy duty truck was produced in China.
We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.
This is our advantage. Our products with BV, WMI, CCC and ISO certificate approved!

1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container



Trust us
1.11 years manufacture experience, good at controlling our products' quality. Choosing us ,you choose professional supplier.
2.The good faith management is our philosophy,and welcome visits our company at any time.
3.According to your order, we provide suitable trailer.
4.We also provide rational packing and shipping program, let shipment save money and security.
Just trust us,you will get a satisfactory answer.


1. Does your company has your own factory?
- Yes, we have a factory ourselves,which is in this business for 12 years in China. Our factory is very famous
where is manufacturing various trailers in ShanDong, China.
2. Can you satisfy my special requirement?
- Definitely! We can make the trailers based on your requirement.
3. What’s your minimum quantity?
- Min.1set
4. How to trust us?
- The good faith management is our philosophy, and you are welcome to visit our company at any time.
5. What’s your payment term?
--- T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
--- L/C: 100% irrevocable credit of letter.
