High Precision U Shaped Brushless 1590N Coreless Linear Motor
US $528.00-$1020
good quality IE3 380V 3 22KW AC Relauto Synchronous Reluctance Motor
- Category: AC Motor >>>
- Supplier: Shanghai Rijing Electric Co. Ltd.
Share on (62338490460):
Product Overview
Description

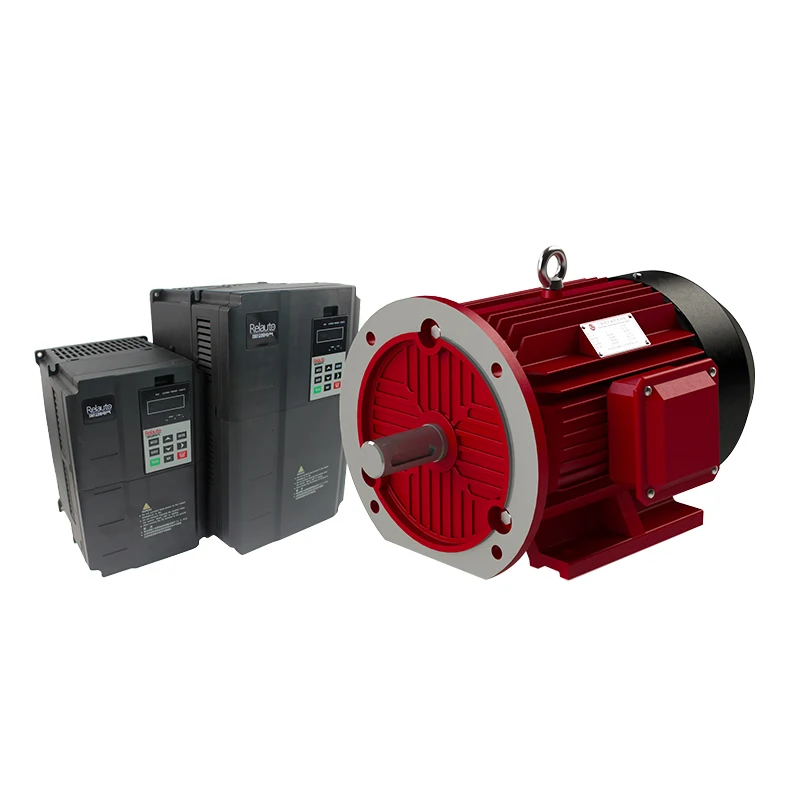

good quality IE3 380V 3-22KW AC Relauto Synchronous Reluctance Motor
1.It reaches the enegy conervation standards of first national level and IE4
1.It reaches the enegy conervation standards of first national level and IE4
There's no rotor eddy current loss in SYnRM, leading to its higher efficiency than induction motor, which is equivalent to PMSM.
2.Excellent performance on dynamic and speed governing
Motors with multiple inertia size can meet comprehensive demands of dynamic response and system reliablity under different working confdition. On account of control model, it's easy to adjust excitation with large expansion ratio pf flux-weakening and wild speed range of constant power.
3.Simple and reliable motor structure
The rotor has non-magnetic steel, no squirrel cage, therefore, it is out of risk of flux-weakening and temperature rise of
squirrel cage.
4.Stable power factor
SynRM's reactive currents ratio holds under different load and speed, keeping a stable power factor.
2.Excellent performance on dynamic and speed governing
Motors with multiple inertia size can meet comprehensive demands of dynamic response and system reliablity under different working confdition. On account of control model, it's easy to adjust excitation with large expansion ratio pf flux-weakening and wild speed range of constant power.
3.Simple and reliable motor structure
The rotor has non-magnetic steel, no squirrel cage, therefore, it is out of risk of flux-weakening and temperature rise of
squirrel cage.
4.Stable power factor
SynRM's reactive currents ratio holds under different load and speed, keeping a stable power factor.
Model | Three-phase synchronous reluctance motor | Vibration level | R |
Voltage level | AC 380V | Cooling method | IC411 Self-fanned |
lation grade | F | Speed sensor | Sensorless, Incremental encoder |
Protection | IP65 | Installation method | B3, B35,B5 |
Axis mode | Optical axis, single button slot | Use environment | Altitude: below 1000m,Temperature:-15~40,Humidity:80%RH |
Product Details
Model | Rated power (KW) | Rated speed (r/min) | Rated current (A) | Rated speed (N.m) | Weight(KG) |
RM132S-RMIG-3-10-B3 | 3 | 1000 | 7.5 | 28.7 | 59 |
RM132S-RMIG-4-10-B3 | 4 | 1000 | 9.8 | 38.2 | 65 |
RM132S-RMIG-5.5-10-B3 | 5.5 | 1000 | 15 | 52.5 | 73 |
RM80M-RMIG-0.75-15-B3 | 0.75 | 1500 | 2.5 | 4.8 | 16.3 |
RM90L-RMIG-1.5-15-B3 | 1.5 | 1500 | 4 | 9.5 | 27 |
RM100L-RMIG-3-15-B3 | 3 | 1500 | 7.5 | 19.1 | 40.5 |
RM112M-RMIG-4-15-B3 | 4 | 1500 | 9.7 | 25.5 | 48 |
RM132S-RMIG-5.5-15-B3 | 5.5 | 1500 | 13.5 | 35 | 65 |
RM132M-RMIG-7.5-15-B3 | 7.5 | 1500 | 18.2 | 47.7 | 73 |
RM160M-RMIG-11-15-B3 | 11 | 1500 | 26.7 | 70 | 114 |
RM180L-RLIG-22-15-B3 | 22 | 1500 | 45 | 140.1 | 184.5 |
Application Scenario
Related Products
factory direct three phase converter frequency drive inverter
$428-$928
high efficiency 3 phase RJ180 AC 380V 5.5KW 35NM Servo Motor
$360-$675
Autonics AH1K-S543 5-Phase single hollow shaft stepper motor
$106-$124
factory direct mini frequency inverter driver
$75-$115
mini design variable frequency inverter three phase 380v ac inverter
$46-$75
Autonics PMC-1HS-232 High-Speed Programmable Motion Controller
$230-$270
Company Introduction
SHANGHAI RIJING ELECTRIC CO., LTD.
1. Established in 1996;
2. More than 20 years experience in the field of industrial automation ;
3. Supply OEM/ODM Manufacturing;
4. Committed to R & D, production, agency, sales and service of industrial products;
5. Providing a one-stop solution for market segmentation;
6. Committed to the construction of IoT, the implementation of industrial 4.0;
7. Our products such as inverter&converter, proximity sensor, photoelectric sensor, controller, servo motor, synchronous reluctance motor ect. have been exported to many countries like America, India, Japan, German, South Africa, Southeast Asia.
3. Supply OEM/ODM Manufacturing;
4. Committed to R & D, production, agency, sales and service of industrial products;
5. Providing a one-stop solution for market segmentation;
6. Committed to the construction of IoT, the implementation of industrial 4.0;
7. Our products such as inverter&converter, proximity sensor, photoelectric sensor, controller, servo motor, synchronous reluctance motor ect. have been exported to many countries like America, India, Japan, German, South Africa, Southeast Asia.
Packing&Shipping
FAQ
Q1. Can I get some samples?
A1: Yes, sample order is available for quality check and market test.
Q2. What's the price terms you can offer for us?
A2: We can accept EXW, FOB, CIF and so on.
Q3. What's the delivery time?
A3: It usually takes about 3-5 working days for stock and 10-15 days for large quantity.
Q4. What's your payment terms?
A4: We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
Q5. What's your warranty time?
A5: We offer 12 months warranty time.
Q6. How does your factory do the quality control?
A6: Quality is priority. We always attach the importance to quality control from the beginning to the end of the production. Every
product will be fully assembled and carefully tested before packing and shipping.
Q7. What is the standard of package?
A7: Export standard package or special package according to customer requirement
Q8. What kind of certificate you have ?
A8: We have ISO9000, CB, CE, INMETRO, SONCAP, ROHS, SASO.
Q9. Where is your main market for your products?
A9: Most of our products are exported to Southeast Asia, Africa and Mid Eas
A1: Yes, sample order is available for quality check and market test.
Q2. What's the price terms you can offer for us?
A2: We can accept EXW, FOB, CIF and so on.
Q3. What's the delivery time?
A3: It usually takes about 3-5 working days for stock and 10-15 days for large quantity.
Q4. What's your payment terms?
A4: We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
Q5. What's your warranty time?
A5: We offer 12 months warranty time.
Q6. How does your factory do the quality control?
A6: Quality is priority. We always attach the importance to quality control from the beginning to the end of the production. Every
product will be fully assembled and carefully tested before packing and shipping.
Q7. What is the standard of package?
A7: Export standard package or special package according to customer requirement
Q8. What kind of certificate you have ?
A8: We have ISO9000, CB, CE, INMETRO, SONCAP, ROHS, SASO.
Q9. Where is your main market for your products?
A9: Most of our products are exported to Southeast Asia, Africa and Mid Eas
