[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500
Автоматическая машина для резки и сгибания LK 600
- Category: Paper Production Machinery >>>
- Supplier: Zhejiang Guangya Machinery Co. Ltd.
Share on (62339153018):
Product Overview
Description
Product Description

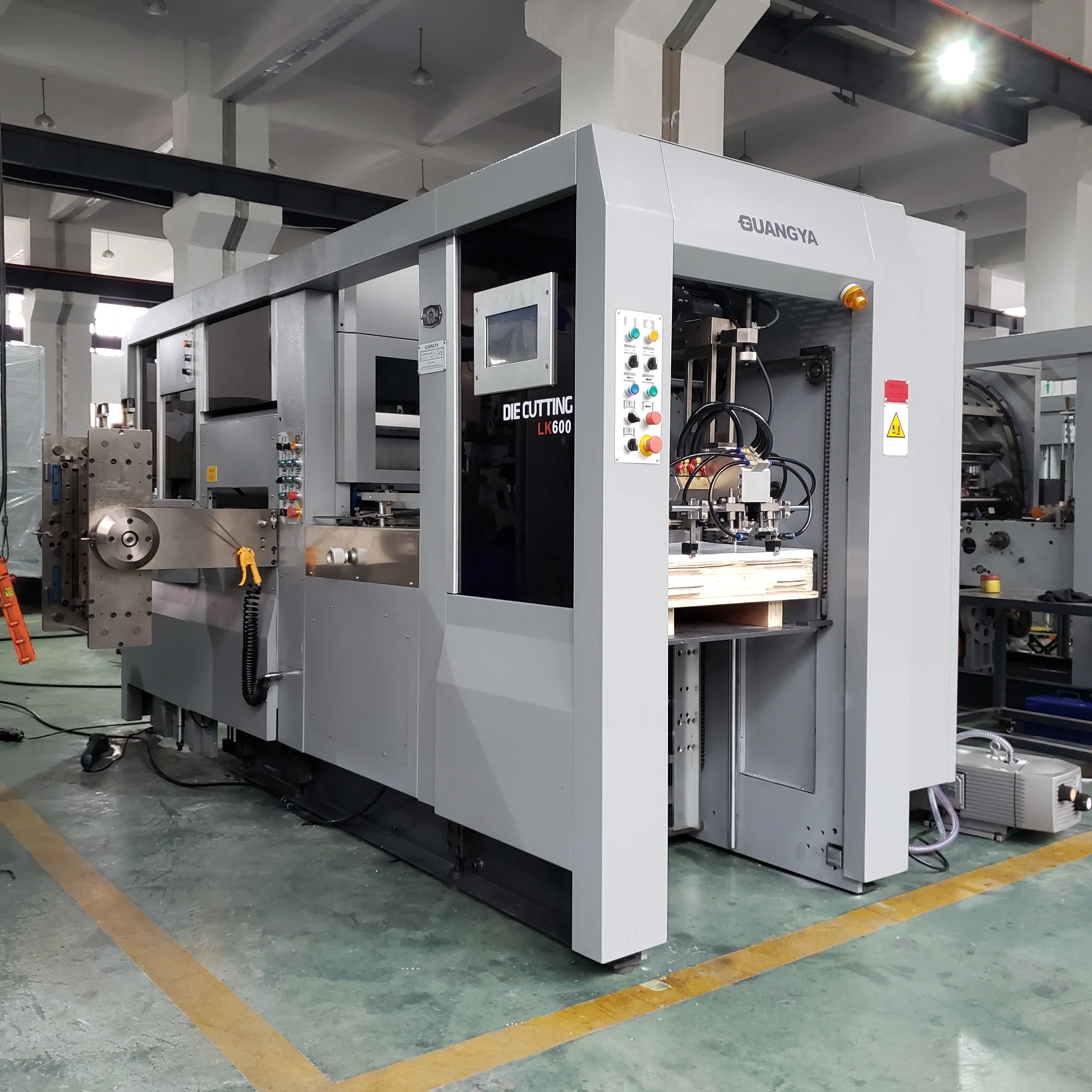

LK 600 Automatic die cutting and creasing machine is specially designed for die cutting, embossing, creasing process. It with big advantage in machine safety, labor saving and products precision. it equipped over 20 safety sensors, once one of them being triggered, the whole machine would shut itself down immediately to keep the safe of the operators. With maximum sheet size 600*450 MM and high producing speed, it could satisfy bulk products producing. This machine equipped new “no nicks” technology, this machine quite suits for hanging tag die cutting process what’s more is the “quick installation” hot foil stamping system for this machine, it means you could change this die cutting machine into hot foil stamping machine when once you need.
Max. sheet size | 600*450 MM |
Min. sheet size | 300*210 MM |
Paper range | 120 - 1000 GSM |
Gripper margin | 8 - 17 MM |
Max. cutting force | 150 T |
Max. working speed | 6500 S/H |
Max. delivery pile height | 630 MM |
Max. feeding pile height | 850 MM |
Main motor power | 5.5 KW |
Machine weight | 5600 KG |
Air requirements | 0.6 Mpa, > 0.37M3/Min |
Overall machine dimensions | 3500*1600*1900 MM |
Applied materials
Not only paper, our die cutting machine suit for material like, cardboard, corrugated and multiple kinds of plastic sheet.
Function
Not only die cutting, we provide "no nicks" technology on this machine, but also creasing, , embossing functions are available om this machine. Suit for box, carton, paper bag, hanger tag producing.
Detailed Images

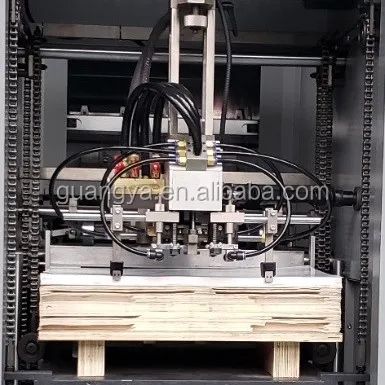

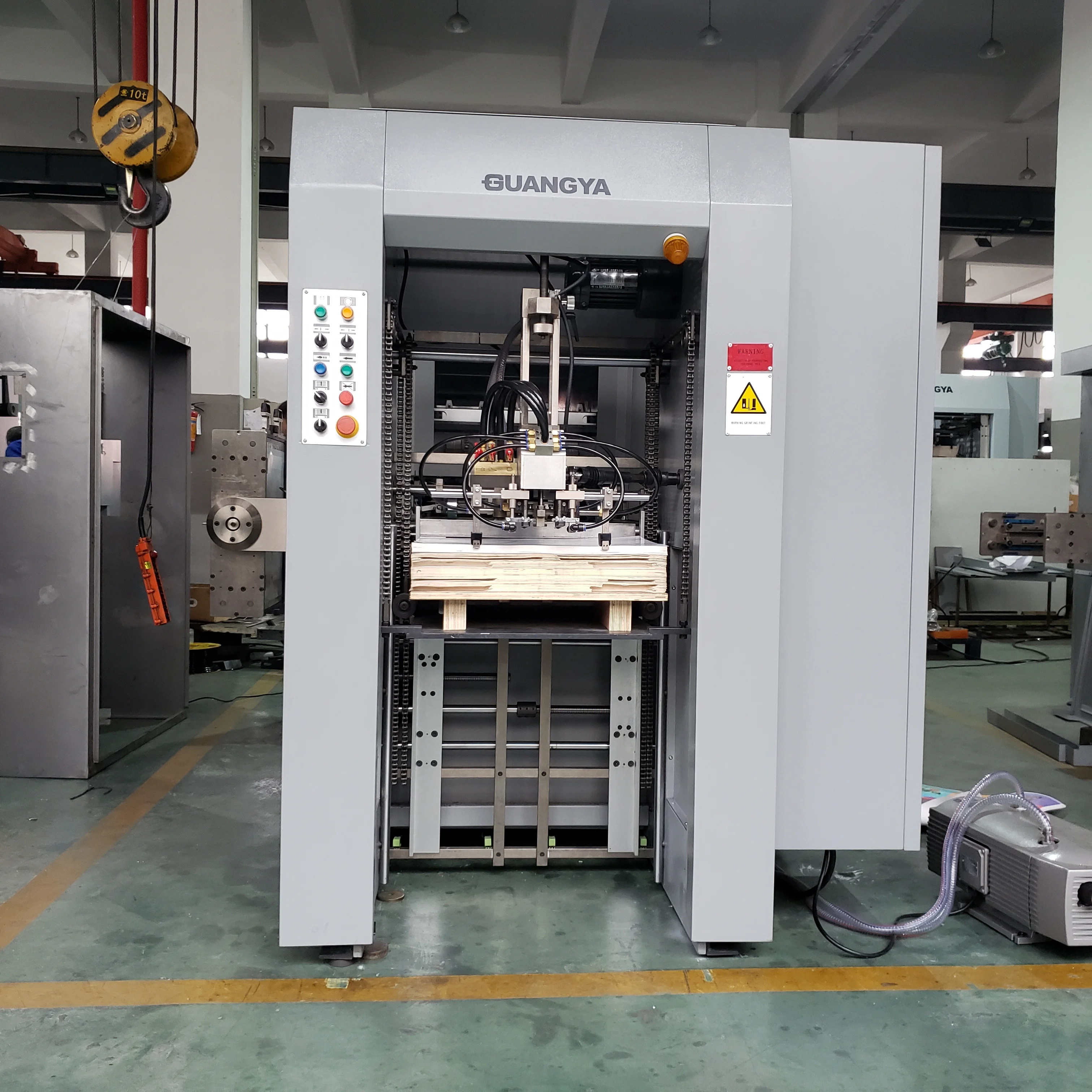

Feeder
* Pile tray with handle allowing manual lateral correction of the pile during production.
* Feeder protective device in case of crashing.
* Feeder is equipped with 3 lifting suction cups and 2 transport suction cups.
* The suction cups are adjustable according to the paper deformation in lateral way.
* Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth
feeding process.
* Adjustable while in operation: to fine tune
* the feeder cycle to the platen.
* Safety system for lowering the pile tray.
* Feeder protective device in case of crashing.
* Feeder is equipped with 3 lifting suction cups and 2 transport suction cups.
* The suction cups are adjustable according to the paper deformation in lateral way.
* Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth
feeding process.
* Adjustable while in operation: to fine tune
* the feeder cycle to the platen.
* Safety system for lowering the pile tray.
Feed table
* Covered with upgrade anti-static stainless-steel plate.
* Double sheet detector.
* Support plates at entry of platen station.
* Sheet hold-down device (guiding the sheets to the front lays).
* Upper frame with manual lifting device
* Wide conveyor belts ensure sheets accurately to the front and side lays units
* Double sheet detector.
* Support plates at entry of platen station.
* Sheet hold-down device (guiding the sheets to the front lays).
* Upper frame with manual lifting device
* Wide conveyor belts ensure sheets accurately to the front and side lays units
Die cutting
* Advanced host technology. Could finish die cutting, and creasing process.
* Heated upper head (as option)
* Gripper reopening device
* Gripper fine adjustment
* Automatic "on and off" pressure device of the platen.
* Equipment centering and locking.
* Automatic locking of the chase against the upper beam.
* Measurement of the cutting force with strain gauge automatically.
* Heated upper head (as option)
* Gripper reopening device
* Gripper fine adjustment
* Automatic "on and off" pressure device of the platen.
* Equipment centering and locking.
* Automatic locking of the chase against the upper beam.
* Measurement of the cutting force with strain gauge automatically.
Delivery
* Pile tray.
* Pneumatically controlled pivoting front joggers.
* Adjustable rear and side joggers with Centerline marks. Braking Brush.
* Pneumatically controlled pivoting front joggers.
* Adjustable rear and side joggers with Centerline marks. Braking Brush.
Packing&Shipping
Deep clear
Vacuum Packing
Container loading
We clean the equipment before packaging, then use film packaging to prevent secondary contamination, and finally use a fumigation high-strength wooden box. In order to provide maximum protection for the equipment.
