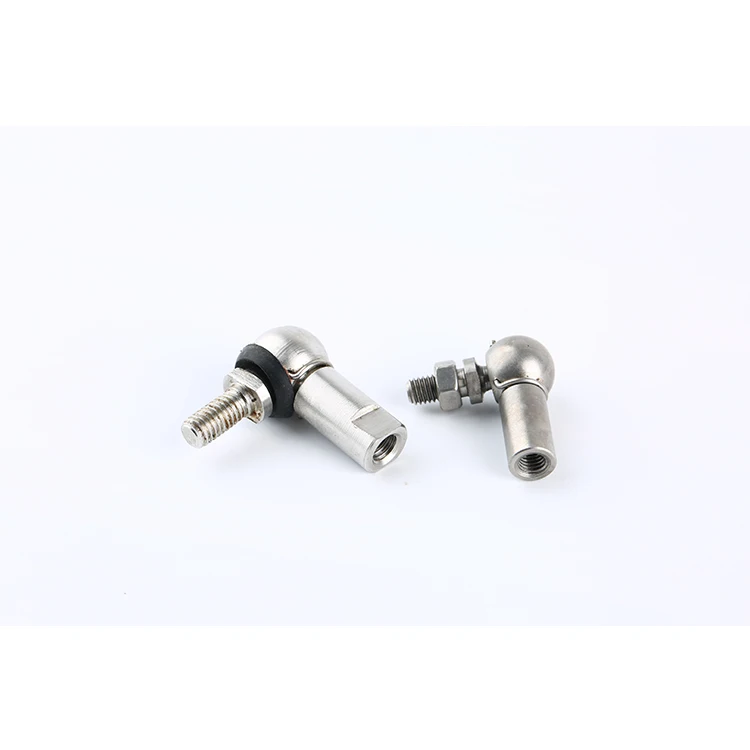

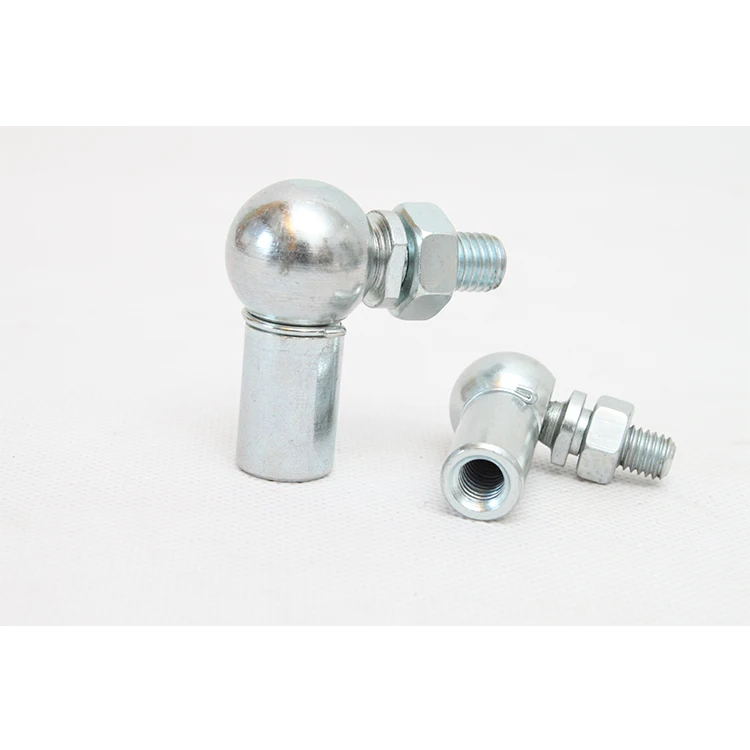

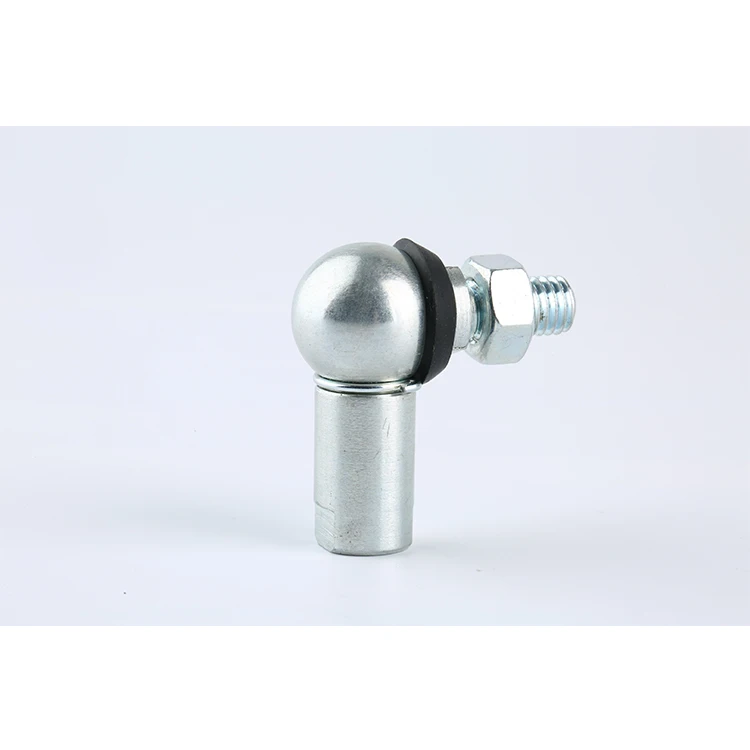

Ball housing,low carbon steel,zinc plated,yellow/clear or white-blue passivated. Ball stud,low carbon steel,zinc plated,yellow/clear or white-blue passivated. Clip,spring steel. Alternative:stainless steel. Special type upon request. Note: A/B/C type without safety clip on the ball housing AS/BS/CS type with safety clip on the ball housing Spanner surface for type C and CS on the ball stud Ball housing with or without spanner surface upon request. With or without sealing cap upon request. Left-hand thread in the housing possible.
Ball Dia d1
d2
I2
I3
e
d5
I1
a
WAF
Weight
Kg/1000pcs for type
h9
±0.3
±0.3
Min.
h11
±0.2
±0.3
h14
A and AS
B and BS
C and CS
8
M5
10.2
9
10.2
5
4
22
7
15.2
12.85
7.5
13.35
10
M6
12.5
11
11.5
6
4.5
25
8
25.2
21.3
8
22
13
M8
16.5
13
14
8
5
30
11
53.1
43.1
10
45
16
M10
20
16
15.5
10
6
35
13
103.8
82.3
M12
13
86.6
19
M14
28
20
21.5
14
12
45
16
220.9
181
M16
18
188.7
