Product Overview

Description

Product Description

Introduction

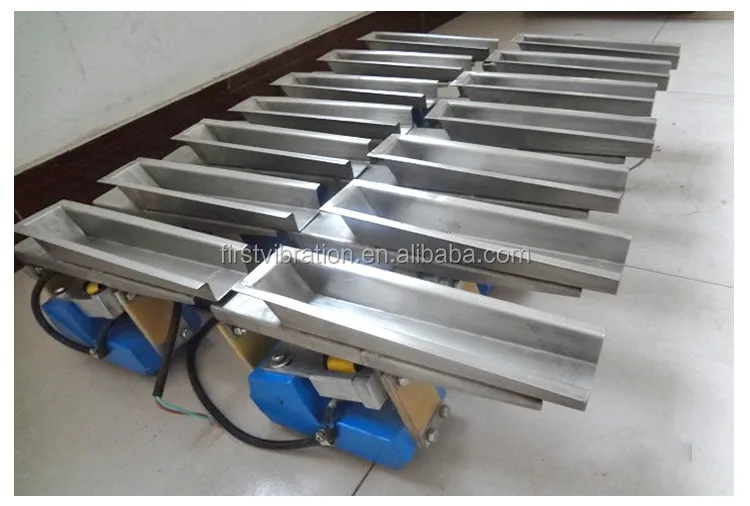

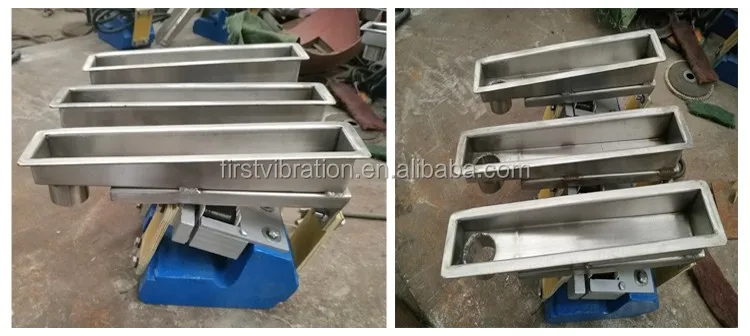

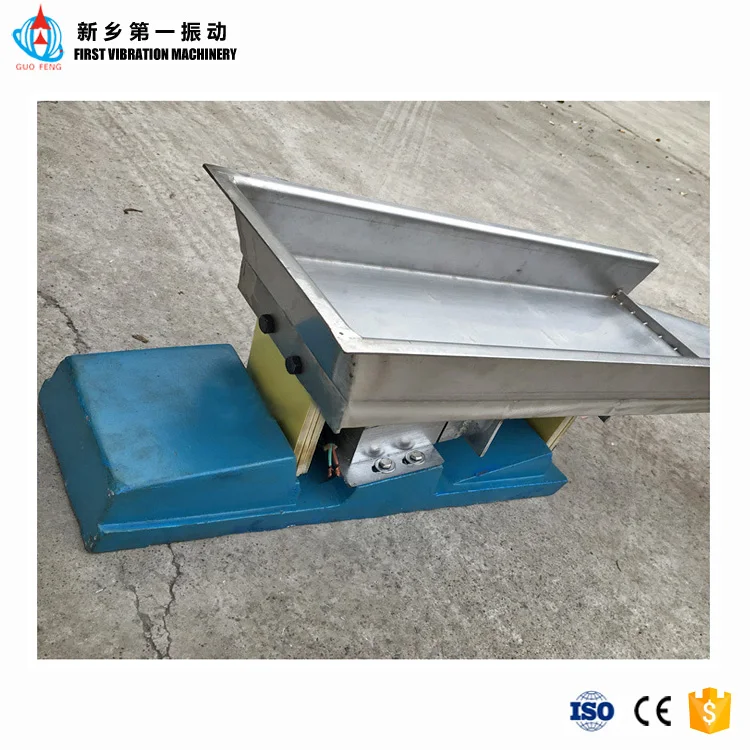

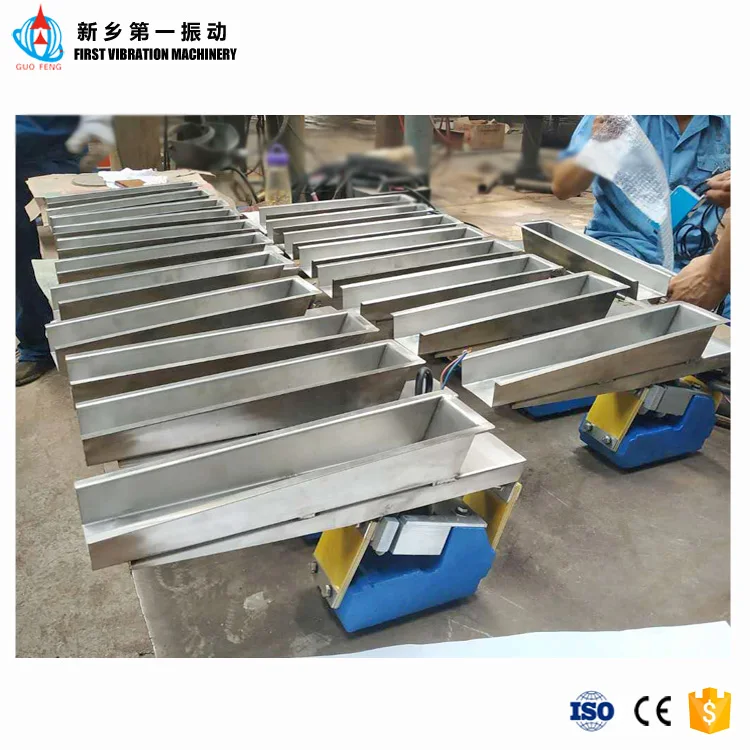

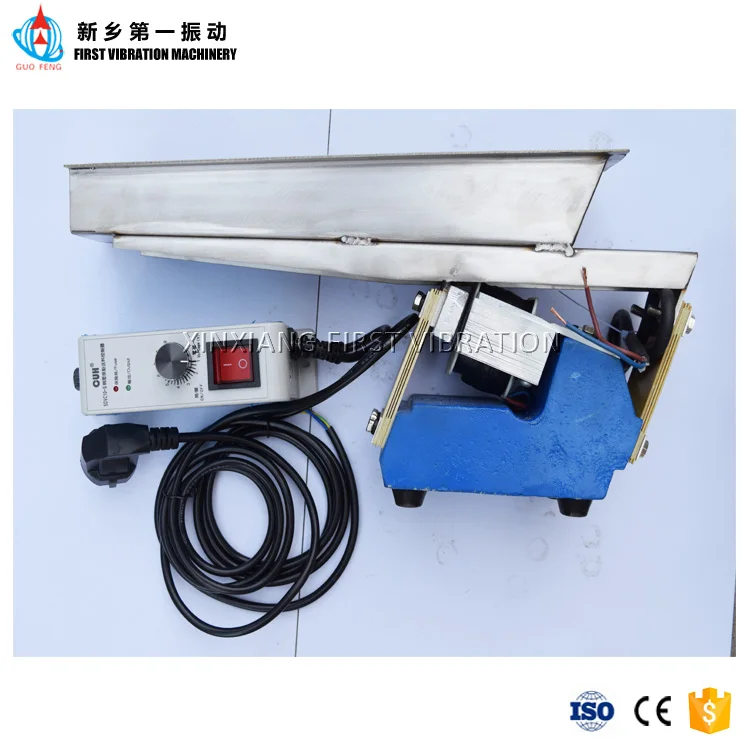

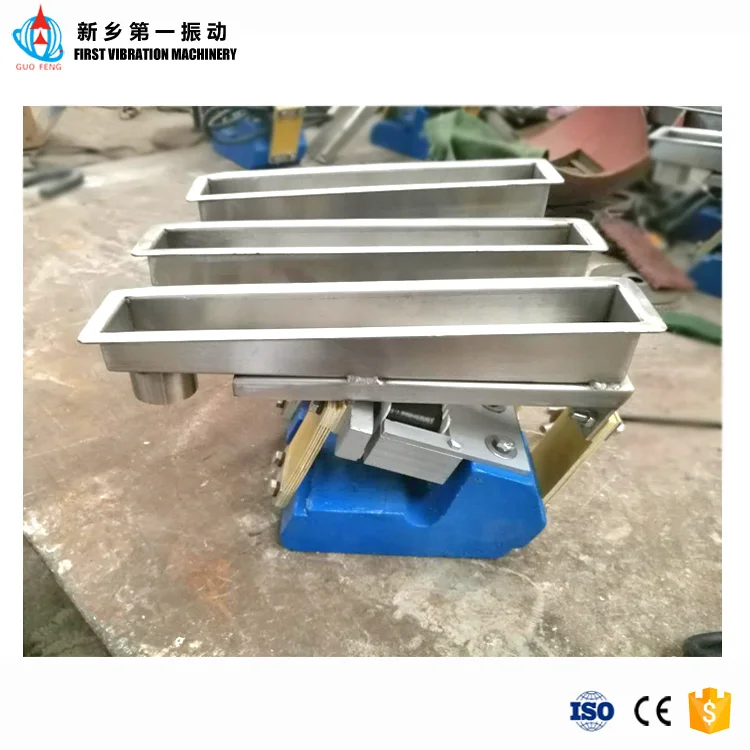

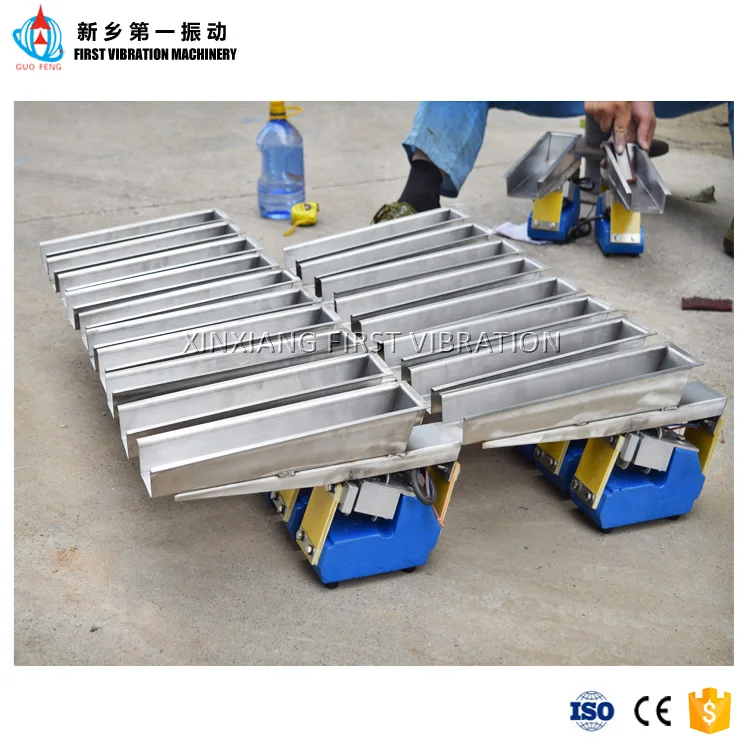

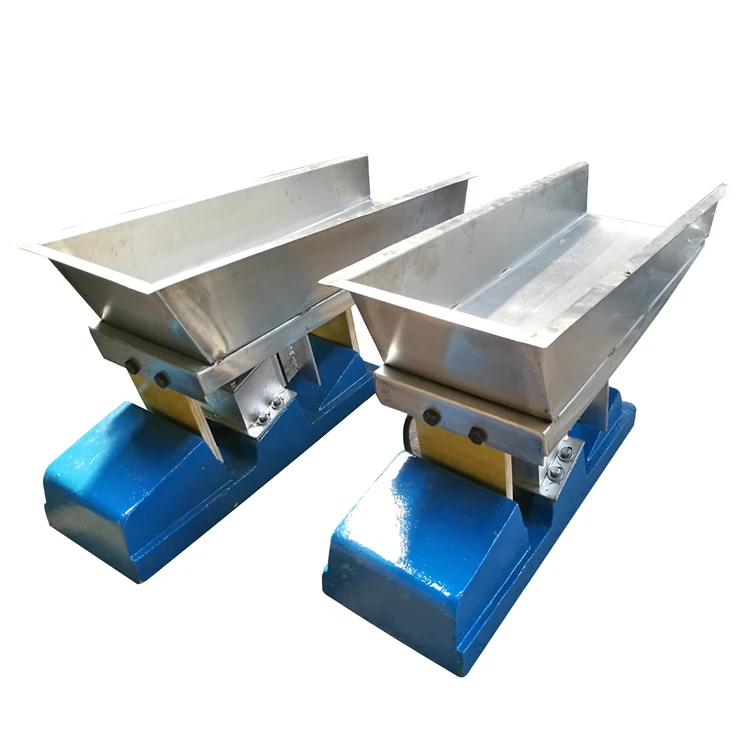

GZV GZVK Miniature electromagnetic vibrating feeder can transport granule or powdery material from silo or hopper to receiving device evenly and continuously. It can not be used to feed large pieces of material for its small size. It can be used easily and can work smoothly.

Working principle

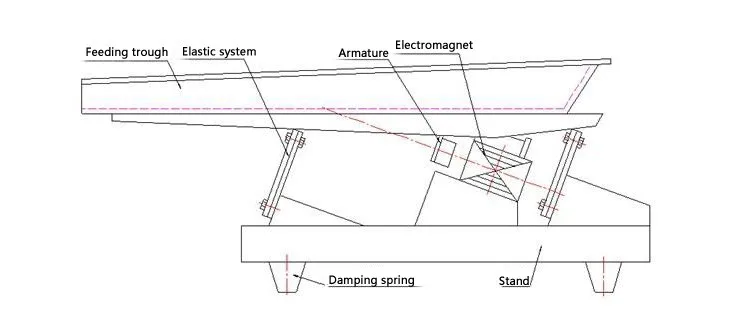

With the power on,a magnetic field will be created.The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction.When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials.

Applied field

Miniature electromagnetic vibrating feeder is very popular in various industries such as light industry, chemical industry, food industry and so on. It was used for the feeding of powder and granular materials, and makes the production process centralized control and automatic control be possible.

Main Features

1) Small size, light weight, easy installation, low noise
2) High accuracy and feeding capacity
3) Low energy consumption
4) Simple structure, and easy to carry and adjust
5) As the materials in the feeder trough are fed up continuously in the process of feeding, therefore it causes less damage to feeder.

Technical parameter for GZV vibrating feeder
Model
GZV1
GZV2
GZV3
GZV4
GZV5
Capacity(t/h)
0.1
0.5
1
2
4
Double amplitude(mm)
1.5
1.5
1.5
1.5
1.5
Frequency(tim/min)
3000
3000
3000
3000
3000
Power(w)
5
8
20
25
30

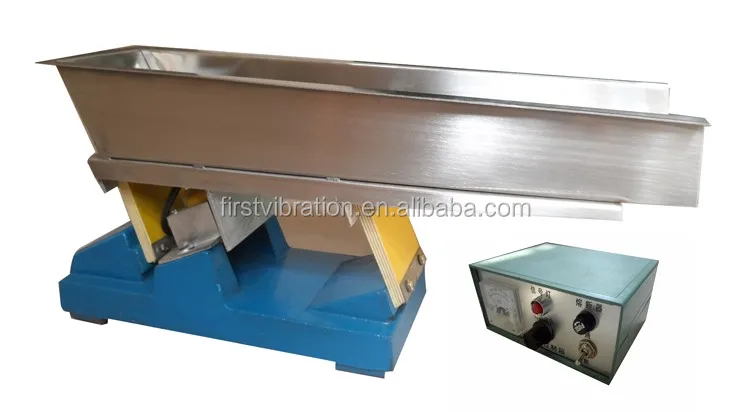

Control

equipment
Model
XKZV-Ⅱ
Control way
Controllable half wave rectifier
Voltage
220
220
220
220
220
Frequency(HZ)
50
50
50
50
50
Current(A)
0.08
0.12
0.15
0.2
0.25
Weight
4
7
12
18
27
