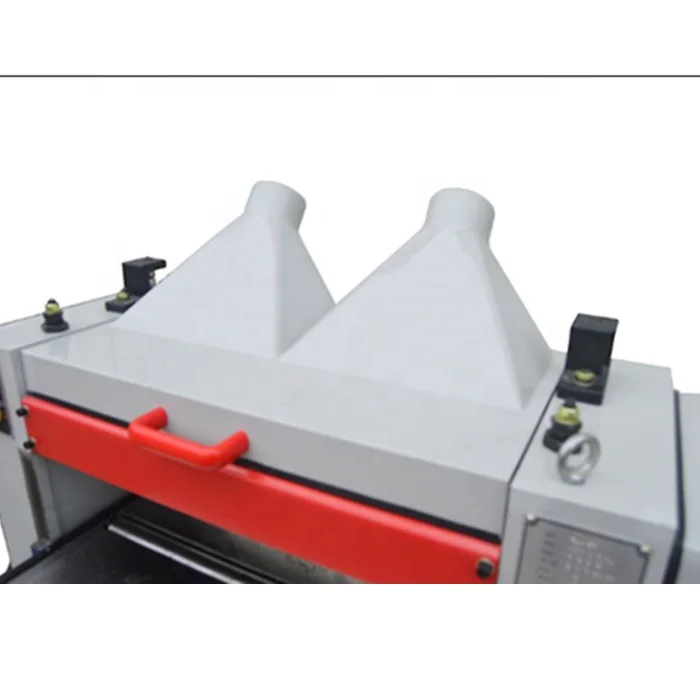

heavy duty four side moulder wood planer
US $22300-$23300
24 дюймовый строгальный станок для обработки древесины
- Category: Wood Planer >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (62339829811):
Product Overview
Description
Product Description

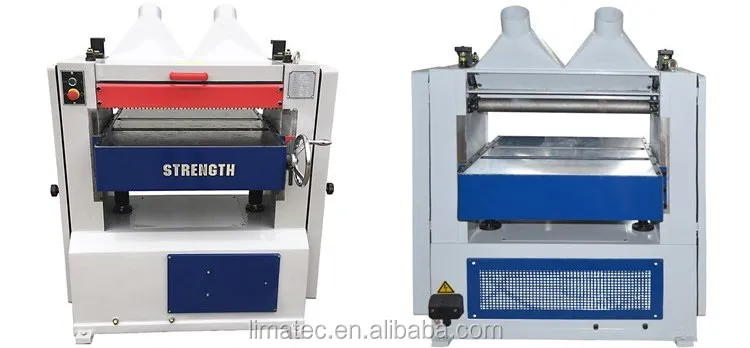

Planers
Each wood planer is manufactured according to our specifications and tough quality control standards. We build our
planers with steel frames and cast iron tables for rigidity and accuracy.
*16''/20'' /25” width
* 7” maximum cutting height
* Segmented infeed rolls
* 10 hp motor spins at 5,000rpm
planers with steel frames and cast iron tables for rigidity and accuracy.
*16''/20'' /25” width
* 7” maximum cutting height
* Segmented infeed rolls
* 10 hp motor spins at 5,000rpm
SIZE: 16'' /20"/25"
16'' Model MB104H(Equipped with straight cutter head) ; MB104HL(Equipped with spiral helical cutter head)
20'' Model MB105H(Equipped with straight cutter head) ; MB105HL(Equipped with spiral helical cutter head)
24"Model MB106H(Equipped with straight cutter head) ; MB106HLL(Equipped with spiral helical cutter head)
20'' Model MB105H(Equipped with straight cutter head) ; MB105HL(Equipped with spiral helical cutter head)
24"Model MB106H(Equipped with straight cutter head) ; MB106HLL(Equipped with spiral helical cutter head)
Main technical data | MB104H/MB104HL | MB105H/MB105HL | MB106H/MB106HL |
Max. wood width | 400mm | 500mm | 630mm |
Max. wood thickness | 180mm | 180mm | 180mm |
Min. wood thickness | 5mm | 5mm | 5mm |
Min. wood length | 220mm | 220mm | 220mm |
Max. cutting depth | 5mm | 5mm | 5mm |
Cutter head speed | 5000r/min | 5000r/min | 5000r/min |
Feeding speed | 6.5-9m/min | 6.5-9m/min | 6.5-9m/min |
Main motor | 4kw | 5.5kw | 7.5kw |
Machine weight | 420kg | 500kg | 600kg |
Wood planer can be equipped with straight cutter head or Spiral Helical Cutter head.Spiral cutter head is much better and easy to change the blades.

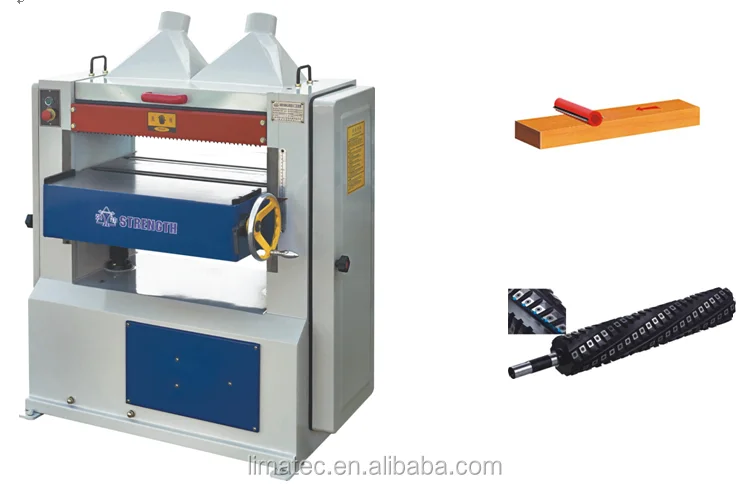

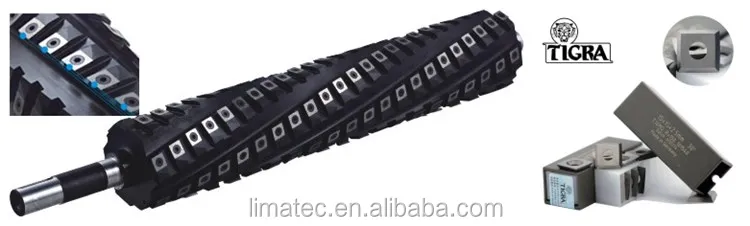

Optional Spiral Helical cutter head
Low Noisy.Easy to change the tips.
Save your time and value your wood
Save your time and value your wood
TIGRA Carbide Tips made in Germany
4 Faces TipsMade in Germany
Using longer time
Using longer time

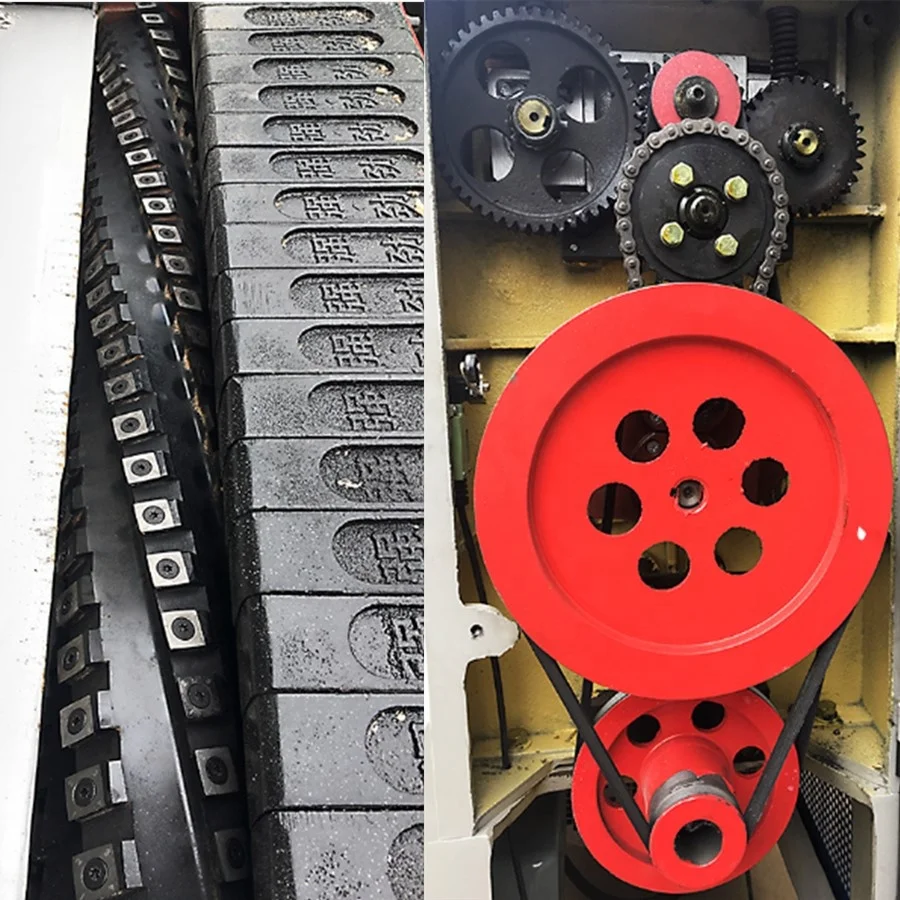

DESCRIPTION of SPIRAL HELICAL CUTTER HEAD
Spiral cutter head will last longer than standard straight knife cutters. You can rotate the cutting teeth so the planer
stays sharp.
* Carbide cutting teeth are more durable than straight steel blades.
* Each square tooth has 4 cutting edges. If you wear out an edge, you can rotate the cutting square 90° for a new edge.
* Spiral head offers a smoother cut if correctly set up.
* No need to worry about leaving streaks on boards if a cutting tooth gets chipped. Just rotate it and continue to produce
quality results.
* Small cutting teeth produce narrower chips than straight-knife cutters, so your dust collector won’t get clogged.
* Faster and easier to set up: the cutter head comes with each square indexed in its place. (With a straight 3-knife cutter, you
have to adjust the height.)
* Much quieter than a 3-knife head. The tiny blade squares are staggered and don’t hit the material at the same time.
* Covered by a 1-year warranty.
Spiral cutter head will last longer than standard straight knife cutters. You can rotate the cutting teeth so the planer
stays sharp.
* Carbide cutting teeth are more durable than straight steel blades.
* Each square tooth has 4 cutting edges. If you wear out an edge, you can rotate the cutting square 90° for a new edge.
* Spiral head offers a smoother cut if correctly set up.
* No need to worry about leaving streaks on boards if a cutting tooth gets chipped. Just rotate it and continue to produce
quality results.
* Small cutting teeth produce narrower chips than straight-knife cutters, so your dust collector won’t get clogged.
* Faster and easier to set up: the cutter head comes with each square indexed in its place. (With a straight 3-knife cutter, you
have to adjust the height.)
* Much quieter than a 3-knife head. The tiny blade squares are staggered and don’t hit the material at the same time.
* Covered by a 1-year warranty.
