Product Overview

Description

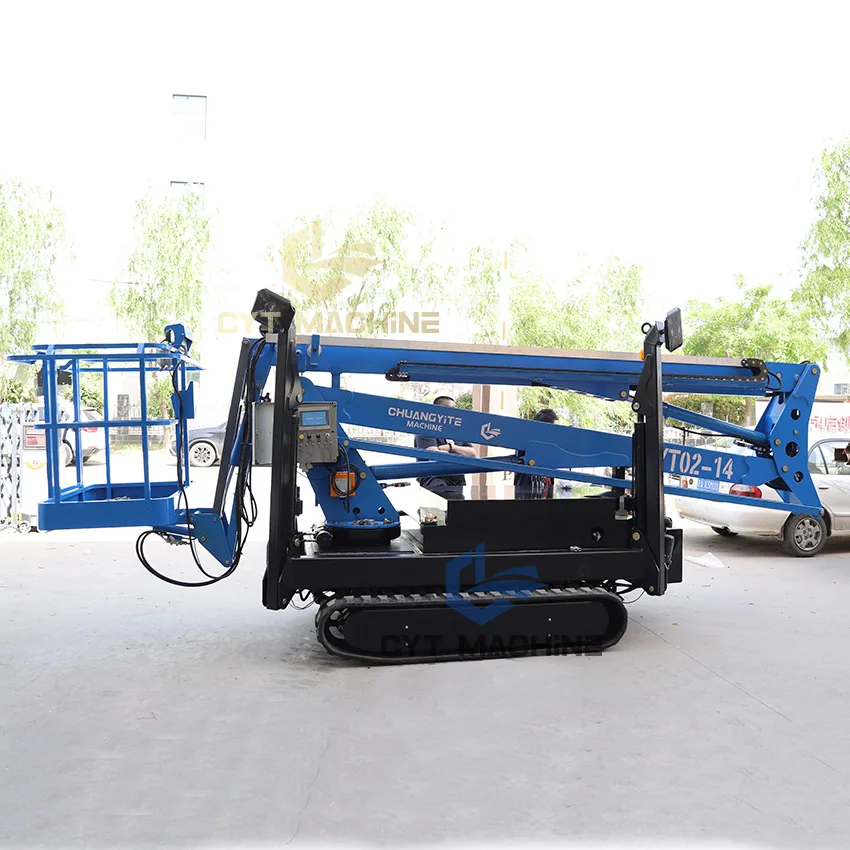

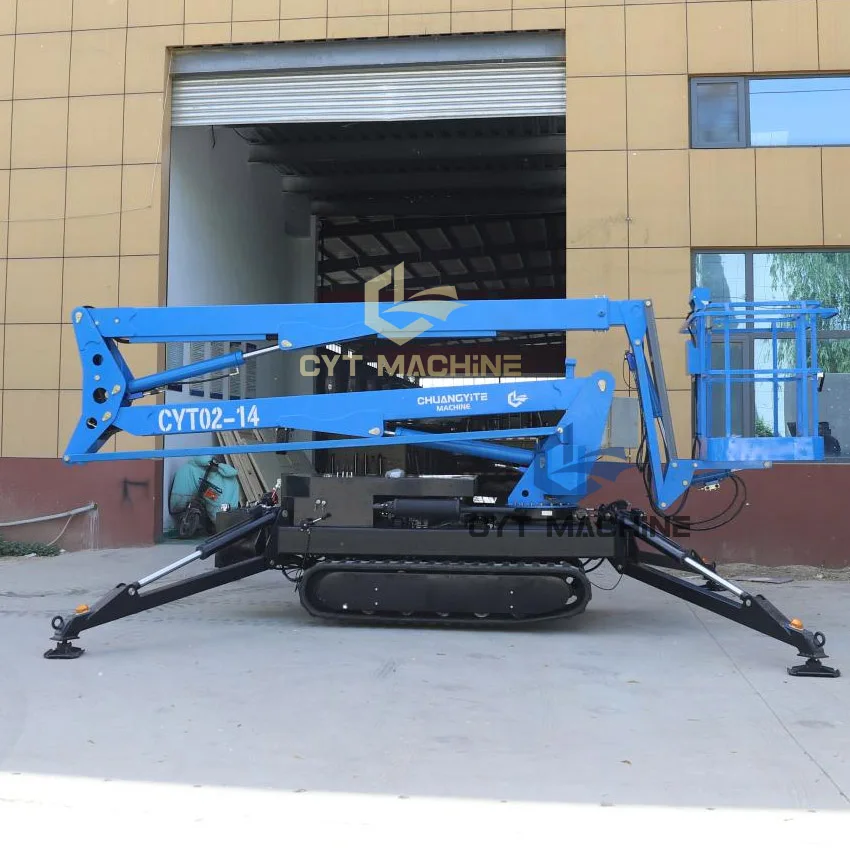

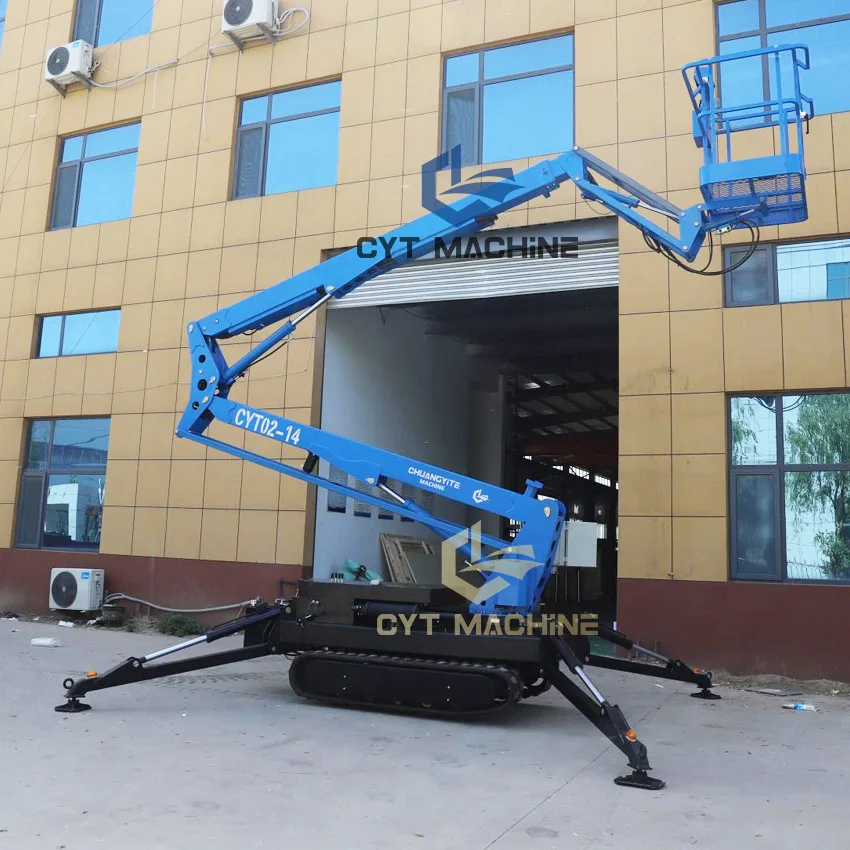

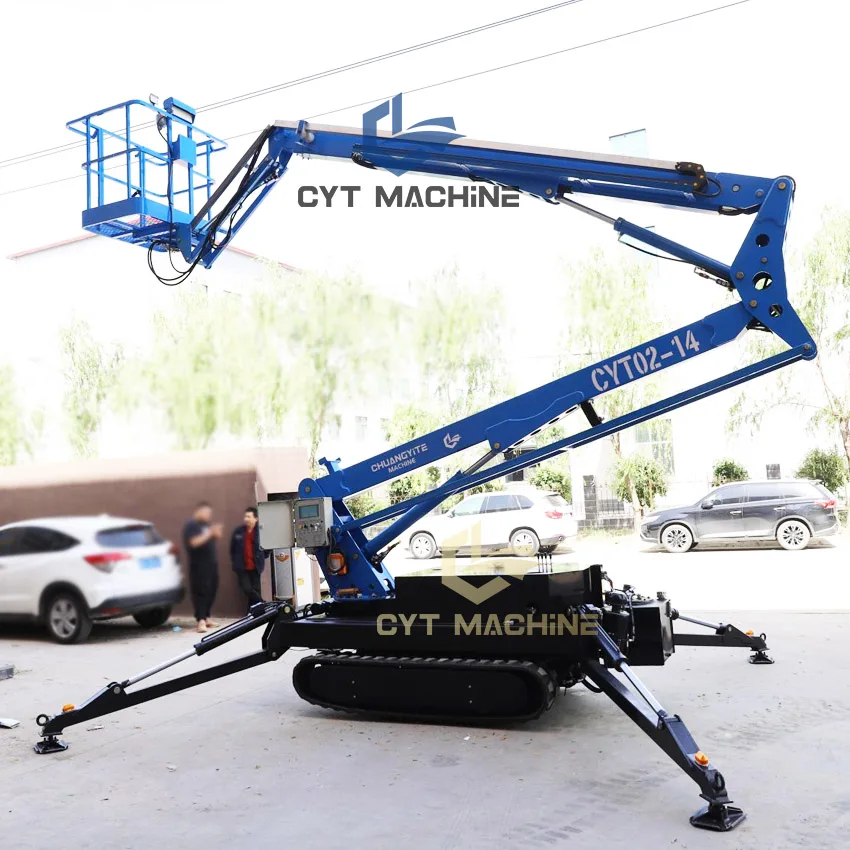

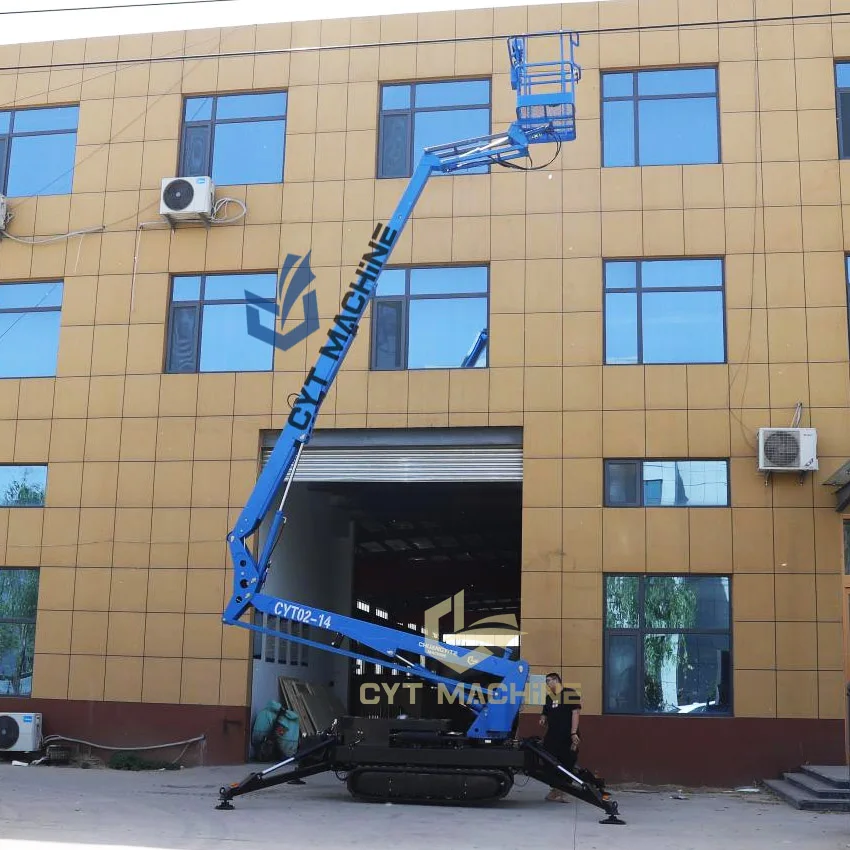

CYT Self-propelled crawler boom lift allows you to work without being restricted by road conditions, and no needed traction.
►Working height 8 m to 24 m.
► Custom platform size and load capacity
► Multi power supply: DC / Gasoline / Diesel
► 360° bottom rotation and 160° manned rotating platform
It is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...


Specification




Model
CYT0.2-10
CYT0.2-12
CYT0.2-12s
CYT0.2-14
CYT0.2-16
CYT0.2-20
CYT0.2-22
Platform Height
10m
12m
12m
14m
16m
20m
24m
Working Height
12m
14m
14m
16m
18m
22m
26m
Load Capacity
200kg
200kg
200kg
200kg
200kg
200kg
200kg
Working
Radius
5m
6.5m
7.5m
8.5m
10m
12.5m
14m
Platform Size
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
0.9*0.7m
Dimension
5.8*1.8*2.2m
5.8*1.8*2.2m
5.8*1.8*2.2m
6.55*1.66*2.13m
7*1.8*2.25m
7.6*1.8*2.25m
8.05*1.8*2.25m
Telescopic Boom
NO
NO
YES
YES
YES
YES
YES
Weight
1600kg
1800kg
1600kg
2500kg
2800kg
3800kg
4800kg
Wind Level
≤5
≤5
≤5
≤5
≤5
≤5
≤5
Lifting powder
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Units for 40GP
3 units
3 units
3 units
3 units
2 units
1 units
1 units


Products Details




Crawler Boom Lift Main Features
► All operations can be controlled by remote control, operating range radius is about 100 m
► Four-cylinder engine has more strong power
► Telescopic arm increase working radius and saves space in storage
► All Cables and hoses put inside the machine. Avoid tangled sun and rain or other objects
► High and low dual platform control
► Automatic leveling system and tilt alarm
► Multi safety measures: Emergency Stop Button, Emergency Lowering System, Anti Explosion Valve, Safety warning light
► Hydraulically arms and outrigger interlocks
► Complies with all by ISO manufacturing standards, CE-approval.
► Double acting hydraulic cylinder, dual protection, zero risk
► Unique electromagnetic brake Assist system

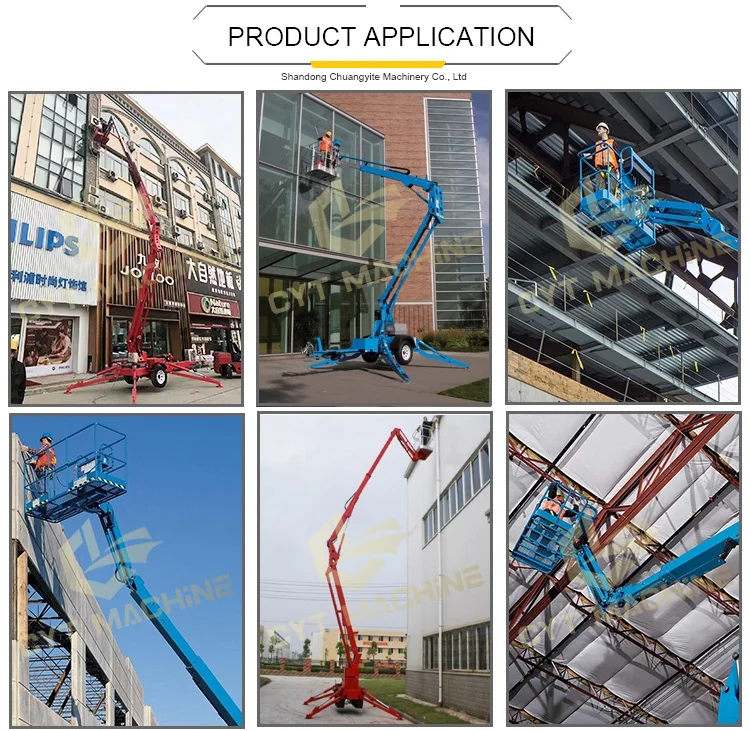

Application Case

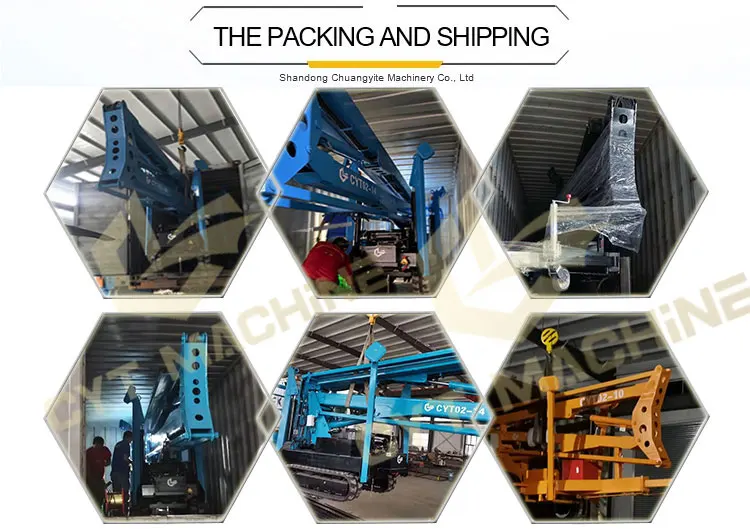

Packing and Shipping

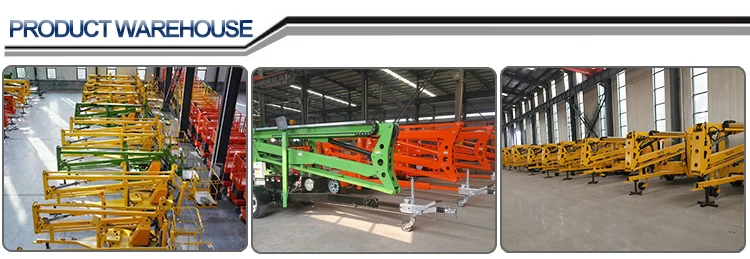

Product Warehouse
