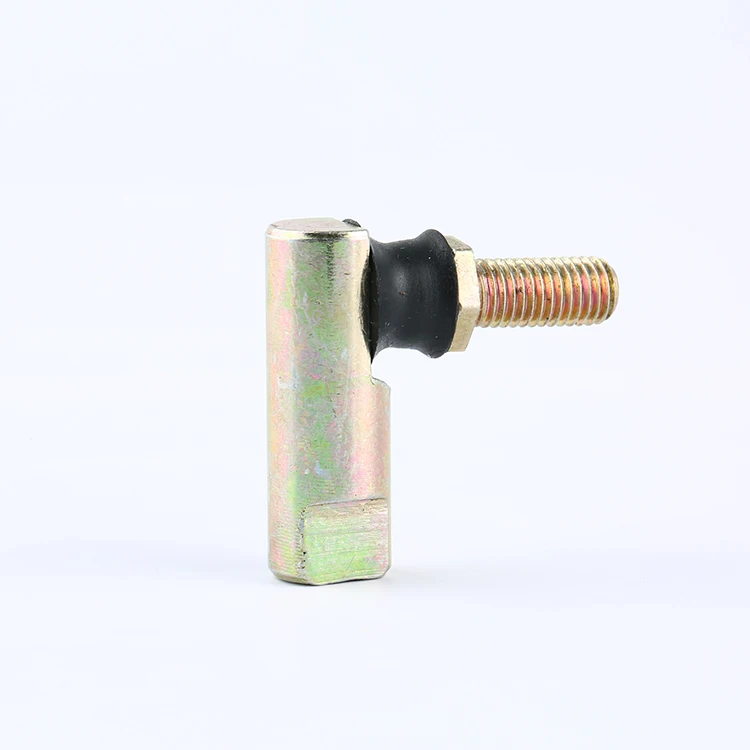

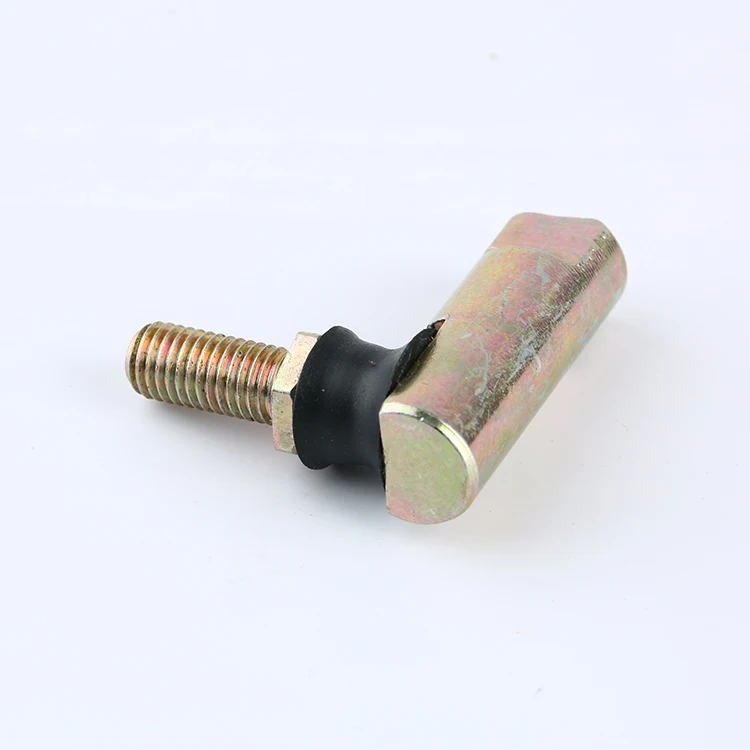

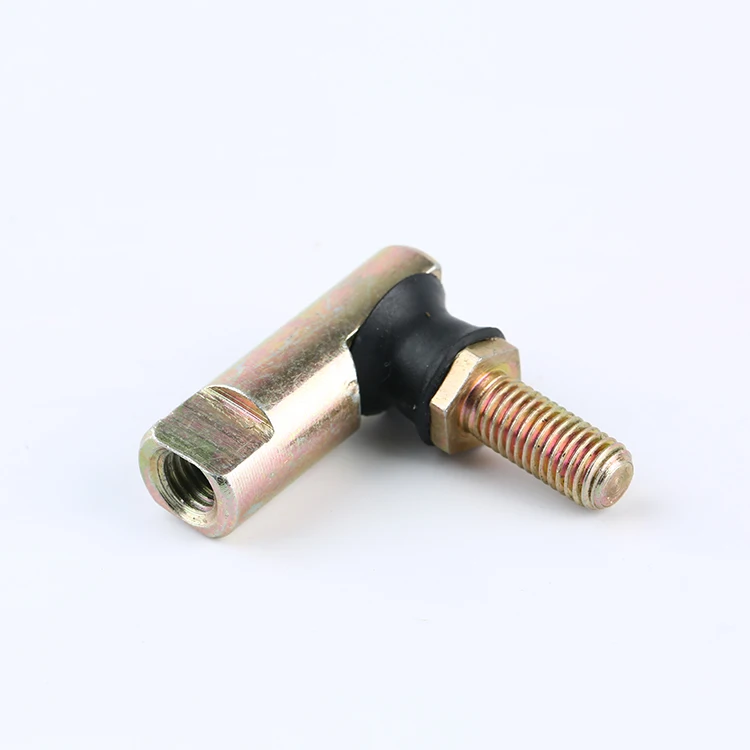

Ball Stud, Low carbon steel, case hardened for extended wear life. Body,Low carbon steel. Zinc plated, yellow dichromate Alternative: stainless steel. Unless otherwise specified, all dimensions are in inches. Special request upon drawing or samples.
Part No.
Housing Thread
Stud Thread
F
G
J
L
M
N
P
ES187
10-32
10-32
0.44
0.438
0.313
0.375
1.063
0.875
0.438
ES250
1/4-28
1/4-28
0.47
0.563
0.375
0.438
1.219
0.969
0.500
ES312
5/16-24
5/16-24
0.53
0.688
0.438
0.500
1.406
1.125
0.563
ES375
3/8-24
3/8-24
0.69
0.875
0.500
0.625
1.688
1.375
0.750
ES438
7/16-20
7/16-20
0.88
1.125
0.625
0.750
2.375
1.938
1.000
ES500
1/2-20
1/2-20
0.88
1.125
0.625
0.750
2.375
1.938
1.000
ES625
5/18-18
5/18-18
1.00
1.125
0.750
0.875
2.578
2.063
1.000
