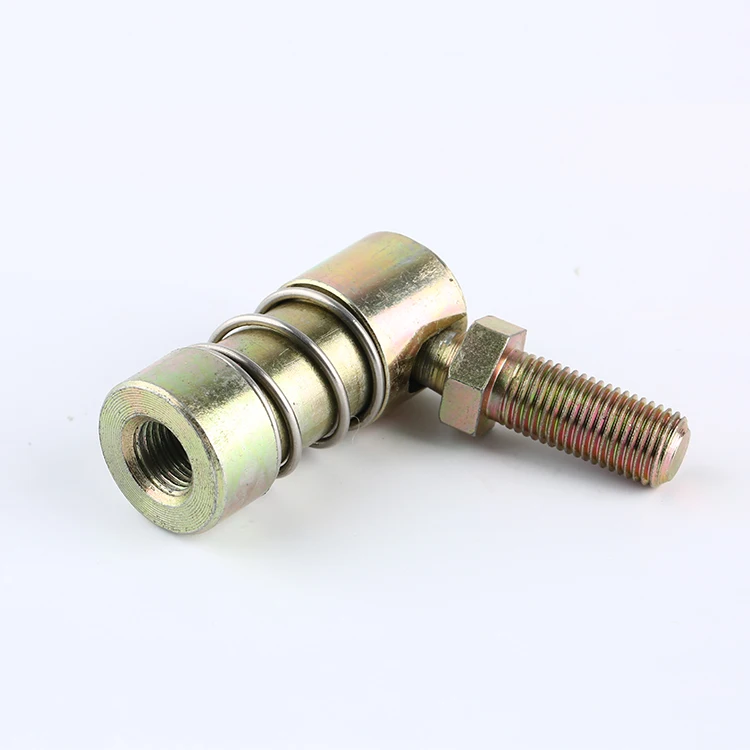

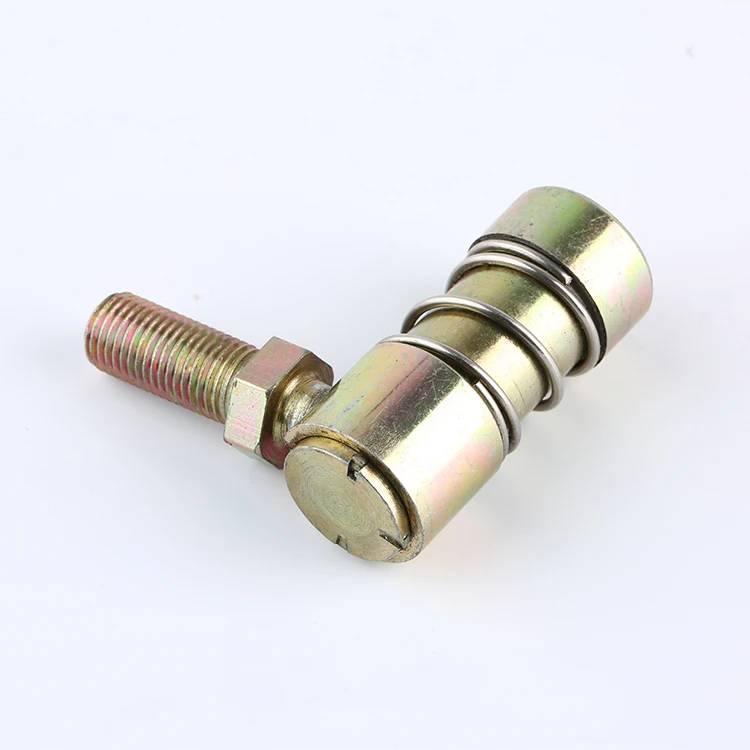

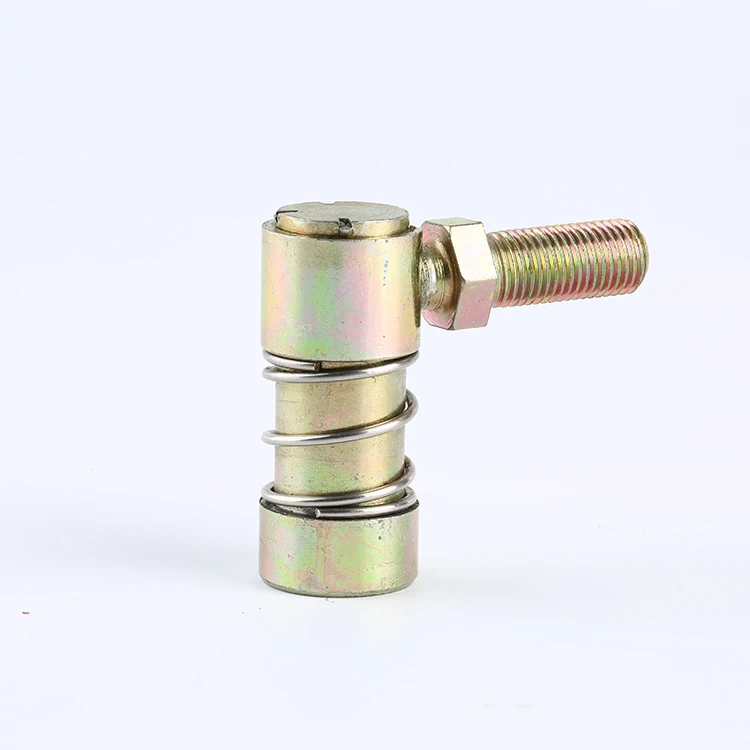

Body,Low carbon steel. Ball stud,low carbon steel,heat treated,zinc plated, yellow dichromate treated. Sleeve,low carbon steel,zinc plated,yellow dichromate treated. Spring,stainless steel. Alternative: stainless steel. Unless otherwise specified,all dimensions are in inches. Special request upon drawing or samples.
Part No.
Housing Thread
Stud Thread
A
F
G
J
L
M
N
P
QI187
10-32
10-32
0.125
0.438
0.438
0.312
0.438
1.094
0.906
0.438
QI250
1/4-28
1/4-28
0.125
0.469
0.562
0.375
0.562
1.250
0.969
0.531
QI312
5/16-24
5/16-24
0.156
0.531
0.687
0.437
0.625
1.453
1.125
0.594
QI375
3/8-24
3/8-24
0.187
0.687
0.875
0.500
0.750
1.750
1.375
0.812
QI500
1/2-20
1/2-20
0.250
0.875
1.125
0.625
1.000
2.530
2.030
1.000
