CNCHK-5 (Double blade) is the best choice for any multi-customer foam converter.The two blades work independently. The block sizecan be 3000 x 2300 x 1300mm(118" x90" x51").
Weight(T)
3.0
Full Power
10KW,380V,50HZ
Size(mm)
6480*3200*2300
Max foam size(mm)
3000*2300*1300
Blade size(mm)
2400*3*0.5
1600*3*0.5
Servo system(r/min)
2400-2800
Max cutting Speed(m/min)
0-6.3
Admissible error(mm）
±0.5
Min cutting size(mm)
5
Technical Data
Weight(T)
3.0
Type of CNC
Industrial computer
Full Power
10KW,380V,50HZ
Display
LCD
Size(mm)
6480×3200×2300
Controlling module
Motion controlling card
Max foam size(mm)
3000×2300×1300
Operation system
Window 2000 or above
Blade size(mm)
2400×3×0.5
1600×3×0.5
Programmable axis
X,Y1,Y2,Z1,Z2,φ1.φ2
Servo system(r/min)
2400-2800
Step motor torque(N.m)
20
Max cutting Speed(m/min)
0-6.3
Min cutting radius(mm)
10
Admissible error(mm)
±0.5
Self-test system
Installed
Min cutting size(mm)
5
Blade alert
Installed

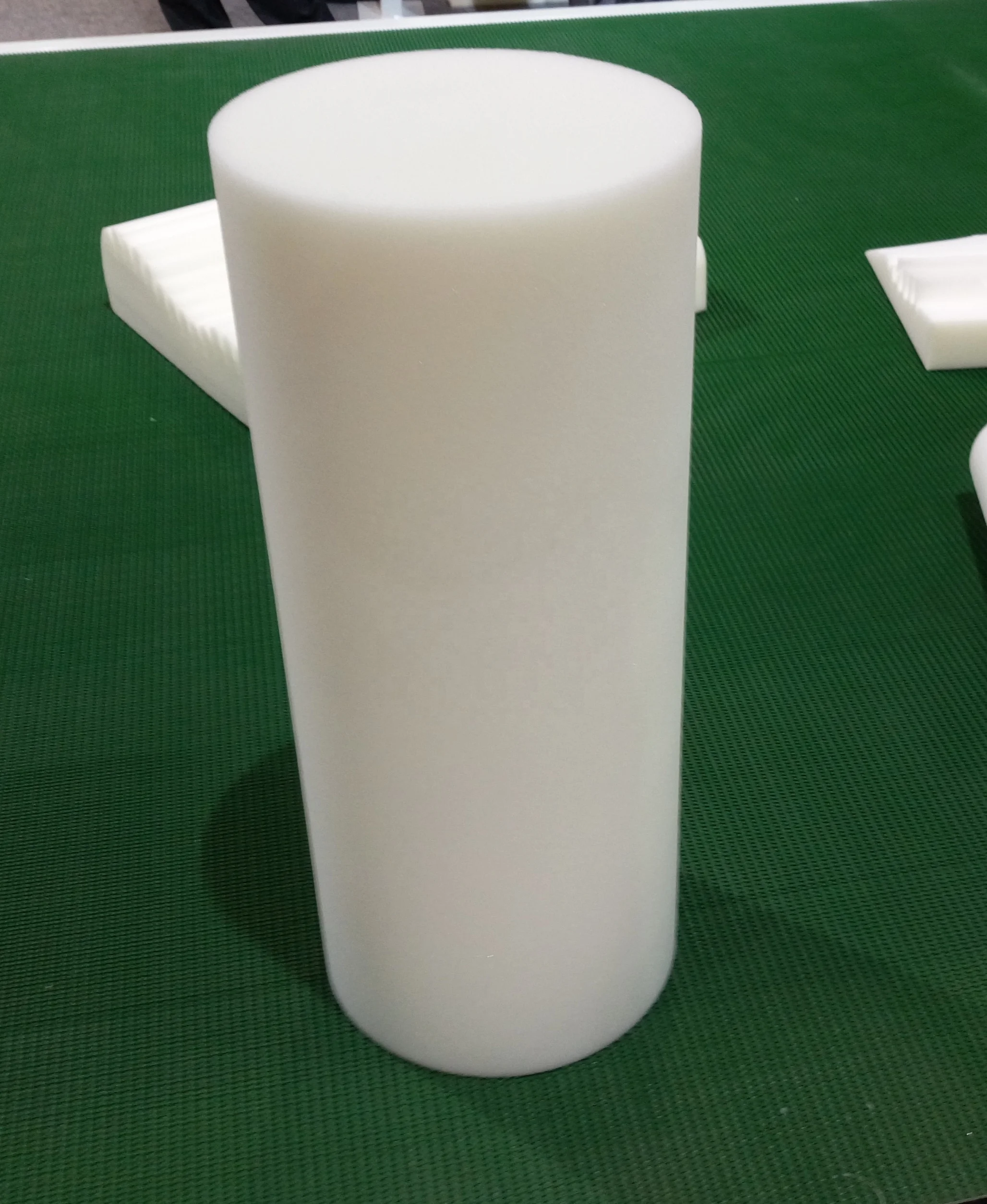

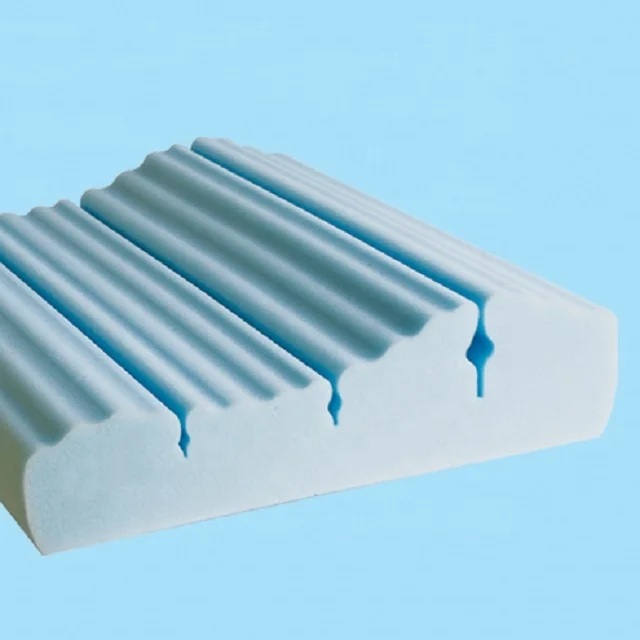

Detailed Images
Packing&Shipping

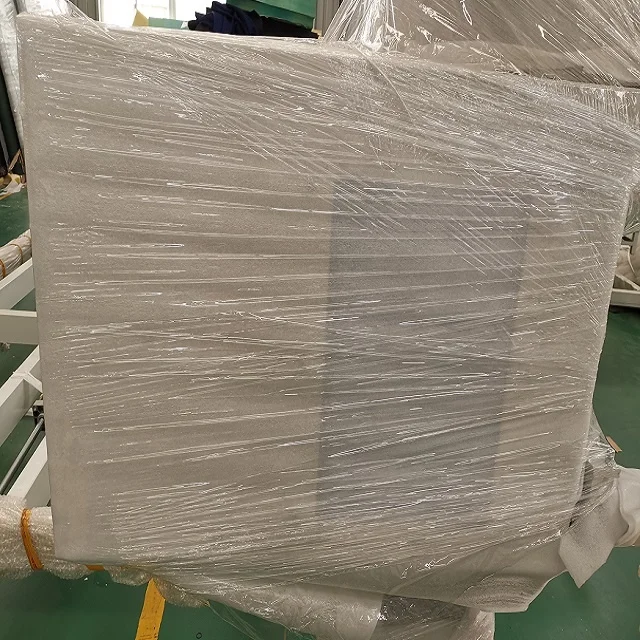

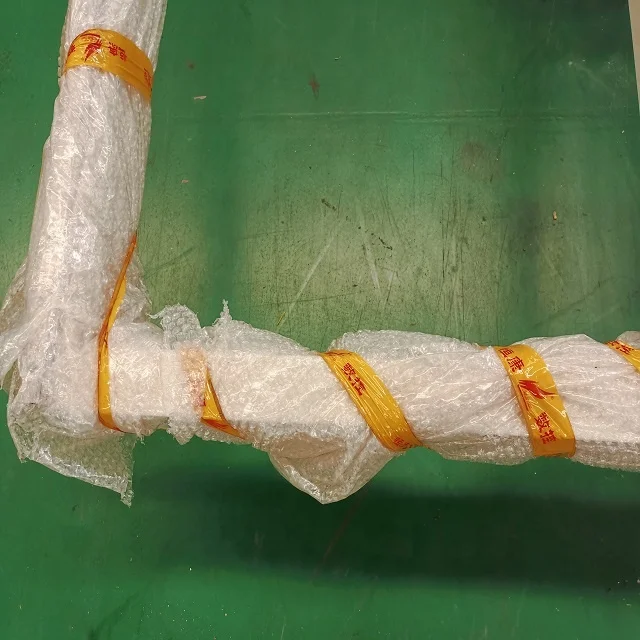

Packaging Details:Protective film + Corrugated paper + Metal frame+Wooden case.
