AMBOHR CDM 030 5V 12V 30mg Professional Air Purifier Ionizer Dust Collector With High Quality
- Category: Environmental Machinery >>>
- Supplier: Ambohr Electric Co. Limited
Share on (62344778963):
Product Overview
Description
VR

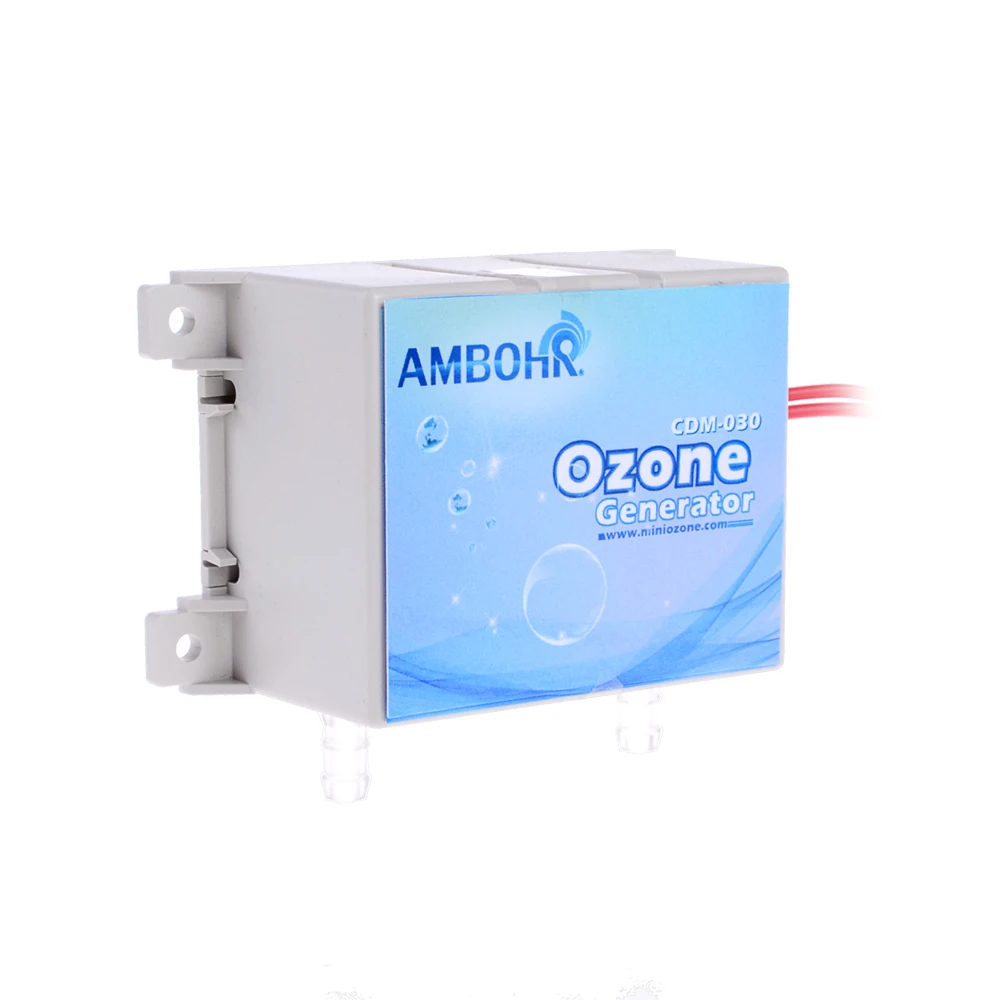

AMBOHR CDM Integrated Ozone Generator Module
These compact ozone generators were created specifically to withstand the demanding environment of the any machine.
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Model | CDM-030 |
Ozone Output | 20-30 mg/hr@ Air |
External gas source | 2-3L/min@air; 0.5-2L/min@oxygen |
Ozone Generating Method | AC22VCorona Discharge |
Electrical | DC5V-DC12V, 3W |
Outlet Connection | Φ6mm Pagoda Joint |
Case | Flame Retardant Plastic |
Accessory | Hose+Air Stone(optional) |

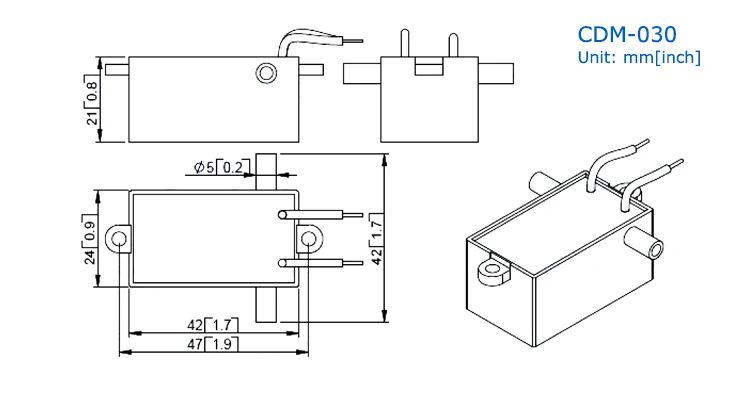

Dimension(L*W*H) | 1.7”*0.9”*0.8”(42*24*21mm); |
Installation Dim | 1.9”(47 mm); |
Weight | 0.42 lb (0.19 kg) |
Product Description
The CDM family of ozone generators were designed by AMBOHR, the leader in reliability in ozone generator controls for over 20 years. AMBOHR Ozone generator cells use ozone core discharge of invention patent, including the integration design of ozone generator tube and ozone driving circuit, they can provide stable and efficient output, easy to install and maintain. Our compact ozone generators have a smaller footprint and save energy as well. The
electrical packs of AMBOHR ozone generators are epoxy potted protecting them from harsh corroding environments and they produce stable ozone output over a wide range of temperatures.
electrical packs of AMBOHR ozone generators are epoxy potted protecting them from harsh corroding environments and they produce stable ozone output over a wide range of temperatures.
OVERVIEW
● Produces powerful oxidant.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Small and compact unit.
● CE, & CQC certified.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Small and compact unit.
● CE, & CQC certified.
OUTSTANDING TECHNICAL PROPERTIES
● Increase cooling hole and cooling fan
● Powerful fan, effectively control the temperature of ozone generator
● Integrated design two in one unit with driving circuit and ozone generator tube.
● Able to connect with air dryer through air inlet to increase ozone output
● Stable& efficient output
● Low noise
● Long working life
● Ozone generator electrical pack epoxy potted
● Extra thick inlet/outlet barb to prevent breakage
● No air gaps, no exposed contacts & no corrosion.
● Stable& efficient output
● Low noise
● Long working life
● Ozone generator electrical pack epoxy potted
● Extra thick inlet/outlet barb to prevent breakage
● No air gaps, no exposed contacts & no corrosion.
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
● Powerful ozone generators are designed for any machine.
● Unique design CD Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional
longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Double Insulation rated.
● High shock, vibration and drop resistant.
● Cool operation with low heat generation.
● Super low production & field failure rates.
● Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
● Unique design CD Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional
longevity.
● Thick, built-in mounting tabs for easy installations.
● Compact and smaller footprint.
● Double Insulation rated.
● High shock, vibration and drop resistant.
● Cool operation with low heat generation.
● Super low production & field failure rates.
● Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
Product Application
HEALTH IS OUR COMMON NEED
AMBOHR ozone generator - your best health assistant! Every one of us needs clean water, pure air and non-toxic food, because only in this way can we live healthily and happily.
AMBOHR ozone generator cell is small in size and easy to install, suitable for many devices. Such as washing machine, Refrigerator, Disinfection Cabinet, Dishwasher, Sterilizer, Aquarium, Water Purifier, Water Machine, Water Purification Machines, Coin-operated Sale Water, Fruit and Vegetable Detoxification Machines, Aquatic Animals, the Spa Machine, Aurfing Bathtub, Slimmer, Medical Apparatus and Instruments, Air Purifier, Dryer, Shoe Ark, Wardrobe, Beauty Equipment, Oxygen Machine, Toilet, Incubator, Car, etc.
