resin bond weight of Diamond cbn grinding wheel 300 x 30 x 75 for surface grinding machine
- Category: >>>
- Supplier: Liaocheng Taili Diamond Tool Co. Ltd.
Share on (62344920253):
Product Overview
Description

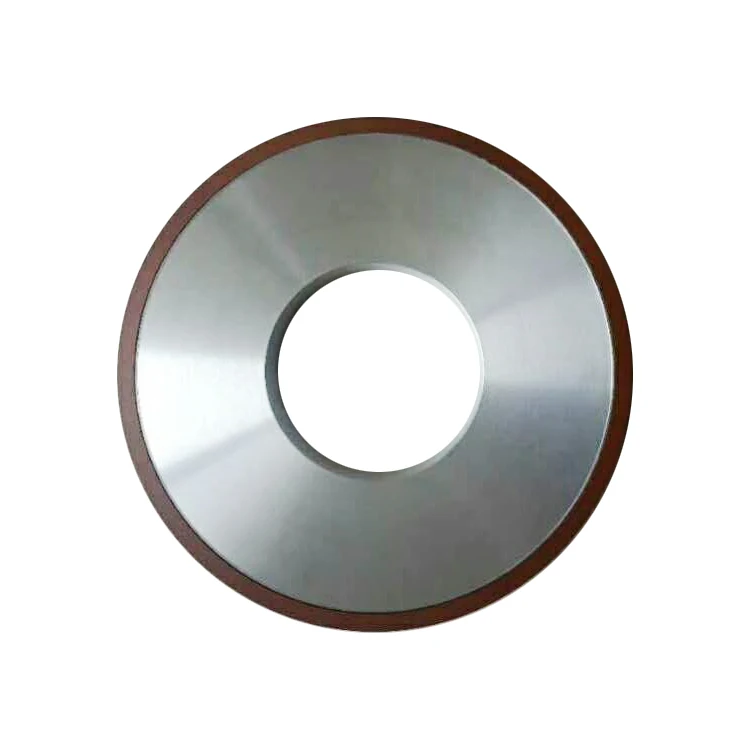

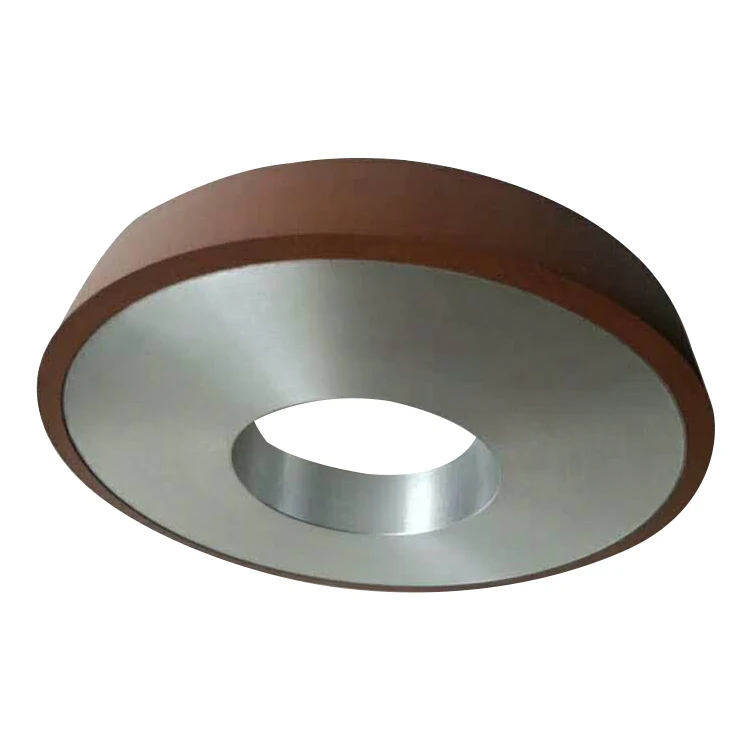

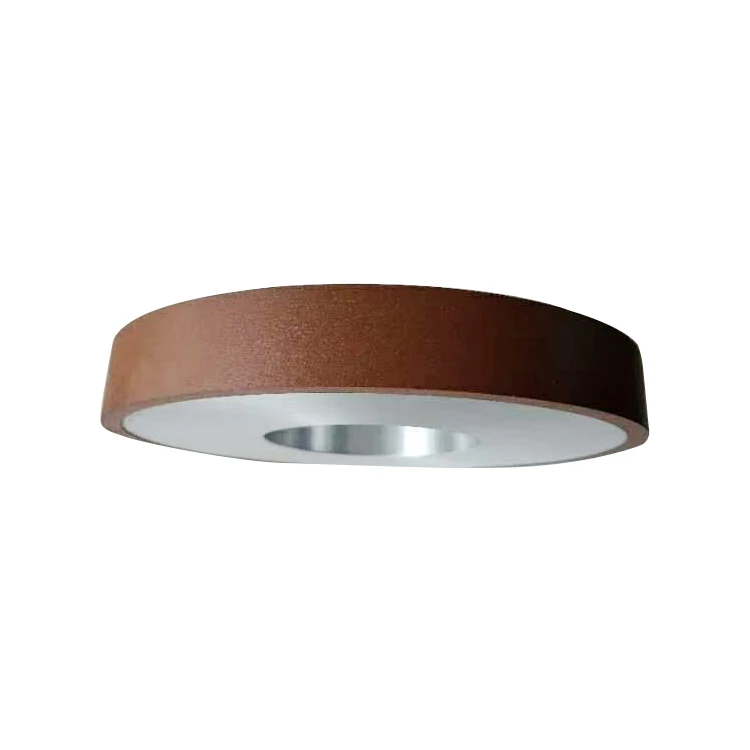

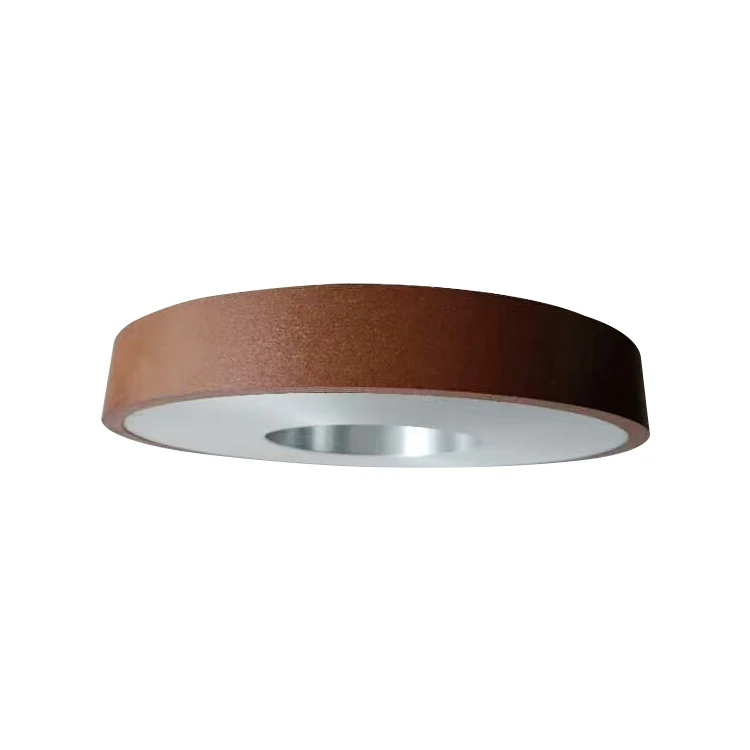

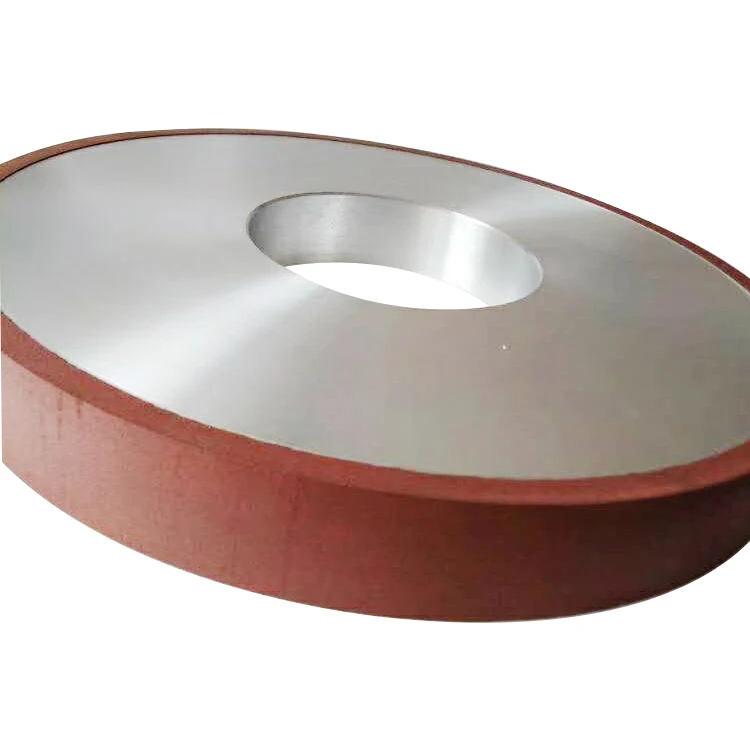

resin bond weight of Diamond cbn grinding wheel 300 x 30 x 75 for surface grinding machine
| Name | 1A1 resin diamond grinding wheel | |
| Bond | Resin bond | |
| Abrasive | Diamond and CBN | |
| Size | D:25mm-500mm T: 5mm-40mm H:10mm-127mm | |
| Type code | 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. | |
| Usage | Mainly used for grinding , sharping and polsihing . Widly used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc | |
| Scope of application |
| |
| characteristics | Sharp grinding, high processing efficiency The cutting edge of surface machining machine is of good quality High durability, long service life |
Resin diamond and CBN grinding wheel are super hard tools made of resin, diamond, or CBN, and other materials
used for :machine of conical ,cylindrical and flat surfaces,cylindrical and conical apertures.
machining of cylidrical surface parts,and surface ends at one set up . machining of recesses and slots of carbide stamps. sharpening and finishing of carbide tools.
Selection of grinding wheel granularity
1.The surface roughness of the processed rework and the grinding efficiency are greatly affected by the abrasive when selecting the particle size we will help you choose the abrasive particle size
2. If you have used ordinary abrasive products, you can choose super hard materials smaller than ordinary abrasive products.
Particle size and roughness correspond to the following table. The workpiece is cemented carbide
| Particle size | Resin binder(B) | Metal bond(M) | Ceramic bond(V) |
| 80/100-100/120 | 3.2-0.8 | ||
| 100/120-170/200 | 0.8-0.4 | 1.6-0.4 | 0.7 |
| 170/200-230/270 | 0.4-0.2 | 0.8-0.4 | 0.2 |
| 325/400-M12/22 | 0.2-0.05 | 0.1 | |
| M12/20-M3/6 | 0.1-0.0025 | ||
| M3/6-M0/1 | 0.05-0.025 | ||
| M2/4 | 0.025 | ||
| M0.05/1 | 0.012 |
Selection of grinding wheel elements.
(1) hard grinding material, choose the soft, fine grit grinding wheel. Soft grinding material, should choose a hard, coarse grit grinding wheel. By doing this ,grinding wheel loss is small, also not easy to plug.
(2) when doing the rough grinding ,in order to increase the productivity, the coarse grit, soft grinding wheel should be chosen, In order to improve the surface quality of the work piece during accurate grinding , the fine grit ,hard grinding wheel should be chosen.
(3) the large area of grinding or thin-walled work piece grinding should choose the coarse grit, soft grinding wheel. This wheel is not easy to plug, the surface of the work piece is not easy to burn, the work piece is not easy to deformation.
(4) form grinding process to select the fine grit, the small organization, and the hard grinding wheel to maintain the profile of the grinding wheel.

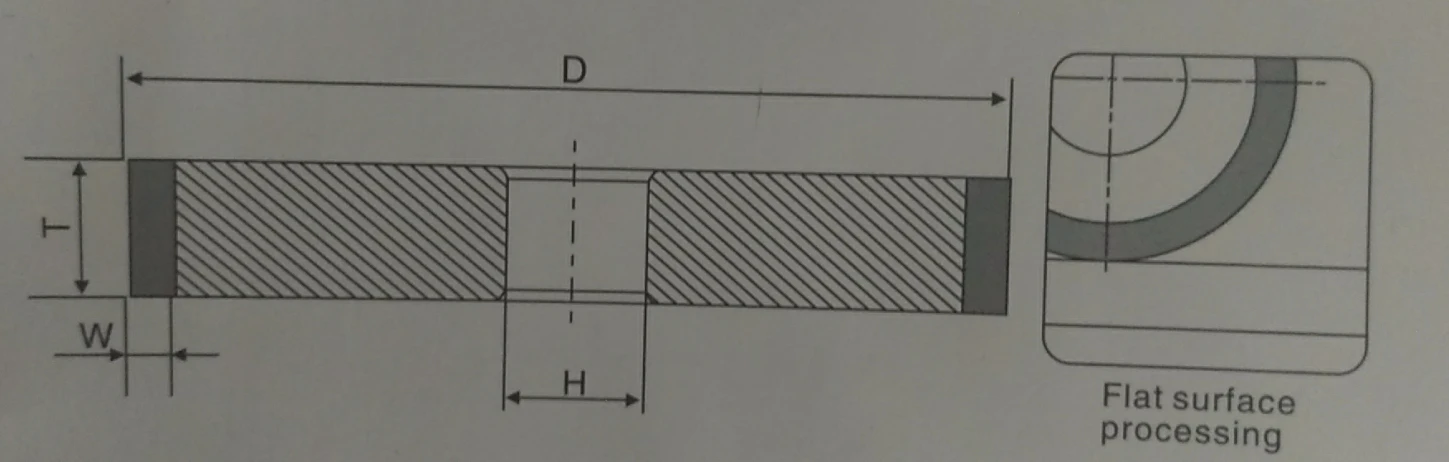

Common shape and mark of grinding wheel
Ordering instructions
Grinding wheel model, size, (outside diameter, thickness, width and depth of aperture abrasive layer) type of abrasive, particle size binder, concentration, grinding method, as well as processed materials, equipment used, model, etc.
Our Factory
Liaocheng Taili Diamond Tools Co.,Ltd. is located in the beautiful waterside-town Liaocheng City, as a professional manufacturer of diamond tools, was established in 2011,After the Rapid development in these years, We have been one modern enterprise integrated with research, production and sales.
Our Workshop
The company has a number of experienced senior engineers, mainly are from the famous domestic industry research institute. ,Based on advanced technology and comprehensively systematic research and analysis, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas
Our office
We have been working hard to use the philosophy of sages to behave ourselves; using the style of human beings as a product, you have chosen not only Taili tools, but also Taili's quality and trust!
Packaging & Shipping
Special logistics packaging Shock bubble film
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Our Services
Shipping
generally delivery by DHL /UPS/FedEx/TNT, Door to Door expres
High quality
We are in line with Abrasives,Diamond Tools,PDC Materials for more than ten years
OEM
We are a manufacturer that can be customized according to customer needs.
1.LOW MOQ : it can meet your trial order need well ;
2.OEM Accepted: we can do your own brand and design;
3.Good Service: from inquiry to shipment ,we have professional person to deal with the whole processes;
4.Good quality: we have strict quality control system .Good reputation in the market.
5. 24 Hours Technical consultation
In the inquiry, it would be helpful to give the following information:
1. Wheel shape and description.
2. Wheel size.
3. Type of abrasive, Diamond or C.B.N.
4. Grit size.
5. Concentration.
6. Application.
7.Type of bond
FAQ
1.What is your MOQ?
Our MOQ usually is 20pcs, trial order is accepted
2.Can we use your brand?
Sure, we provide OEM service ,just send us your packing design and company logo .
3.Can you supply sample for test and your samples are free?
Yes, usually we will make sample specially according to clients’ request , and the sample cost and freight charge will be paid by clients, the sample charge will be deducted from the following order.
4.Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
5.what’s your competitive advantage?
1) our company is a manufacturer, so the price must be the best for you.
2) We have full-automatic machine to produce product , it can make our quality steady and safety.
3) we have a professional technological team, mainly are from the famous research institute.
4) More than 15 years of experience in design research and development
5) 24 Hours Technical consultation and one-year warranty for all products
