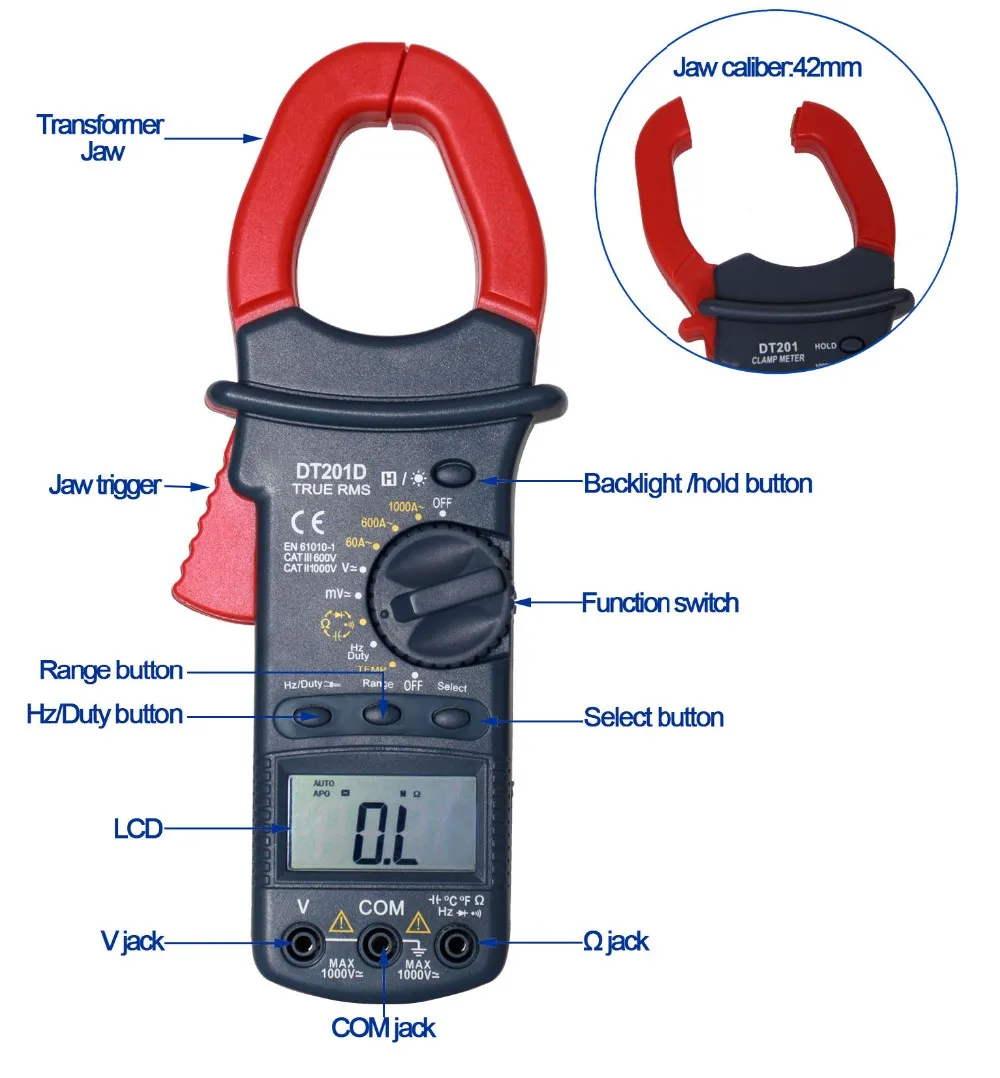

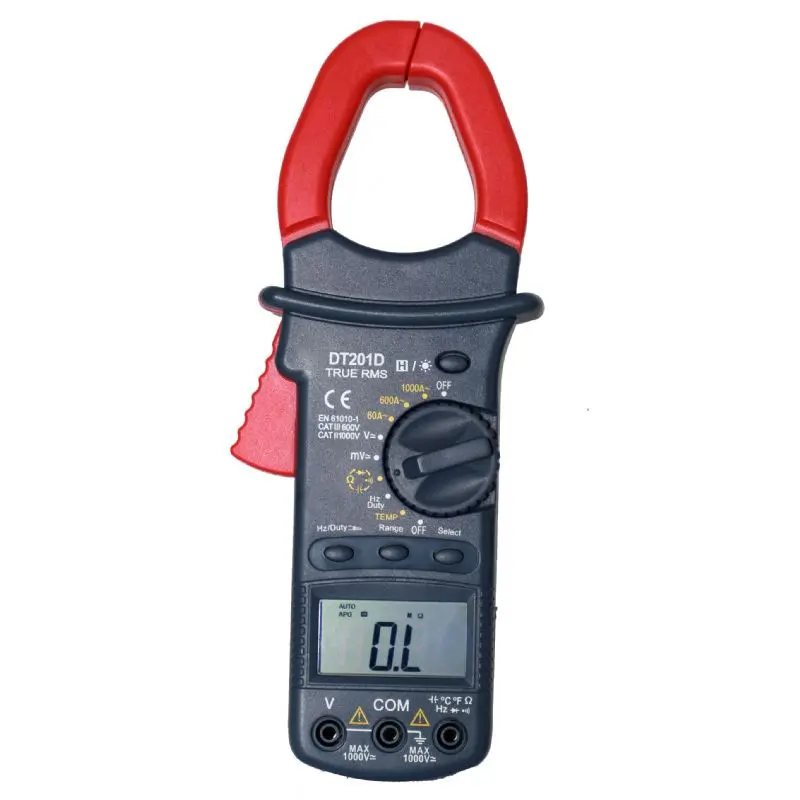

DT201D habo factory Ture RMS acdc clamp meter with capacitance function
- Category: Multimeters >>>
- Supplier: Wenzhou Habo Technology Co. Ltd.
Share on (62346069823):
Product Overview
Description
Product Overviews
| Characteristics | large Jaw Calibe clamp meter with full protection design. |
| Data hold function for easy reading after measurement | |
| Easy to read in dark condition with blue backlight | |
| Non-contact measurement ensures the measurement safety. | |
| auto range clamp meter with capacitance measurement | |
| auto range clamp meter with large capacity capacitance | |
| auto range clamp meter with True RMS measurement | |
| Non-contact frequency measurement | |
| auto range clamp meter with temperature measurement | |

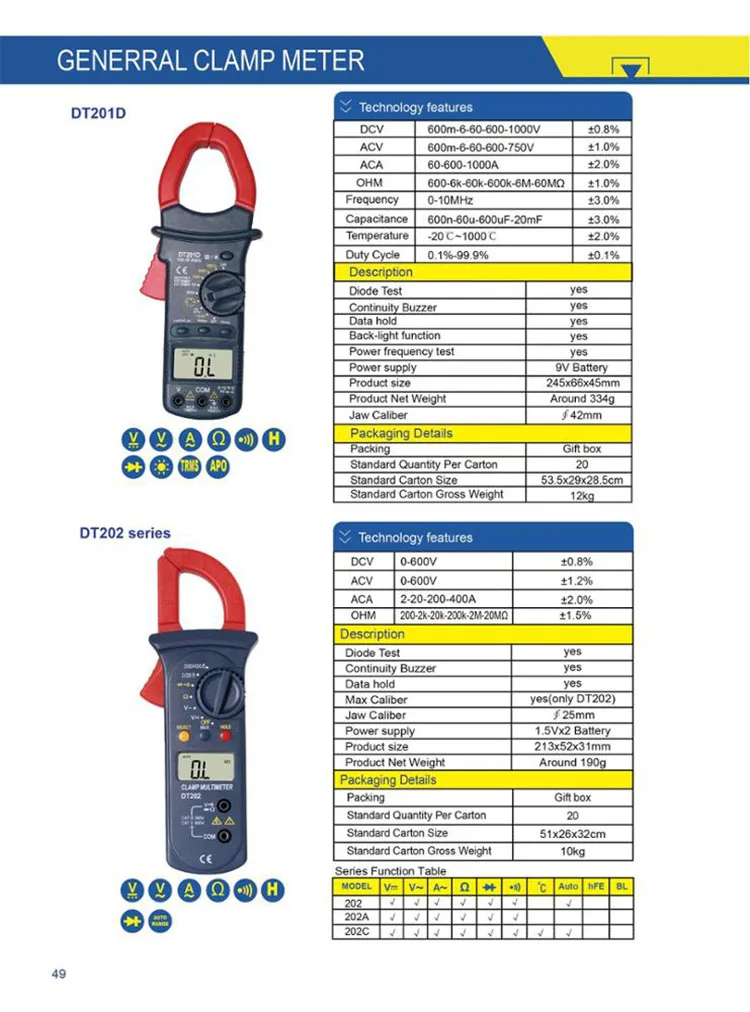

| Technology features | |
| DCV: | 600m-6-60-600-1000V ±0.8% |
| ACV: | 600m-6-60-600-750V ±1.0% |
| ACA: | 60-600-1000A ±2.0% |
| Resistance: | 600-6k-60k-600k-6M-60MΩ ±1.0% |
| Frequency: | 0-10MHz ±3.0% |
| Capacitance: | 600n-60u-600uF-20mF ±3.0% |
| Temperature: | -20ºC~1000ºC ±2.0% |
| Duty Cycle: | 0.1%-99.9% ±0.1% |
| General description | |
| LCD size: | 45x23mm |
| Max display: | 5999 |
| Low battery indication: | YES |
| Overload protection: | YES |
| Diode Test : | YES |
| Transistor Test: | YES |
| Data Hold: | YES |
| Backlight: | YES |
| Auto range: | YES |
| True RMS: | YES |

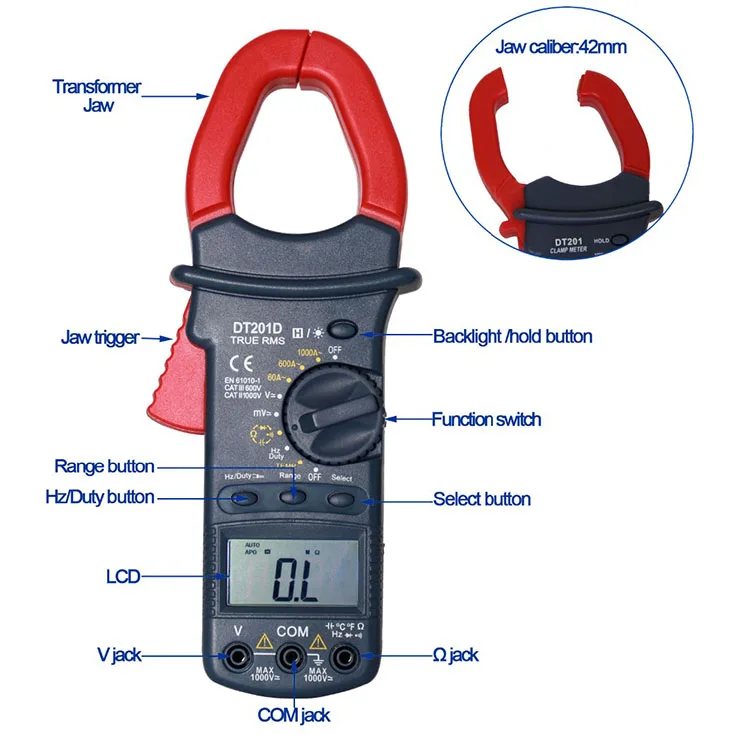

| Jaw Caliber: | 42mm |
| Power supply: | one 9V 6F22 battery |
| Product size: | 245x66x45mm |
| Product weight: | about 334g (without battery) |

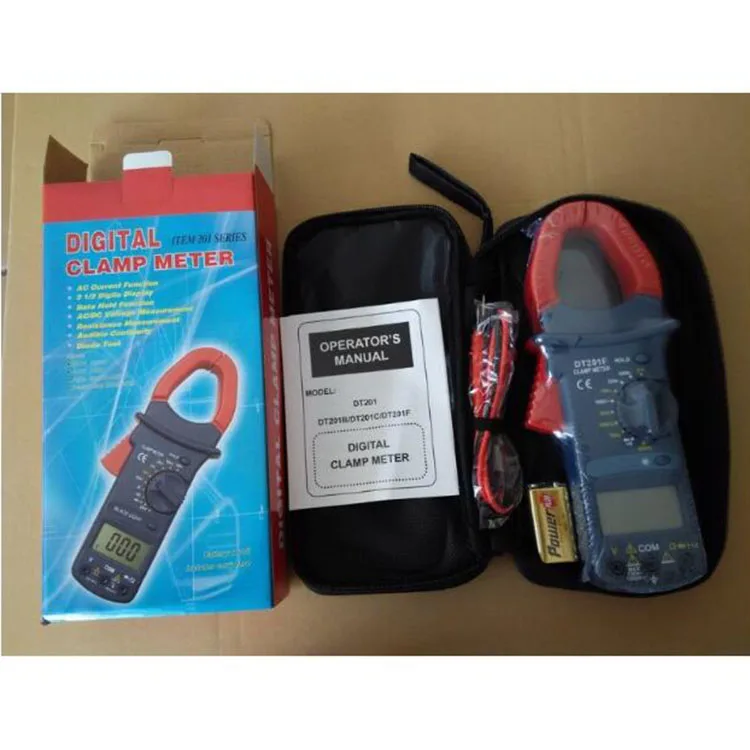

| Standard Accessories: | meter(without battery) ;carrying bag, test lead, manual, battery |
| Packing details | Packing: color box Packing quantity :20 PCS/CTN Carton size: 52.5x29x28.5CM G.W/ N.W:13/12KG |
Company Introduction
Habo Technology Co., Ltd. ,an integrated enterprise,combining production,sales with product development,has been specialized in instrument,like analog multimeter,education meter with other meter product since 2011 of registered year.To expand product line,Habo added tableware especially for high level healthy chopsticks in year of 2014.
The product has been sold to Middle East,Southeast Asia,Africa,the USA and European countries and gained a good reputation in these countries.
Habo welcome all potential customers to pay a visit to the company,doing research,talking about product and negotiating cooperation.We are aggressive and ambitious and faithful that Habo will create a brilliant future with all of you.
