hk1 eps cnc vertical sponge foam cutting machine
- Category: Foam Cutting Machine >>>
- Supplier: Nantong Healthcare Machinery Co. Ltd.
Share on (62346130022):
Product Overview
Description
Product Description

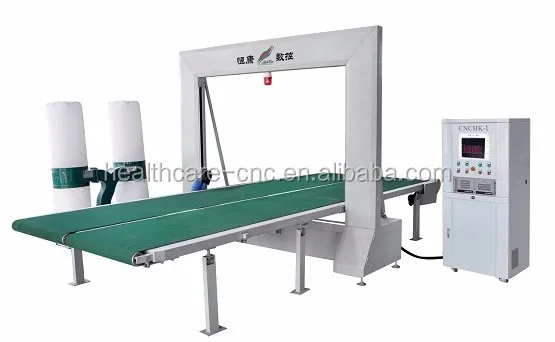

CNCHK- 1(Fastwire contour cutter) is the first generation of CNC foam cutting machine since our company was founded. It's easy to learn and operate. Although it will cause some dust during cutting,it's the best choice to use CNCHK-1 to cut some special material, such as very hard PU foam, EVA, PE,PEE and so on, which can not be cut with CNC oscillating blade cutting machine.
Weight(T) | 2.4 |
Cutter Power | 8KW,380V,50HZ |
Size(mm) | 5000*3000*2800 |
Max foam size(mm) | 2500*2100*1200 |
Blade size(mm) | 10830*1.5 |
Speed of wheel (r/min) | 2800 |
Working Speed(m/min) | 0-6.3 |
Admissible error(mm） | ±0.5 |
Min cutting size(mm) | 5 |
Technical Data
G.W.(T) | 2.4 | Type of CNC | Industrial computer |
Cutter Power | 8KW,380V,50HZ | Display | LCD |
Size(mm) | 5000×3000×2800 | Controlling module | Motion controlling card |
Max.work piece size(mm) | 2500×2100×1200 | Operating System | Windows 2000 or above |
Cutting wire size(mm) | 10830×1.5 | Programmable axis | X,Y,Φ |
Speed of wheel | 2800 | Step motor torque(Nm) | 20 |
Working speed(m/min) | 0-6.3 | Min.Arc Size of work piece(mm) | 10 |
Product precision(mm) | ±0.5 | Self-test system | Installed |
Min. working size | 5 | Blade alert | Installed |
Detailed Images
Packing&Shipping
Packaging Details:Protective film + Corrugated paper + Metal frame+Wooden case.
Related Products
Company Introduction
Nantong Healthcare Machinery Co., Ltd was founded in 2007, specializing in research, design and manufacture of CNC contour cutting equipment. It is one of the first professional companies to do extensive research and development to produce Oscillating blade foam cutting machinery for the professional foam conversion. Due to the continues improvement of our existing equipment as well as new development of state of the art machinery, Nantong Healthcare Machinery Co., Ltd has won numerous national patents for their innovative ideas.
Healthcare CNC cutting machines are valued by our international customers of whom many are at the top of their industry in foam conversion. Since it was introduced in the market in 2007 the number of customers has grown rapidly and it has been the number 1 selling equipment for 10 consecutive years.
The Oscillating Blade and Continuous Blade Machines incorporate exceptional engineering design that provides for smooth, fast and efficient processing of blocks (regular foam, memory foam, latex and very hard foam) in minutes. All the machines are designed to require only one operator eliminating additional manpower. Operators all over the world appreciate the ease and usability of the Healthcare Software. Most existing files can be easily and quickly converted to DXF files making them suitable for processing foam blocks. Their System Cut Check will monitor and correct the load on the servo motors by checking for phase errors. The program will be automatically corrected adding life to the motors and increasing blade life.
Healthcare CNC cutting machines are valued by our international customers of whom many are at the top of their industry in foam conversion. Since it was introduced in the market in 2007 the number of customers has grown rapidly and it has been the number 1 selling equipment for 10 consecutive years.
The Oscillating Blade and Continuous Blade Machines incorporate exceptional engineering design that provides for smooth, fast and efficient processing of blocks (regular foam, memory foam, latex and very hard foam) in minutes. All the machines are designed to require only one operator eliminating additional manpower. Operators all over the world appreciate the ease and usability of the Healthcare Software. Most existing files can be easily and quickly converted to DXF files making them suitable for processing foam blocks. Their System Cut Check will monitor and correct the load on the servo motors by checking for phase errors. The program will be automatically corrected adding life to the motors and increasing blade life.
Our Services & Strength
1、Field installetion,commissioning and training;
2、Online support;
3、Video technical support;
4、Field maintenance and repair service.
