Product Overview




AF 30 dry mortar mix manufacturer wall putty making machine
Working principle :
The simple dry powder mortar production line consists of a primary elevator, a mixing host, a secondary elevator, a control cabinet, a finished product bin and a packaging machine. When working, the materials are sent into the mixing host through the primary elevator, and then sent into the finished product bin by the secondary elevator after mixing, and then packaged by the packaging machine.

Pay attention to
Get quote now
1. The mixer must be equipped with leakage protection device to ensure the safety of employees
2. Do not open the cover of the side door when the equipment is running
3. The lower chamber of the spiral hoist is tightly wrapped in a sealed bag at the lower end of the hoist to avoid dust entering and bearing locking
4. If blockage occurs, please dredge it in timely to ensure the smooth production line
5. The feed port of the hoist shall be welded with steel bars to prevent heavy object from entering the screw
6. Do not overload the motor to avoid damage to the motor .

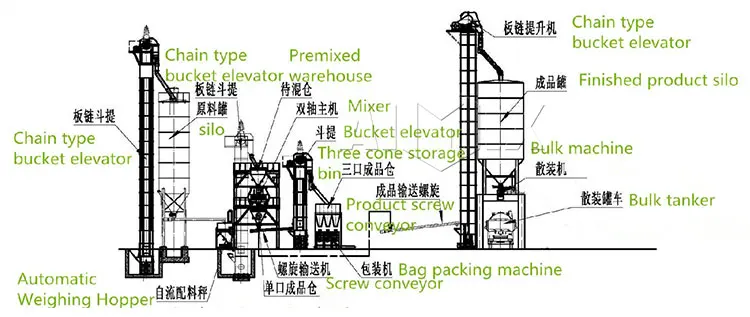

Drawing of mortar system

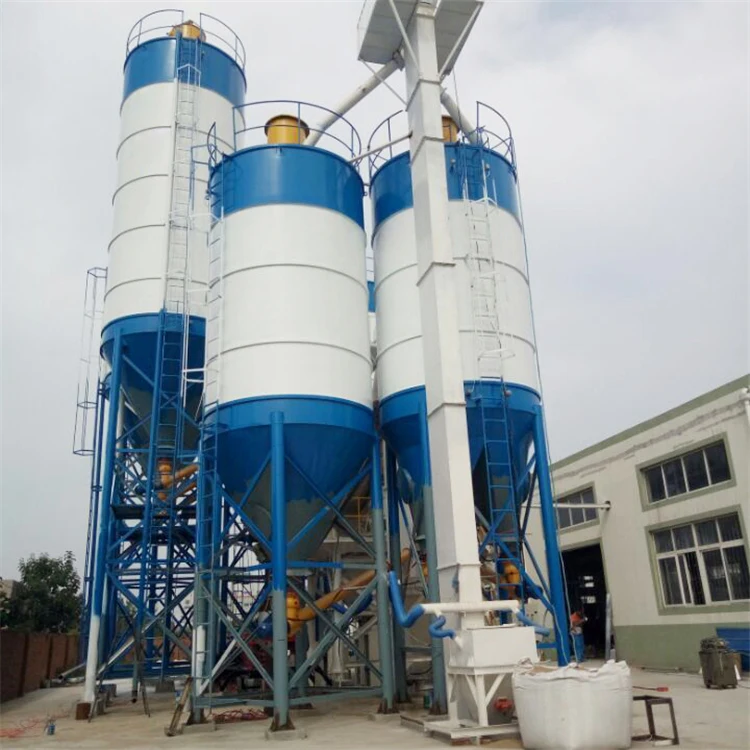

Raw material storage system


PLC control system
Automatic valve mouth packing machine


Burner
Mixing system


PRODUCT SPECIFICATIONS


Type
Productivity (t/h)
Production circle
Number of sand bins
Number of powder bins
Production mortar type
kw Power(kw)
Floor area
AF-3
3
20min
0
0
ordinary mortar
23.5
20-30m2
AF-6
6
20min
0
0
ordinary mortar
32.5
20-30m2
AF-9
9
20min
0
0
ordinary mortar
36.5
30-40m2
AF-10
5~10
5min
2x100T
2x100T
Ordinary mortar and some special mortar
120
37x10m
AF-20
15-20
5min
2x100T
2x100T
Ordinary mortar and some special mortar
150
37x10m
AF-30
20-30
5min
2x100T
2x100T
Ordinary mortar and some special mortar
180
37x10m


Aimix dry mortar production line mainly advantages Get quote now
1, More than 180 dry mortar production linehave been made by our factory both for Chinese and overseas markets.
2, Our factory director is one of China Members of the Councilof dry mortar ( Total 9 members of dry mortar council in China).
3. Our factory is one of the dry mortar industry standard setter.
4, Dry mortar technology & formulacan be provide to you FREE according to your demands, it is our engineer's advantages.
5, We have laboratory can trainingyour engineer for 1-3 months if any needs.


Factory & After-sales team






SALES AND SERVICE NETWORK


Aimix branch office in Uzbekistan
Factory and branch office in Pakistan


Aimix office in Philippines
Aimix office in Indonesia


FAQ


Q1, When the dryer uses gas as fuel, does it use LPG or CNG?
A1, Both LPG and CNG can be used.
Q2, Can rice hulls be used as dryer fuel?
A2, Biomass pellets made from rice husks can be used as fuel.

Q3, How often do pulse dusters change bags ?
A3, Generally 2-3 years to replace once, half a year to clean once.


Q4, What is the temperature of each layer in the dryer?
A4, The outer layer is 60-100 degrees, the middle layer is 250 degrees, and the inner layer is 350-400 degrees.
Q5. what services can we provide?
A5, Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,
Escrow;Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
