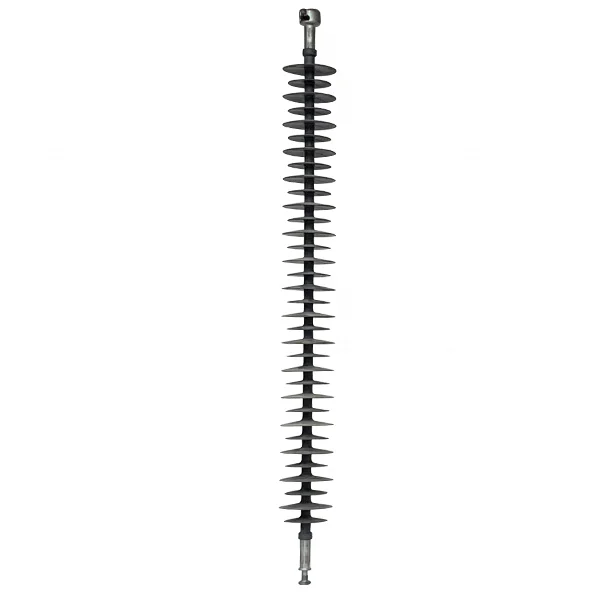

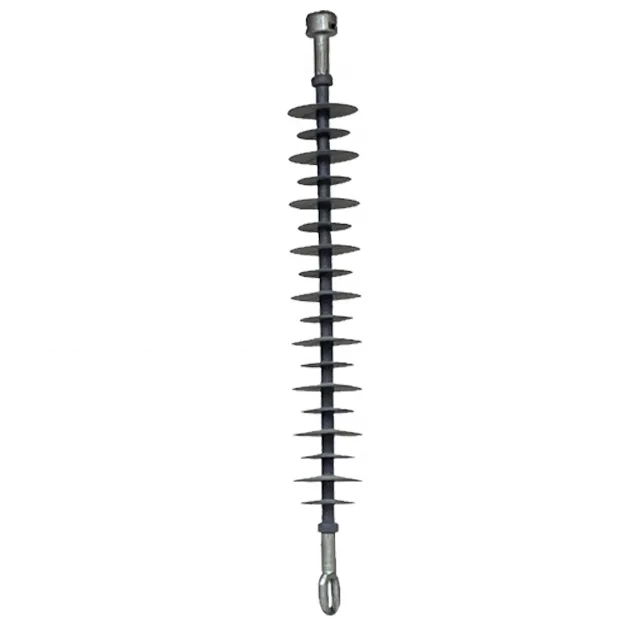

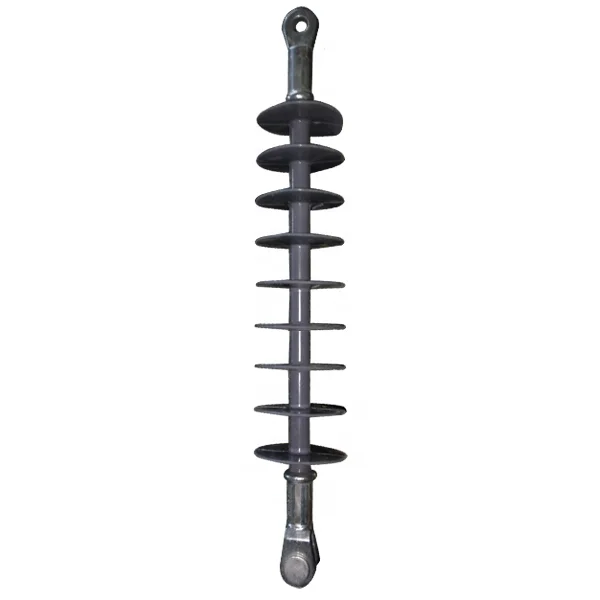

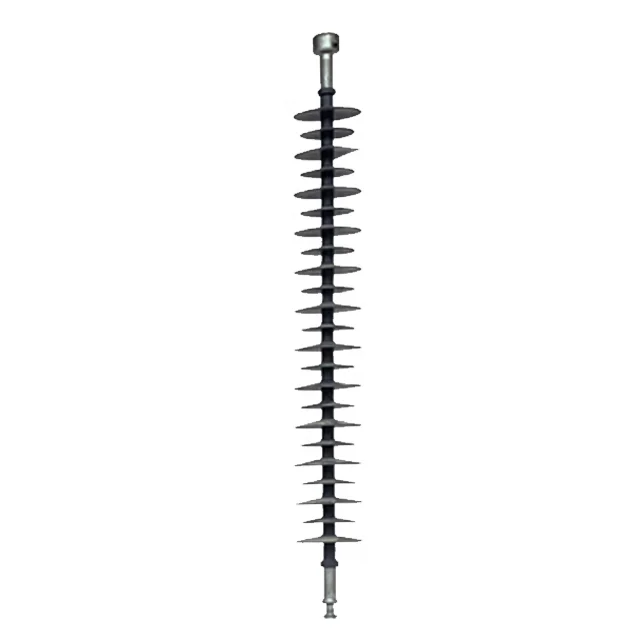

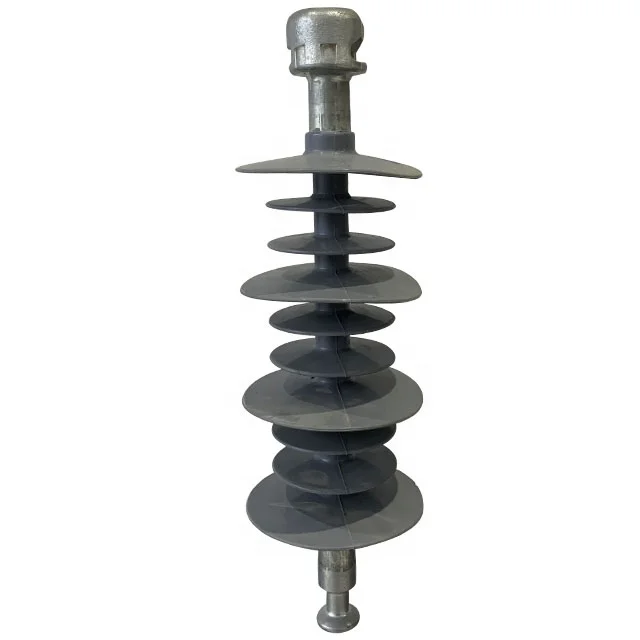

33KV Composite Polymeric Suspension Insulator

Product Overview

Description

     33KV Composite Polymeric Suspension Insulator

Product  Model	Rated  volt., kV	Mechanical   load,kN	Height  H,mm	Insulation  distance mm	Creepage  distance, mm	Lightning impulse  withstand  vol.(peak), mm	Power  Frequency  withstand  volt.kV
FXBW-12/70	12	70	370	200	480	75	42
FXBW-12/100	12	100	405	200	480	75	42
FXBW-24/70	24	70	550	370	850	185	75
FXBW-24/100	24	100	590	370	850	185	75
FXBW-35/70	35	70	650	450	1225	230	95
FXBW-35/100	35	100	690	450	1225	230	95
FXBW-66/70	66	70	900	710	1980	410	185
FXBW-66/100	66	100	940	710	1980	410	185
FXBW-110/70	110	70	1240	1000	3315	550	230
FXBW-110/100	110	100	1240	1000	3315	550	230
FXBW-220/100	220	100	2240	1900	6300	1000	395
FXBW-220/160	220	160	2240	1900	6300	1000	395
FXBW-330/100	330	100	2950	2600	9075	1425	570
FXBW-330/160	330	160	2950	2600	9075	1425	570
FXBW-500/160	500	160	4080	3730	12750	2250	740
