Product Overview
Description

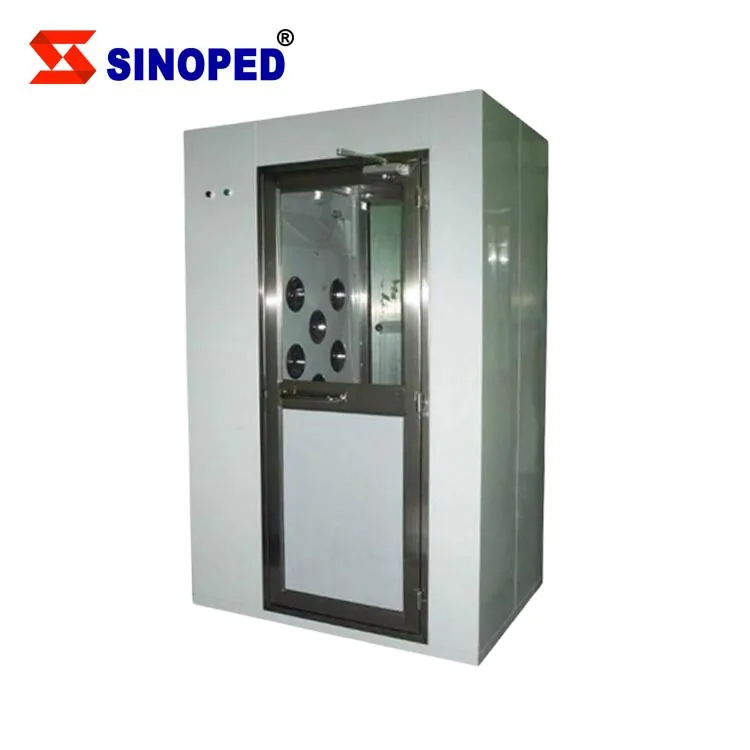

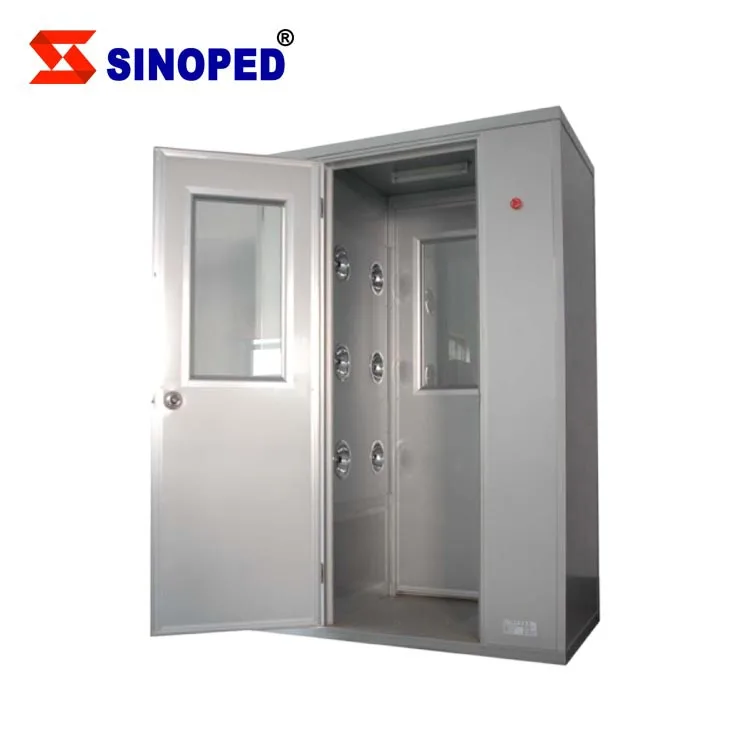

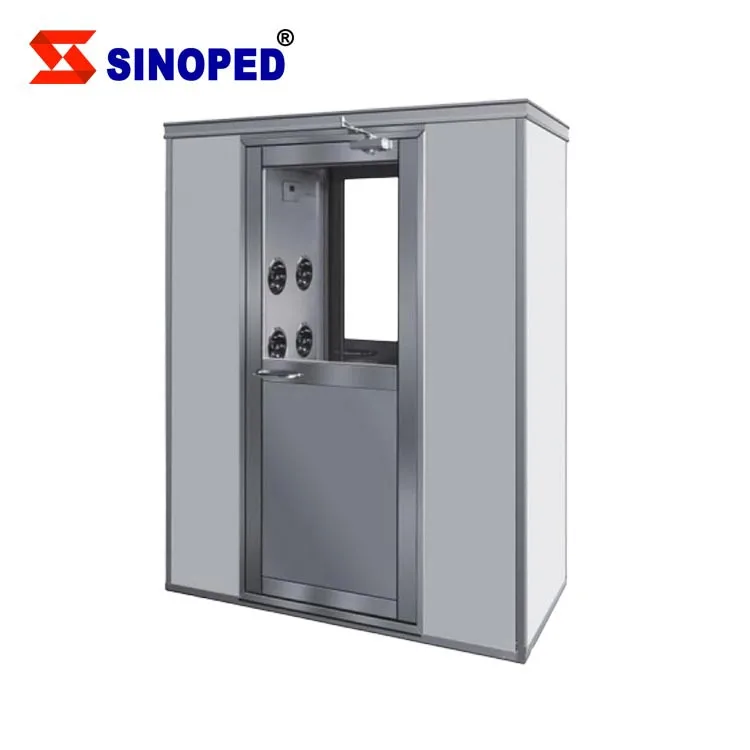

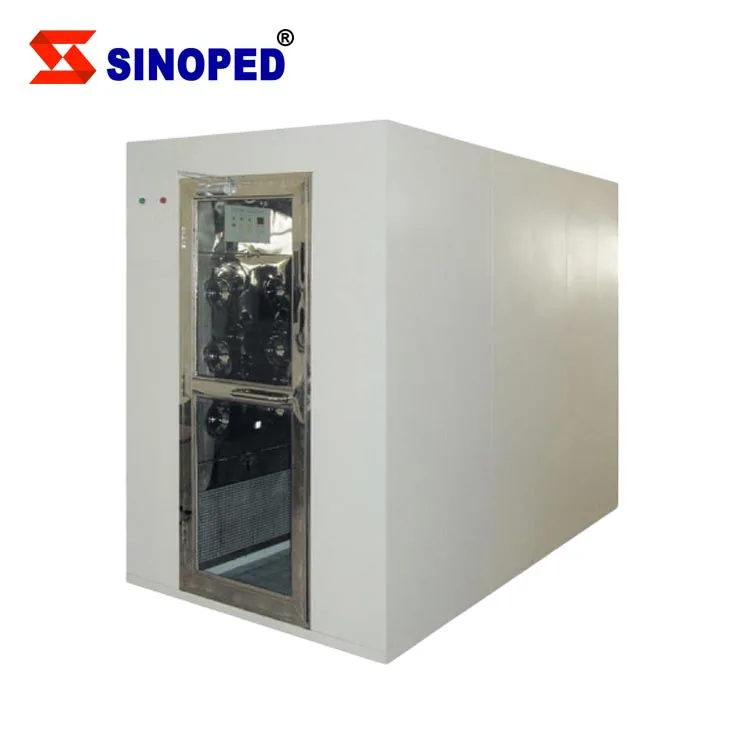

Air shower consists of cabinet, stainless steel door (cold steel), pre-filter, HEPA filter, pan, plenum chamber, nozzle, interlocking control panel, operation panel, sensing equipment, etc.
Cold steel is used for the air shower's cabinet, and stainless steel is used for the bottom. As to different customer's requirement, air showers with different materials or sizes can be designed and supplied.

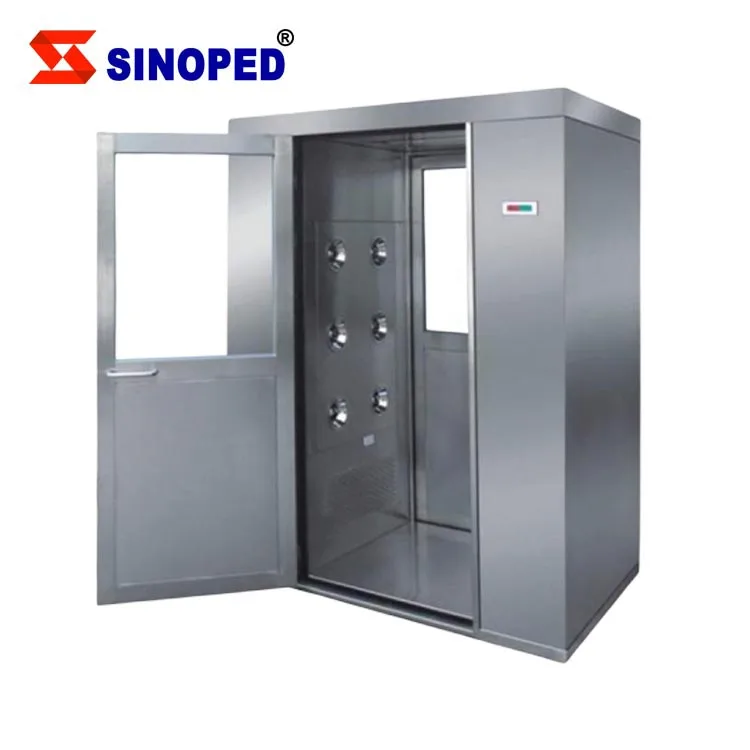

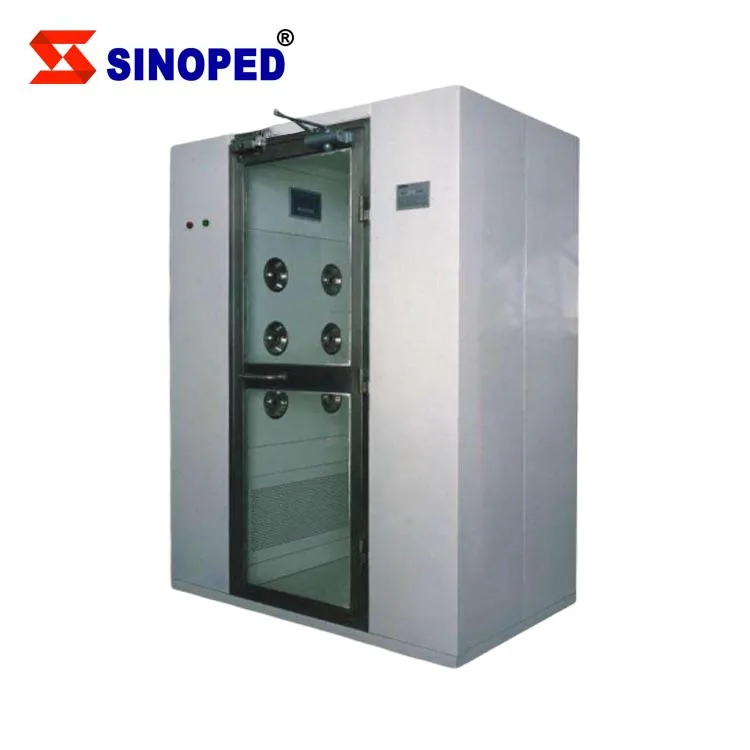

SINOPED Stainless Steel Air Shower
Specification & features:
1) Material: Stainless steel SUS304;
2) Electronic interlock: When A door is open, B door will be locked. A & B doors can't be open during blowing;
3) In case of emergency happens, emergency off button is equipped according to customers' need. Once press, two doors will be open;
4) Color LCD screen & touch-point switch are used to control the blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor can have the automatic blowing and stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided if needs;
7) German Dorma door closer is stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed if needs to keep the high efficiency when blowing off particles from personnel;
1·9) Have electronic interlock air shower patent.
Technical parameters
There will no further notification if the appearance or parameters of our products are modified. Thanks.
1) Material: Stainless steel SUS304;
2) Electronic interlock: When A door is open, B door will be locked. A & B doors can't be open during blowing;
3) In case of emergency happens, emergency off button is equipped according to customers' need. Once press, two doors will be open;
4) Color LCD screen & touch-point switch are used to control the blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor can have the automatic blowing and stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided if needs;
7) German Dorma door closer is stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed if needs to keep the high efficiency when blowing off particles from personnel;
1·9) Have electronic interlock air shower patent.
Technical parameters
Model | SINOPED-1 | SINOPED-2 | SINOPED-3 | SINOPED-4 | ||||
Applicable number of people | 1 | 3-4 | 5-6 | 8-10 | ||||
Air shower time | 0- 99s (adjustable) | |||||||
Number of nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) | ||||
Mouth diameter of nozzle | Φ 30 mm | Φ 30 mm | Φ 30 mm | Φ 30 mm | ||||
Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s | ||||
Dimension of high efficiency air filter(HEPA),(mm2) | 600×600×120 | 600×600×120 | 600×600×120 | 600×600×120 | ||||
Dimension of high efficiency air filter(HEPA),(mm2) | 800×900×1960 | 800×1900×1960 | 800×1900×1960 | 800×3900×1960 | ||||
Outside dimension, (mm) | 1400×1000×2100 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 | ||||
Power Supply | ||||||||
power consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW | ||||
There will no further notification if the appearance or parameters of our products are modified. Thanks.
