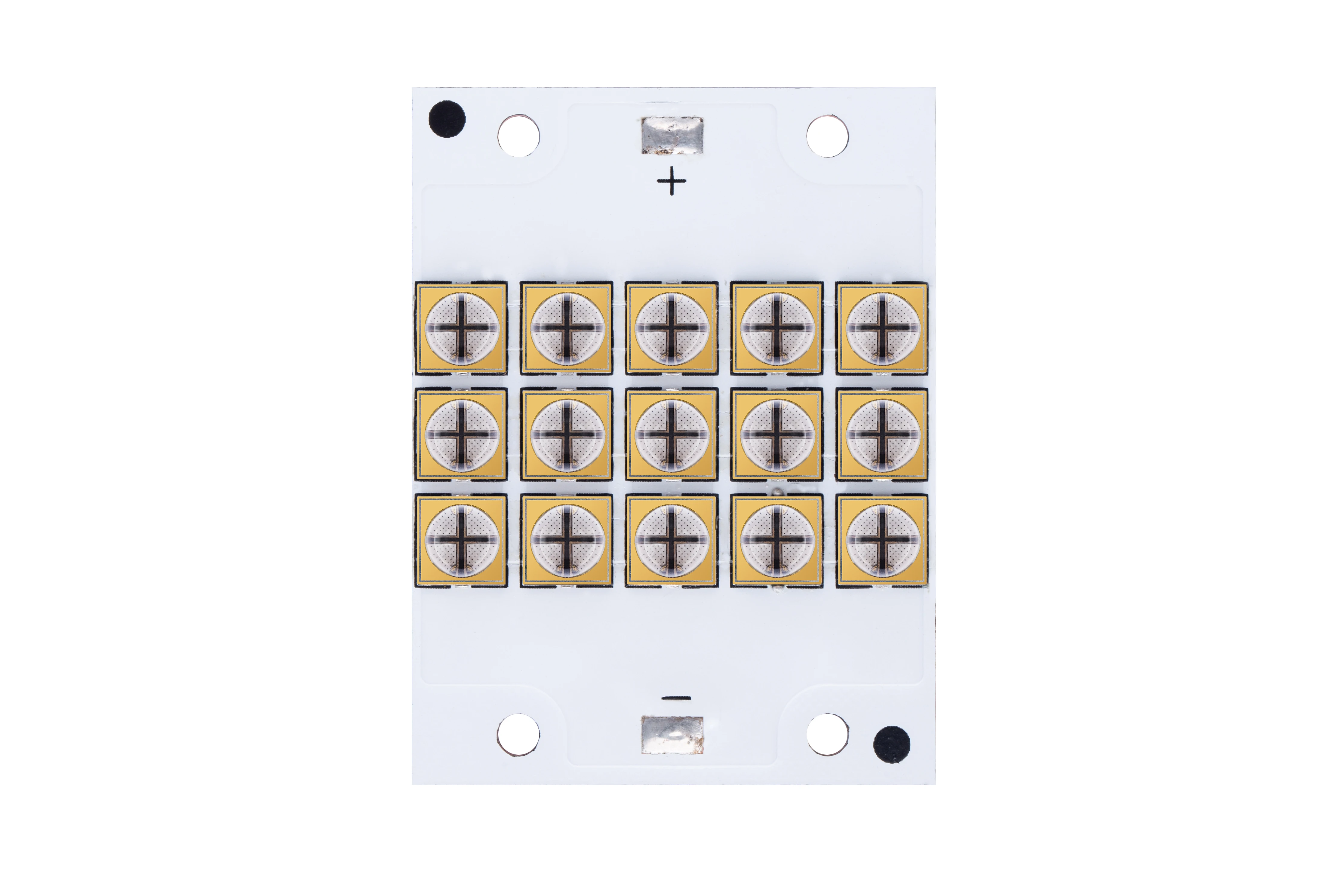

SMD 24W 385nm uv led for uv lamp led uv diodes for offset, flexo and screen printer

Product Overview

Description

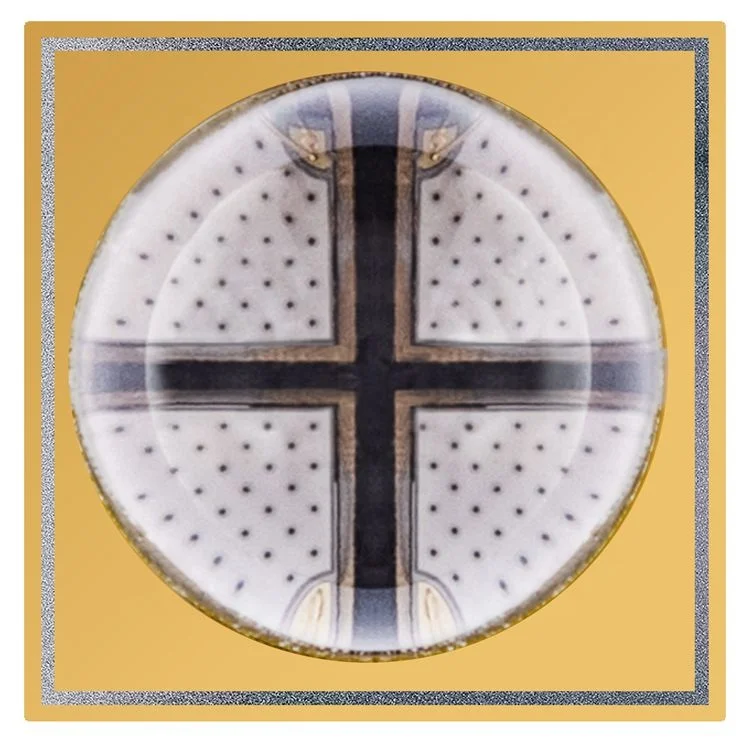

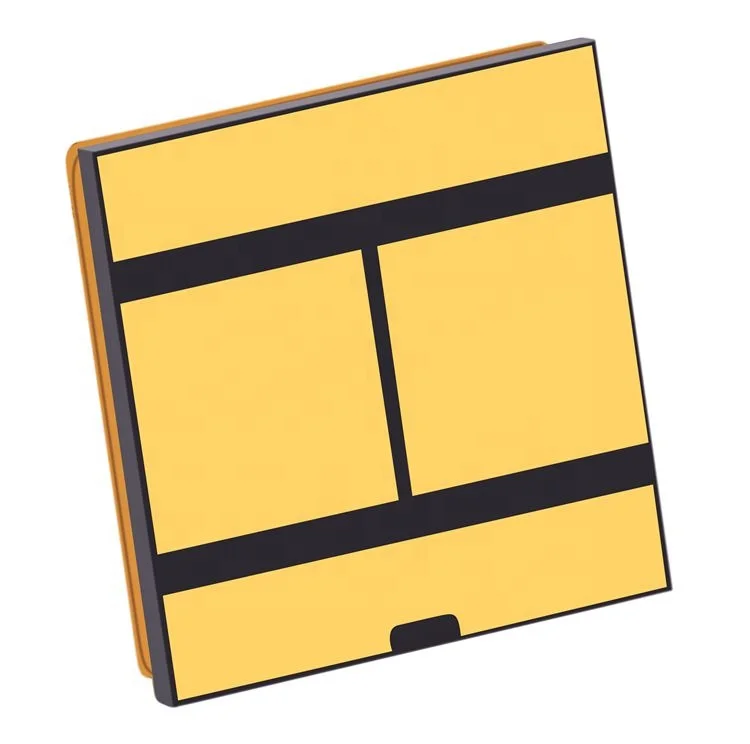

SMD 24W 385nm uv led for uv lamp Greenergy high energy uv led diode led uv lights for offset, flexo and screen printer



1). PRODUCT INTRODUCTION



Brand Name:	Greenergy
Product model:	G-UVA series
Product Keywords:	uv led;ultraviolate led 365nm, 385nm, 395nm, 405nm
Features:	inorganic uv led manufacturing expert withPATENTS
Chips Brand:	LG chip
Viewing Angle:	60 degree
Size:	7.0* 7.0 mm
Forward Current:	1500mA
Forward Voltage:	14-16V
Radiation Flux:	10000-11000mW
Wavelength:	365nm, 385nm, 395nm, 405nm
Golden wire :	1.5 mil 99.99% purity golden wire
Function:	UV ink curing, glue curing, PCB exposure, fluorescence detection
Certificate:	RoHS CE EN62471  ISO9000:2008
Lead Time:	2-7 Days from Deposit



Feature:



1:High purity aluminum nitride stent, low thermal resistance, good heatdissipation

2:Automated packaging, molding process, product consistency is good

3:Long operating life

4:Low spectral range, good uniformity

5:Light angle is small, high illumination

6:The package set tube, ESD protection capability

7:Strict reliability test, high reliability







2).  APPLICATION









3). ADVANTAGE AND SERVICE

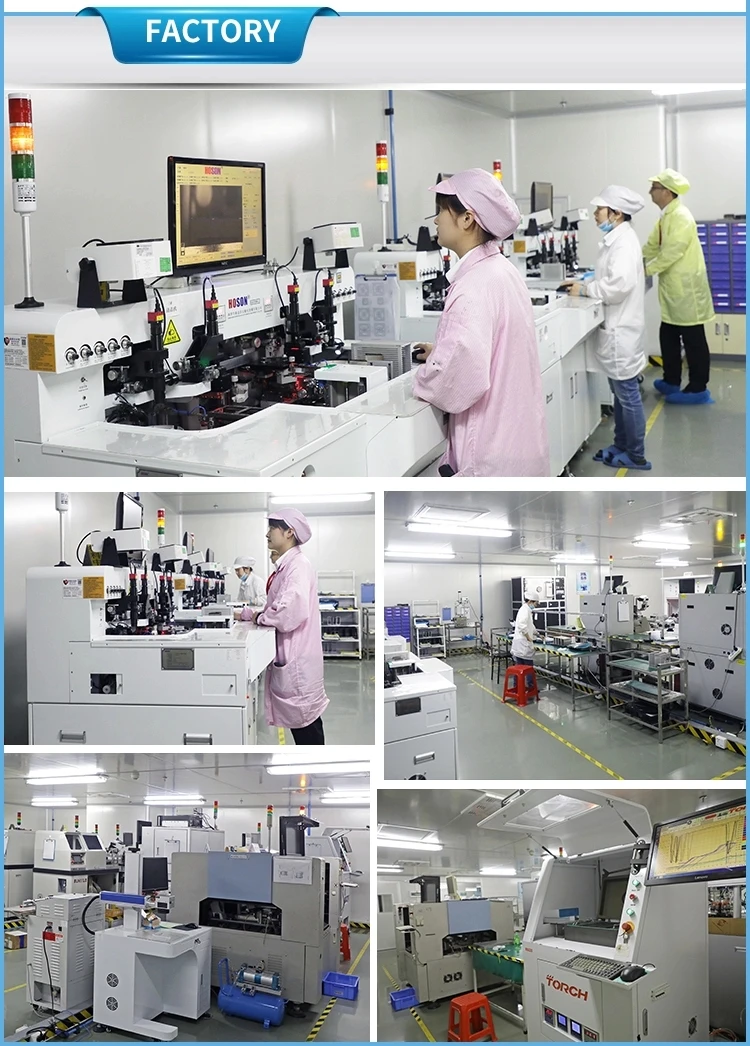

4). COMPANY INTRODUCTION









5). CONTACTION





Dear Sir/Madam,



Welcome to contact us by following information:
