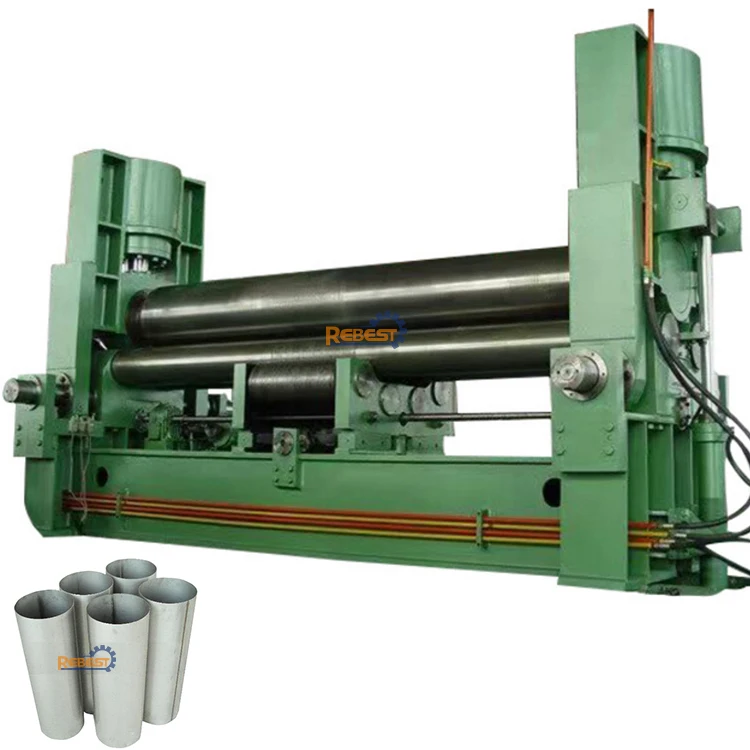

Universal Upper Roller Hydraulic Three Roller Plate Sheet Rolling Bending Machine W11S 80x3000

Product Overview

Description

Universal Upper Roller Hydraulic Three Roller Plate Sheet Rolling Bending Machine

• W11STNC-series Upper-Roll 3 Roller Hydraulic Plate Rolling Machine produced by Japanese advanced technology.
• High-precision end of the pre-bending, set the length of the straight edge freely; direct pressure on the pre-roll bending, high-precision can be completed in advance of the end of the bend.
• CNC control, high productivity products rolling process parameters NC, simple and substantial increase in efficiency.
• The roller assumes the bulging form on products accuracy hyper group, have asking a roller to coordinate adjustment ,continuous bending on time of roller lower part, this one broad range inner is able to make ideal products  roll from lamina to plank
• Operating under the security of two fixed roll, roll up and down on, move around, do not work with mobile work roll, operations safely.
• The overall structure , the basis is simple, convenient movement, device uses a whole-chassis, do not need to bolt, the basis is simple, the movement of workplace is convenient.
• Use are different, corresponding method to control use in accordance with the following control methods: TNC (at NC):multi-species, with a small amount of  production: T & BNC.
• Many kinds of shapes of the O-type, U-type, multi-paragraph R, cone cylinder auxiliary device, you can roll a range of cone-cylinder. O-bending : bending the back way; U-bend: the way forward bending. Bend with type R, ways of combination.

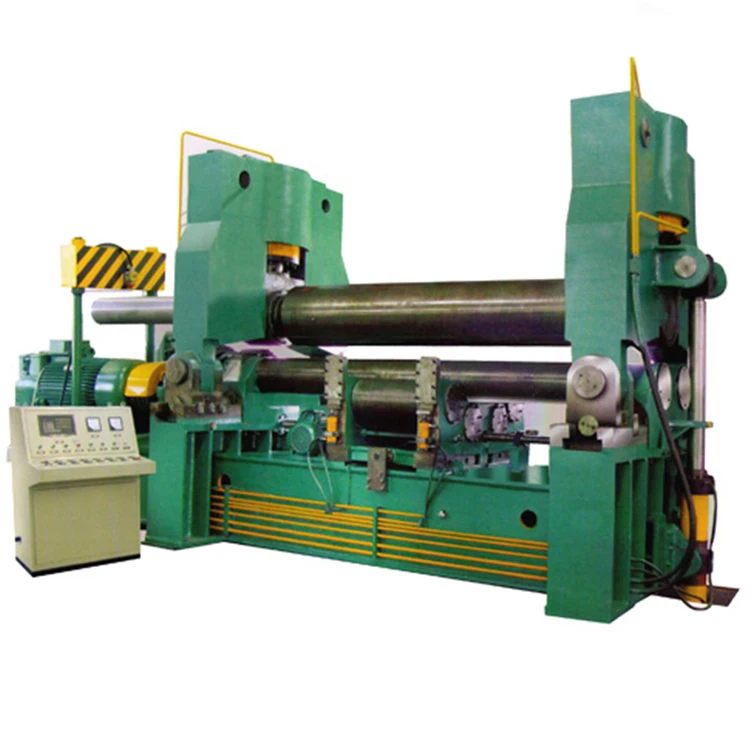

Universal Upper Roller Hydraulic Three Roller Plate Sheet Rolling Bending Machine W11S-80x3000

• Top roller can do both level movement (from left to right) and vertical movement (from up to down).
• Bottom roller is fixed. It just does rotation clockwise and counterclockwise.
• Pre-bending is achieved by horizontal movement of upper roller and presses the end of plate .High precision pre-bending, freely control the straight side of plate.
• Rolling round, it is achieved by means of  the motor and reducer to drive two bottom rollers.

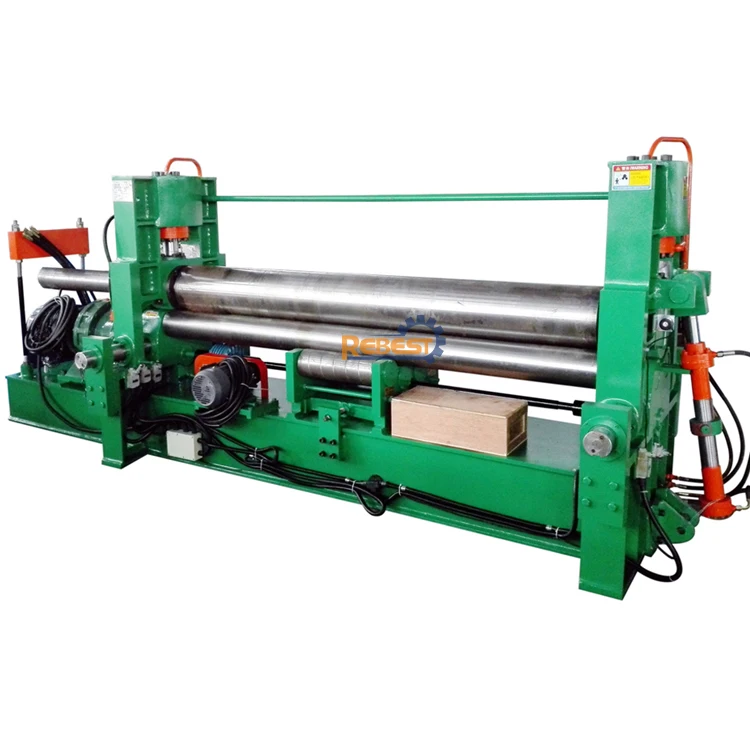

Universal Upper Roller Hydraulic Three Roller Plate Sheet Rolling Bending Machine W11S-80x3000

Model	Max. roll thickness - (mm)	Max. roll width - (mm)	Upper roller diameter - (mm)	Bottom roller diameter - (mm)	Central distance - (mm)	Main motor
W11S-8x2500	8	2500	235	135	180	4
W11S-10x3000	10	3000	280	145	200	5.5
W11S-16x2000	16	2000	255	150	245	7.5
W11S-20x3000	20	3000	375	200	300	18.5
W11S-25x2500	25	2500	380	220	360	22
W11S-30x3000	30	3000	450	250	400	30
W11S-40x3000	40	3000	540	290	500	55
W11S-50x3000	50	3000	620	360	650	75
W11S-60x3000	60	3000	650	380	700	75
W11S-80x3000	80	3000	770	460	880	90
W11S-100x3000	100	3000	860	480	920	110



Three Roller Hydraulic Plate Rolling Machine Design Characteristics
• Touch screen support visual input, edit, save 500 sets data.
• Support man-machine dislog, fault self diagnosis, operation error intelligent judgment.
• Unique pre-bending function in the end edge.
• The adjustable support rollers is the most reasonable error compensation structure.
• Drum shaped upper-roller error compensation can meet more better straightness.
• Machine frame intergral quenching eliminate stress, never deformation.
• Solid roller shaft is whole forging by quenchin and tempering, hardening treatment process.

Universal Upper Roller Hydraulic Three Roller Plate Sheet Rolling Bending Machine W11S-80x3000 is suitable for bending and forming of metal plate,and can do rounding cambering word,and coning work in a certain rang,The machine has a plate-end pre-bending function,and the width of remaining straight edge is small,and has high word efficiency. It can do rough plane calibrating of metal plate. It is ideal bending roll machine for all kinds of metal working industry like energy, transportation ,petroleum, chemical, shipping-building, boiler with high technology, full function, high precision and easy in operation character.

REBEST-GROUP is professional Metal Forming Machine enterprise integrated with design, R&D, manufacturing, sales and service. Our main products: 1). Press Brake Machine 2). Plate Rolling Machine 3). Shearing Machine 4). Pipe Bending Machine 5). Section Bending Machine 6). Notching Machine 7). Hydraulic Press Machine 8). CNC Plasma Cutting Machine 9). Ironworker Machine 10). Roll Forming Machine etc.

Our machines exported to Canada, Russia, Vietnam, Colombia, Qatar, Peru, Malaysia, Brazil, Uganda, Thailand, Germany, Poland, Panama and etc. meanwhile, we have got very good feedback from our customer. We look the quality and customer’s approval as root of company and we shall continue to try our best to meet customer’s full satisfaction.

We introduce both modern management system and operation system into each work links of enterprise, combining the abroad MBA management mode with actual state of Chinese enterprise, and then makes a full set of proper management methods.

The company advances with times, keeps innovating and establishes business relations with friends from all over the world to realize the win-win.

REBEST-GROUP: Best-Quality, Best-Service, Best-Offer.
