57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
small pm stepper motor nema10 printer motors 25mm 12v
- Category: Stepper Motor >>>
- Supplier: Changzhou Baolai Electric Appliance Co. Ltd.
Share on (62348923493):
Product Overview
Description
Product Description

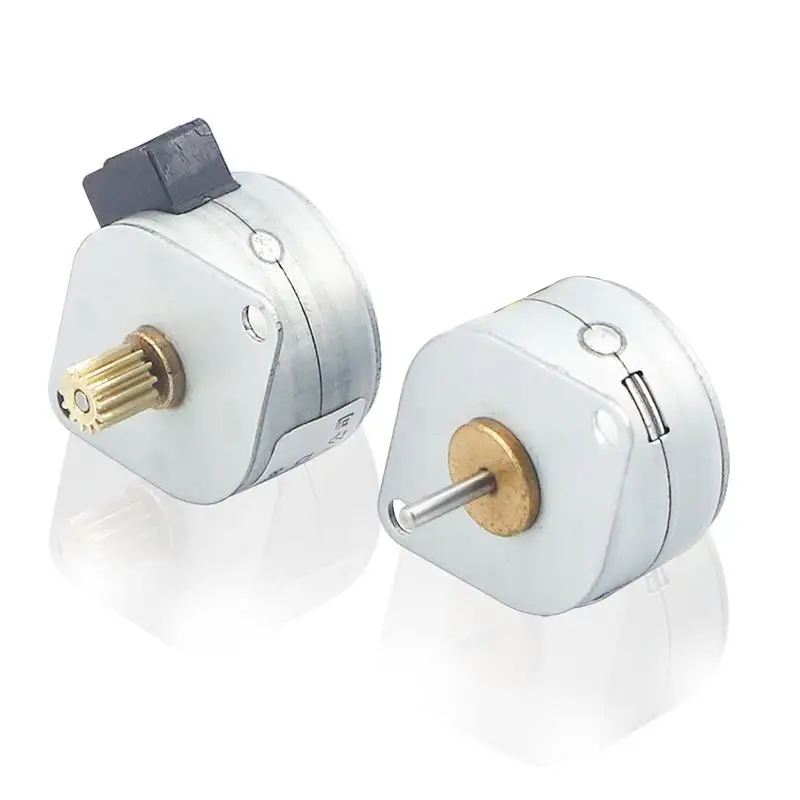

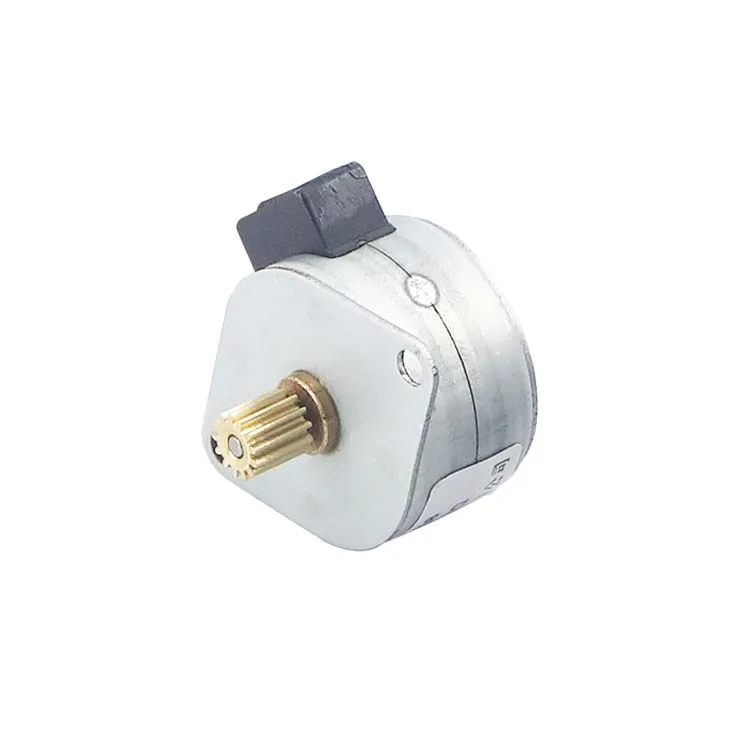

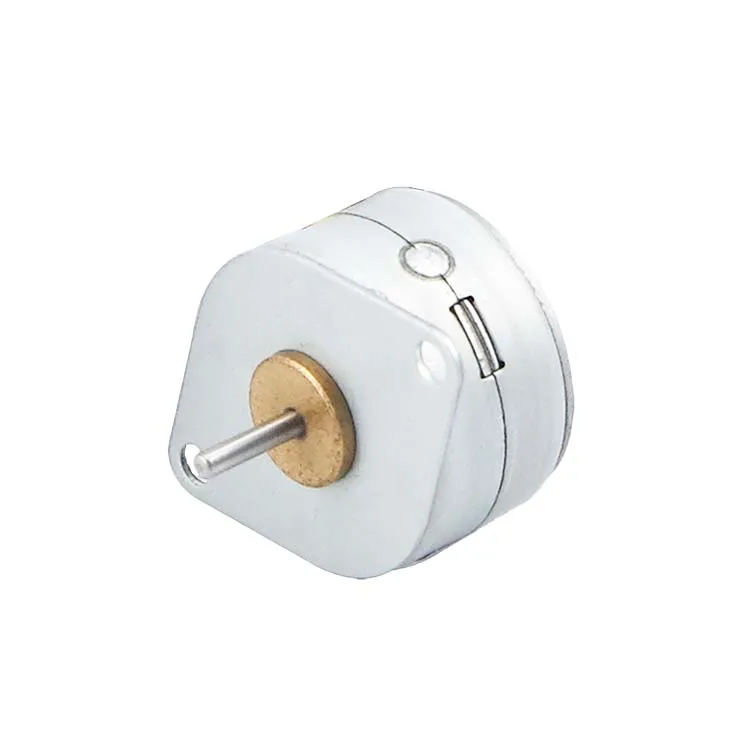

small pm stepper motor nema10 printer motors 25mm 12v
PM Series Stepping Motor
Model: 25BY20H Series
Applications:Medical equipment,Printer,Scanner,
Gas range,Sewing machine,Auto meter,Robot,and so on.

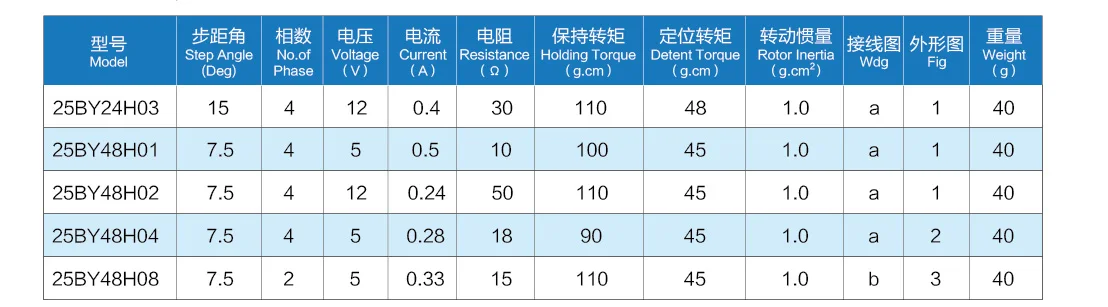

Specifications

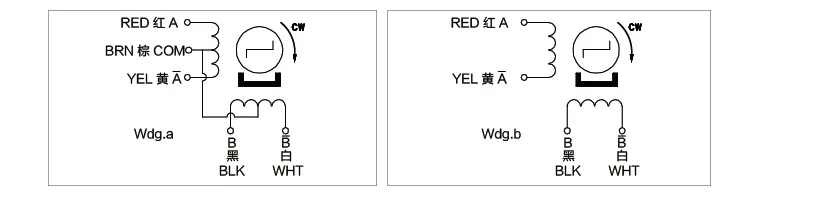

Wiring Diagram

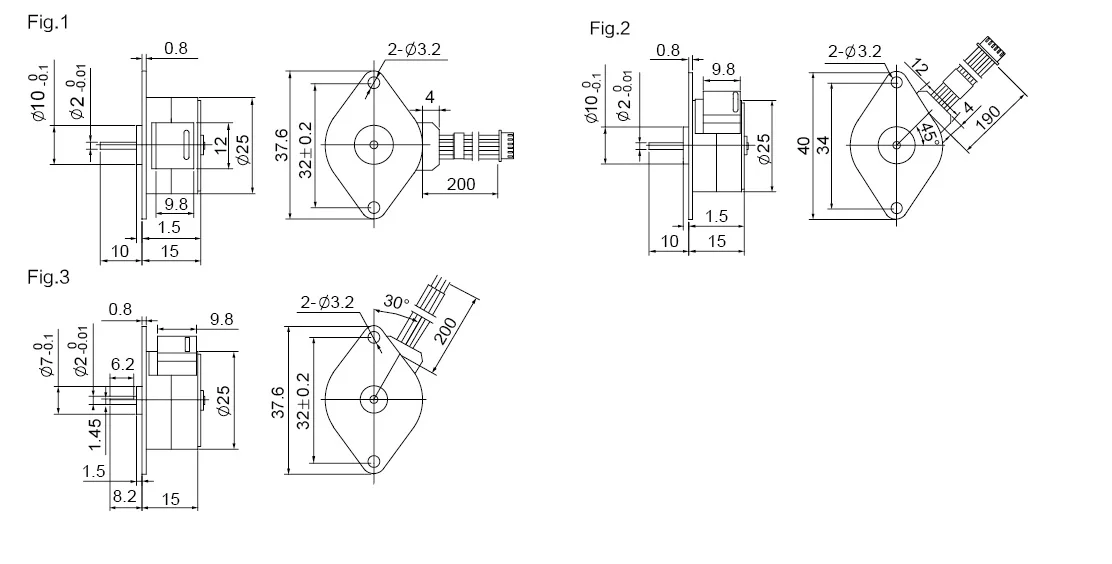

Figure Dimensions(unit=mm)
Packaging & Shipping
Packaging Each motor put in a single position of a piece of pearl wool packaging, which is soft but firm,
in case of collision and extrusion.
Shipping Various ways of express available
Our Services
Our Serivce An excellent system of pre-sales&after-sales service
You can contact us directly or leave a message here
FAQ
1. Q: How to choose the suitable stepper motor?
A: There are serveral important items: size, length of stepper motor, holding torque,
voltage, current etc.After confirm some them and told us, we can send you the suitable one.
2. Q: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can hep you find out the most suitable one.
3.Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
4.Q:What's your warranty terms?
A:One-year warranty and lifelong repair.
