Plastic raw materials mixer for injection molding machine batch gravimetric mixing equipment
- Category: Plastic Raw Material Machinery >>>
- Supplier: Mianyang Walthmac Measurement & Control Technology Co. Ltd.
Share on (62349072123):
Product Overview
Description

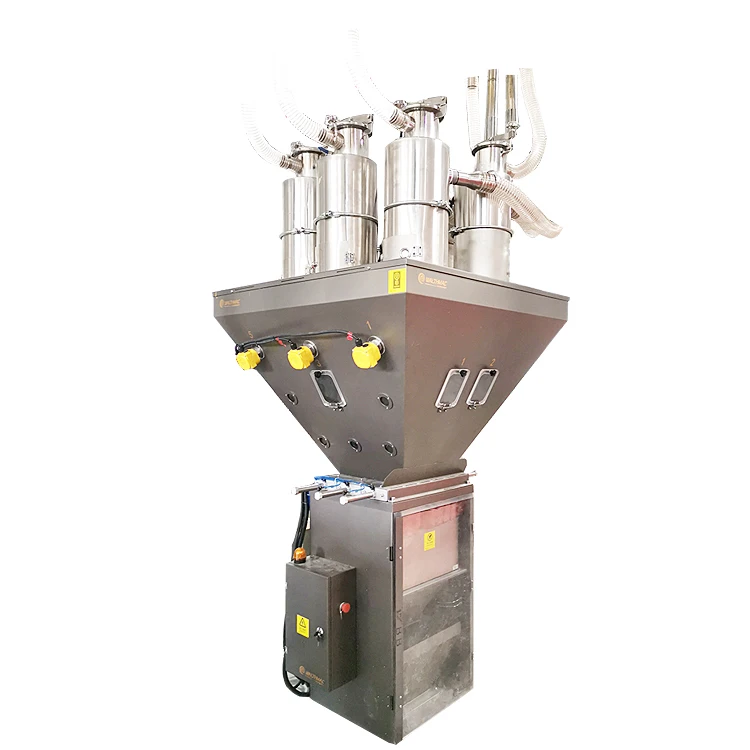

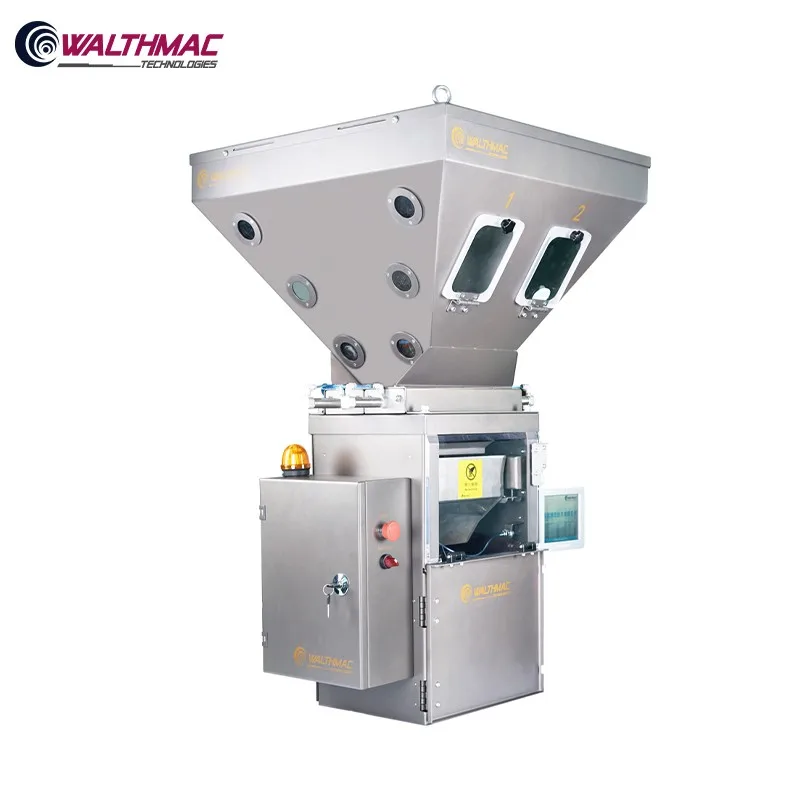

Plastic raw materials mixer for injection molding machine batch gravimetric mixing equipment

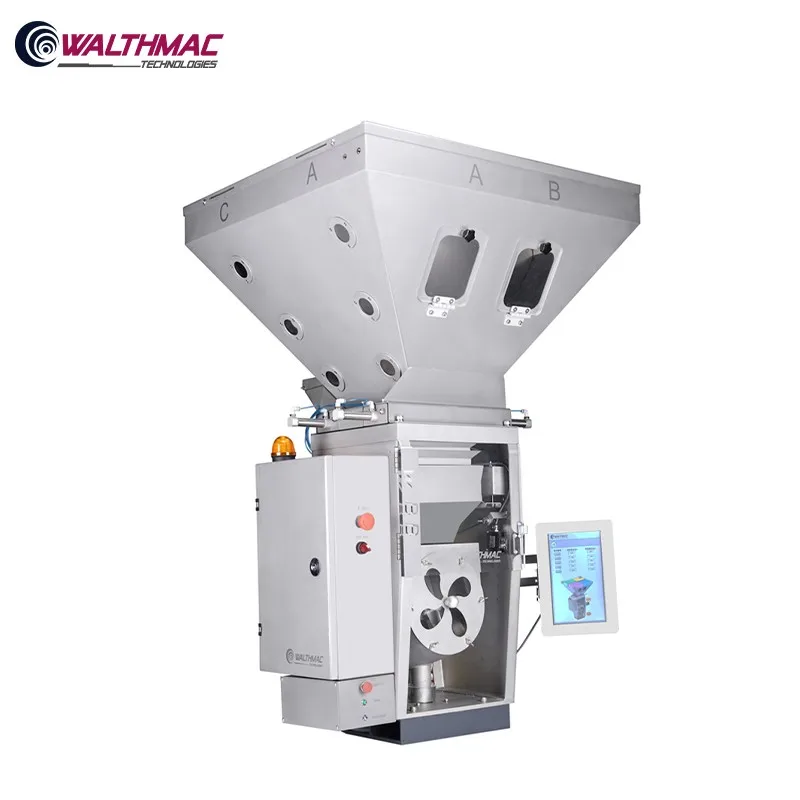

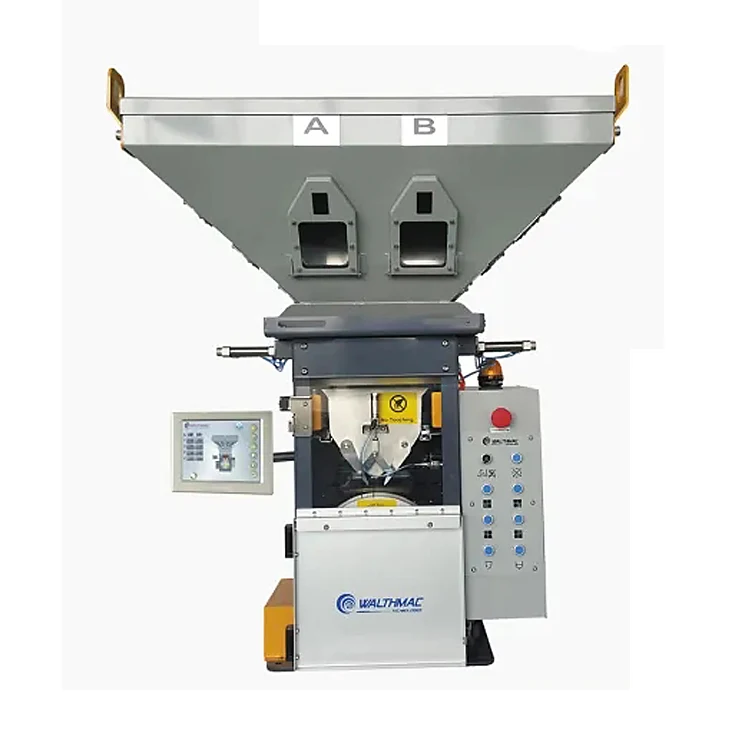

WBB Series Gravimetric Blender
A Our batch & continuous gravimetric blenders are aiming at the requirements of online and
offline auto-blending work.
B Our blenders can work with raw materials such as particle, powder and liquid, etc.
C Application Field: plastic films/ cables/ pipes/ production of raw materials/ plastics modification
and other industries such as Chemicals.
System function features:
1. Auto-blending up to 12 components, which reduces human error and labour cost.
2. The blender is directly connected with customers' machine, so that the demixing
phenomenon of materials can be avoided.
3. The blender can achiee high metering precision rate up to 0.1% even if working under
vibration conditions.
4. It still can also work under any other complex work environment.
5. Easy to instal and use, friendly touch-control screen.
OEM Service
The both types of online and offline accept OEM & ODM order. Based on our strong techinical
strength, orders of
customerized model or special application model are acceptable. Our R&D dept can work for
every customer's special auto-manufacturing requirement if needed.
Key specifications:
| SPECIFICATION | ||||||||||
| component | Ingredients component | Model | Max. output (kg/hr) | Max. batch (kg) | Compressed air Kgf/cm3 | Mixing motor power (W) | Material storage tank | Main Material mixing range (%) | additives mixing range(%) | Base Dimension (mm |
| 2 component | 1KG | WBB-S-01/02 | 135-245 | 1KG | 4-6 | 120 | 60 | 97 | 3 | 650*500*1100 |
| 2KG | 285-360 | 2KG | 4-6 | 220 | 70 | 97 | 3 | 650*500*1200 | ||
| 4 component | 1KG | WBB-S-01/04 | 110-160 | 1KG | 4-6 | 120 | 100 | 97 | 3 | 750*700*1100 |
| 2KG | WBB-S-02/04 | 240-300 | 2KG | 4-6 | 220 | 130 | 97 | 3 | 750*700*1200 | |
| 4KG | WBB-S-04/04 | 410-500 | 4KG | 4-6 | 370 | 170 | 97 | 3 | 800*800*1350 | |
| 8KG | WBB-S-08/04 | 800-1000 | 8KG | 4-6 | 550 | 230 | 97 | 3 | 850*800*1550 | |
| 12KG | WBB-S-012/04 | 1200-1400 | 12KG | 4-6 | 750 | 300 | 97 | 3 | 950*950*1900 | |
| 20KG | WBB-S-20/04 | 2000-2400 | 20KG | 4-6 | 750 | 400 | 97 | 3 | 1050*1050*2100 | |
| 30KG | WBB-S-30/04 | 3000-3600 | 30KG | 4-6 | 1100 | 600 | 97 | 3 | 1150*1150*2200 | |
| 40KG | WBB-S-40/04 | 4000-4800 | 40KG | 4-6 | 1100 | 700 | 97 | 3 | 900*900*1100 | |
| 6 component | 1KG | WBB-S-01/06 | 85-120 | 1KG | 4-6 | 120 | 160 | 97 | 3 | 900*900*1100 |
| 2KG | WBB-S-02/06 | 175-220 | 2KG | 4-6 | 220 | 200 | 97 | 3 | 950*900*1200 | |
| 4KG | WBB-S-04/06 | 300-400 | 4KG | 4-6 | 370 | 260 | 97 | 3 | 950*900*1350 | |
| 8KG | WBB-S-08/06 | 530-650 | 8KG | 4-6 | 550 | 350 | 97 | 3 | 950*900*1550 | |
| 12KG | WBB-S-012/06 | 800-960 | 12KG | 4-6 | 750 | 450 | 97 | 3 | 1200*1100*1700 | |
| 20KG | WBB-S-20/06 | 1330-1600 | 20KG | 4-6 | 750 | 600 | 97 | 3 | 1200*1100*2000 | |
| 30KG | WBB-S-30/06 | 2000-2400 | 30KG | 4-6 | 1100 | 900 | 97 | 3 | 1300*1200*2200 | |
| 40KG | WBB-S-40/06 | 2700-3200 | 40KG | 4-6 | 1100 | 1000 | 97 | 3 | 1350*1250*2300 | |
Note: the practical output is relevant with the precision setting and the number of components.
Company Information
Associated Brands
Certifications
FAQ
Q1:How do you control the quality?
A:We start the quality control beginning from design optimizing. We keep screening out the qualified supplier list to cooperate with our strict manufacturing standard. The last chain of quality control comes to our testing and QC. Quality control in Walthmac forms a whole closed loop and help us to present much better qualified products to market than the average ones on the market.
Q2:Why should I choose your company?
We've strong technical strength to solve customers different production requriments and can offer products with higher precision rate above 3-6 times than those of average products can offer on the market. The full chain of intellectual property developed independently by Walthmac company can help our clients produce better qualified products and run in a more economic way.
Q3:How about the lead time and after sales service?
We have a effecient system enable us to strictly stick to the delivery time for every contracted order. Our clients never need to worry about it.
Q3:How about after sales service?
Worry-free after sales service from we Walthmac can not only respond instantly 7-24, but also ensure it goes in a more economic way to help our clients release cost burden through online or on site techinical support.
