2 ton hydraulic crawler chinese manufacturer small excavator mini for sale cheap price
- Category: Excavators >>>
- Supplier: Shandong Hightop Group
Share on (62349221502):
Product Overview
Description
Model | HT18 | HT20 | |||
Machine Specfication and Function | Machine Specfication | Operating Weight(kg) | 1800 | 1950 | |
Bucket Capacity(m³) | 0.05 | 0.05 | |||
Max. Digging force(kN) | 15.2 | 15.2 | |||
Function | Tailless rotation | Yes | Yes | ||
Boom Swing | Yes | Yes | |||
Variable Tracks | Yes | No | |||
Traveling mode | Double speed | Single speed | |||
Transport Dimension | Transport length(mm) | 3572 | 3572 | ||
Transport width(mm) | 980/1300 | 1300 | |||
Transport height(mm) | 2356 | 2356 | |||
Working Range | Working Range | Max. digging depth(mm) | 2247 | 2247 | |
Max. digging radius(mm) | 4045 | 4045 | |||
Max. dumping height (mm) | 2452 | 2452 | |||
Constituent and Structural Style | Engine | Manufacture | Kubota | Laidong | |
Model | D1105 | 385B | |||
Discharge | Europe Ⅲ | Europe Ⅱ | |||
Engine power(kw/rpm) | 14.2/2200 | 18.4/2350 | |||
Hydraulic System | Rated pressure(Mpa) | 20.6 | 20.6 | ||
Type of hydraulic system | Load sensitivity | Load sensitivity | |||
Hydraulic Pump | Manufacture | Rexroth | China | ||
Structural Style | Plunger pump | Plunger pump | |||
Valve | Manufacture | Italy | China | ||
Swing Motor | Manufacture | Eaton | Eaton | ||
Structural Style | Orbit motor | Orbit motor | |||
Traveling Motor | Manufacture | Italy | China | ||
Structural Style | Plunger motor | Orbit motor+Reducer | |||
Track | Track | Rubber | Rubber | ||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6)Can Add Closed Cabin,AC
For detail , please contact whats-app and wechat: +8615254793821
For detail , please contact whats-app and wechat: +8615254793821

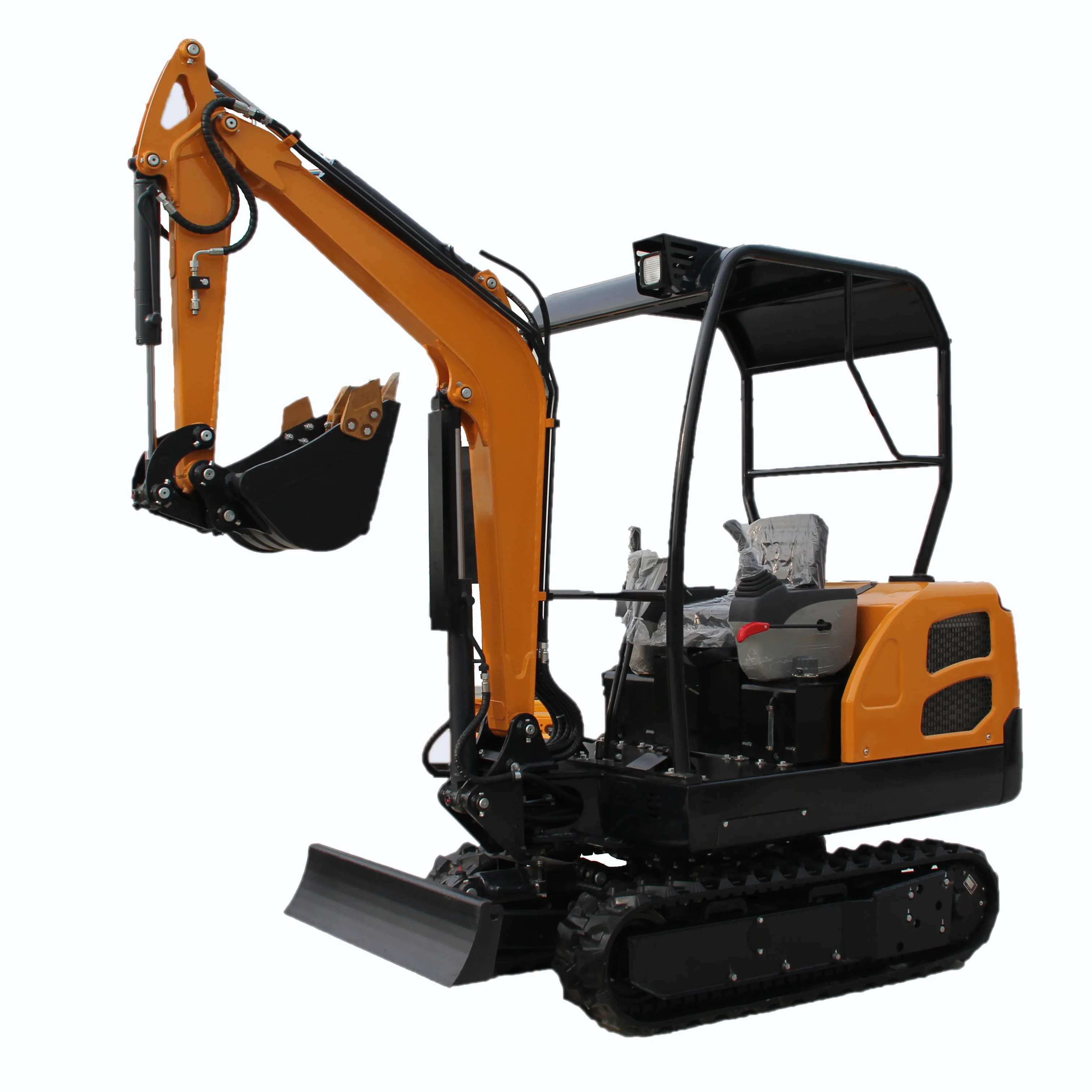

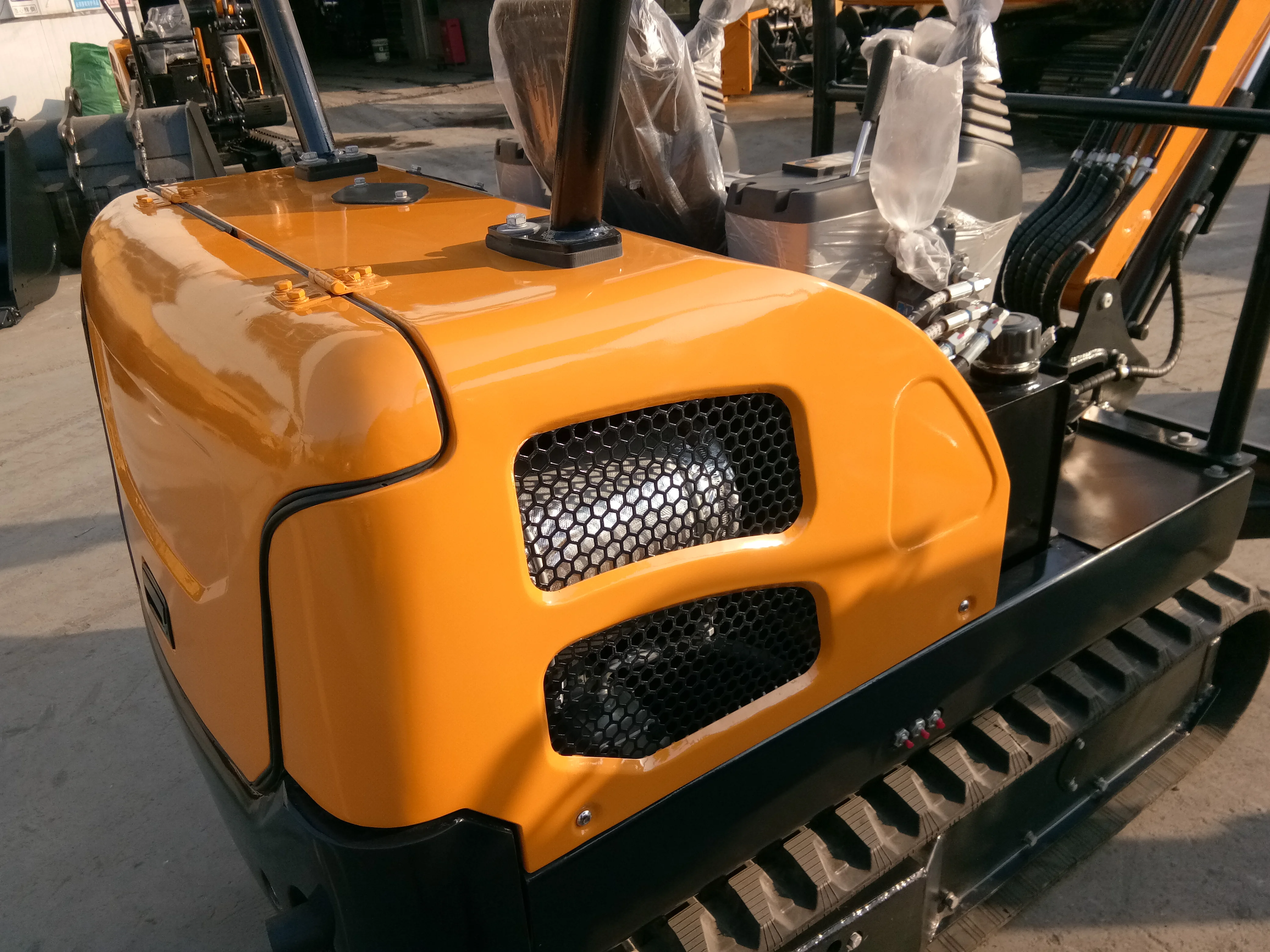

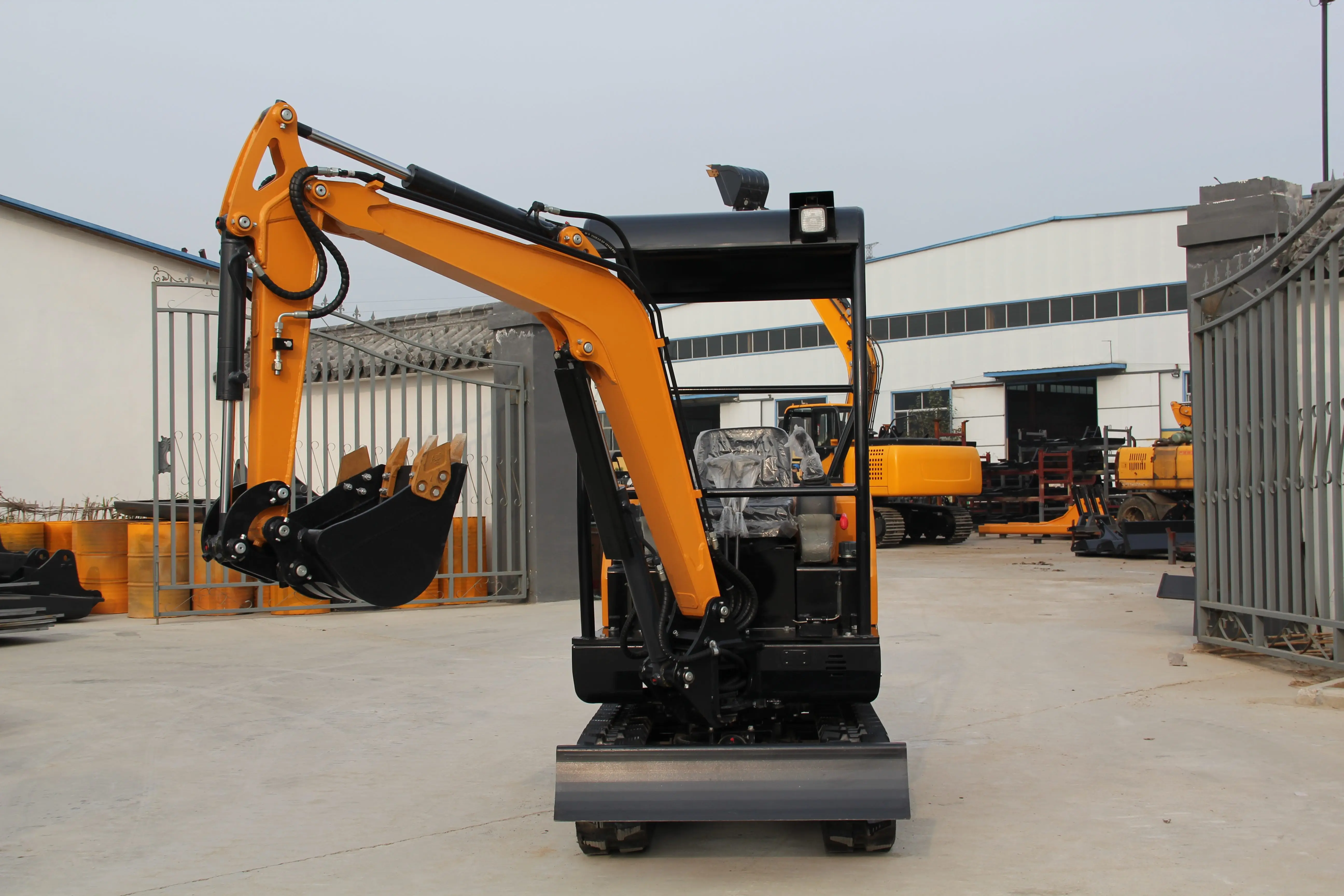

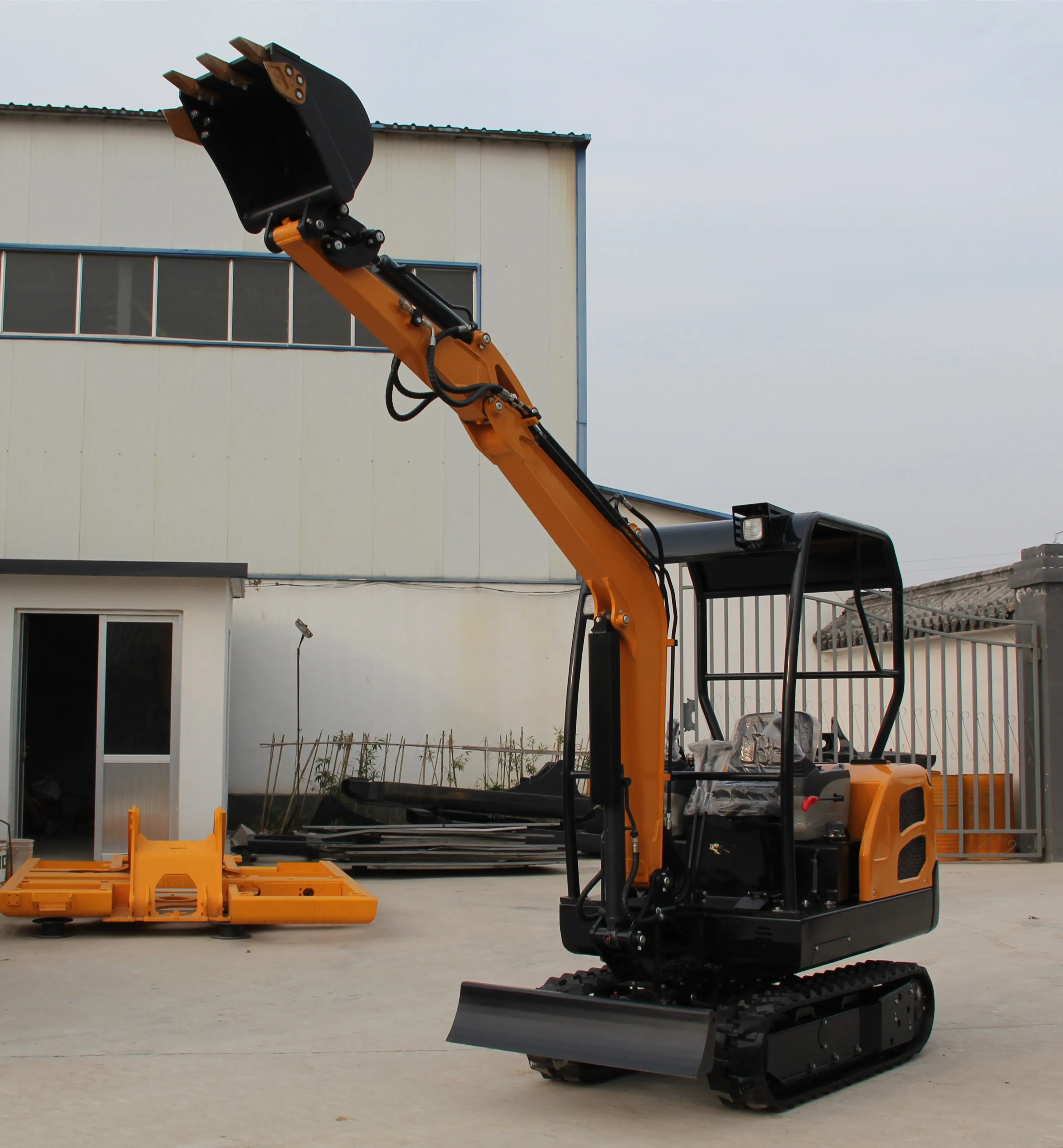

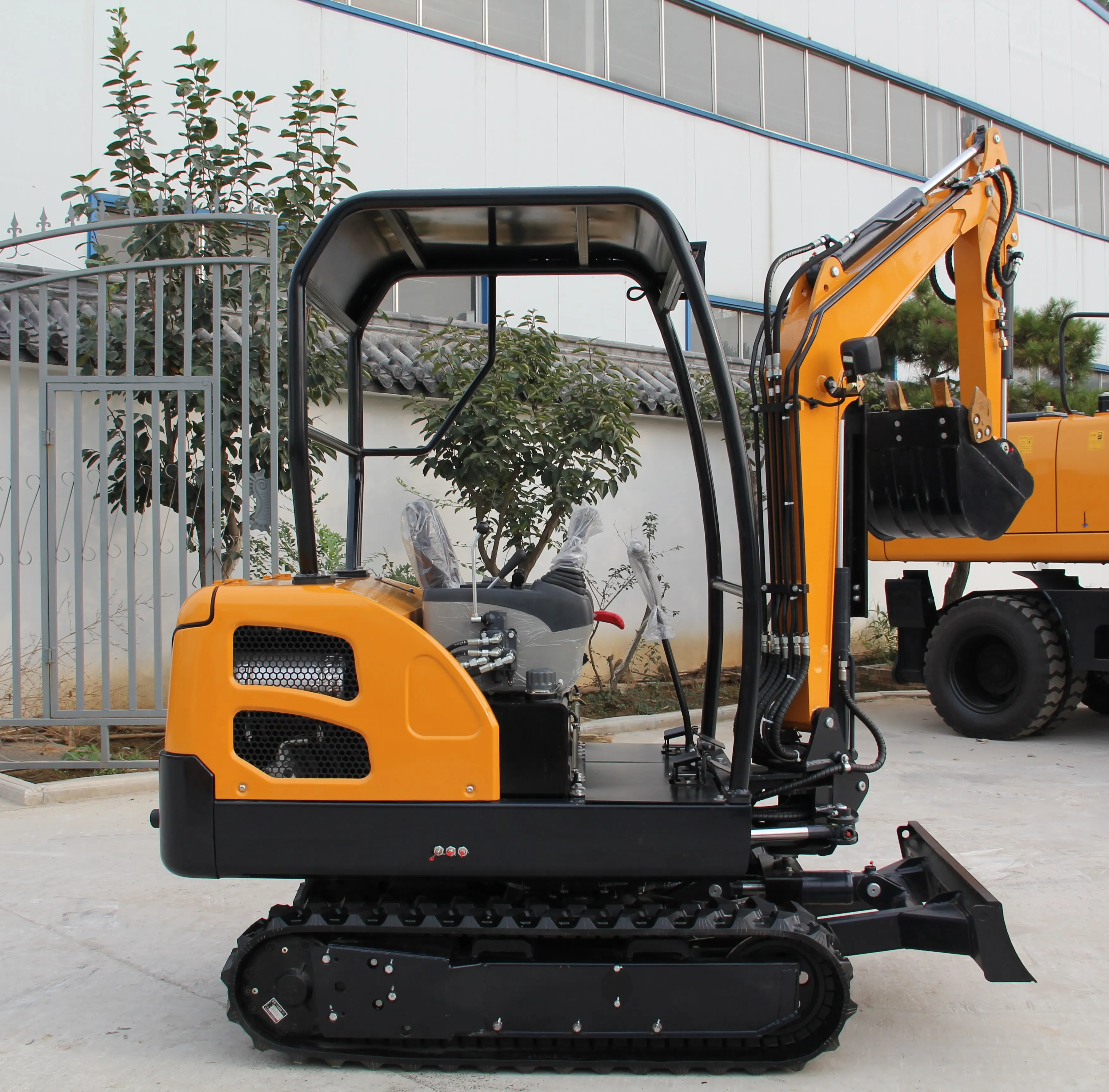

Detailed Images
Customers Feedback
Packing&Shipping
Packing Size
1 Set: 3800*1550*2850mm
4 Sets:20ft container
8 Sets:40HQ container
