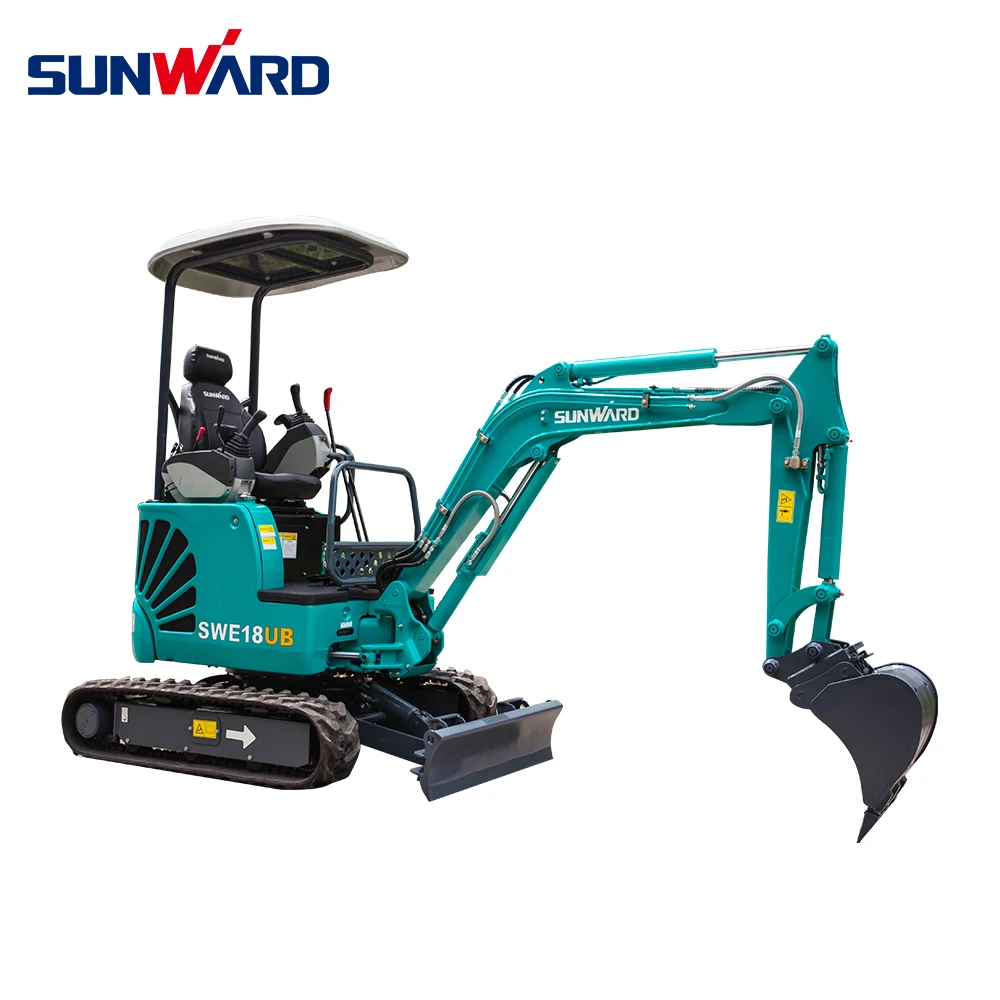

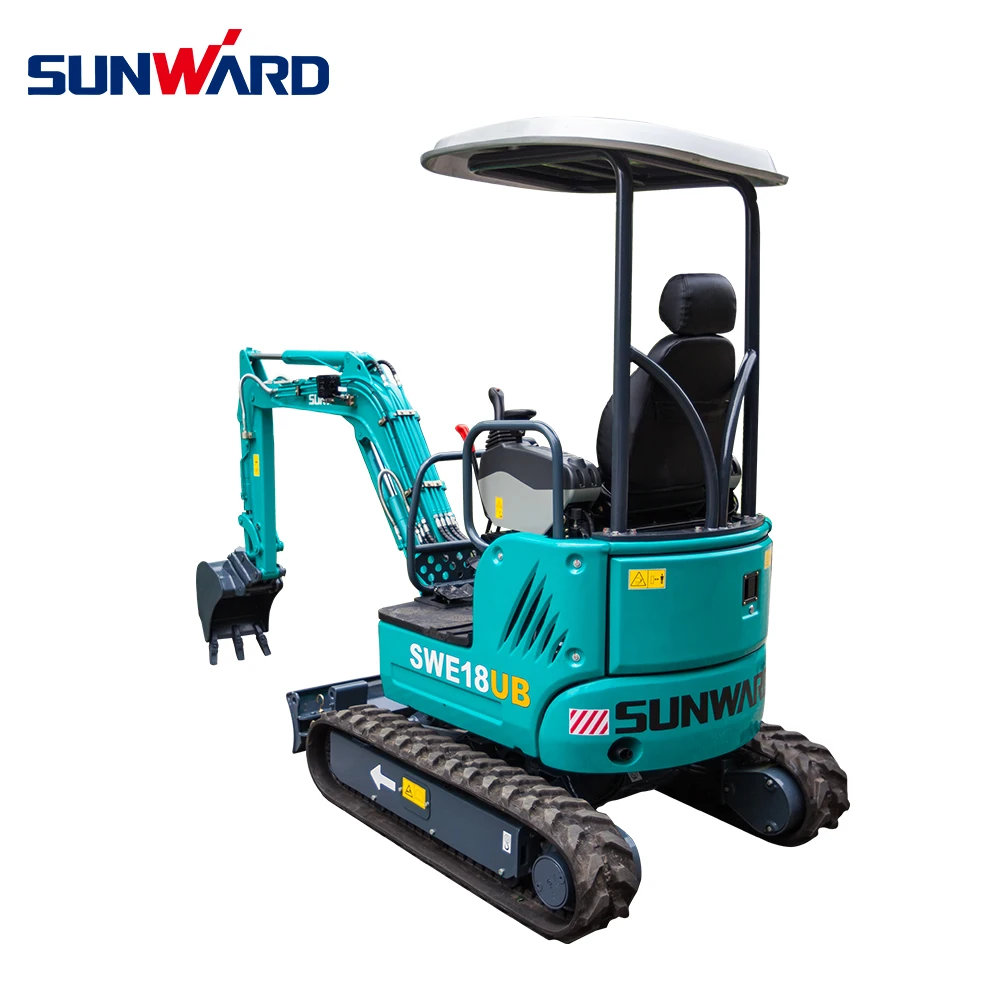

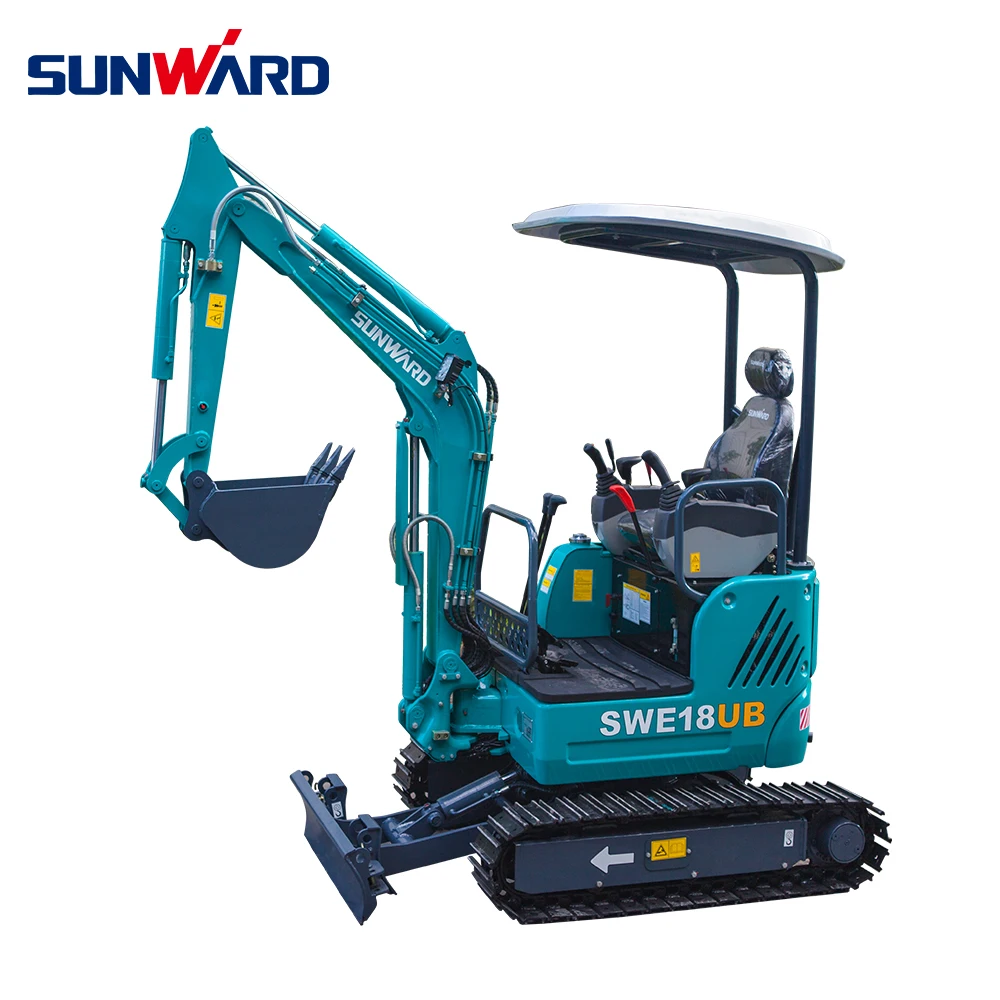

CASH COUPON SALE!Sunward mini excavator SWE18UB excavator 1 ton crawler excavator
- Category: Excavators >>>
- Supplier: Sunward Intelligent Equipment Co. Ltd.
Share on (62349281532):
Product Overview
Description
Product Description
Tips:
Promotions of Resume work
1. Get Up To $1000 Off Your Purchase With This Cash Coupon, Now!!
$1,000 cash coupon only for $ 499.
2. Buy this coupon you can use it in all special models from Sunward's full range of excavators!!! something important is we have agents in more than 100 countries in the world! We can provide the spot to you, and you can choose to buy the equipment in the physical store
$1,000 cash coupon only for $ 499.
2. Buy this coupon you can use it in all special models from Sunward's full range of excavators!!! something important is we have agents in more than 100 countries in the world! We can provide the spot to you, and you can choose to buy the equipment in the physical store
3. Limited number(ONLY 20) first come first served!!
If you still can see this page, is mean this coupon are still in stock
If you still can see this page, is mean this coupon are still in stock
Please contact customer service for more details!!!
| Parameter List | |||
|---|---|---|---|
| Type of cab | Canopy | ||
| Bucket capacity,std. | 0.022m³ | ||
| Bucket width | 320mm | ||
| Machine weight | 1010kg | ||
Dimensions | Overall length | 2640mm | |
| Overall height | 2250mm | ||
| Overall width | 750mm | ||
| Ground clearance | 131mm | ||
Engine | Brand | Yanmar | |
| Model | 2TNV70-PSU | ||
| Displacement | 0.57L | ||
| Output | 7.2kW/2400rpm | ||
Working ranges
| Max. cutting height | 3085mm | |
| Max. loading height | 2305mm | ||
| Max. digging depth | 1825mm | ||
| Max. digging reach | 3180mm | ||
| oom swing angle(left/right) | 73°/53° | ||
| Front swing radius | 1221mm | ||
| Tail swing radius | 750mm | ||
| Max. digging force(Arm) | 5.8kN | ||
| Max. digging force(Bucket) | 9.4kN | ||
| Track | Type | Rubber track | |
| Track width | 180mm | ||
Undercarrige | Track length | 1299mm | |
| Length to center of rollers | 975mm | ||
| Lenhth to center of track | 560/820 mm | ||
| Travelling speed(High/Low) | 2.9/1.5 km/h | ||
| Gradeability | 30° | ||
| Swing speed | 8.2rpm | ||
| Ground pressure | 24.5kPa | ||
| Dozer size | Width | 750/1000 mm | |
| Height | 190mm | ||
| Lifting capacity (Height/Depth) | 225/225 mm | ||
Hydraulic pumps | Type | 3 Gear pump | |
| Displacement | 3*9.6L/min | ||
Hydraulic pressur | 2*16MPa | ||
| Fuel tank capacity | 10L | ||
| Hydraulic oil tank capacity | 9.5L | ||
