Aluminium Cutting Machine Saw CNC Window Making Machine Aluminium Machinery For Windows And Door
- Category: Window and Door Making Machine >>>
- Supplier: Jinan Fenstek International Trade Co. Ltd.
Share on (62349319624):
Product Overview
Description
Features:

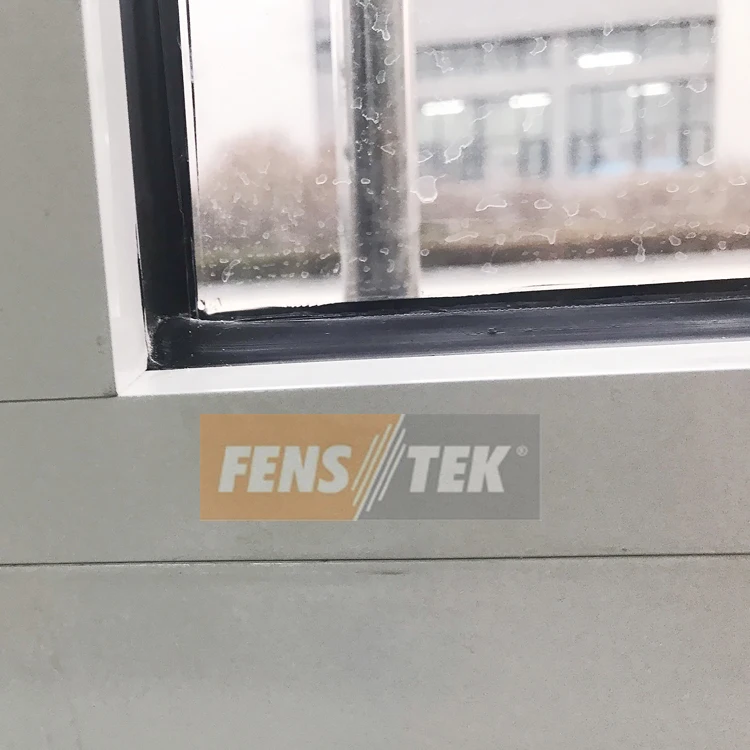

1.The machine is suitable for cutting aluminium glazing bead at 90 degree. 45 & 135
degree cutting is optional.

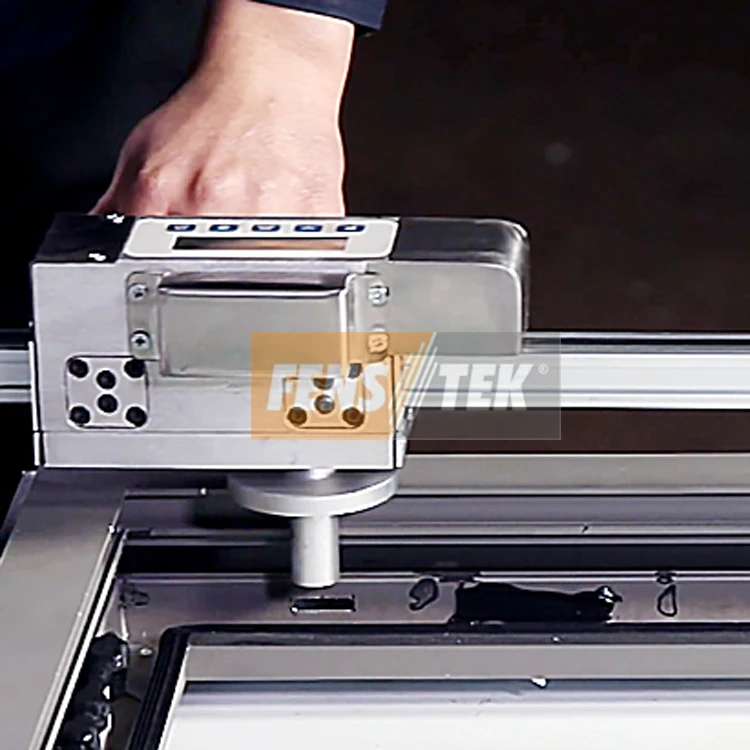

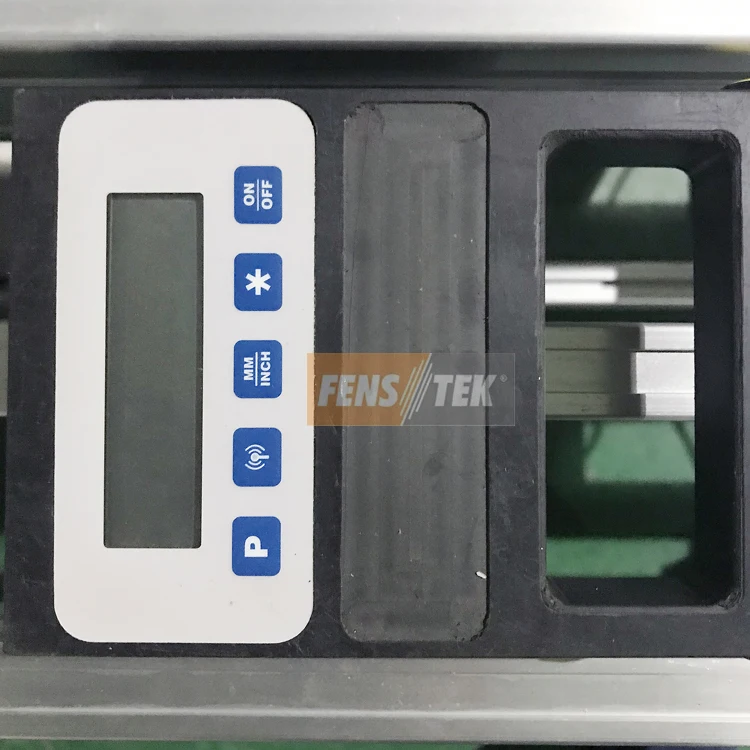

2.Equipped with portable wireless measuring system. Precise and easy measuring.

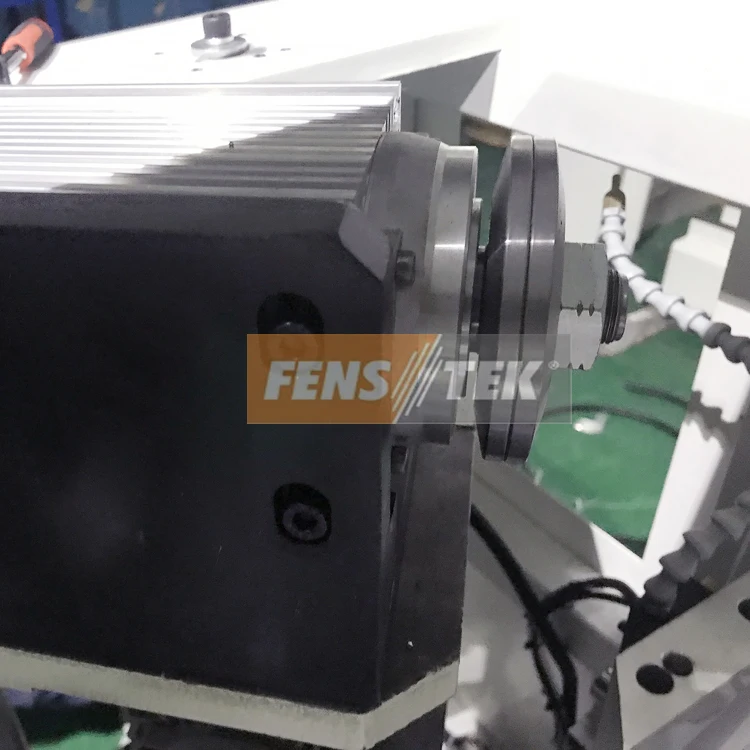

3.High precision spindle saw blade motor, stable performance.

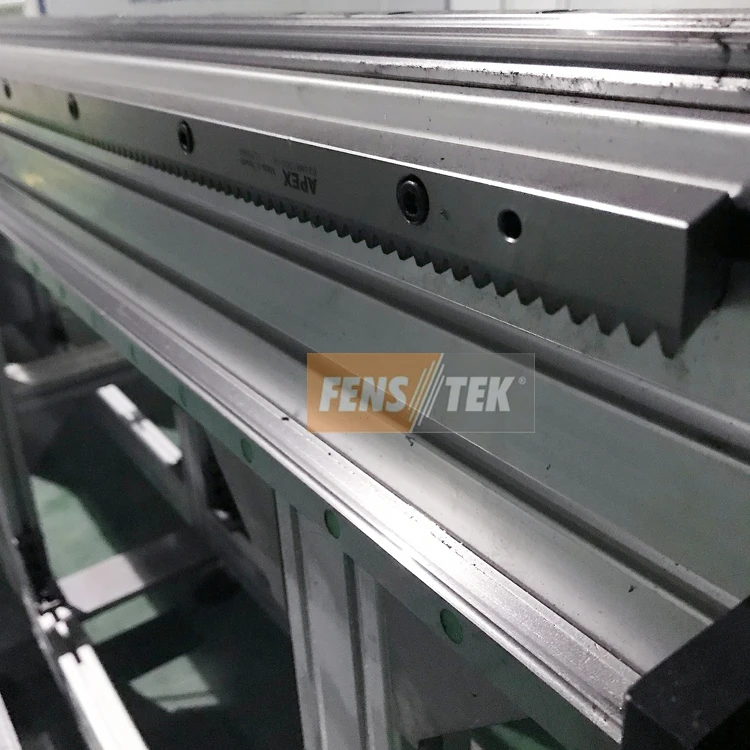

4.The machine adopts square rail, imported gear rack drive, speedy and high repeat
positioning accuracy.
5.Schneider PLC, Servo motor and Schneider servo driver assure long time & stable
running.
6.Excellent processing accuracy 0.1mm
Parameter: | ||
Power Supply | 3N~50HZ 380V or customized | |
Power | 3.5KW | |
Cutting Motor Power | 2.0KW | |
Motor Rotatry Speed | 2800 r/min | |
Saw Blade Diameter | φ350×3.2×φ30，Z=120 | |
Operation Air Pressure | 0.5～0.8MPa | |
Air Consumption | 8L/min | |
Cutting accuracy | ±0.1mm | |
Cutting capacity | 70X70mm | |
Overall Dimension | 8200X900X1700mm Including two side support frames | |
Weight | 710kg | |
Main Accessory | ||
Saw blade | WAGAN(Japan) | |
Phneumatic Compoments | AirTAC(Taiwan) | |
Touch Screen | Schneider | |
Spindle Motor | SEEIMEC(Italian) | |
Electrical Button and Switcher | Schneider(French) | |
Reducer | Apex(Taiwan) | |
Servo motor | Schneider(French) | |
Measurement ruler | SEIQ | |
Standard Accessory | ||
Certificate | 1pc | |
Operation Manual | 1pc | |
Saw blade | 1pcs | |
Mobile work piece supports | 2set | |
Air Gun | 1pc | |
Complete tooling | 1 set | |
