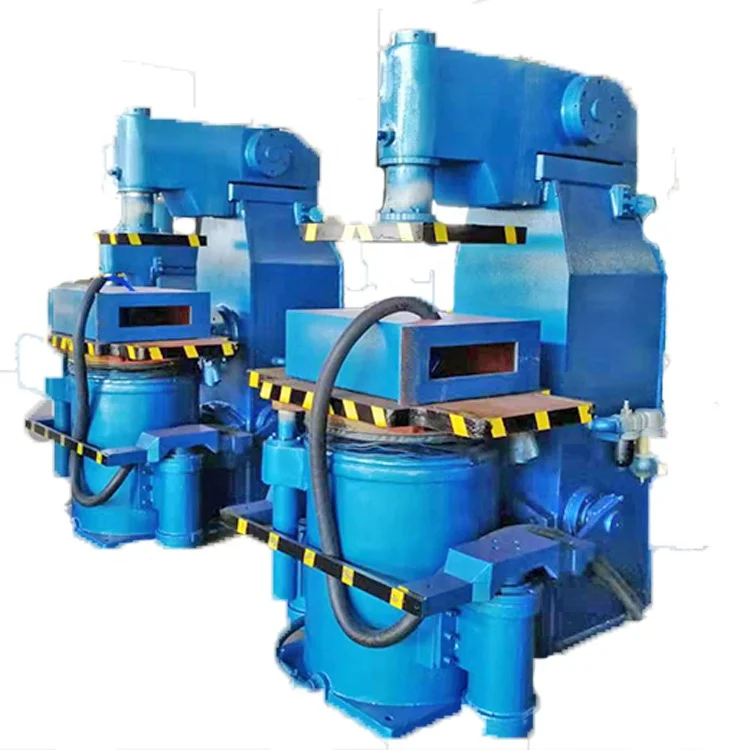

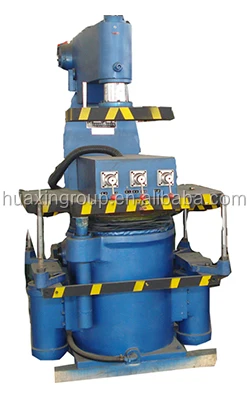

CE Approved Wholesale Z1410 Sand Molding Machine Foundry Sand Casting Jolt Squeeze Molding Machine for Small Metal Castings
- Category: Metal Casting Machinery >>>
- Supplier: Qingdao Huaxin Shengye Casting Machinery Co. Ltd.
Share on (62349331601):
Product Overview
Description
Product Description
Foundry Sand Moulding machine is a kind of casting machinery.
It is mainly used for making sand moulds.
Jolt squeeze Moulding machine is suitable for small-scale and batch production of castings. It can be used on casting production lines or used alone. It can complete the processes of compaction and molding.
His main function is to fill sand into flask for compaction, shake and compact the loose sand in the sand box by molding machine, and then take it out of the mold to complete the process.
Our standard molding machine is a micro-shock compaction molding machine, which uses air pressure to apply pressure to the molding sand in the sand box through a pressure head or pattern to compact the molding sand and has certain action noise.
Our standard molding machine is a micro-shock compaction molding machine, which uses air pressure to apply pressure to the molding sand in the sand box through a pressure head or pattern to compact the molding sand and has certain action noise.
sand casting molding machine, Z149 Foundry Sand Molding Machine , Z1410 SAND MOLDING MACHINE
There are so many kinds of foundry machinery in qingdao huaxin company :
1. Automatic Static Pressure Moulding Line with KW technology
2. Automatic Shell Molding casting Line
3. Furan Resin Sand proudction casting Line
4. Pouring system
5.Sand Preparation
6. Founry Sand Mixer
7.Pneumatic sand moulding machine
8.Core making machine
9.Shell core machine
10.Shot blasting machine
11.V process casting line
12.Foam foam casting line
Application of Sand Moulding machine
1.The main function of molding machine is to fill sand and press sand for molding.
2. It is mainly used for small-sized and mass-produced castings. It can be used on production lines or used alone to complete compaction and mold functions.
3. It is the most ideal choice for producing small castings of handicrafts, lighting accessories, furniture hardware and plumbing equipment.
4. This jolt squeeze molding machine is suitable for making sand mold by drag /cope flask in general foundry workshops and mechanized/semi-mechanized foundry.
Description of proudction process
1. Most parts of the molding machine are ductile iron castings, and the quality of castings is very important
2. Our Huaxin Company has its own foundry and casting testing laboratory to ensure the quality of molding machines from the source.

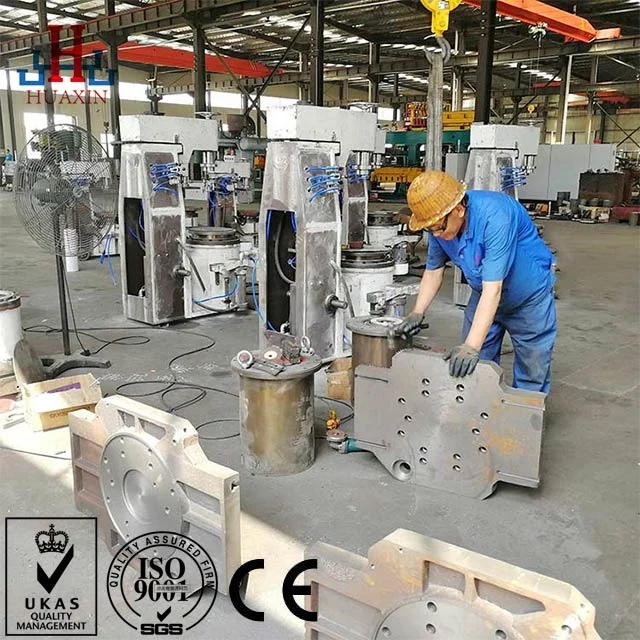

3. After the casting comes out, it will go through a series of machining processes. The company has over 30 sets of machining equipment to ensure timely delivery.
4. After the casting is processed, polished, assembled and welded to the fuselage.
5. Connect the air source, debug and test run to ensure that the equipment delivered from the factory is qualified equipment.

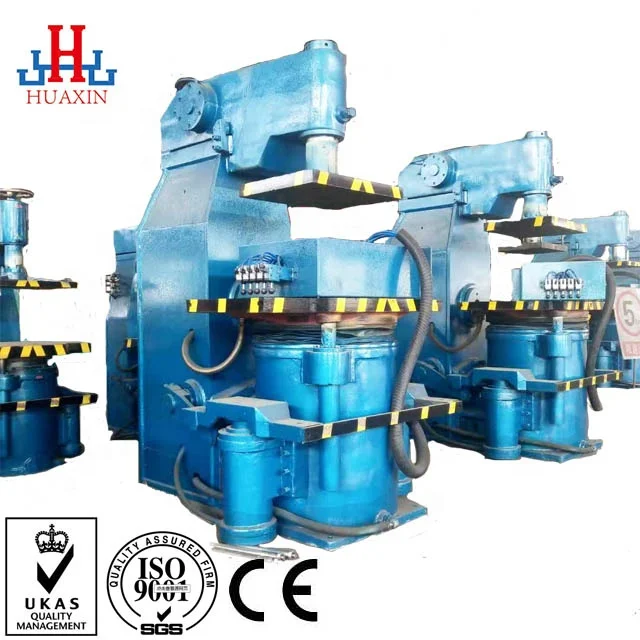

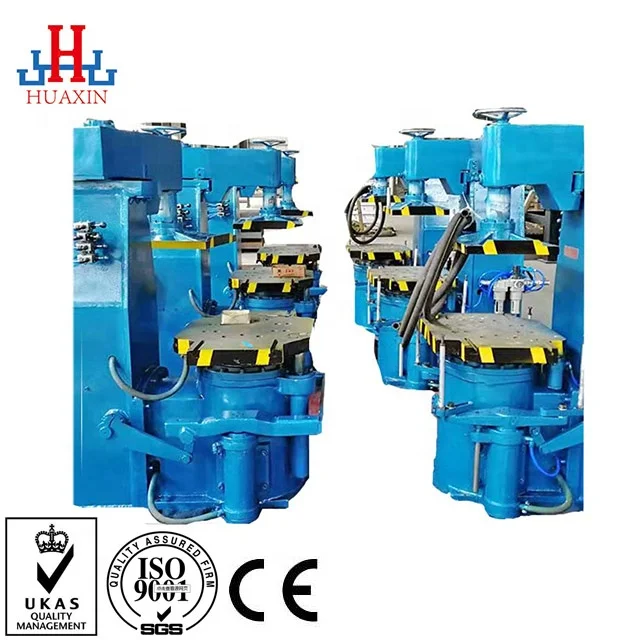

Detailed Images
1. The machine adopts a spring-buffered pneumatic micro-shock mechanism, which can reduce the impact of the shock on the foundation, and the requirements on the foundation are not high.
2. The pattern drawing mechanism is synchronized by two stripper cylinders , connecting rods and synchronous shafts.
3. This machine has increased Compaction cylinder stroke and compacting force, so the quality of sand mold is firm and uniform.The machine adopts a spring-buffered pneumatic micro-shock mechanism, which can reduce the impact of the shock on the foundation, and the requirements on the foundation are not high.
4. The pattern drawing mechanism is synchronized by two stripper cylinders , connecting rods and synchronous shafts. This machine has increased Compaction cylinder stroke and compacting force, so the quality of sand mold is firm and uniform.
Size Information
Size Chart of Foundry sand molding machine
Recommended Foundry machinery (Core shooter machine , shot blasting machine and casting line)
iten no. | Z143W | Z145W | Z146W | Z147W | Z148WB | Z148WK | Z149WK |
working table size (mm) | 560X420 | 600X550 | 700X550 | 800X575 | 900X730 | 1200X730 | 1200X1030 |
Compressed air consumption | 0.25M3 | 0.4M3 | 0.4M3 | 0.4M3 | 0.6M3 | 0.6M3 | 0.6M3 |
Packing&Shipping
Foundry sand casting Jolt squeeze molding machines are packed export standard packing.
Company Introduction
Since its founding in 1998 as Qingdao Huaxin Group, the mission of qingdao huaxin group has been to develop the most innovative solutions possible for the automation of green sand moulding, sand core making machine, sand preparation and shot blasting processes throughout the foundry industry. Continuous technological improvement and innovation have earned nearly 20 intellectual property rights in China. Today, with nearly 5,000 sand moulding machines and shot blasting systems installed around the world, and its sales and service operations are spread all over the world.
Our Services & Strength
1. Qingdao Huaxin Company has more than 20 years of production experience in casting equipment.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.
1.According to different casting foundry equipments , qingdao huaxin company is divided into different professional after-sales teams.
2.The after-sales team of the foundry sand molding machine directly contacted the technical department to instruct the users how to install and use the molding machine.
3.Visit users regularly to learn about their usage.
4.Regular mailing of accessories to users, timely guidance to replace accessories.
