2 4 6 Cavity Automatic PET Plastic Bottle Making Blow Moulding Blowing Machine Price
- Category: Plastic Blowing Machines >>>
- Supplier: Zhangjiagang Crown Machinery Co. Ltd.
Share on (62349593163):
Product Overview
Description

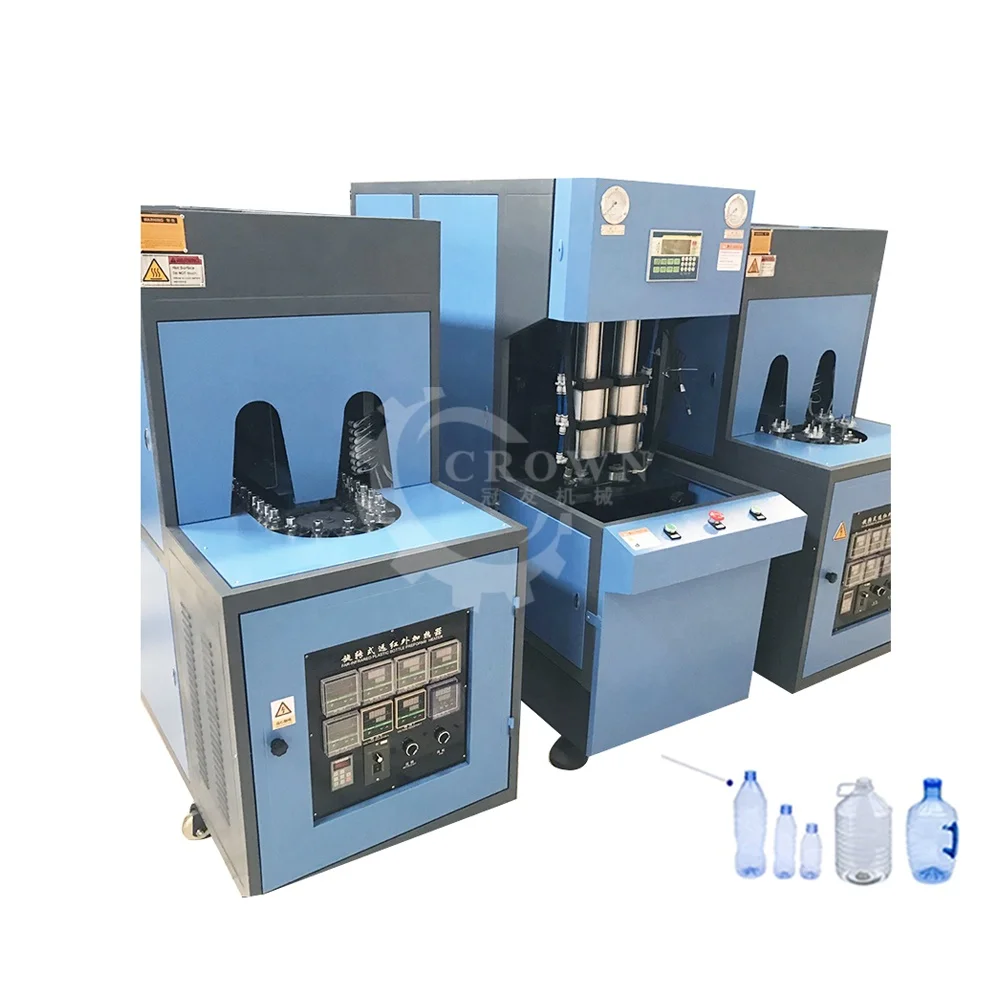

HY-8Y semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
The Blowing Machine Main Features:
1. PLC control stable production. Touch screem for operation the machine, easy for operation.
2. One worker is enough, easy for operation, without special trainning.
3. Low cost, the least investment, energy saving.
2. One worker is enough, easy for operation, without special trainning.
3. Low cost, the least investment, energy saving.
4. Thers is almost no maintain cost.
Model | GD-880 | GD-880-II | GD-3L |
Bottle material | PET | PET | PET |
Bottle volume(L) | 0.1-2 | 0.1-1.5 | 2-5 |
Capacity(pca/h) | 800-1000 | 1400-1800 | 300-650 |
Height(mm) | ≤300 | ≤280 | ≤350 |
Perform inner diameter | ≥∮12 | ≥∮12 | ≥∮16 |
Max.Mold diameter(mm) | 350*380 | 350*380 | 400*460 |
Max.Mold thickness(mm) | 210 | 210 | 260 |
Clamping force(kn) | 45 | 45 | 65 |
Mold opening storke(mm) | 160 | 160 | 220 |
Main machine(mm) | 1600*620*1610 | 1600*600*1610 | 1750*670*1860 |
Main machine weight(kg) | 500 | 500 | 600 |
Heater (mm) | 1870*630*1450 | 1870*630*1450 | 1870*630*1450 |
Heater weight(kg) | 250 | 250 | 250 |
Power(kw) | 17.5 | 24.8 | 17.5 |
Detailed Images
Related Products
Company Introduction
Zhangjiagang Crown machinery Co.,Ltd
Zhangjiagang Crown machinery Co.,Ltd is located at the new port city -zhangjiagang,was founded at 1995,and starting with beverage machinery.Our company have fixed assets over RMB 10million and covers an area of 10000m2,We are a leading enterprise in research and production of liquid food and beverage packing and filling industry.our Main products including:Pure/mineral water and purified water producing line.carbonated beverage producing line.3gallons& 5gallons producing line.Flat and tube UHT device,and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force,advanced equipment,scientific management system and perfect after-sales service.
After Sales Service
Packing&Shipping
