Water treatment filters Reverse Osmosis System water treatment machinery
- Category: Water Treatment Machinery >>>
- Supplier: Zhangjiagang Crown Machinery Co. ltd
Share on (62350421587):
Product Overview
Description

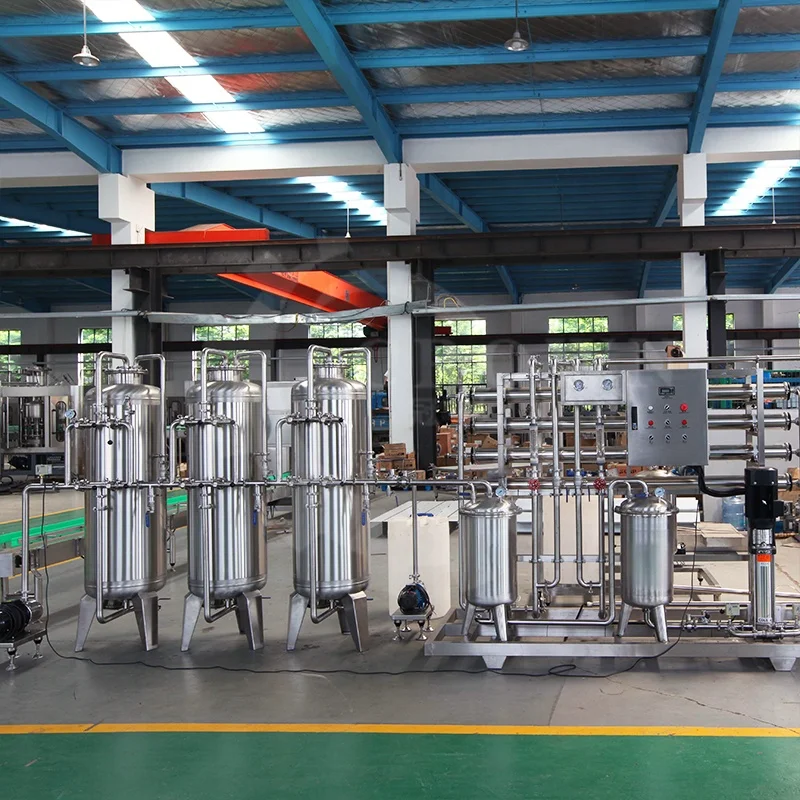

Drinking Water treatment Plant
Product Description

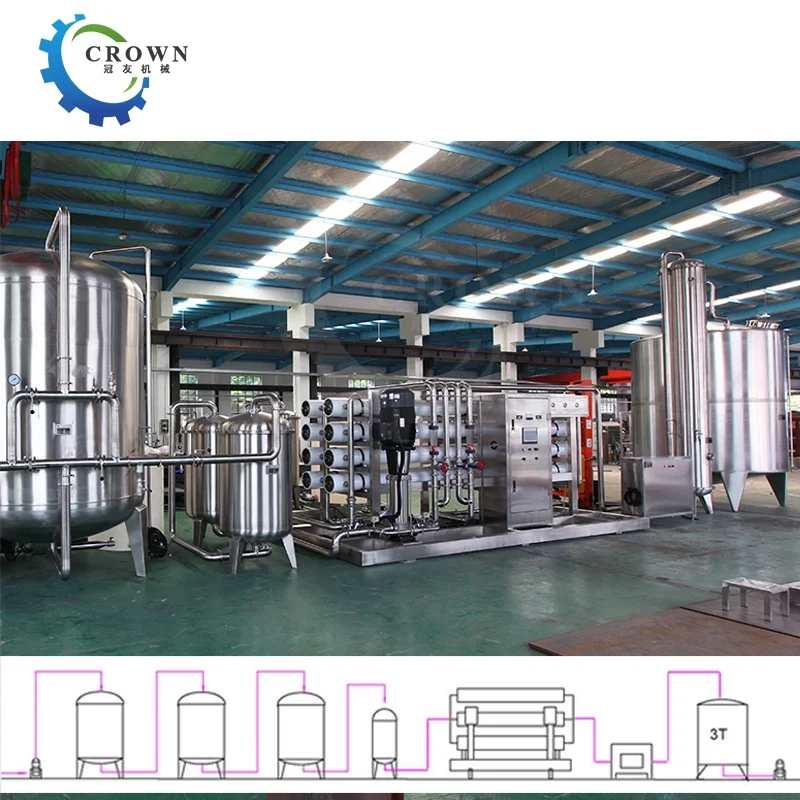

Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner -(Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—Hight pressure pump—finished product water tank | ||||||||
Accodring to customers' requirements and the source water quailty,we adopt different equipment to produce pure water,mineral water,etc.The main equipments are silica sand filter,active carbon filter,sodium ion exchanger,hollow fiber filter,RO(reverse osmosis),UV sterilizer,prescision,iron,ozone generator,waer tank,etc.The treatment capacity is 0.5-50t/h.It can effectively get rid of muddy organic matter,iron,manganese and oxide;fliter suspended substance,solloid,microoranism,chloride and heavy metal ions in the water;reduce the hardness of the water to make all specification of the water quality fully meet the state fresh water standard of fresh drink water.
First stage pretreatment (Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms,reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system

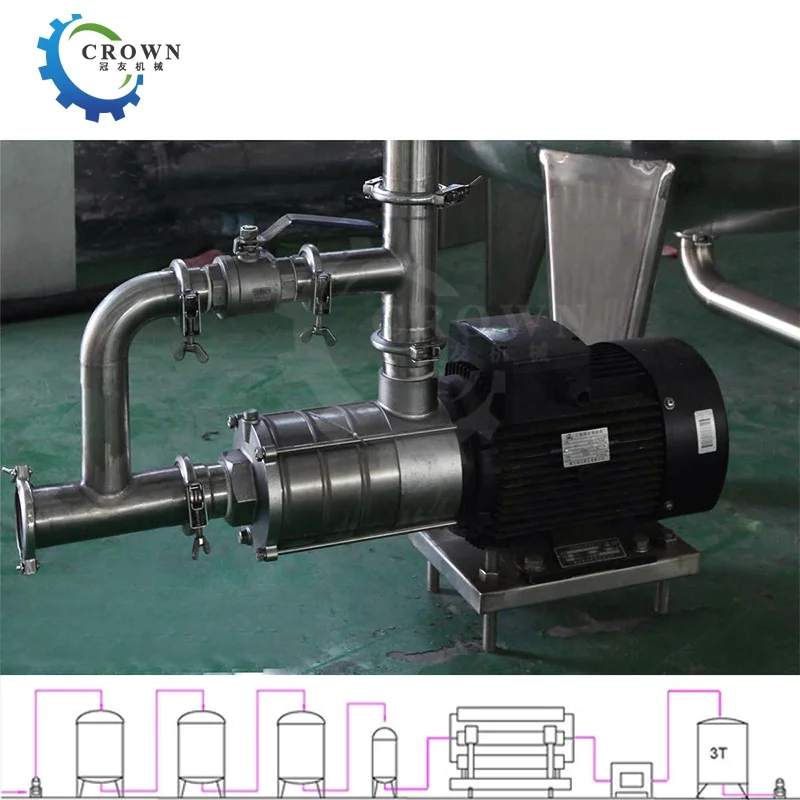

The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with
full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

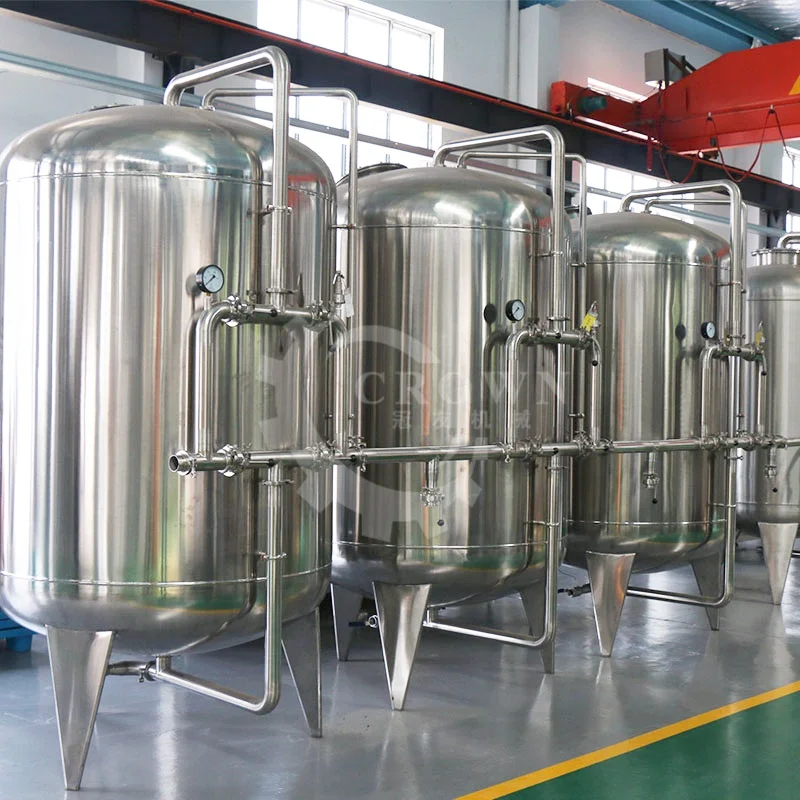

Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside, it will protect the stainless steel from silica sand and carbon material,make the filters work much much longer than normal.
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms,reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with
full set of clean unit. It has the features of simple structure, convenient operation and high technological level.
Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside, it will protect the stainless steel from silica sand and carbon material,make the filters work much much longer than normal.
Precision filter
It can ensure that the granularity of the water into reverse osmosis membrane is less than 0.1um.

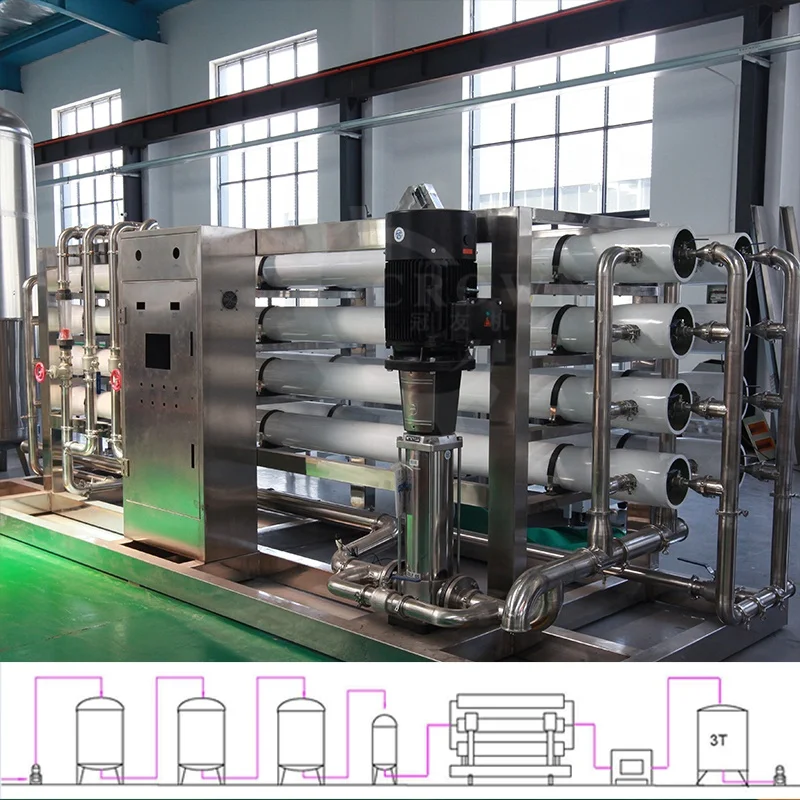

RO(Reverse Osmosis Device)
1.Core components of the device of reverse osmosis membrane using the world famous American Hyde reverse osmosis membrane.2.It has a full range of menbrane cleaning device.
3.Simple structure,easy operation,high technical level.
4.When the pump water conductivity is less than 300uS/CM,the water treated by this device can reach the natioal standard of pure water(space water)100%.
5.This product is currrently the best water treatment for reversr osmosis.
3.Simple structure,easy operation,high technical level.
4.When the pump water conductivity is less than 300uS/CM,the water treated by this device can reach the natioal standard of pure water(space water)100%.
5.This product is currrently the best water treatment for reversr osmosis.
UV sterilizer
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system. Disinfect tube adopt
high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not
produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.We use stainless steel 316 for ozone
tower,as it can resist Ozone very well than SS304,the working life will be much longer
Features
1.Technology corona discharge quartz ozone cell
2.Adjustable Ozone output 3.Cooling way: advanced water-cooling
4. Inner air compressor and refrigerant dryer
5. Inner PSA oxygen generator unit
high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not
produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.We use stainless steel 316 for ozone
tower,as it can resist Ozone very well than SS304,the working life will be much longer
Features
1.Technology corona discharge quartz ozone cell
2.Adjustable Ozone output 3.Cooling way: advanced water-cooling
4. Inner air compressor and refrigerant dryer
5. Inner PSA oxygen generator unit
Durable material
The material of water treatment plant is SUS 304.The material of ozone mixing tower tank is SUS 316, which is durable.
Hollow ultrafiltration filter
1.The throughput of ultrafiltration menbane elements shall not exceed the maximun throughput as predetermined by relative manfacturer of membrane element in
2.The selection of water feeding,chemical feeding point and chemical cleaning device shall be determined by characteristics of the said ultrafiltration membrane elements.
3.Arranged on the water inlet of ultrafiltration device,an interface is used to connect the putlet pipe of washing liquid when washing.
4.Sampling points can effectively diagonse and identify the defects of system which are set on water pipe of ultrafiltration device.
5.Mounted on the combined frame,Ultrafiltration membrane assembly is equipped with all pipes and connectors,including bracketd,fasteners,clamps and other accessories.
6.Ultrafiltration combined frame shall meet the requirements of the seismic intensity of the site.
7.The safe,stable and reliable operation of the system shall be guaranteed by the relative apparatus with perfect performance,accurate cpllocation points and precise quantity.
3.Arranged on the water inlet of ultrafiltration device,an interface is used to connect the putlet pipe of washing liquid when washing.
4.Sampling points can effectively diagonse and identify the defects of system which are set on water pipe of ultrafiltration device.
5.Mounted on the combined frame,Ultrafiltration membrane assembly is equipped with all pipes and connectors,including bracketd,fasteners,clamps and other accessories.
6.Ultrafiltration combined frame shall meet the requirements of the seismic intensity of the site.
7.The safe,stable and reliable operation of the system shall be guaranteed by the relative apparatus with perfect performance,accurate cpllocation points and precise quantity.
Detailed Images
company introduction
Zhangjiagang Crown machinery Co.,Ltd
Zhangjiagang Crown machinery Co.,Ltd is located at the new port city -zhangjiagang,was founded at 1995,and starting with beverage machinery.Our company have fixed assets over RMB 10million and covers an area of 10000m2,We are a leading enterprise in research and production of liquid food and beverage packing and filling industry.our Main products including:Pure/mineral water and purified water producing line.carbonated beverage producing line.3gallons& 5gallons producing line.Flat and tube UHT device,and CIP system.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force,advanced equipment,scientific management system and perfect after-sales service.
