220V 1000W Efficient Thermostatic Heating Rod
- Category: Heating Equipment >>>
- Supplier: Yancheng Yukai Electric Equipment Co. Ltd.
Share on (62350841155):
Product Overview
Description
Product Description

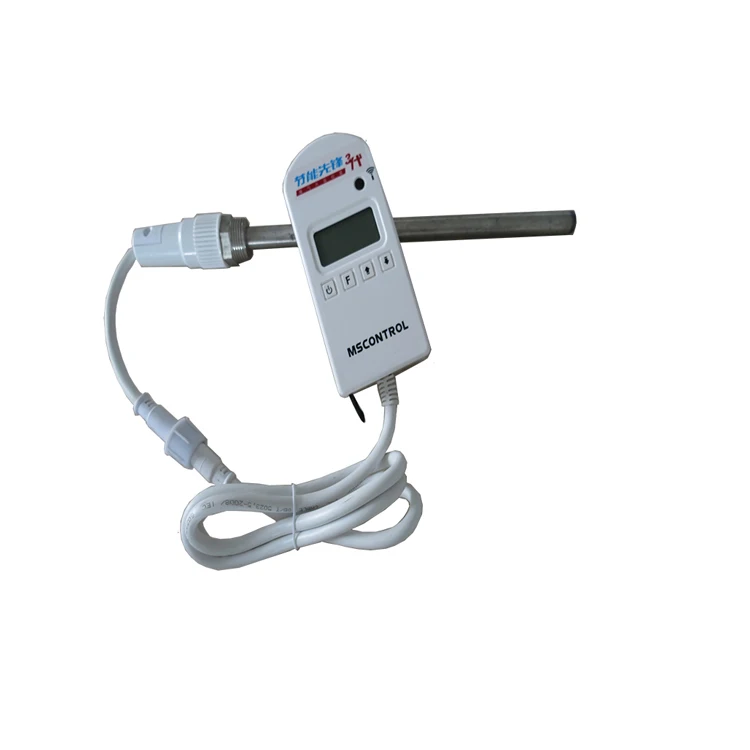

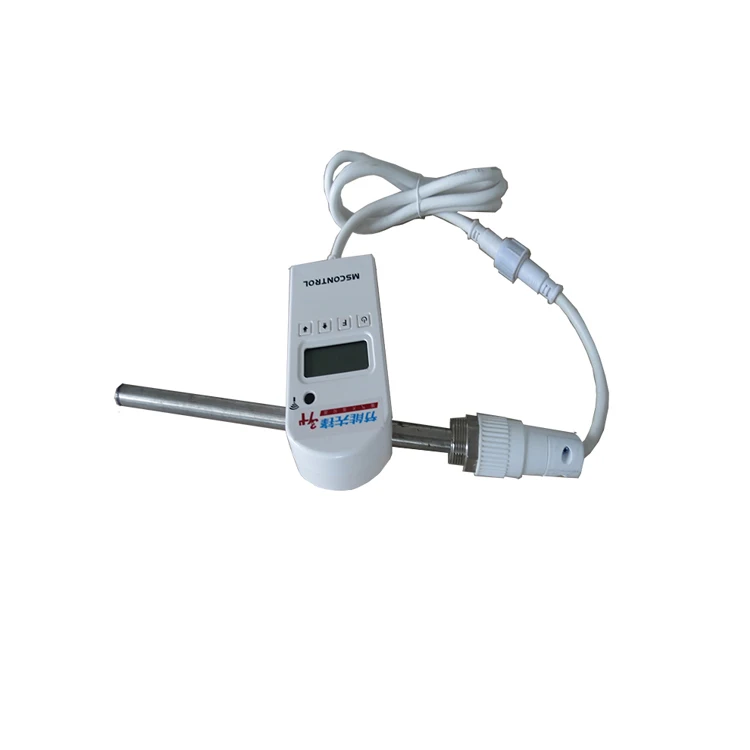

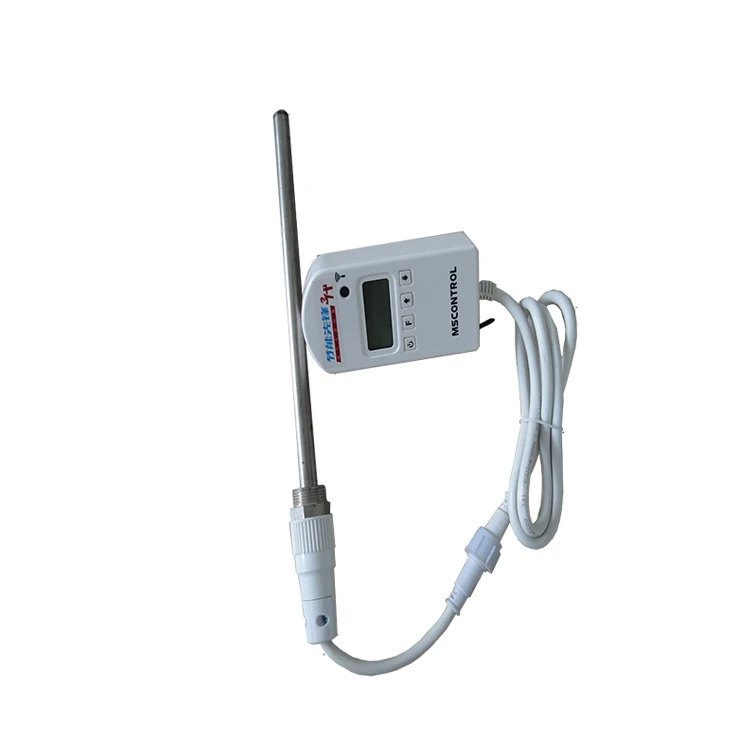

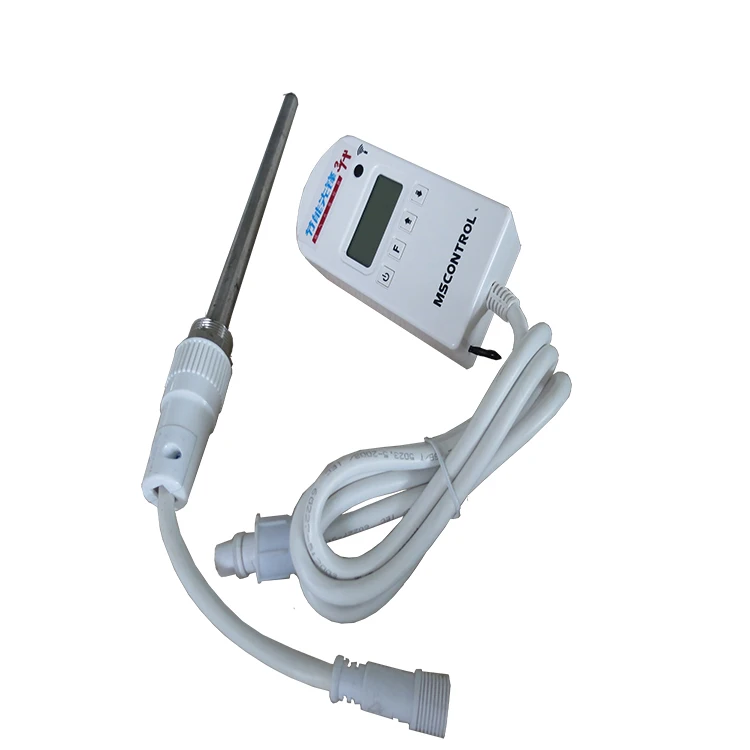

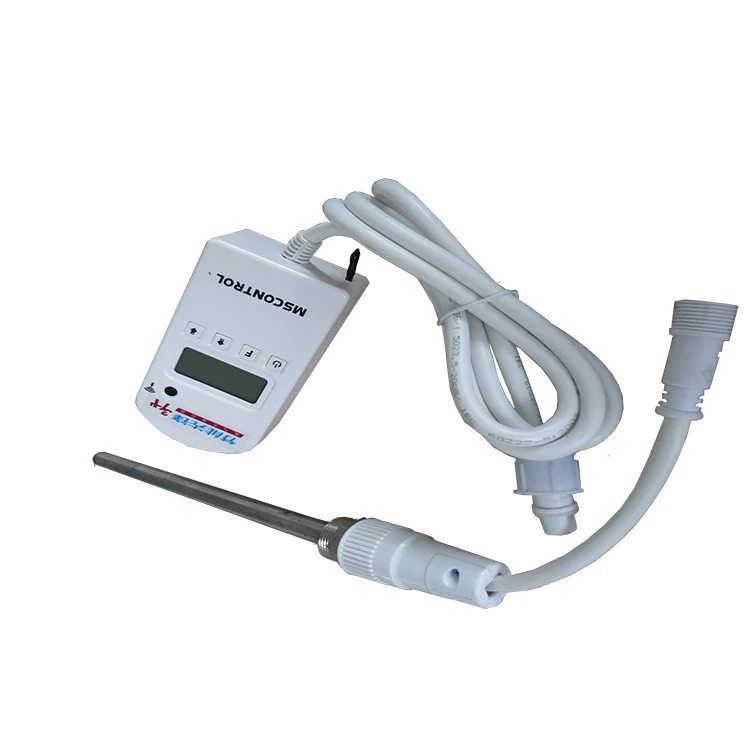

220V 1000W Efficient Thermostatic Heating Rod
Diameter | from 3.0mm to 30mm; |
Length tolerance | ± 2% or 3.2mm (1/8"), whichever is greater |
Voltages available | 12V-480V or as customer's demand |
Diameter tolerance | Diameter at each end may vary +0.05mm -0.1mm (+.002 -.004) |
Internal thermocouple | type J or K; |
Thermocouple Location | Disc End, Sheath, Center of Heater; |
Maximum leakage current (cold) | ≤ 0.5 mA; |
Resistance tolerance | +10%, -5% |
Wattage Tolerance | +5%, -10% |
Wattage density | high/middle/low(5-25w/cm2) |
Sheath Material | SUS 304/316L/201 Incoloy 800 |
Standard Cold Zone | 5-10mm |
Detailed Image
Technical Parameters
Related Products
Our Service
1. Flexibility with minimum order requirements
2. On-time delivery
3. Technical support ( with overseas service available)
4. Simple ordering procedure: Email, fax or mail.
Packing Details
Packaging Details:10pcs/polybag,outerside with carton packing
Feedback
FAQ
Q:Are you trading company or manufacturer ?
A: Yes,we are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng , Jiangsu , China, about 4 hours bus ride from Shanghai.
Q: Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements or drawings.
Q:Where are the Cartridge Heater Applications?
A:Liquid Immersion, Plastic Molds, Dies, Labeling, Medical Equipment, Platens, Packaging Equipment, Hot Stamping, Sealing, Injection Molding etc..
