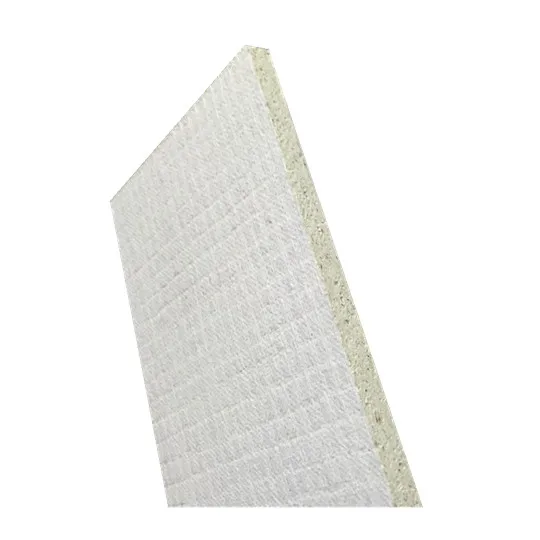

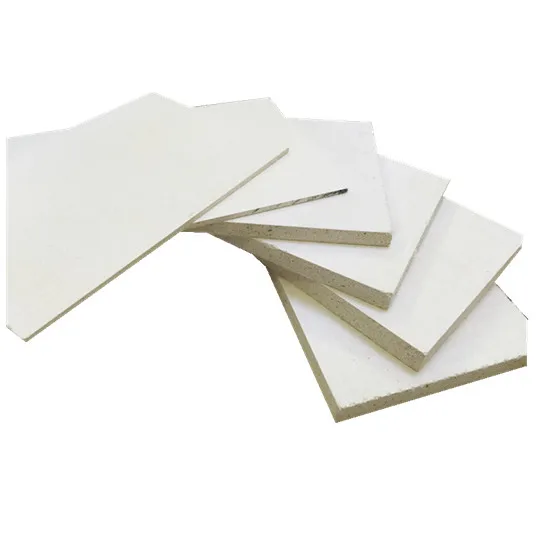

Fireproof mgo wall board
- Category: Magnesium Oxide Boards >>>
- Supplier: Zhangjiagang Well Young Material Co. Ltd.
Share on (62351011806):
Product Overview
Description
Product Description

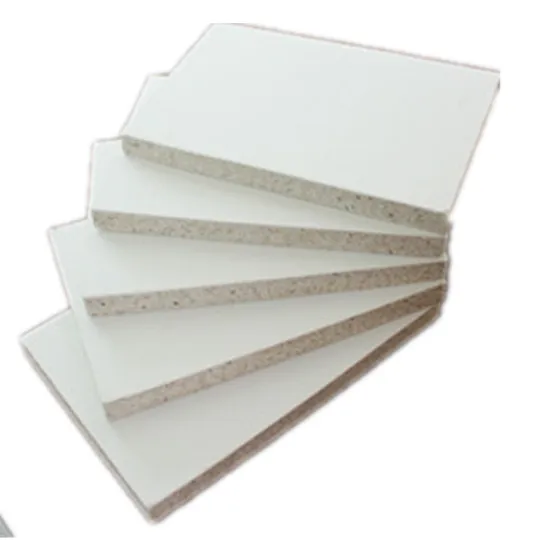

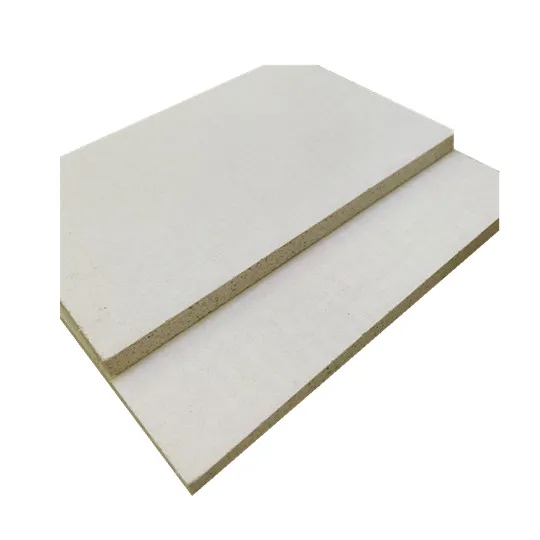

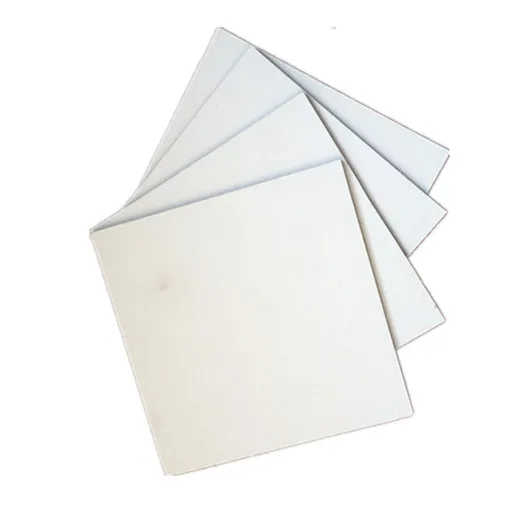

Magnesium Oxide Board
Magnesium Oxide Board is a technologically advanced building material that offers superior performance in every category when compared to traditional wood, gypsum and cement based products.With the same thickness,the mgo board is better than gypsum board in firepoof,water resistant,and bending strength,etc.

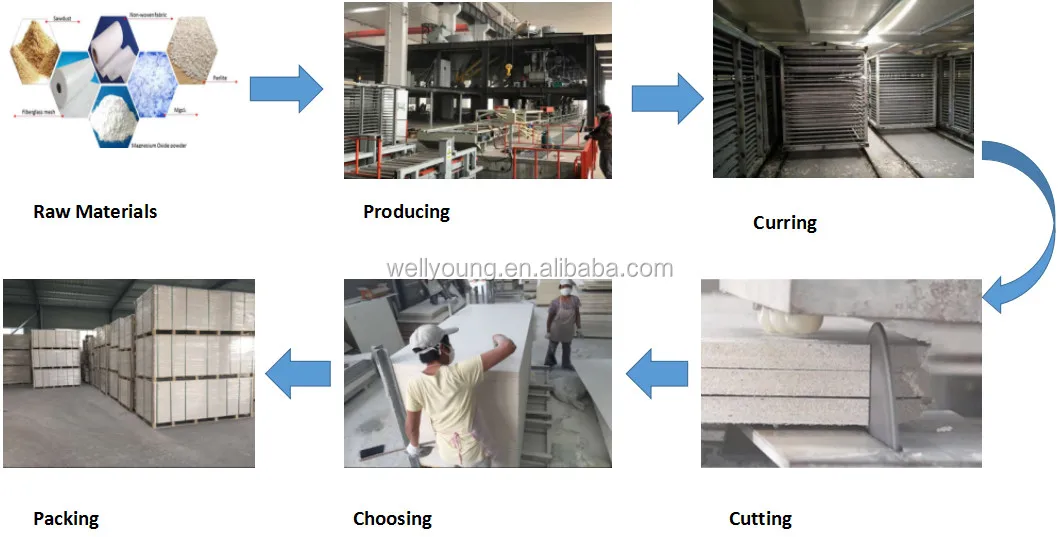

Production Flow
Fire Resistance limit of fireproof Magnesium Board:
9mm Wellyoung Magnesium Board could be applied for >=120mins fireproof partition wall;
12mm Wellyoung Magnesium Board could be applied for>=180mins fireproof partition wall.
The data is for reference only.Please contact us for more details on fireproof Magnesium Board in different specifications.
Fireproof Comparison between Fireproof Magnesium Board, gypsum boards and fiber cement board
Specifications
| TEST ITEM | UNIT | TEST RESULT | |
| Bending Strength | Mpa | 6MM | Width: >18 |
| Length: >15 | |||
| 9MM&12MM-18MM | Width: >16 | ||
| Length: >13 | |||
| Water Absorption | % | <10% | |
| Thermal Contraction | % | <0.14(w/mk) (30 °C ) | |
| Density | g/cm3 | 0.9-1.15 | |
| Freezing Resistance | After 25 Freezing cycles | No Delaminated | |
| Combustibility | - | Incombustible (class A1) | |
| Fire Resistance Limit | Min | 2 Layers Mineral Wool:180 | |
| Thermal Conductivity | W/(m • k) | <0.12 | |
| Wall Average Acoustical Deduction Factor | dB | 2 Layers 50mm Mineral Wool: 44 | |
| Impact Strength | kg/C | :2.0 | |
| Water resistance | no condensation on the opposite side | ||

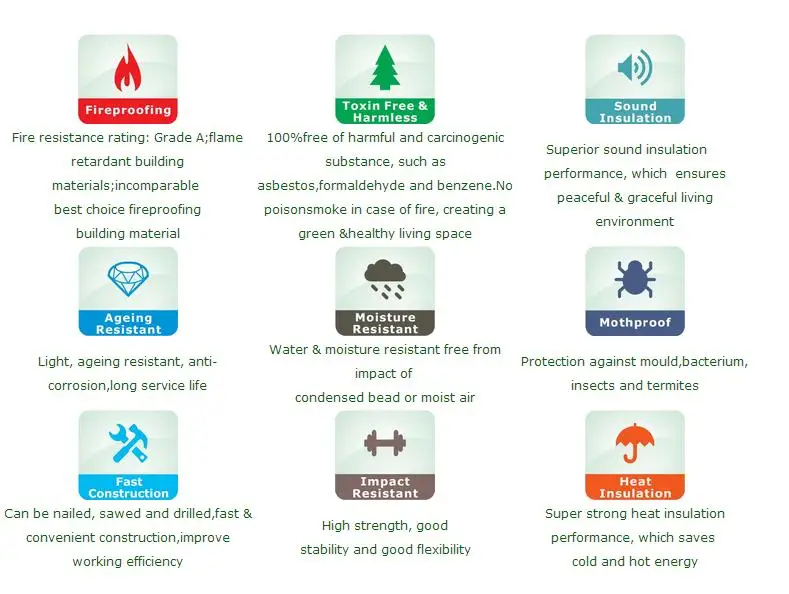

Benefits & Advantages Magnesium Board:
- Non-Toxic material safe to cut
- Resistance to fire, moisture, and wood boring insects
- Lightweight – easy to nail & screw
- ASTM & ANSI tested
- Less energy required to install
- Long lasting materials – reducing repair and replacement costs
- No silica-based Portland cement
- Post-consumer recycled content
- Gypsum-free,Asbesto-free
- Advanced Magnesium cement replaces ordinary Portland cement
- Solid construction – no laminations
Specification of Magnesium Oxide board:
| Item no. | Size(mm) | Weight(kg) | Quantity/20GP(pallet packaing) |
| 3048 | 1220x2440x3 | 10 | 1820 pcs |
| 4048 | 1220x2440x4 | 14 | 1350 pcs |
| 6048 | 1220x2440x6 | 18 | 1080 pcs |
| 8048 | 1220x2440x8 | 24 | 808 pcs |
| 10048 | 1220x2440x10 | 28.5 | 648 pcs |
| 12048 | 1220x2440x12 | 34 | 540 pcs |
Note:
Thickness: 3mm-20mm
Standard size: 915*2135mm,1220*2440mm,1200*2700mm,1220*3050mm(other sizes are available by cutting)

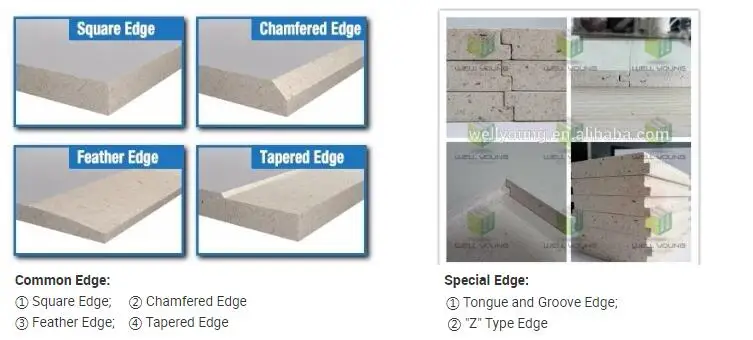

Edge: Square, Tapered ,Shiplap,T&G

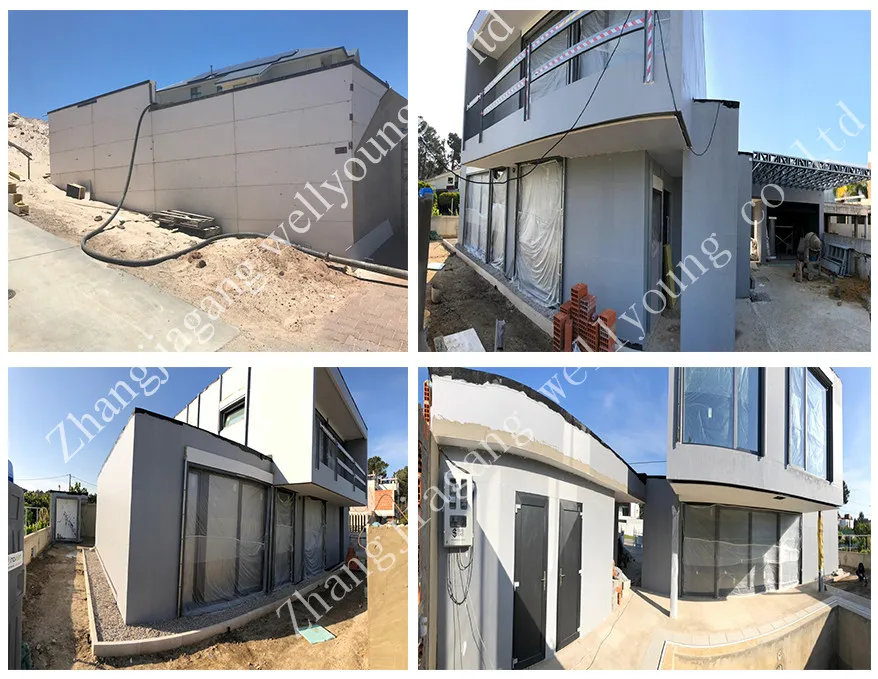

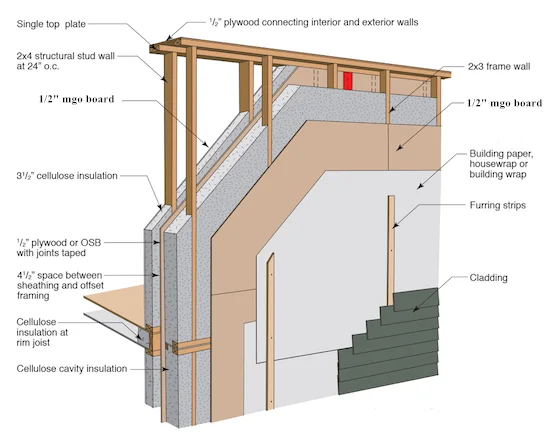

Application of WellYoung Mgo Board
Recommended thickness of WellYoung Mgo Board sheets for use in construction
- Suspended ceilings – 6 mm
- Paneling of exterior walls, under bay space and balconies – 10 mm
- Lining of interior walls – 6 mm
- Construction of self-supporting wall structures and partitions – 10 mm
- Floors – 16-20 mm
- Roofs and insulation under tiles or waterproof materials for flat roofs – 10-12 mm
- Formwork – more than 18 mm (after consulting the engineers/builders)

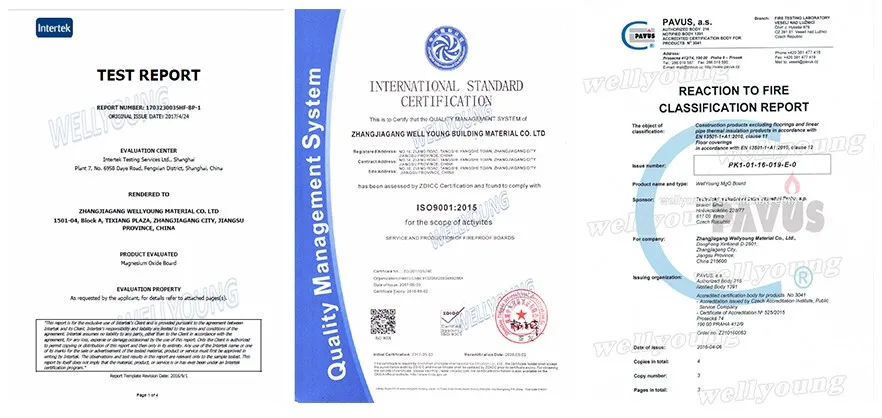

Certifications
Exhibitons
Packaging & Shipping

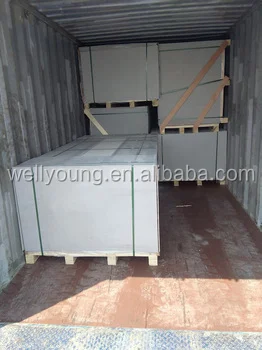

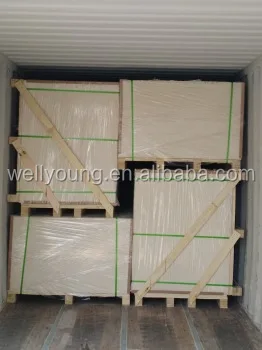

Packaging of Wellyoung MgO board: pallet packing
