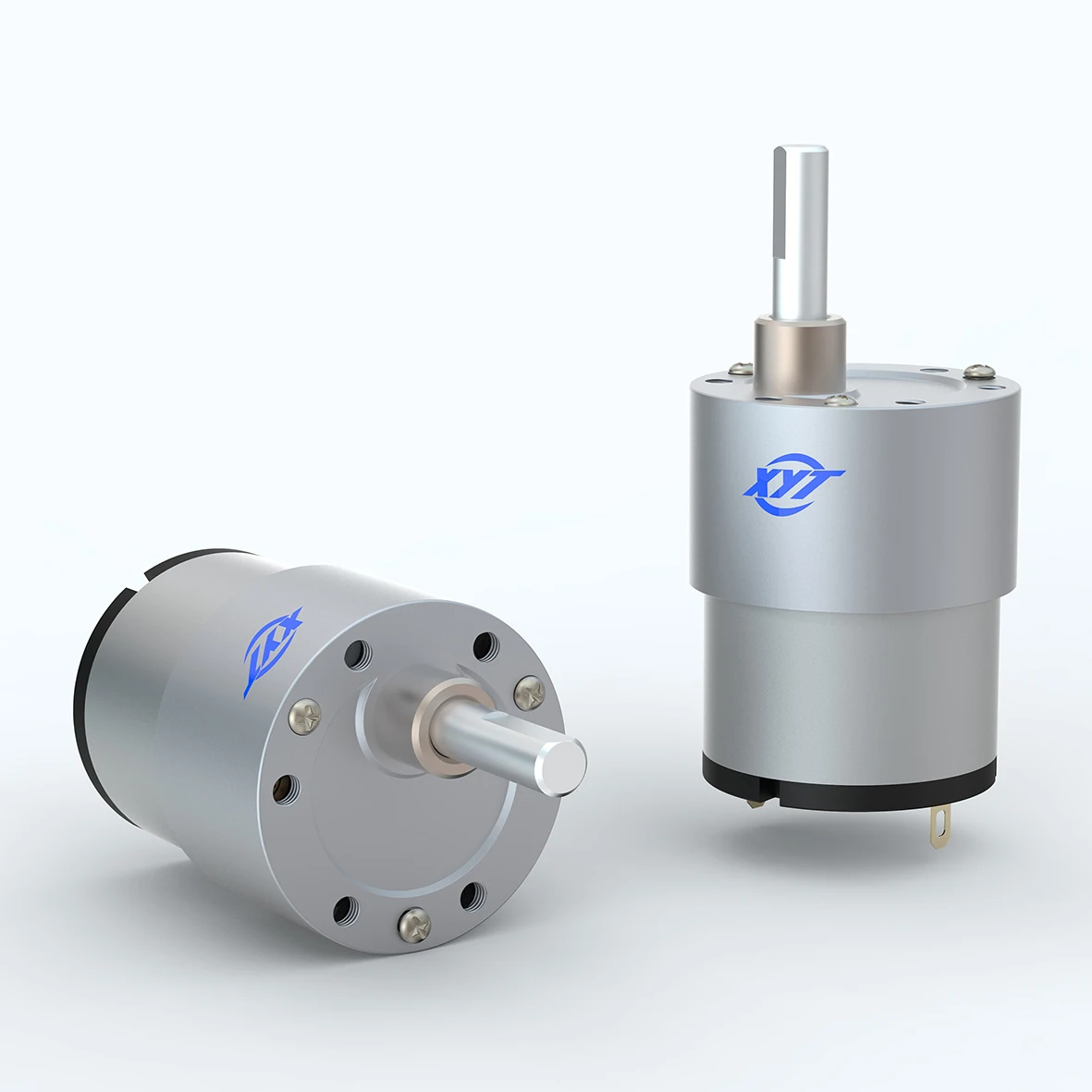

JGB37 520 с ультратонкой оправой 37 мм коробка передач 520 переменного тока постоянного тока мотор редуктор Silent Высокая мощность Электрический мотор редуктор для 1590 1000 530 333 178 110 76 60 37 20 12 об/мин
- Category: DC Motor >>>
- Supplier: Shenzhen Xinyongtai Motor Co. Ltd.
Share on (62351013826):
Product Overview
Description
Products Description
Brand | Xinyongtai /Customer’s Brand |

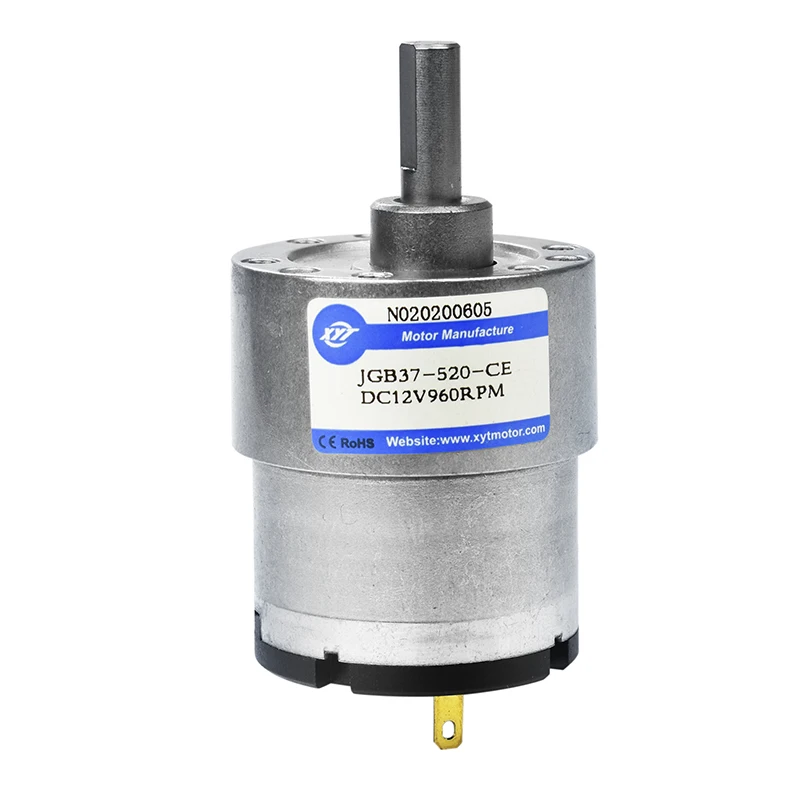

Model | JGB37-520 |
Name | DC Geared Motor |
Voltage | 12V / 24V |
Power | 1W |
No-load Speed | 7-1600RPM |
Electric Current | 350mA |

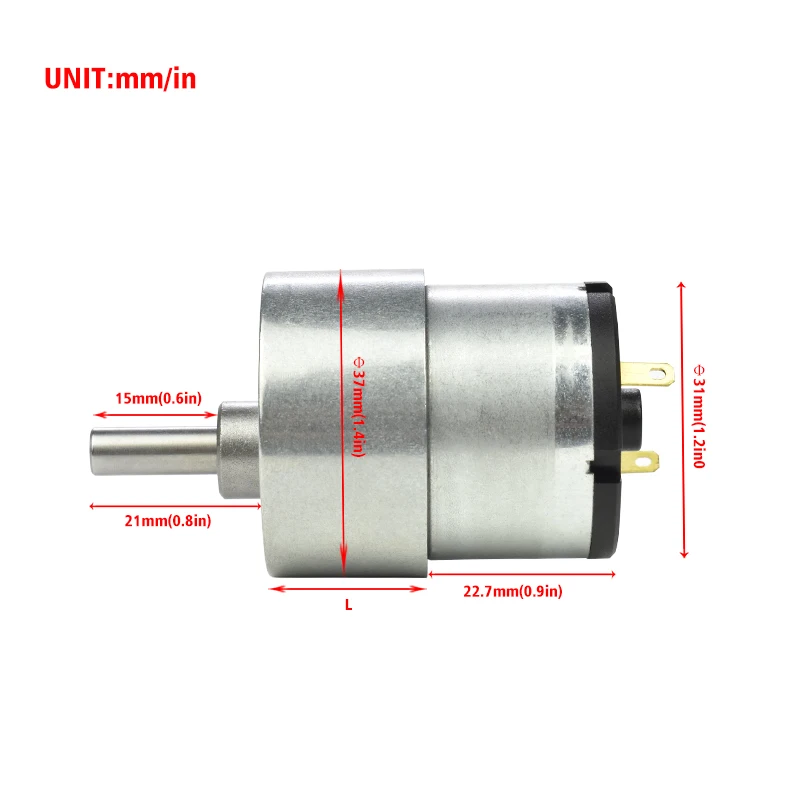

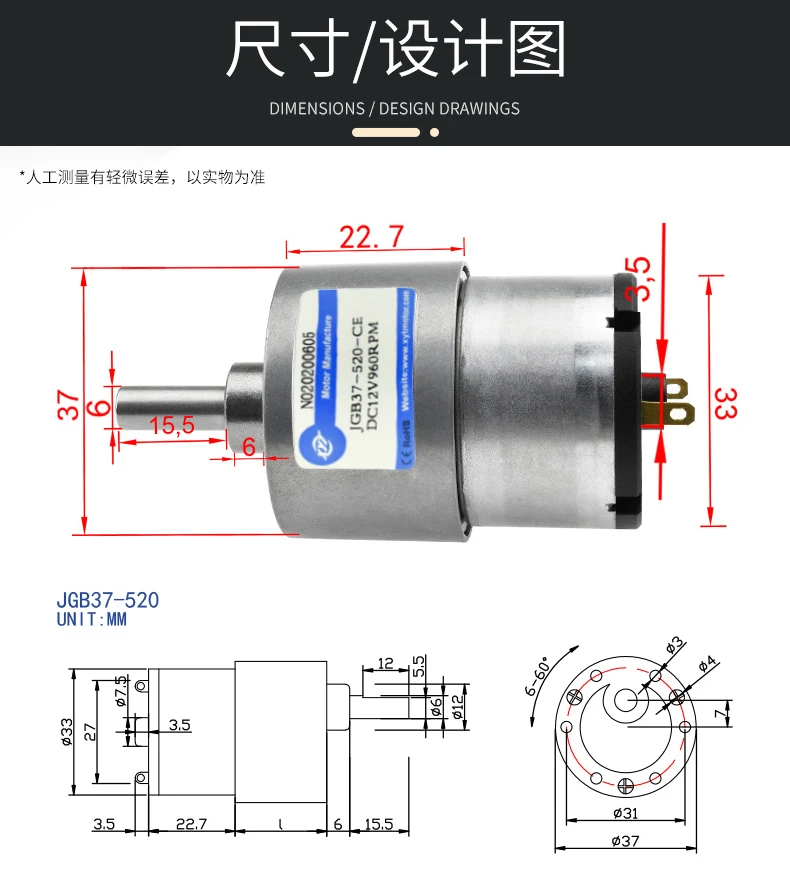

Product Shaft Diameter | 6MM D-cut(Can be customise) |
Product Shaft Length | 15MM |
Maximum Torque | 16KG.CM |
Weight | 170g(APPROX) |
Whether to adjust the speed | Yes |
Whether forward or reverse | Yes |
Motor Model 1260 | No load | Rated | Stall | |||||||||||||||
Rated voltage | Speed | Current | Speed | Current | Torque | Output Power | Torque | Current | ||||||||||
V | R/MIN | A | R/MIN | A | Kg.cm | W | Kg.cm | A | ||||||||||
JGB37-520-6.25X | 12 | 960 | 0.3 | 800 | 1.20 | 0.10 | 0.8 | 0.4 | 1.2 | |||||||||
JGB37-520-10X | 12 | 600 | 0.3 | 500 | 1.20 | 0.150 | 0.8 | 0.6 | 1.2 | |||||||||
JGB37-520-18.8X | 12 | 315 | 0.3 | 265 | 1.20 | 0.28 | 0.8 | 1.1 | 1.2 | |||||||||
JGB37-520-30X | 12 | 200 | 0.3 | 166 | 1.20 | 0.45 | 0.8 | 1.8 | 1.2 | |||||||||
JGB37-520-56X | 12 | 107 | 0.3 | 90 | 1.20 | 0.84 | 0.8 | 3.0 | 1.2 | |||||||||
JGB37-520-90X | 12 | 67 | 0.3 | 55 | 1.20 | 1.35 | 0.8 | 5.0 | 1.2 | |||||||||
JGB37-520-131X | 12 | 46 | 0.3 | 38 | 1.20 | 1.90 | 0.8 | 7.0 | 1.2 | |||||||||
JGB37-520-169X | 12 | 36 | 0.3 | 30 | 1.20 | 2.50 | 0.8 | 10.0 | 1.2 | |||||||||
JGB37-520-270X | 12 | 23 | 0.3 | 18 | 1.20 | 4.00 | 0.8 | 16.0 | 1.2 | |||||||||
JGB37-520-506X | 12 | 13 | 0.3 | 10 | 1.20 | 7.50 | 0.8 | 30.0 | 1.2 | |||||||||
JGB37-520-810X | 12 | 7 | 0.3 | 6 | 1.20 | 12.00 | 0.8 | 48.0 | 1.2 | |||||||||
Motor Model 12100 | No load | Rated | Stall | |||||||||||||||
Rated voltage | Speed | Current | Speed | Current | Torque | Output Power | Torque | Current | ||||||||||
V | R/MIN | A | R/MIN | A | Kg.cm | W | Kg.cm | A | ||||||||||
JGB37-520-6.25X | 12 | 1600 | 0.12 | 1200 | 1.00 | 0.23 | 2.9 | 0.8 | 3.1 | |||||||||
JGB37-520-10X | 12 | 1000 | 0.12 | 770 | 1.00 | 0.38 | 3.1 | 1.3 | 3.1 | |||||||||
JGB37-520-18.8X | 12 | 530 | 0.12 | 407 | 1.00 | 0.67 | 2.9 | 2.5 | 3.1 | |||||||||
JGB37-520-30X | 12 | 333 | 0.12 | 250 | 1.00 | 1.00 | 2.6 | 4.0 | 3.1 | |||||||||
JGB37-520-56X | 12 | 178 | 0.12 | 140 | 1.00 | 1.89 | 2.8 | 7.5 | 3.1 | |||||||||
JGB37-520-90X | 12 | 110 | 0.12 | 85 | 1.00 | 3.00 | 2.7 | 12.1 | 3.1 | |||||||||
JGB37-520-131X | 12 | 76 | 0.12 | 58 | 1.00 | 3.90 | 2.4 | 17.6 | 3.1 | |||||||||
JGB37-520-169X | 12 | 60 | 0.12 | 46 | 1.00 | 5.00 | 2.4 | 22.6 | 3.1 | |||||||||
JGB37-520-270X | 12 | 37 | 0.12 | 28 | 1.00 | 8.00 | 2.3 | 36.2 | 3.1 | |||||||||
JGB37-520-506X | 12 | 20 | 0.12 | 15 | 1.00 | 13.60 | 2.1 | 35.0 | 3.1 | |||||||||
JGB37-520-810X | 12 | 12 | 0.12 | 9 | 1.00 | 21.00 | 2.0 | 35.0 | 3.1 | |||||||||
Manufacturer kindly suggestion
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
