I.Work principle
Normally closed: when the coil is energized, the attraction of the coil pulls the iron core, to open the main valve port and the medium passes.




II.Characteristics
1.Low power consumption, Weak acid and base resistance
2.The electromagnetic coil is designed with complete isolation.
3.It can work continuously for 10 million times.
4.Small size and small space is occupied.
5.Extremely short response time and resistance to high voltage
6.Internal fixed volume is small.


III. Scope of application
1.Liquid medicine relating to analysis apparatus and semiconductor
2.Medical analysis apparatus for use in, biochemistry and immunology, etc.
3.Testing apparatus for water quality, atmosphere and waste gas, etc.
4.Chemical analysis apparatus such as liquid/gas chromatograph
5.Medical apparatus such as dialysis apparatus
6.Manufacturing device for semiconductor and liquid crystal
7.The control device for such special circulation medium as ink and medicinal liquid, or such fluid as drinks.

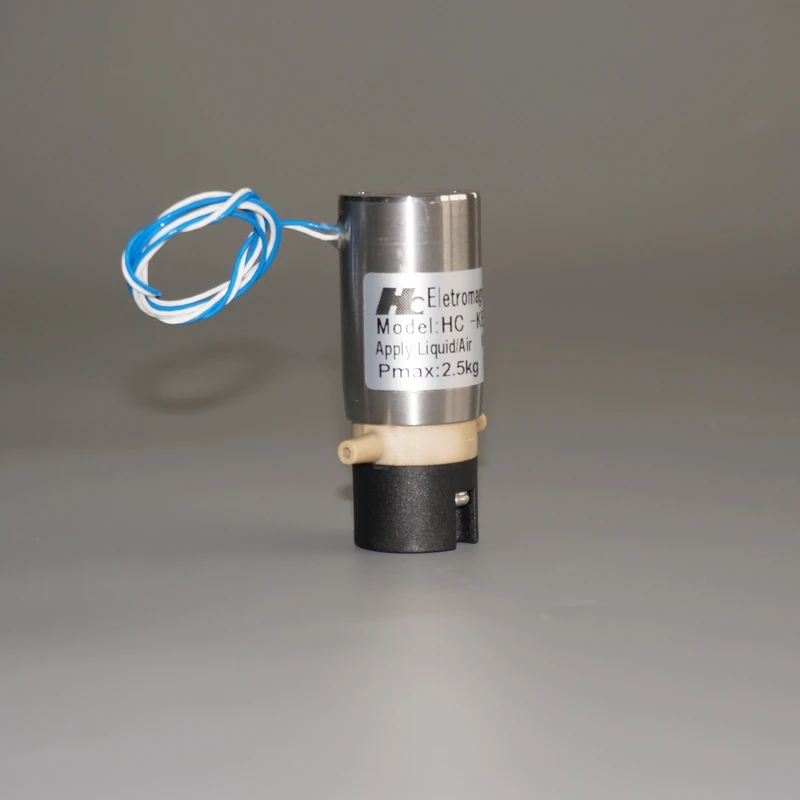

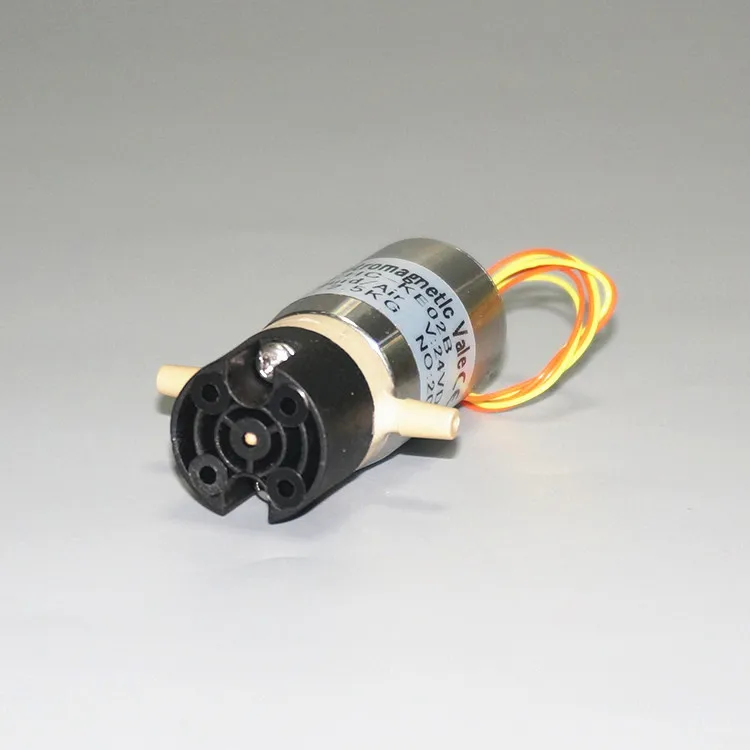

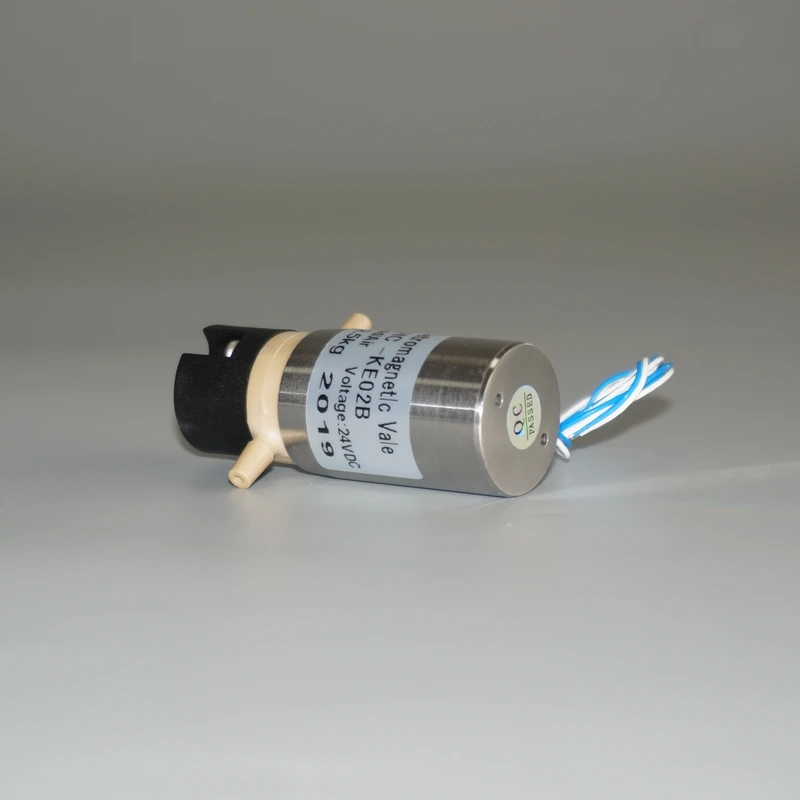

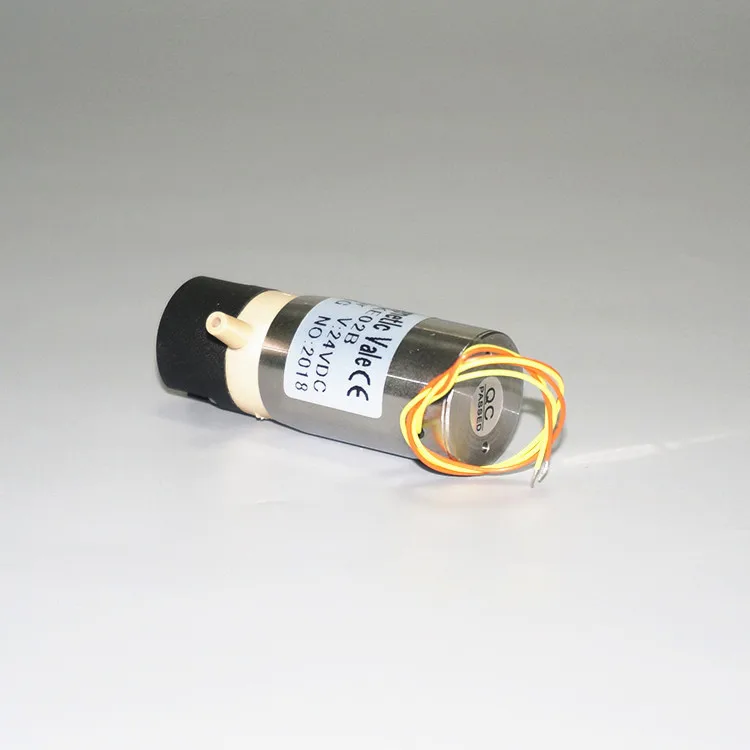

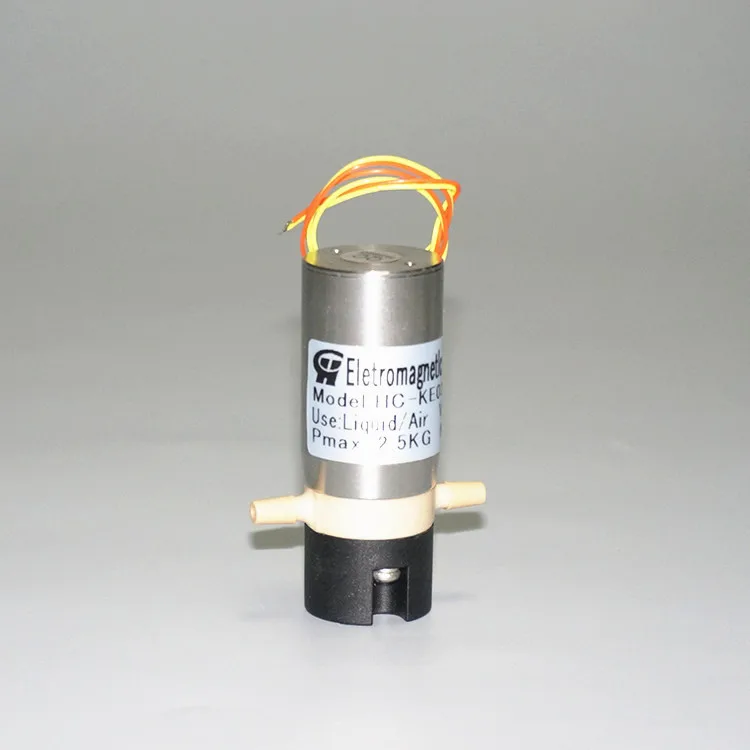

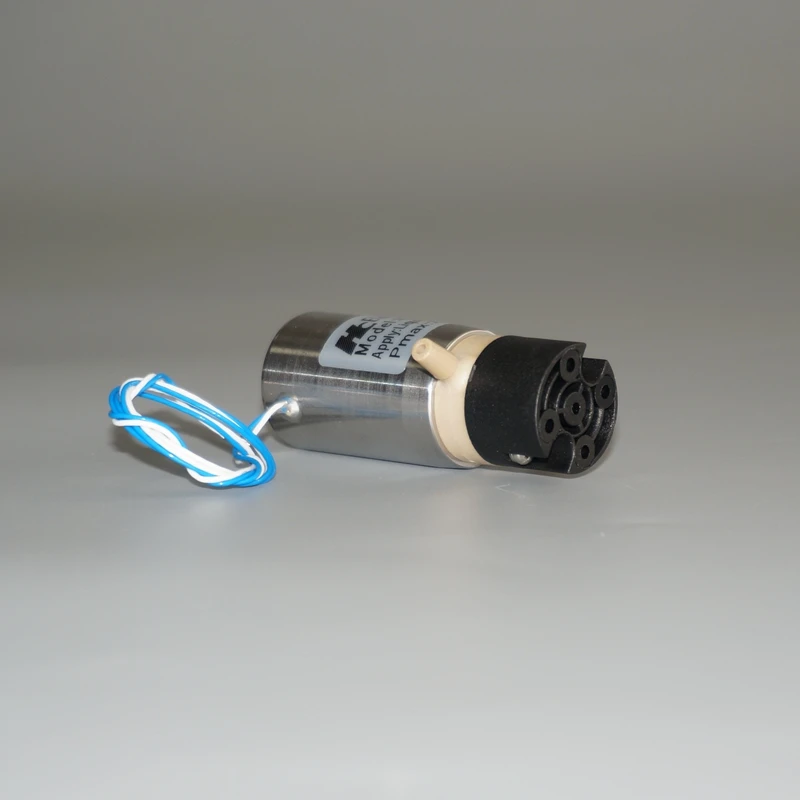

Details Images




Product Paramenters


 Model
HC-K E02B
 Drive method
solenoid
Type
normally closed type
Orifice (mm)
2.0
port form（mm）
6*4
Pressure
Max. 250kpa
Material of valve body
PPS
Seal material
EPDM
Voltage(DC)
12V/24V
current（A）
0.25/0.15±%
Power consumption (W)
3/3.6±5%
Response time
<30ms
Leak rate
0
Load cycle
 able to work continuously
Fluid temperature
0 ～ 60℃
 Ambient temperature
0 ～ 40 ℃
Weight (kg)
0.11

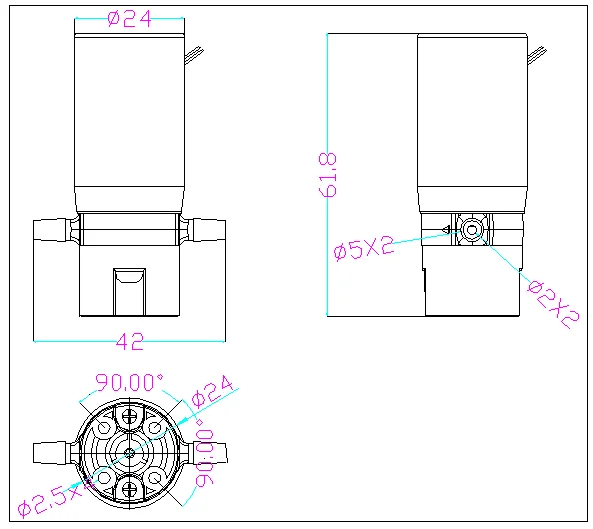

PRODUCT SIZE
