Multi mode fusion splicer
- Category: Telecommunications >>>
- Supplier: Ningbo Jinze Telecommunication Equipment Co. Ltd.
Share on (62353999846):
Product Overview
Description
Main products
Main products of Jinze
Product Description

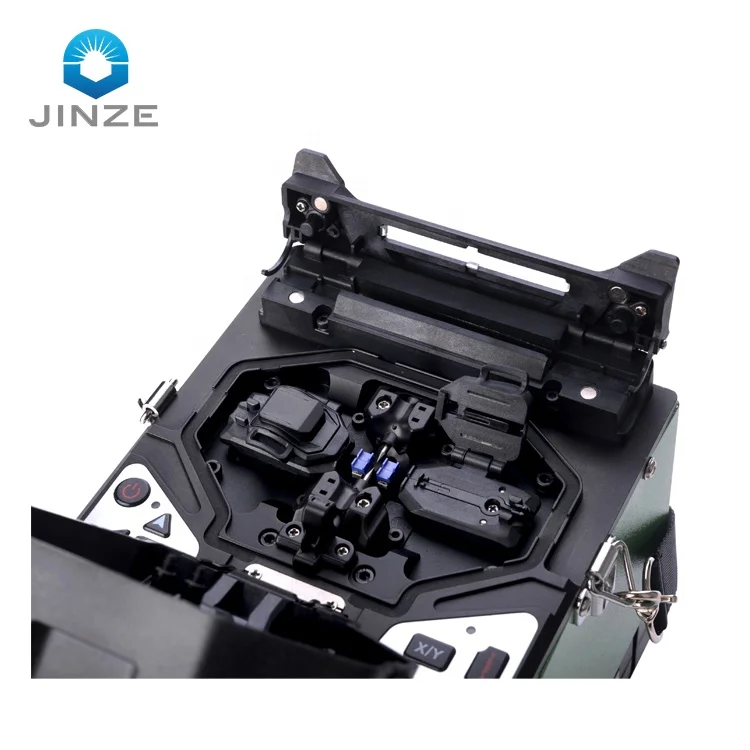

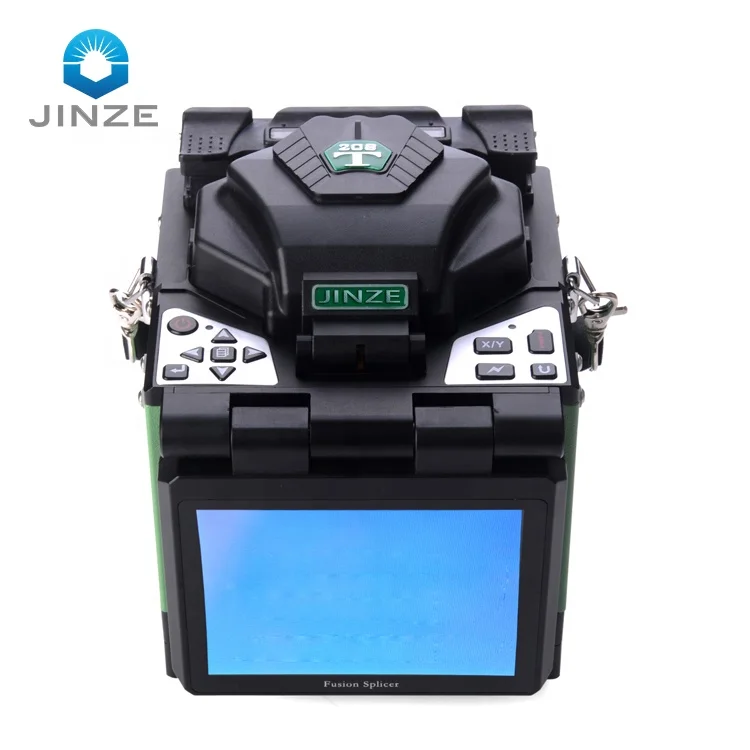

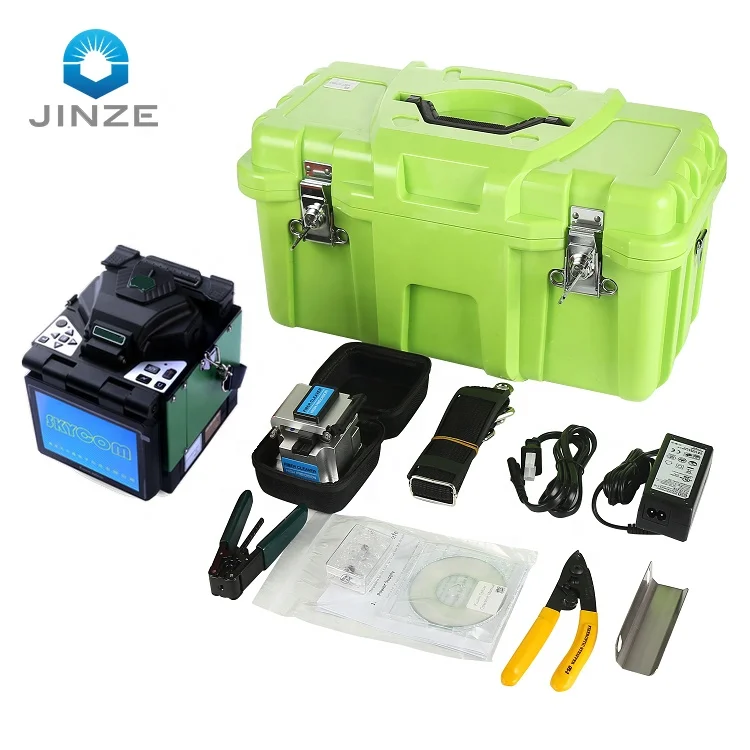

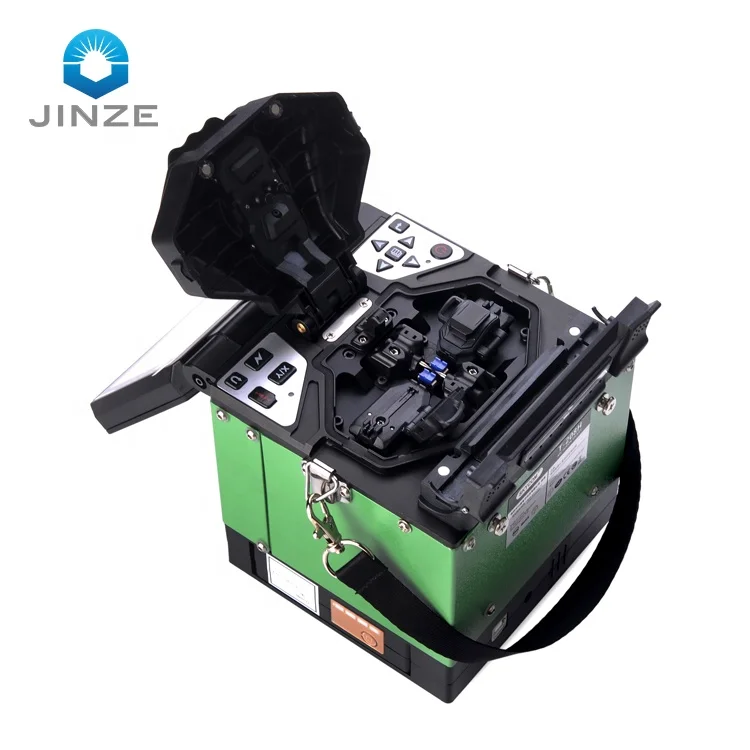

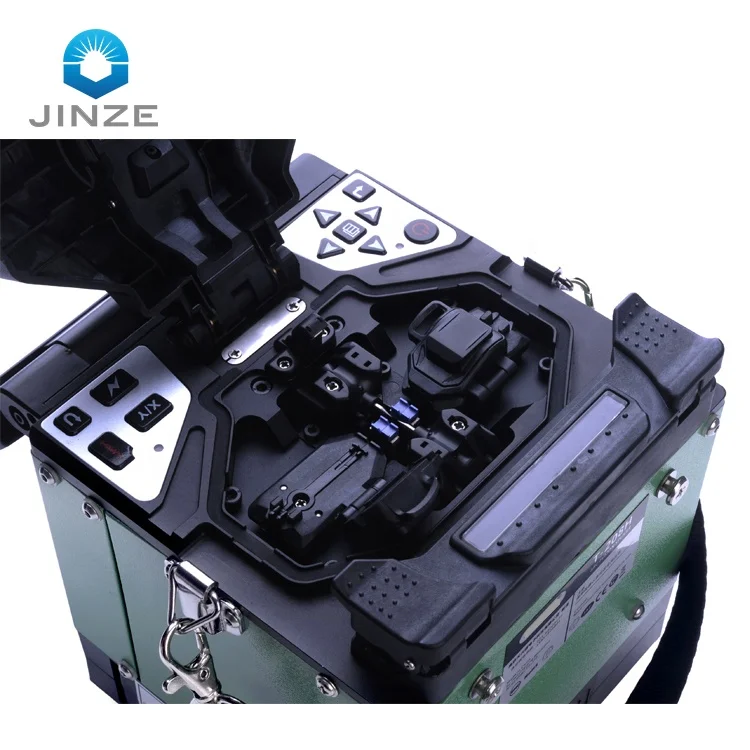

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. JZ-T208 is our latest developed product. It is more concise and compact in size and has obtained 2 patents for its new technologies.
Specifications
l 5 inches high Resolution colorful LCD display, image can be turned according to position
l Average splice time: 8 second
l Average tube-heat time: 25 second
l Lithium battery: Rechargable and up to 180 times of continuous splice and heat after fully charged
l Seprately X or Y axis views with 360 times magnification or Simultaneous 200 times
l Cutting-edge technology for image processing
l New developed technology providing strong wind and dust resistance
l Working mode:Auto & Manual & Full-Auto
l USB Port
l Storing 6,000 groups of latest splice results.
l Rubber-insulated wire cutting fixture ( 3-in-1 fixture, patented technology)
l Multipurpose optical fiber fixture (1+N, one 3-in-1 fixture and SC/LC/FC connector fixture, patented technology)
Technical Data
Applicable Fibers Fibras aplicables | SM, MM, NZ-DS, EDF ,Pigtail, FTTH drop cable |
Average Splice Loss Pérdida media de empalme | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss Pérdida de devolución | ≥60dB |
Tension Test Prueba de tensión | 2.0N(200gf)(Standard) |
Splicing Program Programa de empalme | 50 groups |
Heat-shrinkable T bush El termoencojable T Bush | 20mm, 40mm, 60mm |
Language Lengua | Chinese, English |
Environmental Conditions Condiciones ambientales | -10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply Fuente de alimentación | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A |
Battery Batería | 12V 6AH |
Dimensions Dimensiones | 130(W)*135(D)*130(H)mm |
| Weight Peso | 1.68kg + 0.37kg (battery) |
