Product Overview

Description

Product Description

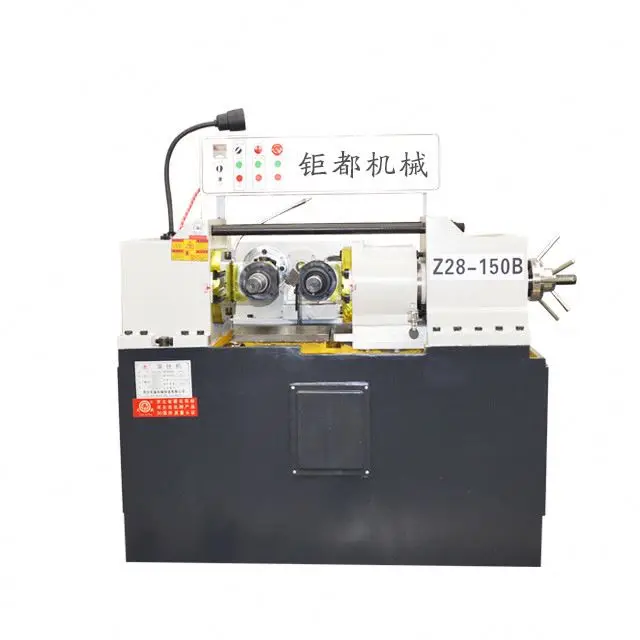

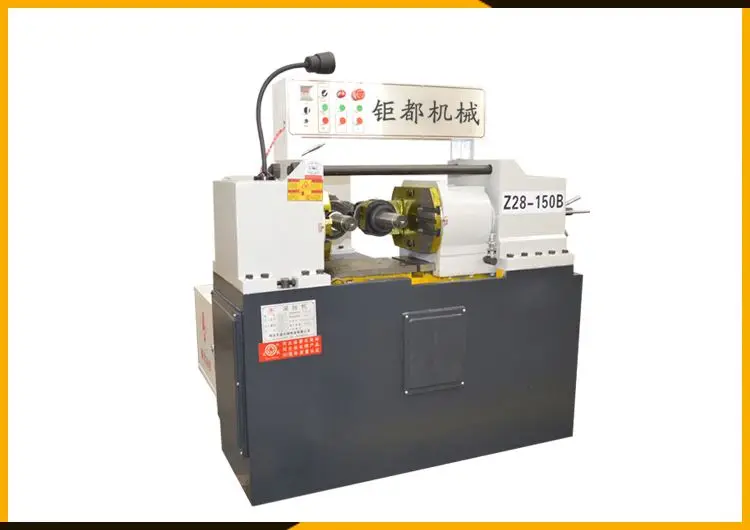

Automatic Nail Thread Rolling Machine



Product Application


Automatic Nail Thread Rolling Machine is divided into two axis rolling machine and three axis thread rolling machine
1, two axis wire rolling machine has very strong superiority in hardware building, automobile and motorcycle fittings, traffic power, standard parts.
2, three axis rolling machine is triangle support in the pipe thread processing industry, true fidelity roundness, concentricity and perpendicularity
It is a multifunctional cold extrusion rolling thread machine, the workpiece in the cold rolling pressure range can be made to straight lines, twill, spur, helical and bevel gear spline rolling; straightening, necking, rolling light and various rolling forming. The machine has safe and reliable electric liquid control system and implementation, which can make each work cycle in manual, semi-automatic and automatic selection in three ways. The cold rolling is an advanced non cutting process, which can effectively improve the internal and surface quality of workpiece, the radial compressive stress produced during processing, and can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.


The Automatic Nail Thread Rolling Machine can equipped the auto feeding and loading machine. pls inquiry for details.

Technical parameter
Model
Z28-150
Biggest rolling dia
56mm
Min rolling dia
5mm
Main power
5.5kw
Hydraulic power
2.2kw
Dimensions
1550*1550*1450mm
Weight
2000kg
Payment from client
Detailed Images

Machine Parts

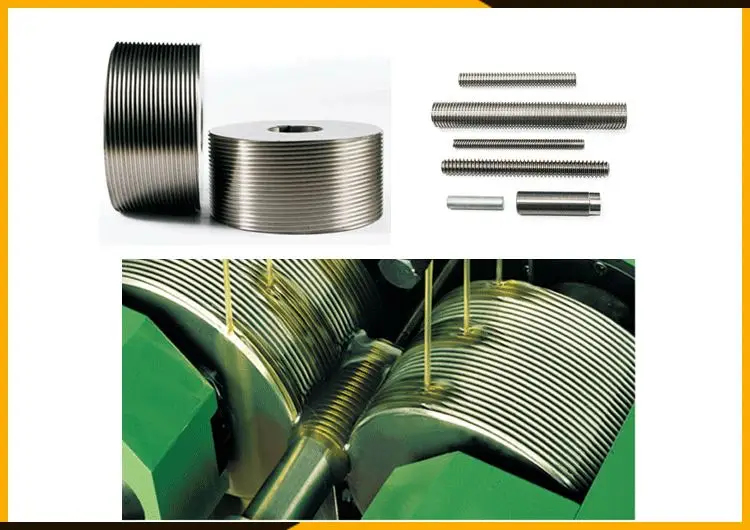

Name: Thread roller

Brand: GREATCITY

Original: China


Main Features

Name: Control Panel
Brand: GREATCITY
Original: China
make english type for you

Working principle of Automatic Nail Thread Rolling Machine:

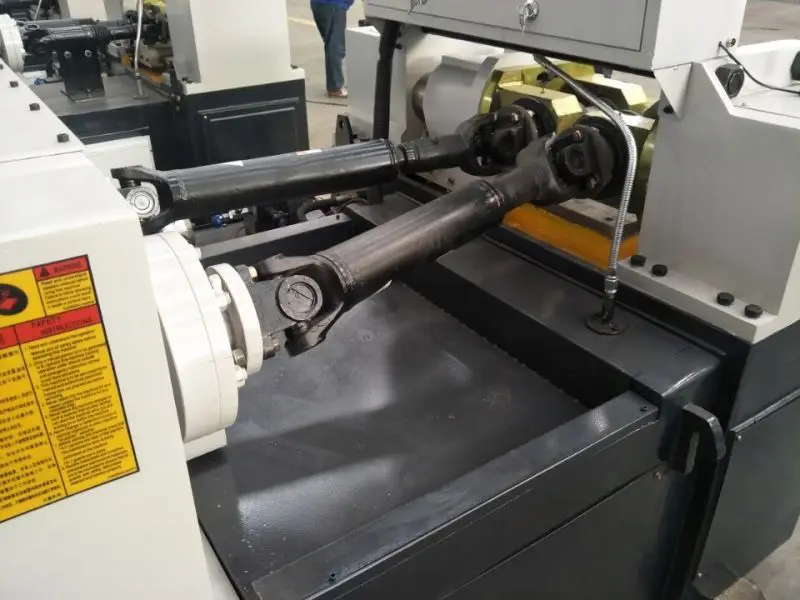

L and R are two pairs of involute rolling wheels with the same parameters, which are installed on two spindles of the rebar thread rolling machines, and can rotate synchronously under the drive of the transmission mechanism.The R wheel can be driven by the oil cylinder for radial feed motion, and the L wheel can be adjusted by adjusting the mechanism to coincide with the indentation of the R wheel on the surface of the workpiece P. The P locate the two center hole clamping, the adjustment fixture can make the axial movement in the force around the fixture O and spindle parallel to the axis of an angle, to ensure that the workpiece in the cold rolling process and keep two rolling wheels to roll in the free state, and convenient clamping the workpiece. The structure size, geometrical tolerance and technical requirements of the rolling wheel are formulated according to the rolling wheel and cylindrical measuring gear. The length of the normal line or the cross bar distance of the rolling wheel M is calculated according to the spline data of the gear, and the required material can be Cr12MoV (hardness 59 ~ 62HRC)

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

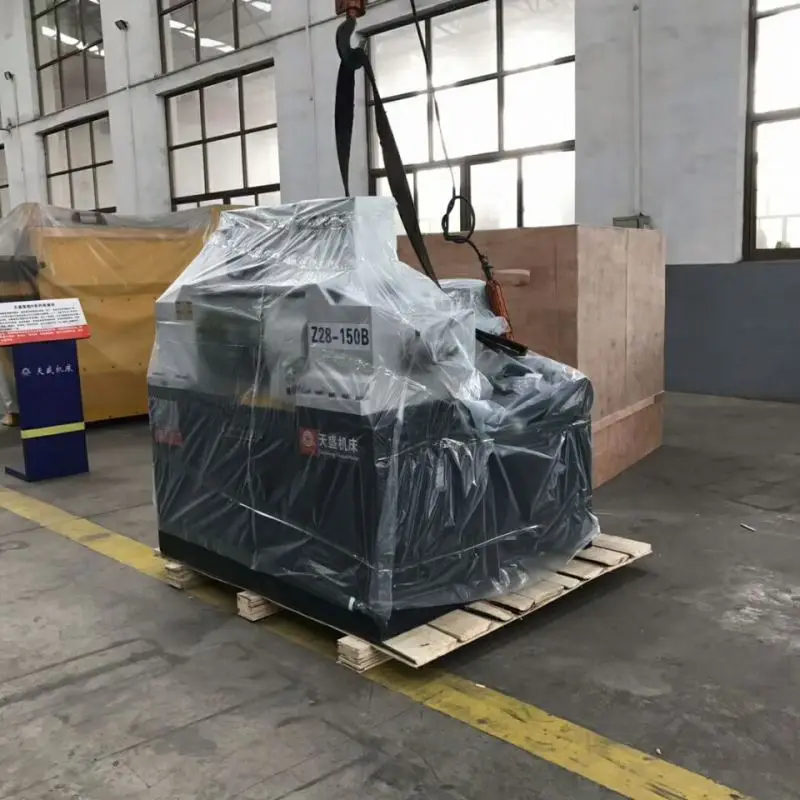

Packaging
Size
1.6 (L) * 1.6 (W) * 1.5(D)
Weight
2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Any more request pls contact me freely, I will always online.

Sales Manager Ms Kitty liu
Skype: greatcity77
Mobile / whatsapp / wechat : 008615512868421
QQ: 694679222

FAQ

1. Do you have any warranty?
Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.

2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

3. What certification of Automatic Nail Thread Rolling Machine do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

4. Will you teach how to use Automatic Nail Thread Rolling Machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.

5. How about the shipment?
The machine will be shipped within 2-3 days after the receipt of your payment.

6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
