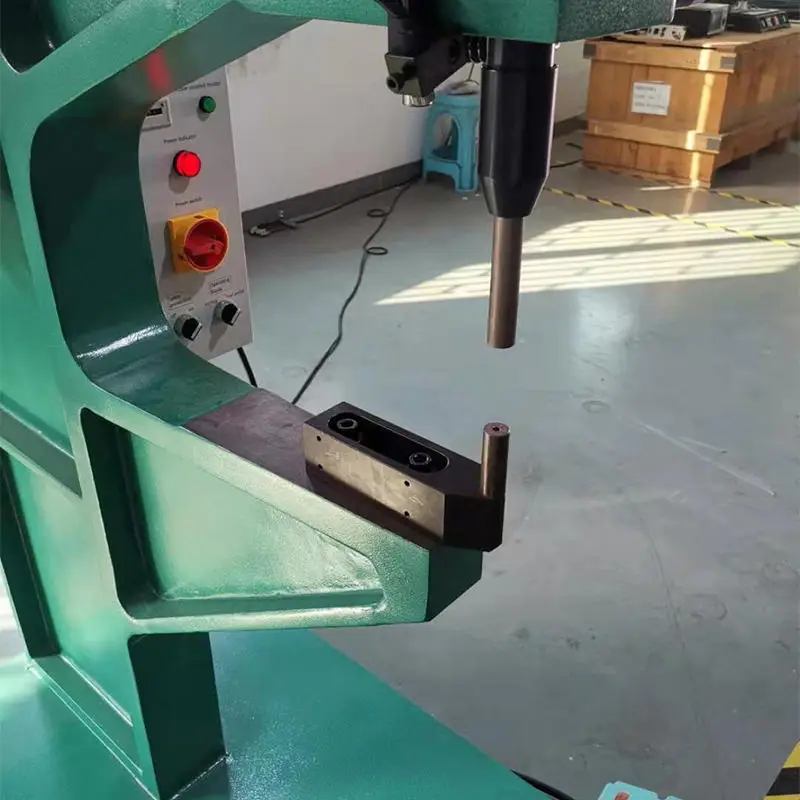

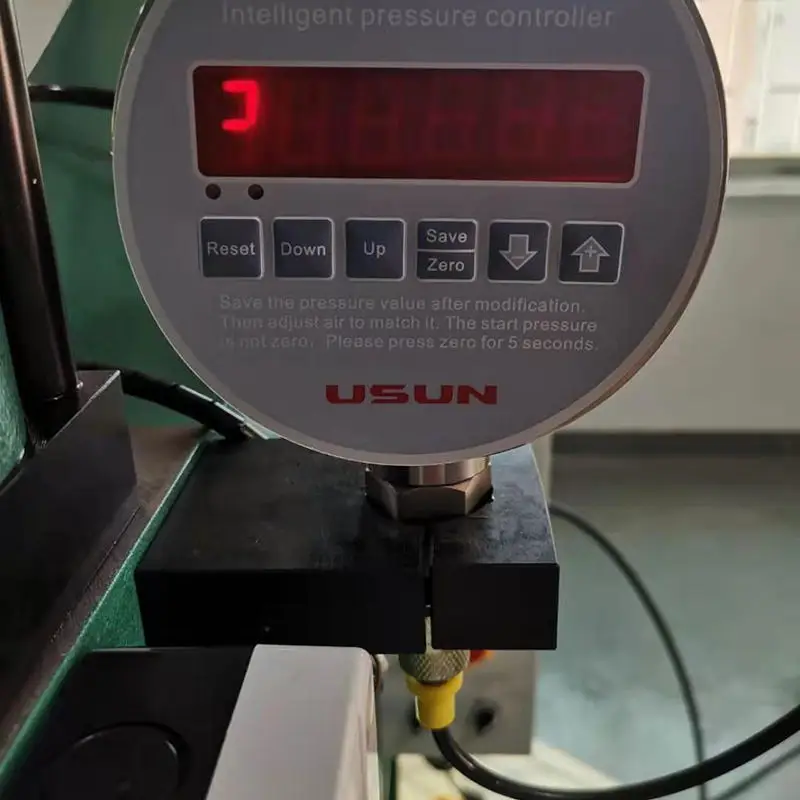

Usun Model : ULYP 4 8 Tons C frame self clinching nut insertion press machine with insertion tooling

Product Overview

Description

Promotional Best Quality 4-8 Tons C frame   4-8 Tons  Similar PEM Fastener Insertion  press Machine For Small Boxes



1)ULYP  Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods

which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.



2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.



3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.



4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of



11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been achieved!



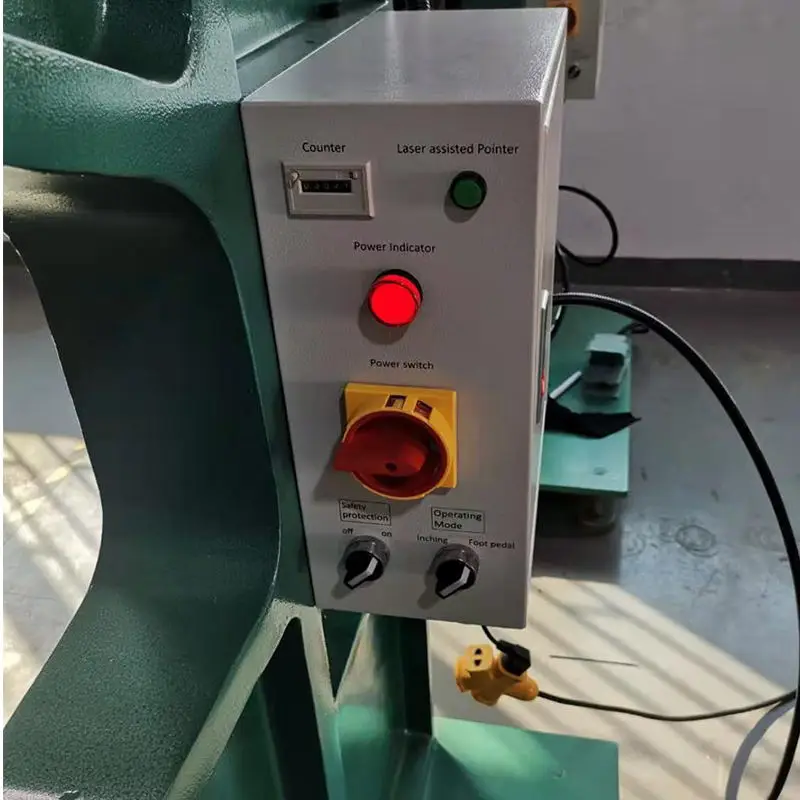

Product Main features



1)  Compact structure, clean design



2) Increased productivity with automatic feeding system and multi-point riveting



3) Large anti-ejecting forces and anti-torsion torques



4) High flexibility with height-adjustable



5) High stroke frequency High stroke frequency



6) Easy maintenance and changeable



7) Available for riveting nuts diameter larger than M10



Product layout drawing



Model	Pressure capacity	A	B	C	D	E	F	G	H1	H2	P	R	S
ULYP-04	Maximum 4 tons	930	630	325	105	890	820	1250	350	425	1270	70	45
ULYP-08	Maximum 8 Tons	985	700	380	120	960	880	1300	350	425	1370	70	45





Performance parameters



Point diameter (mm)	Sheet thickness (mm)	Shear strength (N)	Tensile strength (N)	Punching force (KN)
Φ3	0.5-1.5	260-520	130-360	7-15
Φ4	0.6-2.0	710-1300	350-850	13-28
Φ5	0.9-2.5	750-2000	200-1000	15-30
Φ6	1.0-3.0	560-3400	300-2200	12-40
Φ8	1.6-6.0	510-6200	290-2800	18-60
Φ10	1.75-7.0	1600-8500	800-6200	36-105
Φ12	4.0-11.0	2700-10000	1100-7500	61-125



 Main  Technical parameters



Type	ULYP
Max. pressing force	40-80KN
Power source	Compressed air from  air compressor
Power supply	220V/ 50Hz
Max. total stroke	100 mm
Compressed air	5-8 Bar
Weight	700 Kg



Product applications





Real clinching samples for C frame riveting machine
