WS L1530 4A automatic tool change cnc wood turning lathe with ATC
- Category: Wood Lathe >>>
- Supplier: Jinan Wisdom Cnc Equipment Co. Ltd.
Share on (62355703315):
Product Overview
Description
Product Description

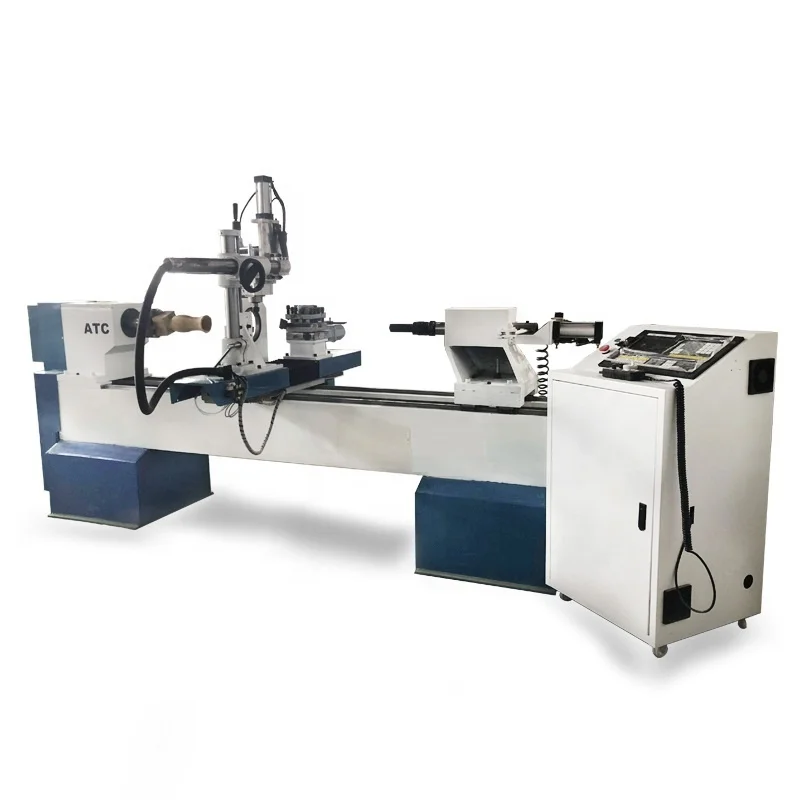

WS-L1530-4A Auto Tool Change CNC Wood Lathe With ATC
Model | WS-L1530-4A |
Working Voltage | AC 220V/380V, 50HZ |
Working diameter | 300mm |
Max processing length | 1500mm (Optional length: 2000mm, 2500mm) |
Control system | LCD or DSP |
Number of axis Number of blades | Single axis, double blades |
Air pressure | 0.6-0.8Mpa |
Packaging size: | 3.2m*1.35m*1.50m |
Weight | 1600KG |
WS-L1530-4A Auto Tool Change CNC Wood Lathe With ATC working samples

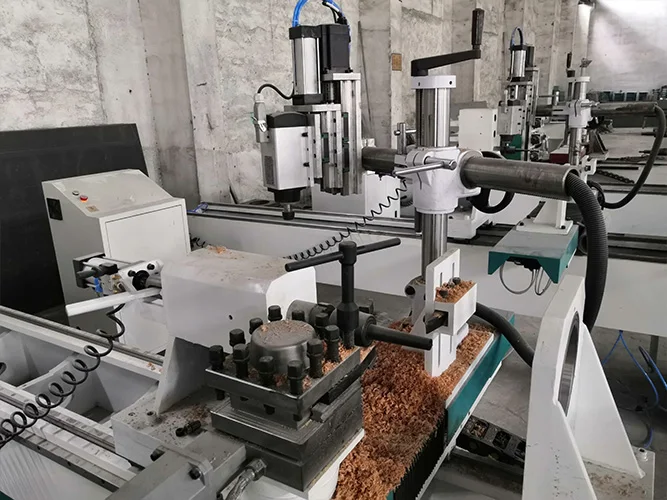

Auto Tool Change CNC Wood Lathe With ATC
Various of cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.
Auto Tool Change CNC Wood Lathe With ATC
1. Max turning diameter can be 300mm, length 1500mm, 2000mm or 2500mm.
2. Wholly cast iron lathe bed, which is high temperature annealing and vibrating stress relief, stabilized and will not be deformed forever.
3. Adopt Taiwan TBI ball screw and Taiwan Hiwin Square guide rail with high precision and long lifetime.
4. Big torque stepper motor and Yako driver guarantee wood turning with fast speed.
5. The Machine has 2 cutters at two sides of the machine, (the rough turning cutter and finish turning cutter work synchronously with layered process) and so that improve the efficiency and workpiece surface quality.
Easy operation, support CAD software, transfer .dxf files to machine by USB directly.
2. Wholly cast iron lathe bed, which is high temperature annealing and vibrating stress relief, stabilized and will not be deformed forever.
3. Adopt Taiwan TBI ball screw and Taiwan Hiwin Square guide rail with high precision and long lifetime.
4. Big torque stepper motor and Yako driver guarantee wood turning with fast speed.
5. The Machine has 2 cutters at two sides of the machine, (the rough turning cutter and finish turning cutter work synchronously with layered process) and so that improve the efficiency and workpiece surface quality.
Easy operation, support CAD software, transfer .dxf files to machine by USB directly.

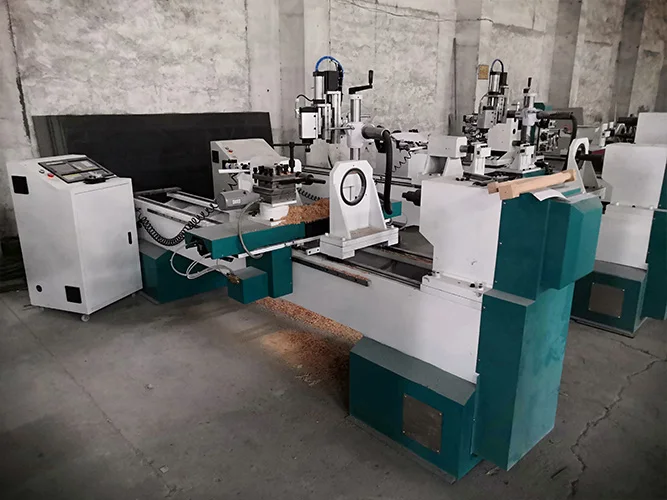

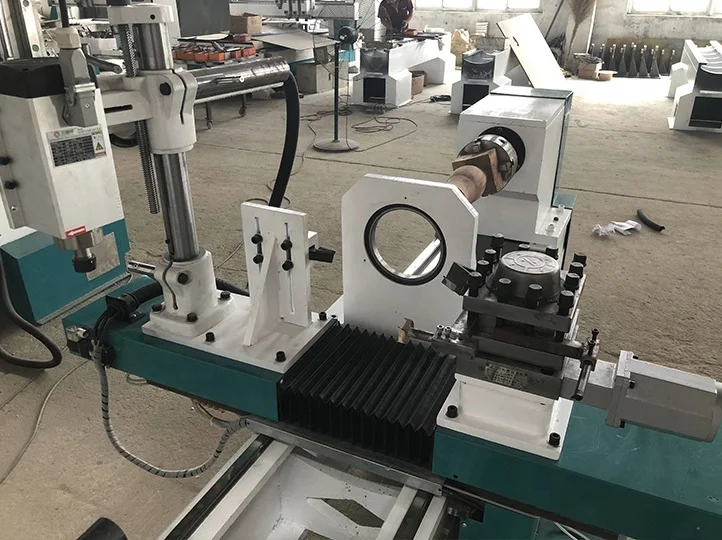

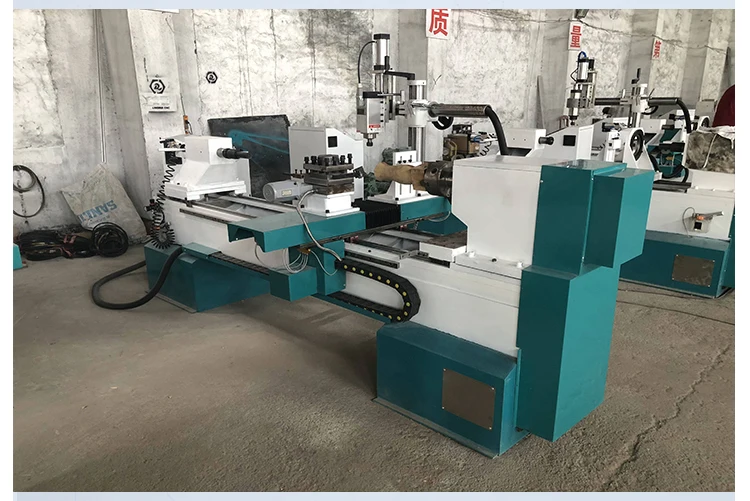

Detailed Images
Related Products
Packing&Shipping
After Sales Service
1. We will supply the whole day on-line service to foreign customers. According to foreign customer's requirement, we will arrange
technicians go abroad to install or maintain the machine.
2. Within warranty period and the machine parts damage under normal using condition, we will offer new ones for replacement.
3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the warranty period.
4.Our company will research the staffs service attitude aperiodically to improve the service satisfaction.
technicians go abroad to install or maintain the machine.
2. Within warranty period and the machine parts damage under normal using condition, we will offer new ones for replacement.
3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the warranty period.
4.Our company will research the staffs service attitude aperiodically to improve the service satisfaction.
Company Introduction
Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer of CNC router machine (Wood working CNC router, advertising CNC router, stone engraving machine, 5 axis CNC machine, 4 axis CNC machine and CNC wood lathe), CNC laser machine (laser cutting machine, laser engraving machine and laser marking machine), Plasma cutting machine and other CNC machines.
We whole-heartedly supply products with competitive price, excellent services and perfect solutions to all users in all kinds of industries. For decade of years development, our products have good market in more than 70 countries and regions. We have exported to Europe, Africa, Mid east, South America, North America, Oceania and Southeast Asia, etc.
With the expanded market, we create an unique marketing and brand promoting mode belonging to “WISDOMCNC”. We insist on the principle of “QUALITY MAKE THE BRAND, HONESTY WIN THE MARKET”, always emphasize on research and development. We sincerely hope to cooperate with customers from all over the world. Please contact us for more details.
Comments from our customer
FAQ
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2. Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
3. Q:What other things also need after we bought your machines?
A:With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
4. Q:How can i do if the machine goes wrong?
A:If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service .Please contact us ASAP and don’t try fix the machine by yourself or someone else.
We will response within 12 hours as quick as we can to solve it for you.
