Biodegradable plastic pellets machine corn starch plastic pellet making machine
Product name
100% biodegradable granule making machine
Processing material
PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives
Final product

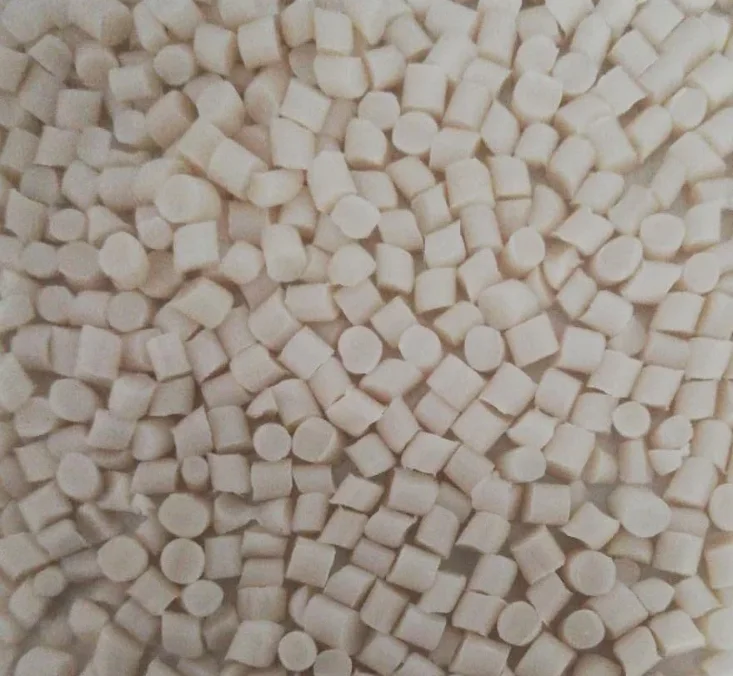

100% biodegradable granule
Application
Films, bags, plates, cups, straws, chopsticks,etc
Capacity
10~1000KG/H (We can provide any capacity model as per cutomers' need)
Certification
CE&ISO
Formula
Available (We have formulation, it can be provide to customers together with the machine)
Project
Turn-key project
Detailed Images

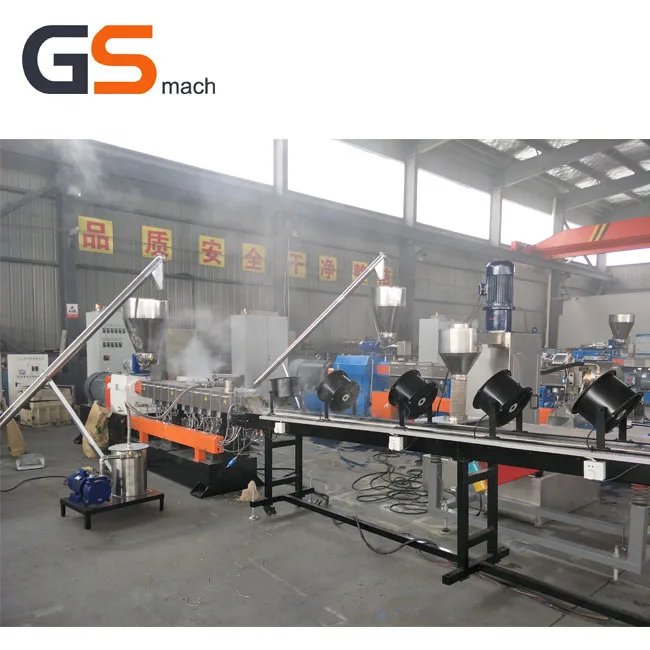

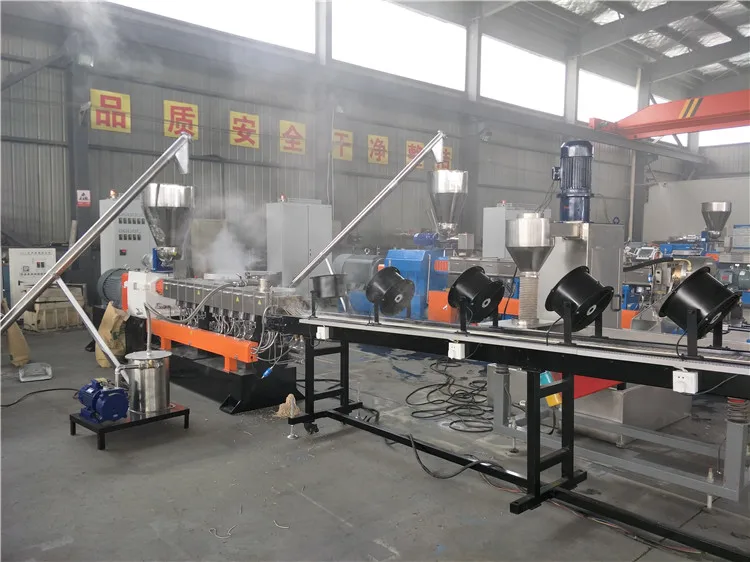

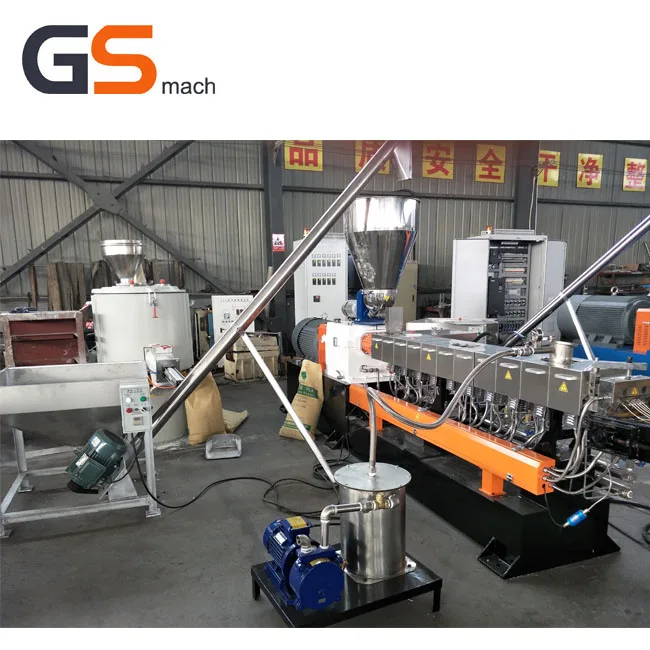

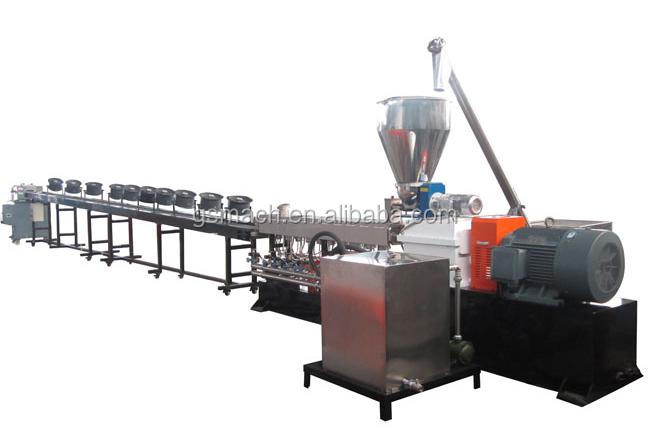

Machine configurations:

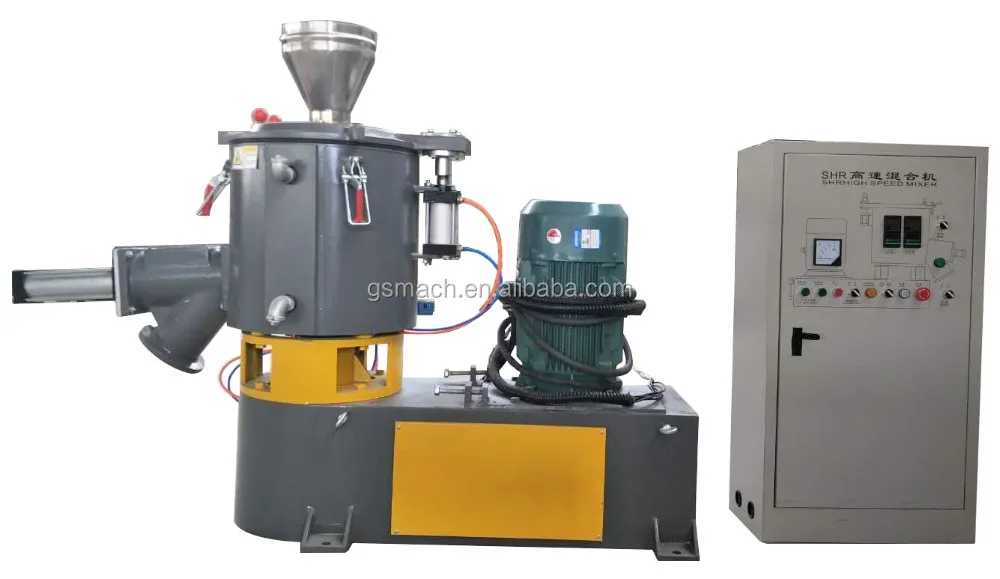

1. High speed mixer
2. Spiral screw loader

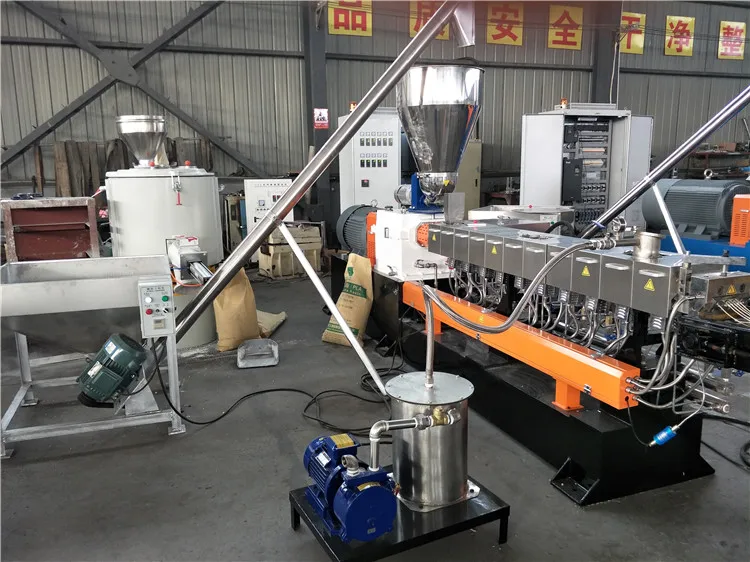

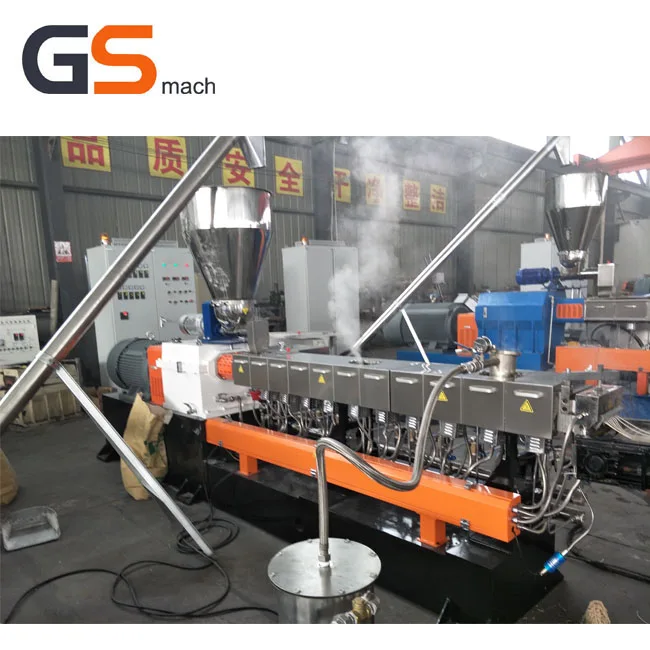

3. Twin screw extruder
---Main feeder
---Water cooling system
---Vacuum system

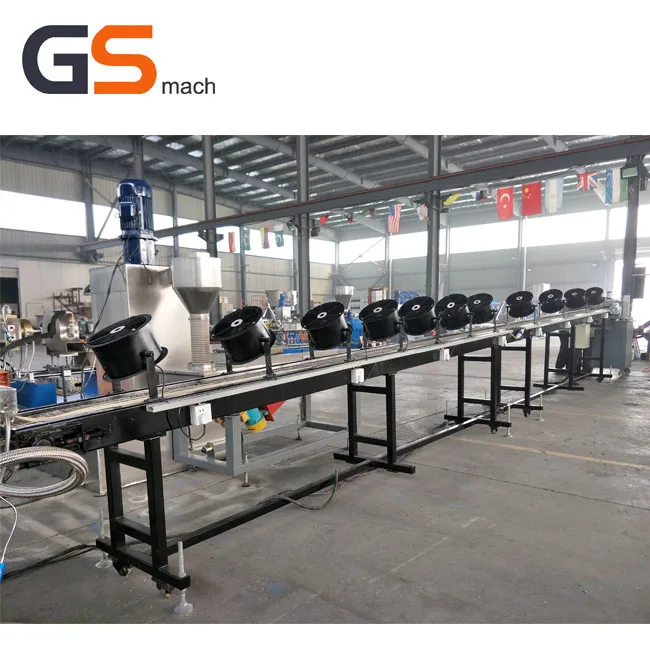

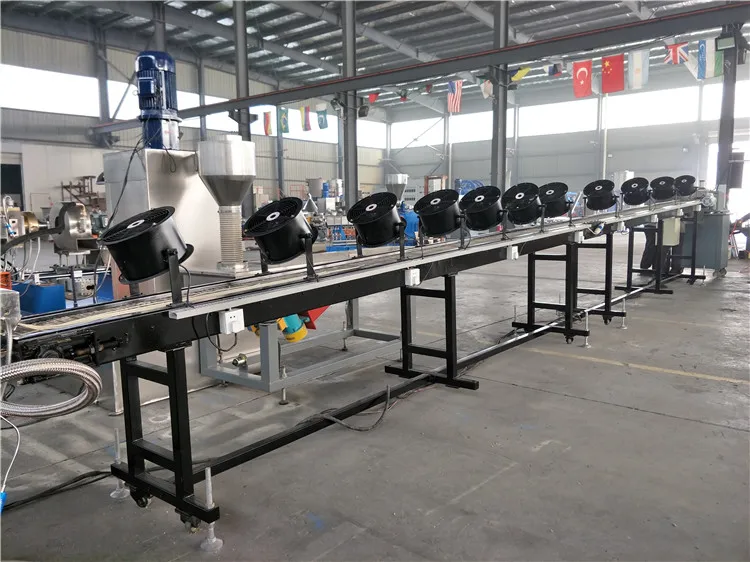

4. Fan cooling strand pelletizing system
---Conveying belt
---Pelletizer
Regarding this machine, we have several model for your choice as per different capacity's requests from customers.
Model/Parameter
GS20
GS35
GS50
GS65
GS75
GS95
Capacity
10-20
30-50
100-200
200-300
300-400
400-800
Main motor
4
45-22
37-65
45-75
75-160
132-250
Screw diameter
21
35.6
50.5
62.4
71
93
L/D
28-40
28-48
28-64
28-64
28-64
28-64
Rotate speed(rpm)
0-600
0-600
0-600
0-600
0-600
0-600
Screw material
bi-metal
bi-metal
bi-metal
bi-metal
bi-metal
bi-metal
Screw hardness
HRC65-70
HRC65-70
HRC65-70
HRC65-70
HRC65-70
HRC65-70
Shaft core material
40CrNiMoA
40CrNiMoA
40CrNiMoA
40CrNiMoA
40CrNiMoA
40CrNiMoA
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Packing & Delivery
Packaging
Size
18000 (L) * 5000 (W) * 3500 (D)
Weight
6 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
