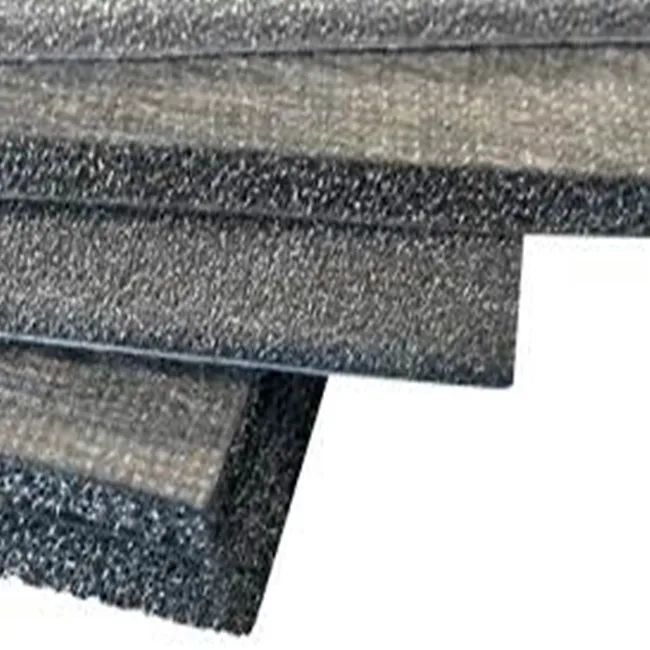

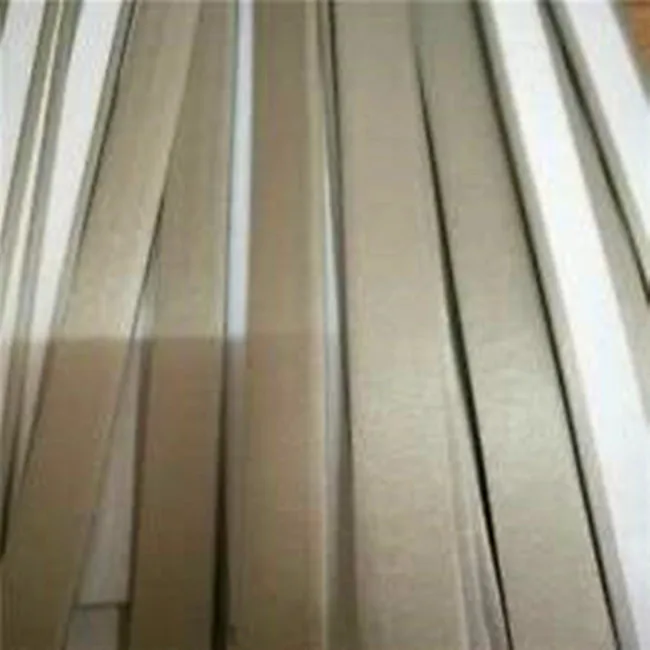

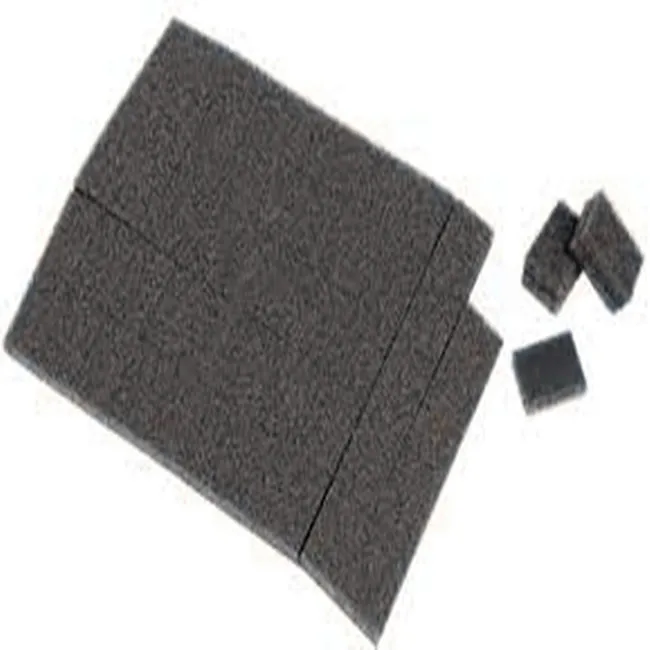

electrical conductive RF shielding foam gasket

Product Overview

Description

Foam gasket with conductive adhesive tape

Product Description

• Product features for foam gasket with conductive adhesive tape

   1. Compact conductive fibers, no sharp edges

   2. Good elasticity and consistency

   3. Conductive adhesive

   4. Low surface contact resistance

   5. Shielding performance will not reduce after 10,000 times friction

   6. Thin section suitable for I/O and D- subminiature lining

   7. Could be used to ground connection



• Specification for foam gasket with conductive adhesive tape

Name	foam gasket with conductive tape
Shielding effectiveness	60-80dB/30MHz-1GHz
Surface resistance	<0.07ohms/sq inch
Permanent deformation	< 10%
Temperature range	-10~110°c
Flammability	UL 94(HF-1)
Compression	30-50%



• Application for foam gasket with conductive adhesive tape

  Widely used in electronic box,case,interior chassis, industrial equipment,

  notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

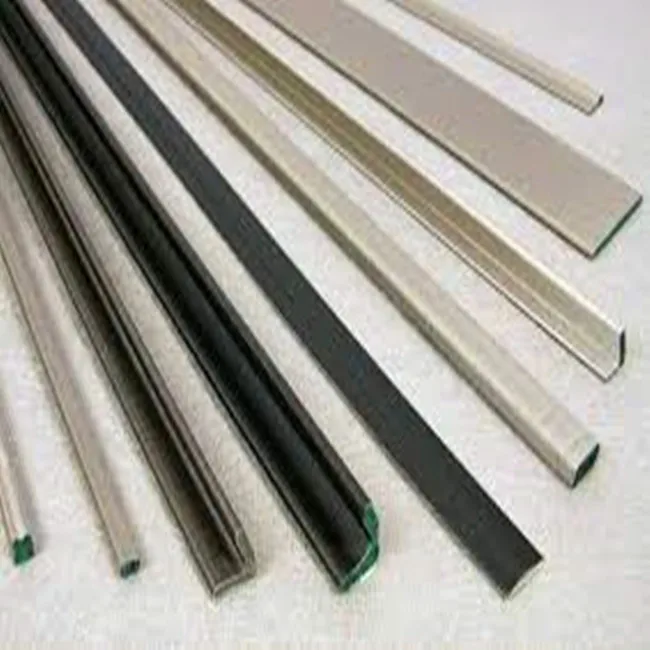

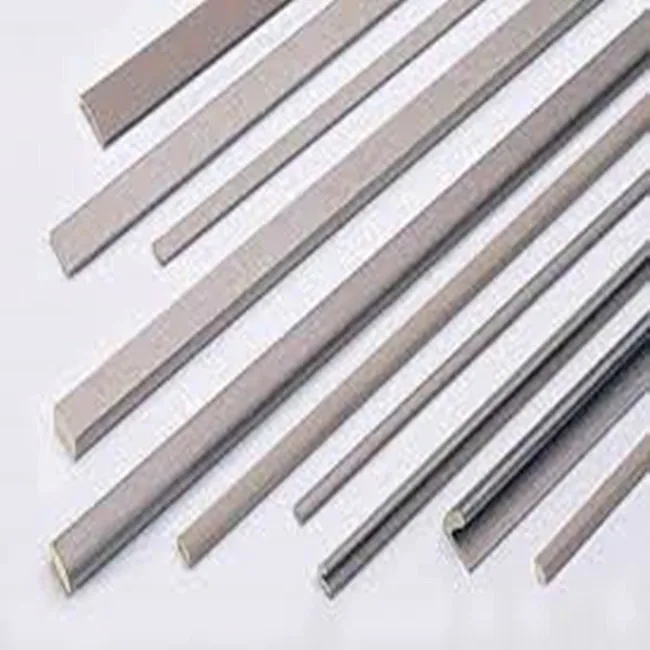

• Type for foam gasket with conductive adhesive tape

  “V” type

  “D” type

  Rectangle type

  Customized accept





• Other information for conductive foam gasket with adhesive

Foam gasket
MOQ	50M
Delivery time	5-7days
Payment Terms	T/T, Paypal, Western Union
Longest dimension cut	1.22m/pcs
Place of region	China
