4mA~20mA/0~24V Adjustable Analog Current Voltage Multi functional Signal Generator with Real time Curve Historical Record
- Category: Signal Generators >>>
- Supplier: Shenzhen Chenzhou Technology Co. ltd.
Share on (62356308170):
Product Overview
Description
SG-004A Signal Generator

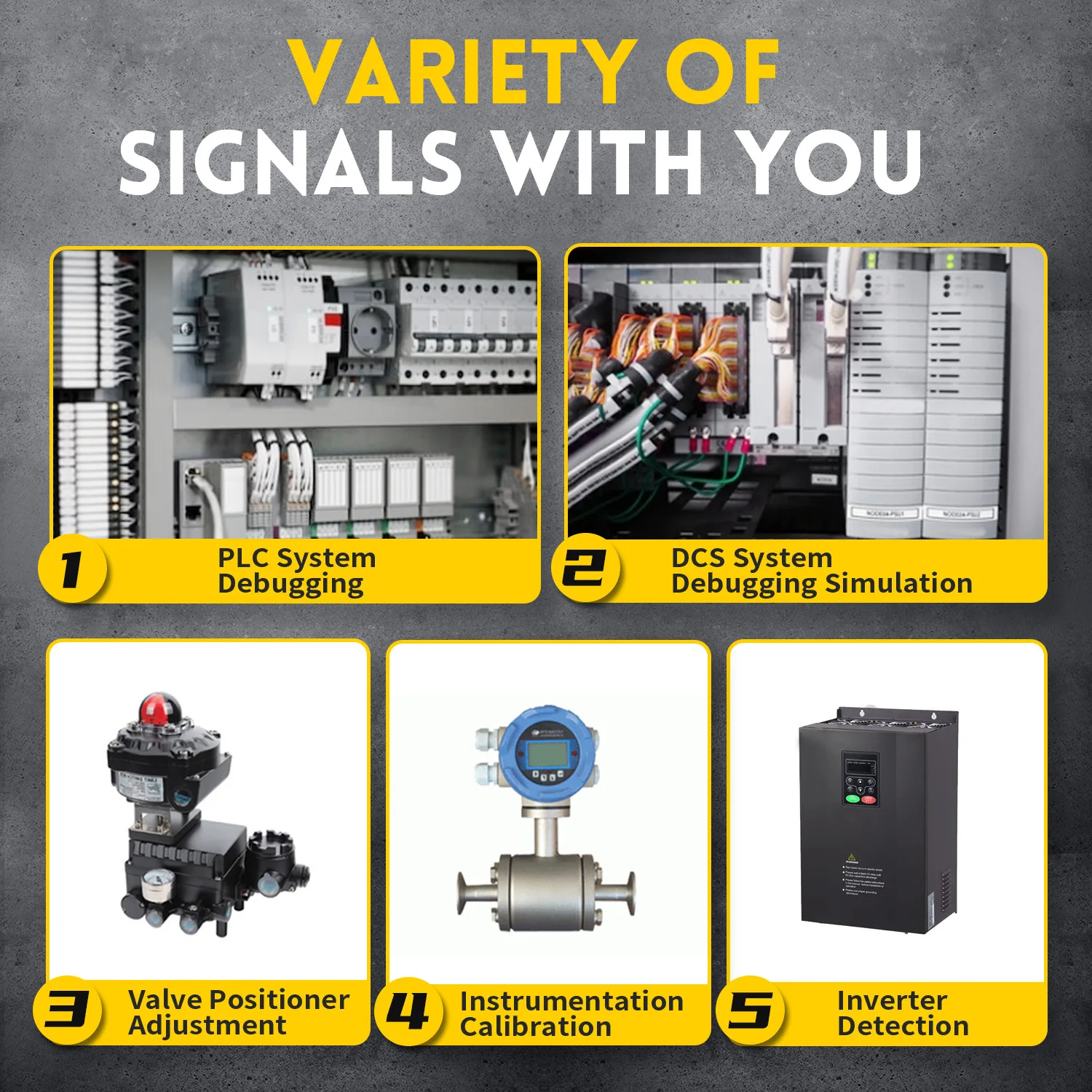

·The signal generator is suitable for a variety of working conditions,and can perform PLC system debugging,DSC system debugging simulation,valve positioner adjustment,instrument testing and calibration,and inverter testing.
·Real-time curve display,you can display the change trend of input and output signals through the curve,can record up to 100,000 or 15 sets of data,the frequency of input and output is 0-9999HZ,0.2% high-precision test.

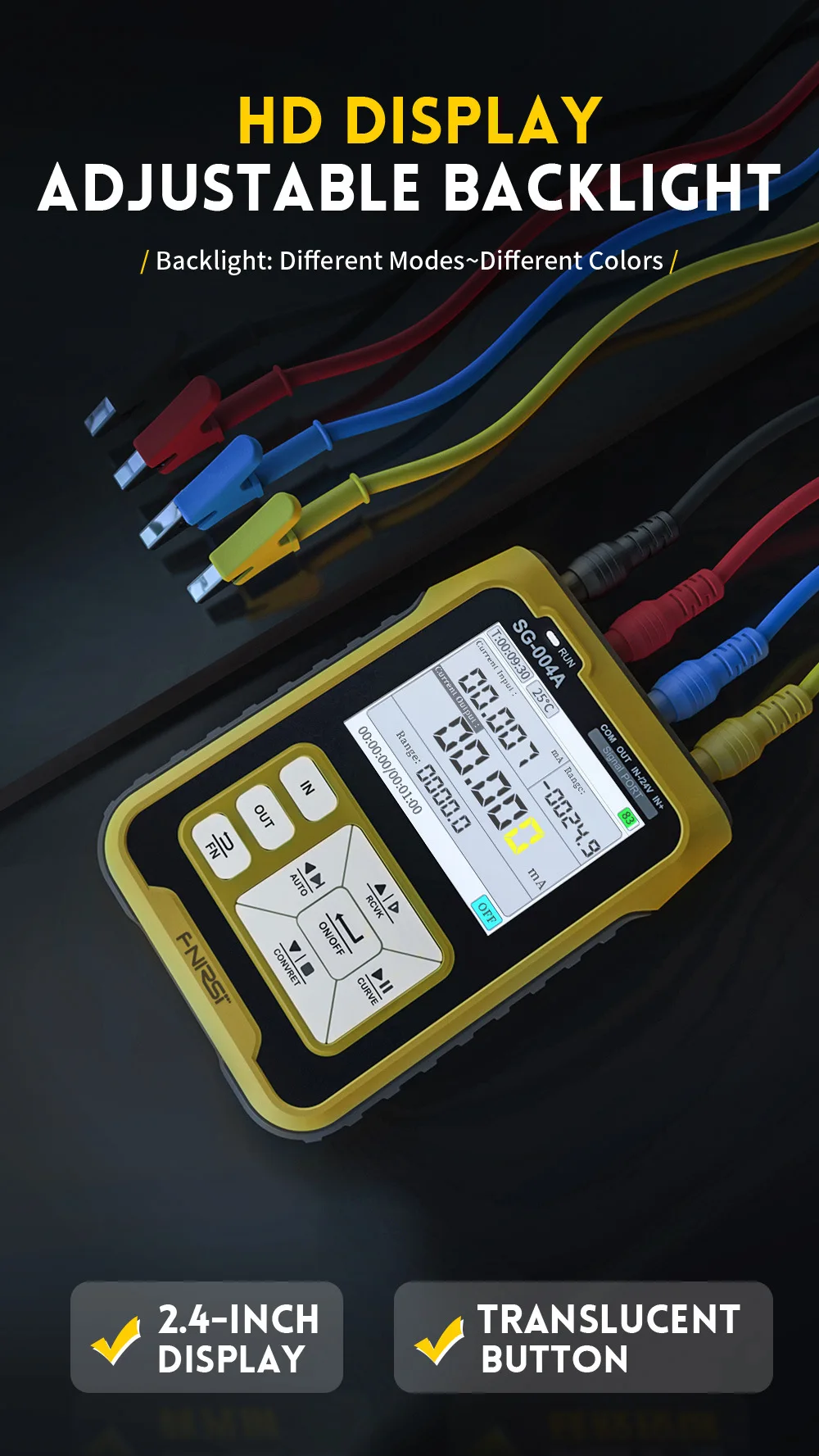

·High-definition color screen backlight display,2.4-inches TFT LCD screen with backlight for clear reading,the color of the button backlight will be different in different modes.
·Only the size of a palm,light and portable,you can put it in your backpack at any time,long-term standby power,built-in 3000mAh lithium battery,can standby for a long time for 24 hours,the top right of the screen can display the remaining power,suitable for Type C The charging port is convenient to carry out.
·The fuselage is made of ABS hard shell,and the product is surrounded by an integrated non-slip silicone, so the product is not easy to be broken.
·Real-time curve display,you can display the change trend of input and output signals through the curve,can record up to 100,000 or 15 sets of data,the frequency of input and output is 0-9999HZ,0.2% high-precision test.
·High-definition color screen backlight display,2.4-inches TFT LCD screen with backlight for clear reading,the color of the button backlight will be different in different modes.
·Only the size of a palm,light and portable,you can put it in your backpack at any time,long-term standby power,built-in 3000mAh lithium battery,can standby for a long time for 24 hours,the top right of the screen can display the remaining power,suitable for Type C The charging port is convenient to carry out.
·The fuselage is made of ABS hard shell,and the product is surrounded by an integrated non-slip silicone, so the product is not easy to be broken.
【Conversion Of Engineering Quantity Display】
Signals are displayed as physical or engineering (ie pure quantity) values,The physical quantity corresponds linearly with the engineering quantity.For example: the current signal of 4mA~20mA corresponds to 0~100,that is,4mA corresponds to 0,12mA corresponds to 50,and 20mA corresponds to 100.This range can be modified by parameters.
【Signal Conversion】
The input signal is converted into an output signal,which can be converted between different physical quantities; for example: the input frequency signal is converted into a current signal,and the input range is 0~1000Hz into 4mA~20mA.
【Programming Output】
It has the output function of automatically and continuously changing the size according to the setting parameters, and can choose three modes: monotonous rise, monotonous fall and cycle.
【 Real-time Curve】
The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.It can also automatically adjust the display curve within the range of the maximum and minimum values within a certain period of time.
【History Record & Firmware Upgrade】
Record and view a certain amount of historical data.Support USB emulated U disk for firmware upgrade.
【Preset Value】
4 groups of commonly used signal values can be preset to facilitate quick adjustment of output.
【Modbus Slave】
SG-004A can communicate with configuration software or PLC via RS485,set the instrument.
Signals are displayed as physical or engineering (ie pure quantity) values,The physical quantity corresponds linearly with the engineering quantity.For example: the current signal of 4mA~20mA corresponds to 0~100,that is,4mA corresponds to 0,12mA corresponds to 50,and 20mA corresponds to 100.This range can be modified by parameters.
【Signal Conversion】
The input signal is converted into an output signal,which can be converted between different physical quantities; for example: the input frequency signal is converted into a current signal,and the input range is 0~1000Hz into 4mA~20mA.
【Programming Output】
It has the output function of automatically and continuously changing the size according to the setting parameters, and can choose three modes: monotonous rise, monotonous fall and cycle.
【 Real-time Curve】
The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.It can also automatically adjust the display curve within the range of the maximum and minimum values within a certain period of time.
【History Record & Firmware Upgrade】
Record and view a certain amount of historical data.Support USB emulated U disk for firmware upgrade.
【Preset Value】
4 groups of commonly used signal values can be preset to facilitate quick adjustment of output.
【Modbus Slave】
SG-004A can communicate with configuration software or PLC via RS485,set the instrument.
Program Extension Functions:
·Programming automatic lifting output
·History viewing
·Preset output
·Signal linear conversion output
·Real time curve
·Output timing
·USB analog serial communication
·USB analog USB flash drive firmware upgrade
Technical Parameters | ||||||
Item | Range | Resolution | Notes | |||
Active Current Output | 0~24mA | 0.01mA | Maximum Load: 750Ω Precision:±(0.1%+0.005) | |||
Passive Current Output | 0~24mA | 0.01mA | External Power Supply Up to 30V Precision:±(0.1%+0.005) | |||
Voltage Output | 0~24V | 0.01V | Maximum Current 30mA Precision:±(0.1%+0.005) | |||
24V Voltage Output | / | / | Drive Current:24mA Resolution:0.01 mA Precision:±(0.1%+0.005) | |||
Current Input Measurement | 0~24mA | 0.01mA | Input impedance:100Ω Precision:±(0.1%+0.05) | |||
Voltage Input Measurement | 0~30V | 0.01V | Input Impedance:2MΩ Precision:±(0.1%+0.05) | |||
PWM Output (Frequency) | 0~9999Hz | / | / | |||
