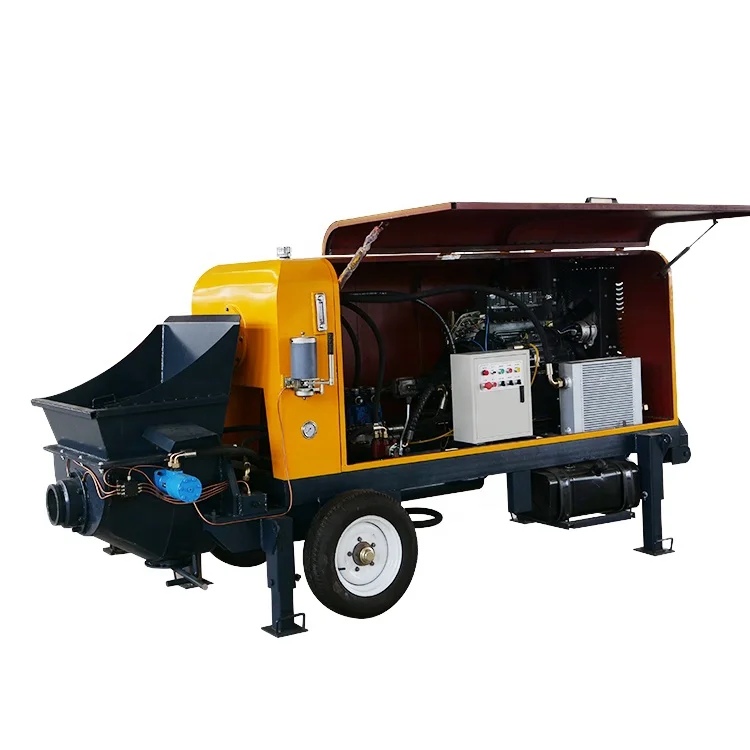

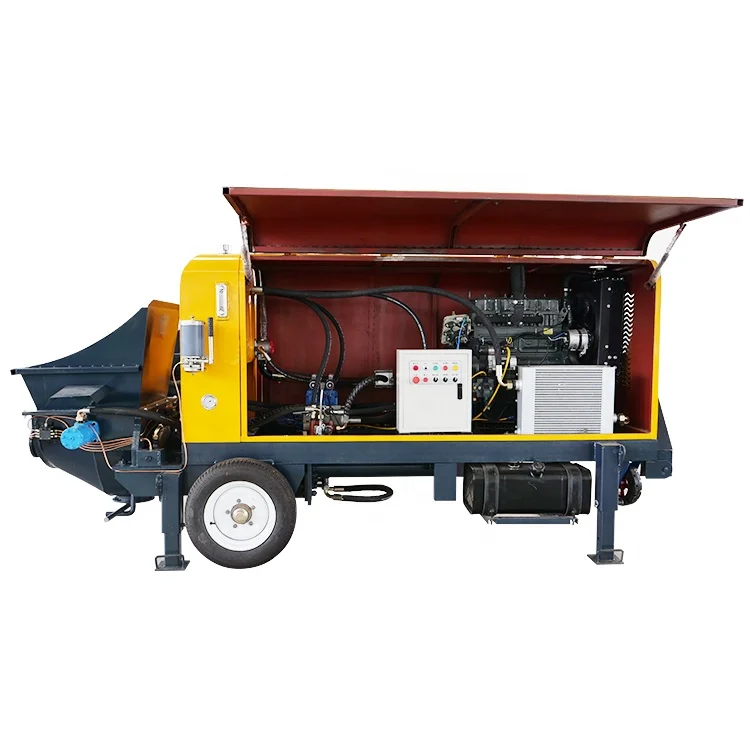

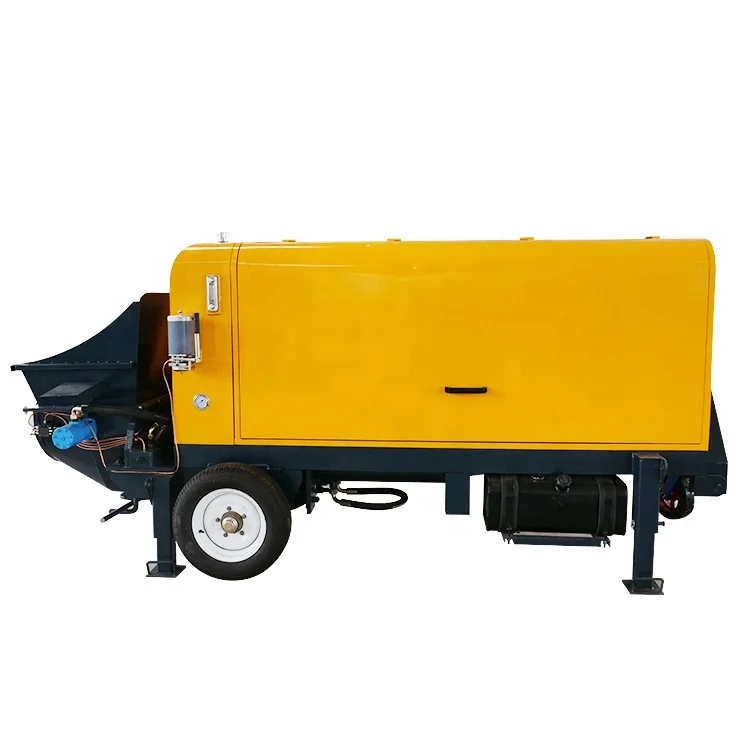

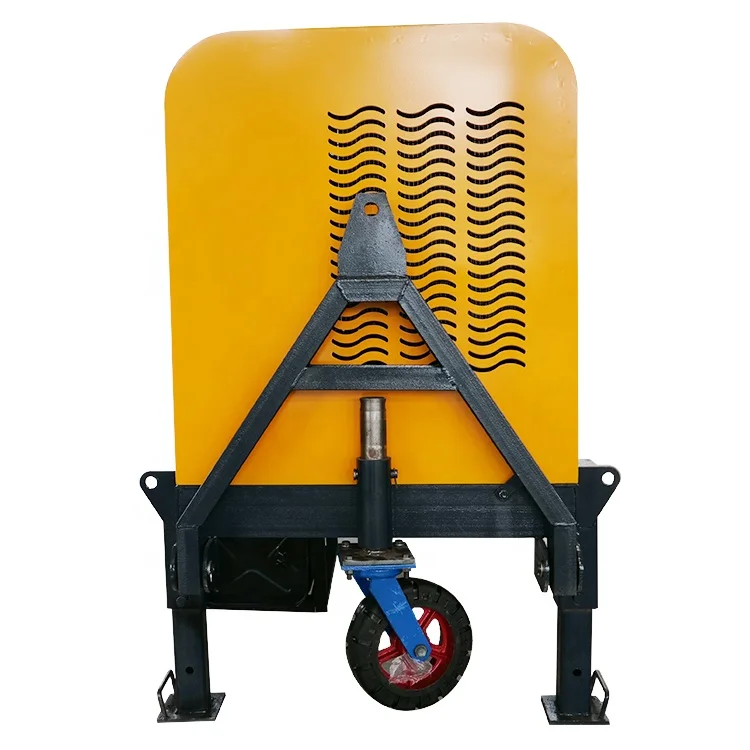

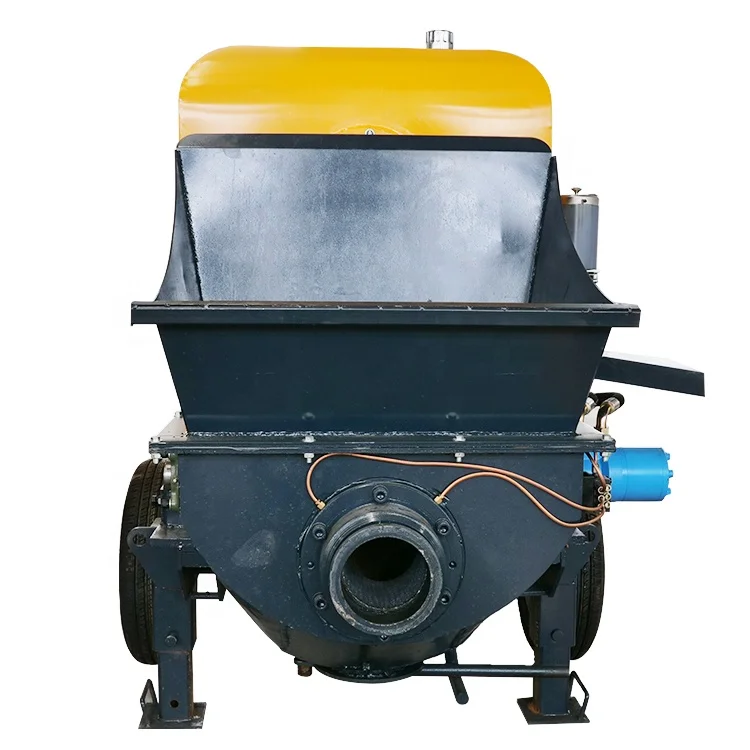

Diesel Pequeno bombas de concreto Maquina concrete pump
- Category: Concrete Pumps >>>
- Supplier: Xingtai Bailun Machinery Manufactor Co. Ltd.
Share on (62356642307):
Product Overview
Description
Diesel engine construction concrete mixer pumps for 30mm material
1. Adopt famous brand diesel equipment, with strong power, eliminate difficulties in electricity use and trouble of unstable
voltage.
2. Adopt the advanced hydraulic sequence valve reversing system, no need electrical signals participation, high reversing
smoothness, low impact force, improve the service life of the equipment.
3. equipped with omni-directional hydraulic automatic lubrication system to ensure the service life of rotating parts.
voltage.
2. Adopt the advanced hydraulic sequence valve reversing system, no need electrical signals participation, high reversing
smoothness, low impact force, improve the service life of the equipment.
3. equipped with omni-directional hydraulic automatic lubrication system to ensure the service life of rotating parts.
4. Hydraulic system adopts advanced high pressure filtration technology to improve the stability and high transmission efficiency.
5. Electric system adopts Japanese mitsubishi electric components to improve the reliability of electrical control.
6. Adopt high strength hydraulic motor cooling system, good cooling effect, improve work efficiency
5. Electric system adopts Japanese mitsubishi electric components to improve the reliability of electrical control.
6. Adopt high strength hydraulic motor cooling system, good cooling effect, improve work efficiency
No. | ITEM | UNIT | BLM-CP30D | BLM-CP40D | BLM-CP50D |
1 | Aggregate sizes | mm | ≤30 | ≤40 | ≤40 |
2 | Capacity | m³/h | 15-18 | 20-25 | 30-40 |
3 | Vertical transport distance | m | 70mts | 110mts | 150mts |
4 | Horizontal transport distance | m | 220mts | 320mts | 360mts |
5 | Hopper height | mm | 1100 | 1100 | 1200 |
6 | Working pressure | mpa | 10 | 12.5 | 13 |
7 | Oil pump | - | 80 | 140 Kawasaki | 140 Kawasaki |
8 | Diesel engine | kw | 4102D 4cylinder (46kw) | 4105D 4cylinder (56kw) | 4108D 4cylinder (70kw) |
9 | Material cylinder dia | mm | 180 | ||
10 | Material cylinder stroke | mm | 1000 | ||
11 | Dimension | mm | 3640x1310x1680 | 3830x1600x1820 | 3900x1770x1830 |
12 | Total Weight | kg | 2000 | 3000 | 3500 |
13 | FOB TIANJIN PORT | USD |
